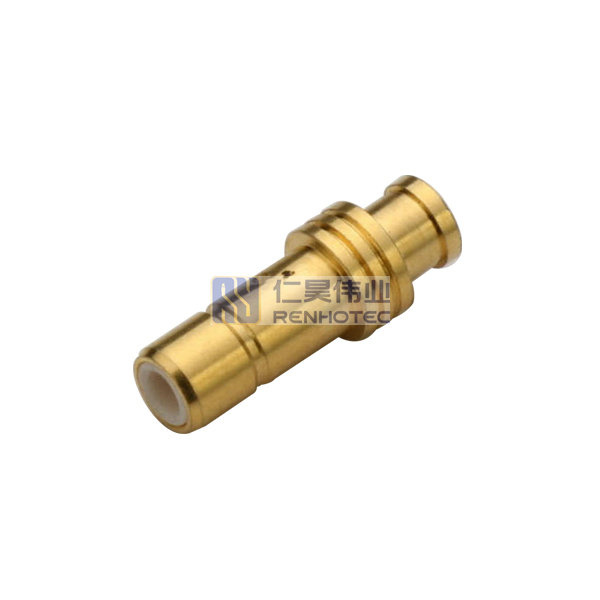

Products > RF Coaxial Connector > Coaxial ConnectorSMB Straight Male Female Pin Crimp Cable Type 50 Ohm
RHT-626-0209
Coaxial ConnectorSMB Straight Male Female Pin Crimp Cable Type 50 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality SMB straight male to female pin crimp coaxial connector with 50 Ohm impedance, ideal for various RF applications. Contact us for a quotation on RHT-626-0209.
GeneralMaterialMechanicalElectrical
General | |
---|---|
Connector Type | Jack |
Orientation | Straight |
Contact Type | Male Pin |
Number of Ports | 1 |
Feature | - |
Material | |
---|---|
Body Material | Copper Alloy |
Plating | Gold Plated |
Contact Material | Brass |
Contact Plating | Gold |
Mechanical | |
---|---|
Fastening Type | Snap on |
Termination | Solder |
Mounting Type | Cable Type |
Suitable Cable | SF085 |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency(max) | 4GHz |
