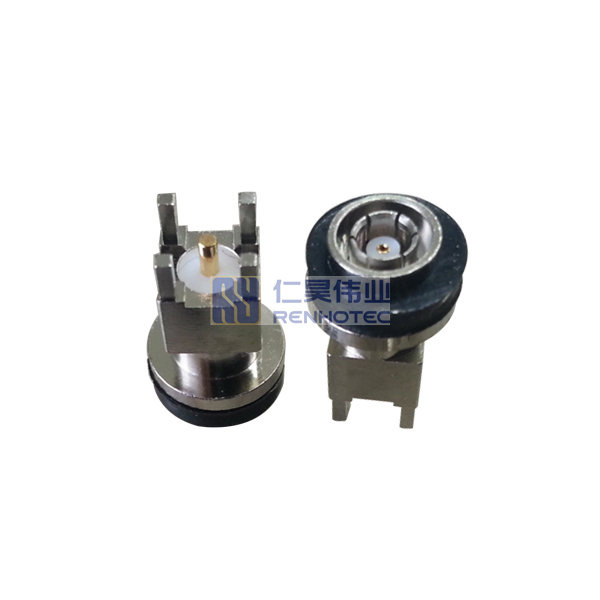

product image

RHT-626-0232

Coaxial ConnectorSMB Straight Jack Male Pin Panel Mount Edge Mount 50 Ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

RHT-626-0232 SMB Coaxial Connector, Straight Jack Male Pin Panel Mount Edge Mount, 50 Ohm, ideal for reliable signaling and high-speed data transmission. Contact us for a quotation.
GeneralMaterialMechanicalElectrical
General
Connector TypeMale
OrientationStraight
Contact TypeFemale Pin
Number of Ports1
Feature-
Material
Body MaterialCopper Alloy
PlatingNickel Plated
Contact MaterialBrass
Contact PlatingGold
Mechanical
Fastening TypeSnap on
TerminationSolder
Mounting TypePanel Mount
Mount FeatureThrough Hole
Suitable Cable-
Electrical
Impedance50 Ohms
Frequency(max)4GHz
