Products > RF Coaxial Connector > Coaxial Connector SMA Straight Jack Female Pin Panel Mount Two Flange 50 Ohm
DS806MPR100
Coaxial Connector SMA Straight Jack Female Pin Panel Mount Two Flange 50 Ohm- Overview
- Technical data
- Certification
- Download
Product excerpt

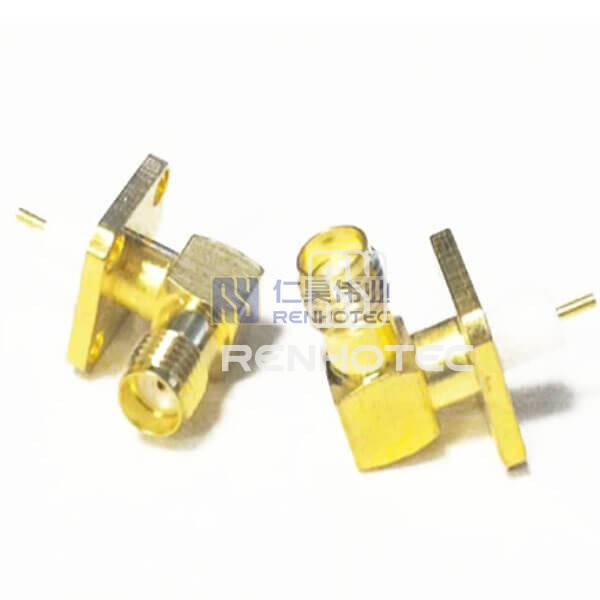

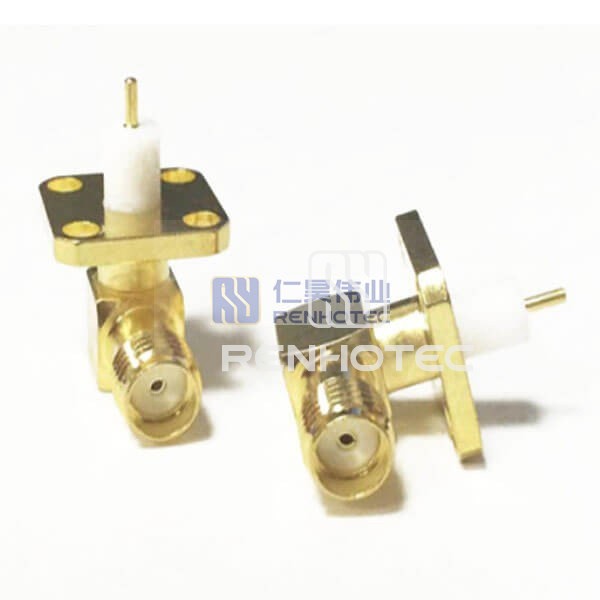

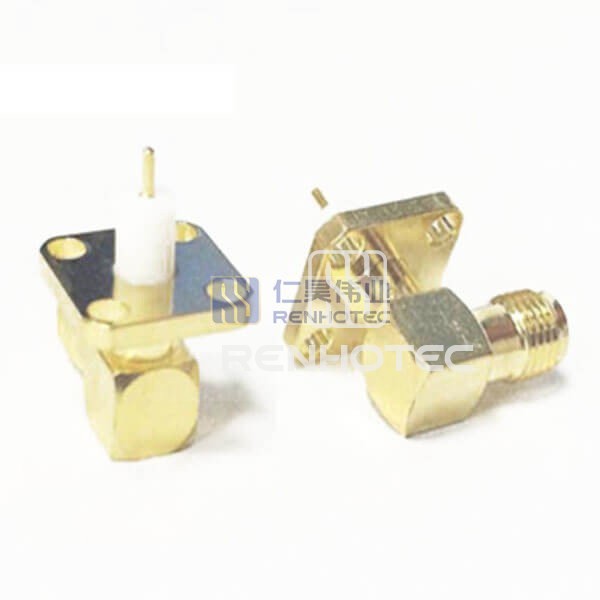

SMA Straight Jack Female Pin Coaxial Connector, 50 Ohm, Panel Mount with Two Flange, ideal for secure connections. Contact us for a custom quote on DS806MPR100.
GeneralMaterialMechanicalElectrical
General | |
---|---|
Connector Type | Jack |
Orientation | Right Angle |
Contact Type | Female Pin |
Feature | - |
Material | |
---|---|
Body Material | Copper Alloy |
Plating | Gold Plated |
Contact Material | Phosphor Bronze |
Contact Plating | Gold |
Mechanical | |
---|---|
Fastening Type | Threaded |
Termination | Solder |
Mounting Type | Panel Mount |
Mount Feature | Four Flange |
Suitable Cable | - |
Electrical | |
---|---|
Impedance | 50 Ohms |
