R02-B01-10117-100

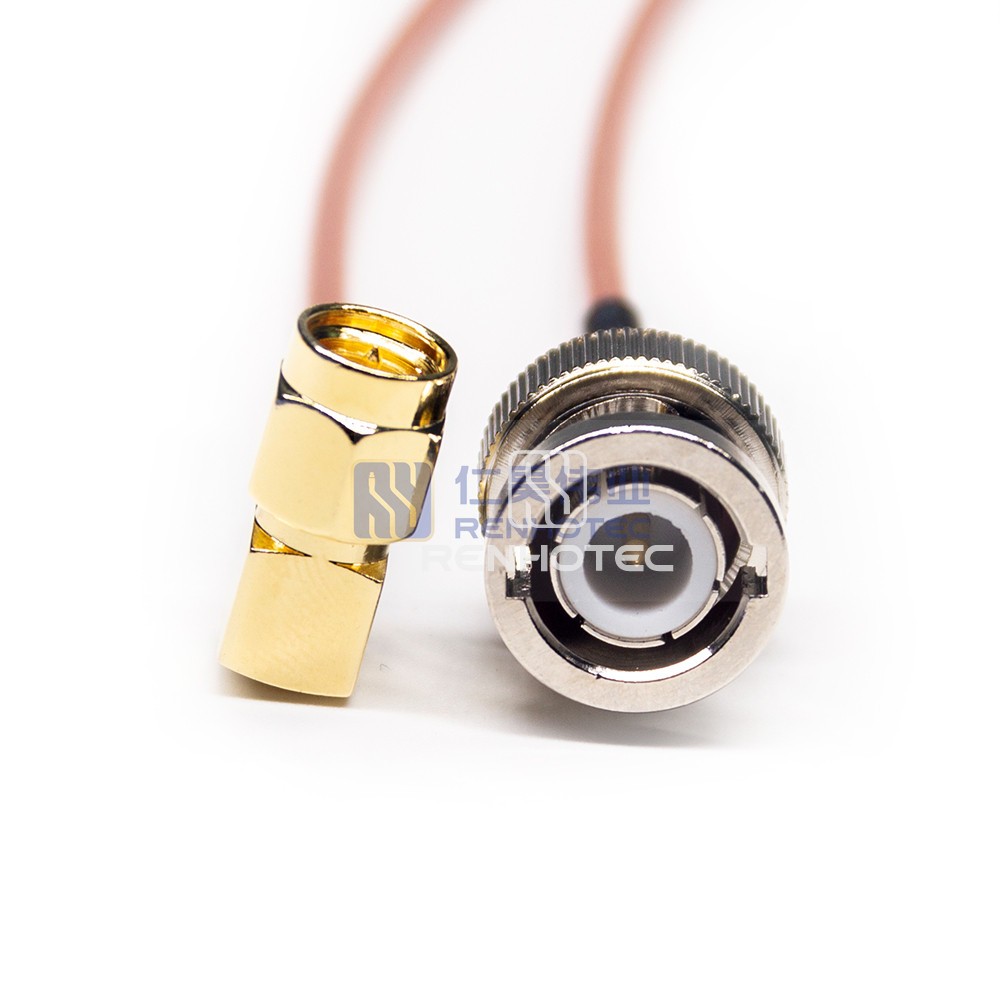

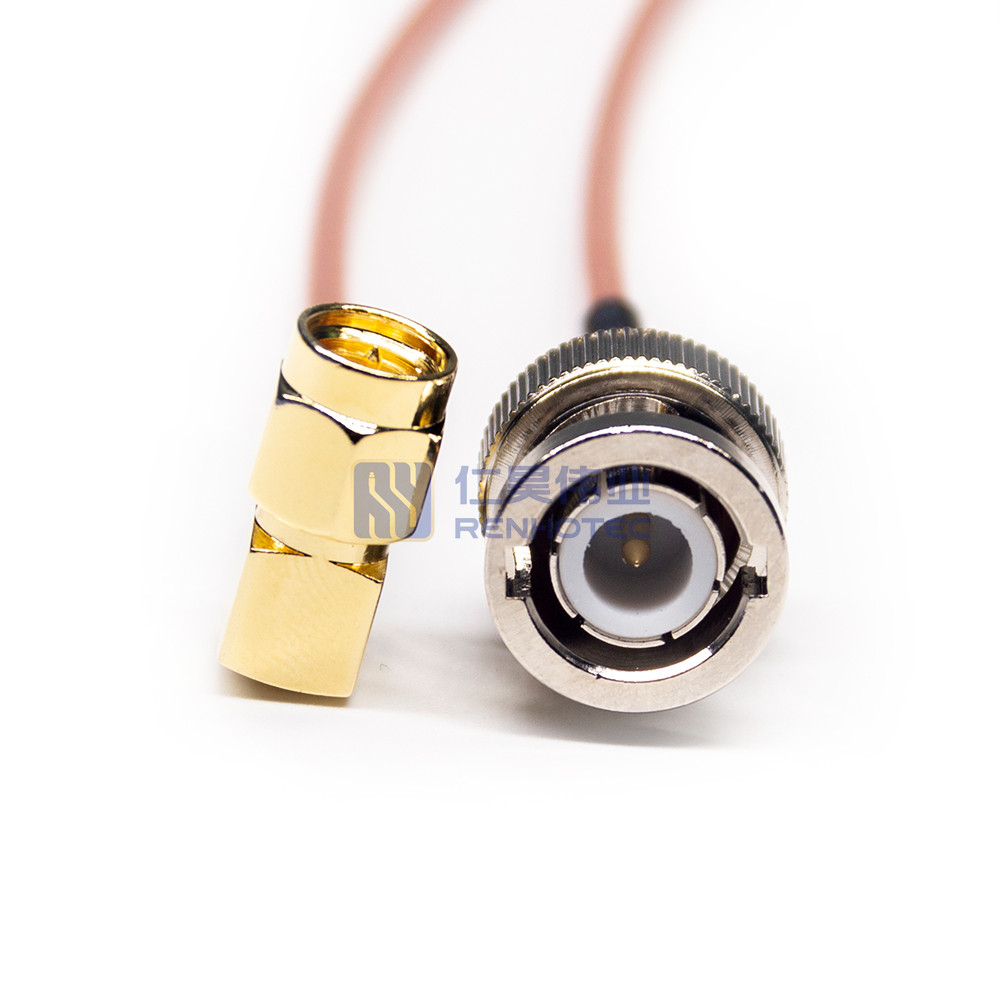

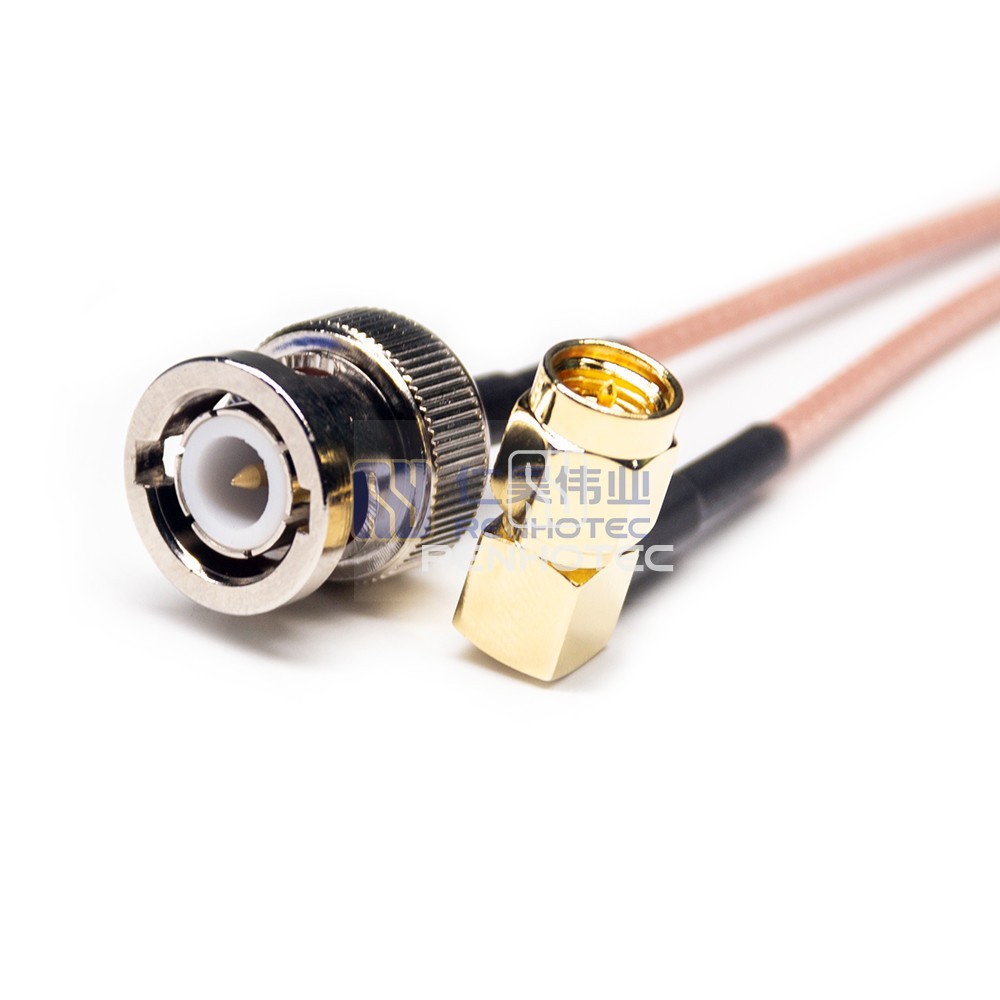

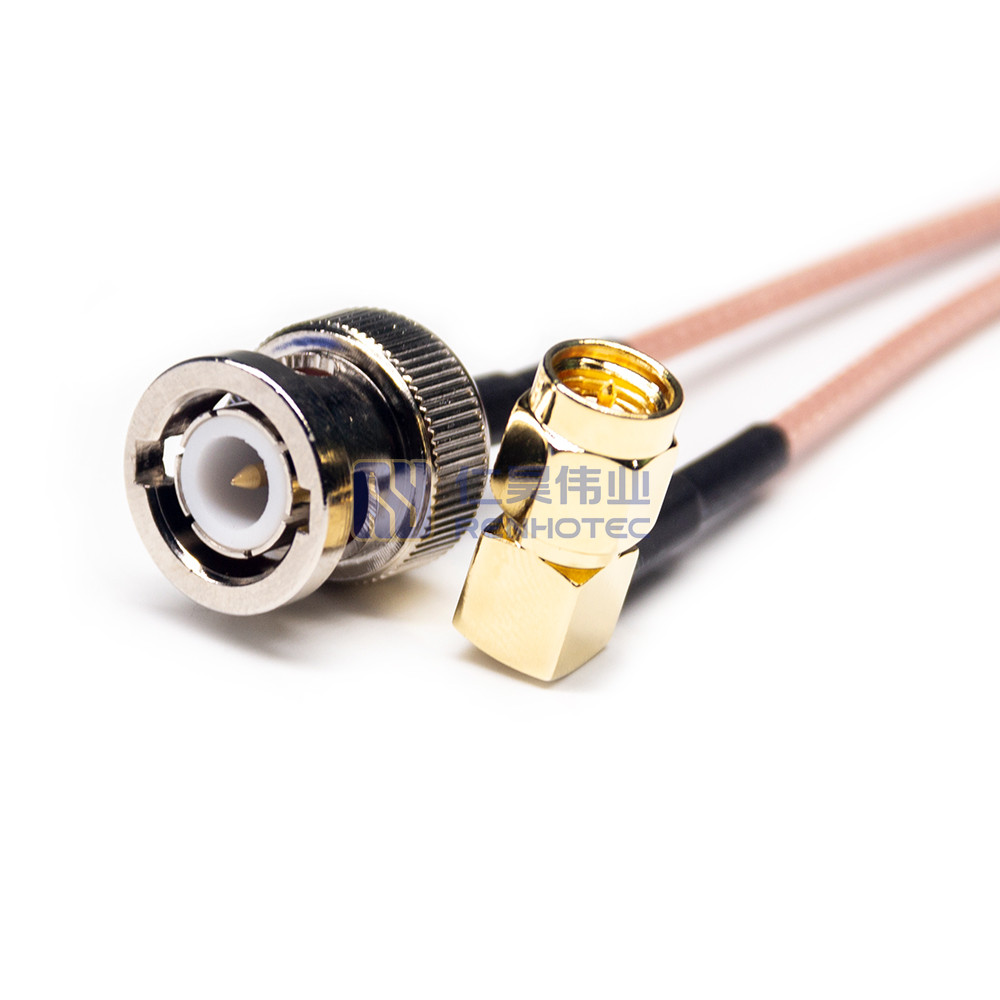

BNC Plug to Right Angle SMA Plug RF Pigtail Cable RG316 Cable 50ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Connect devices with ease using this BNC Plug to Right Angle SMA Plug RF Pigtail Cable RG316 Cable 50ohm. It ensures reliable signal transmission and is suitable for various RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMA Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
