R02-B01-10118-20

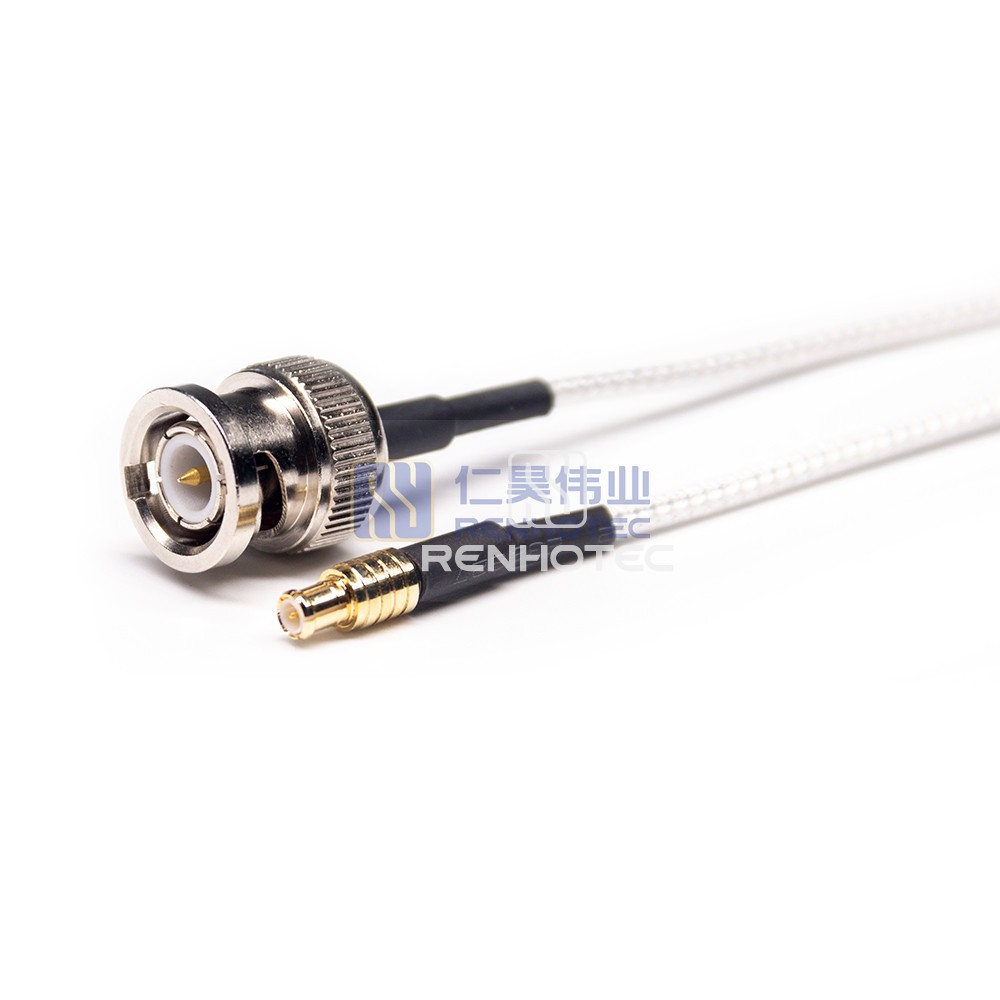

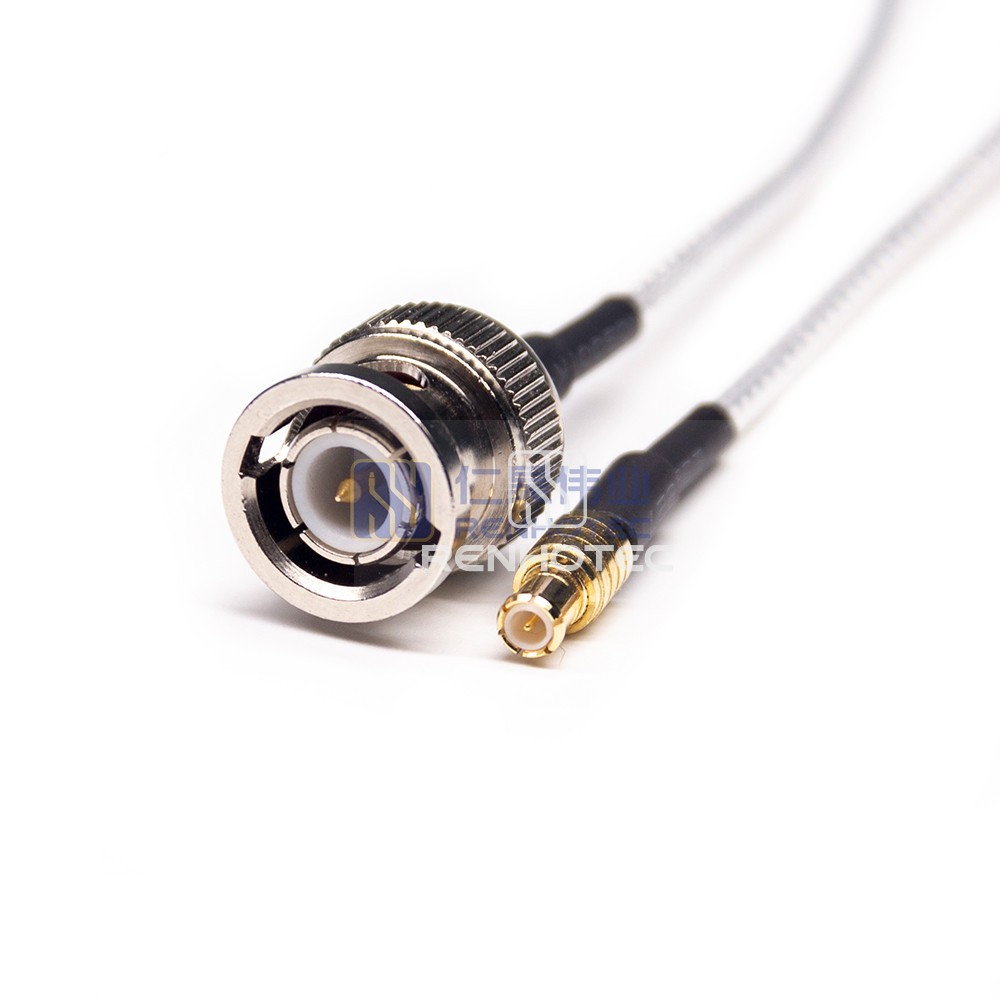

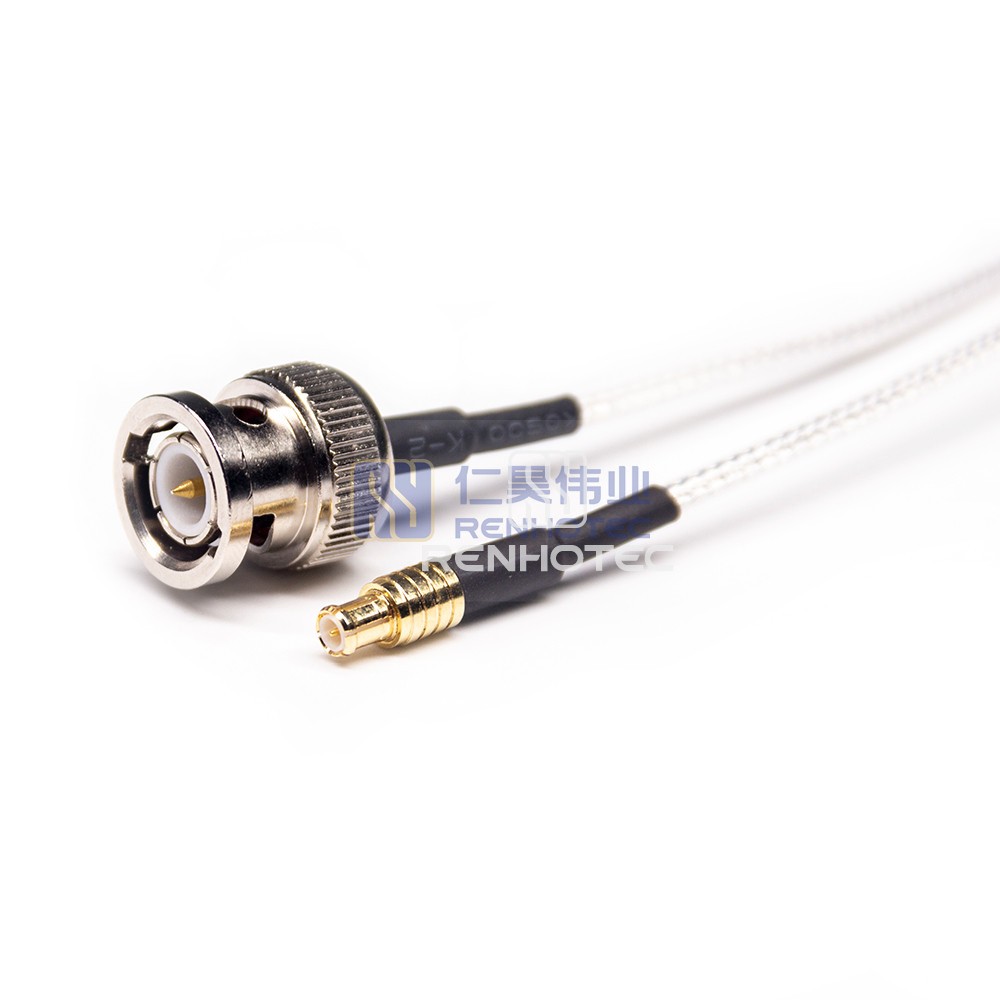

BNC Plug to MCX Plug RF Cable Assembly with 50 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Plug to MCX Plug RF Cable Assembly with 50 Ohm RG316 Coax. Ideal for connecting RF devices.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
