R02-B01-10139-10

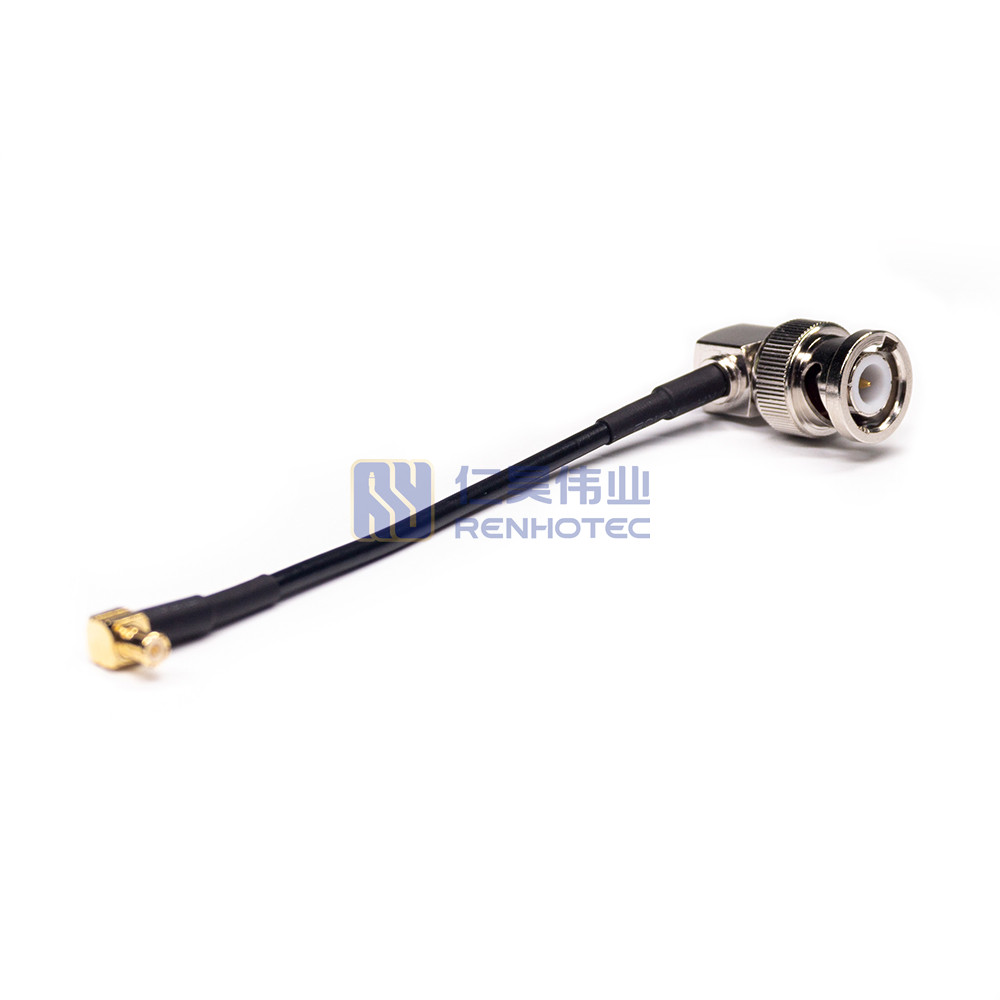

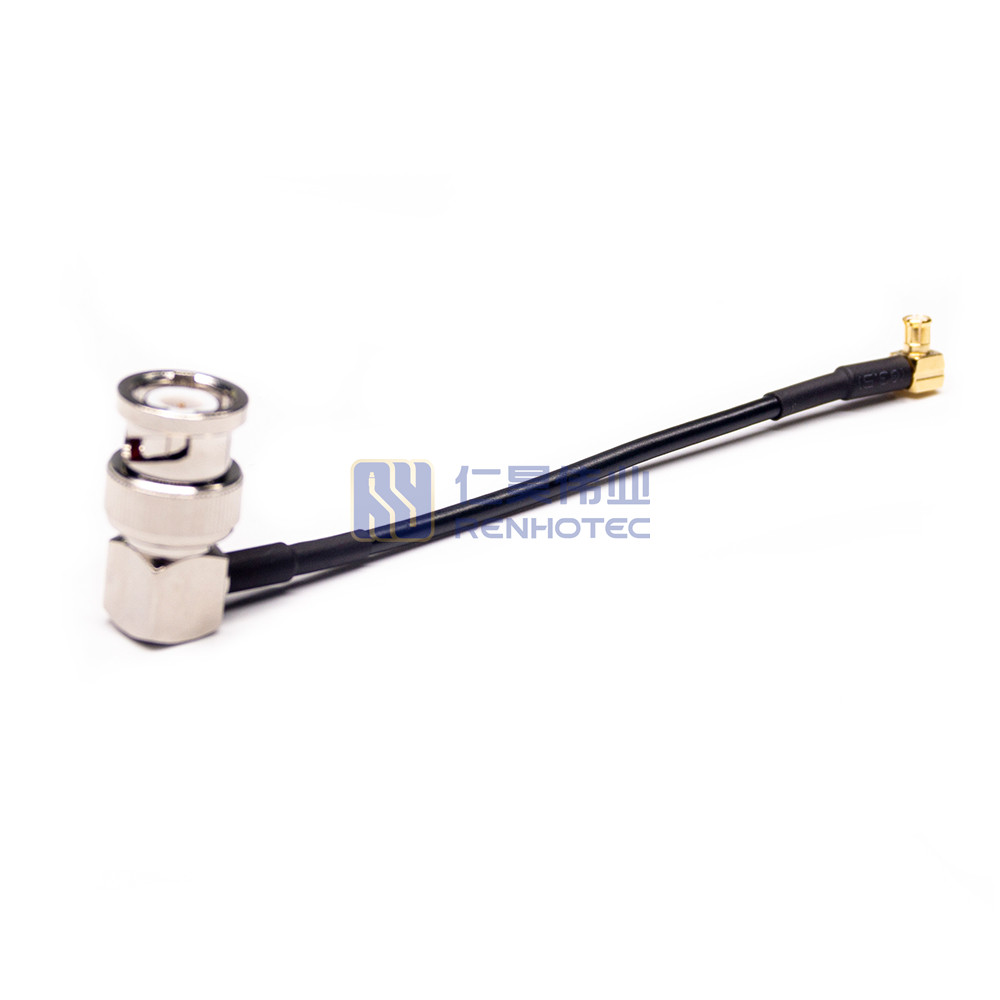

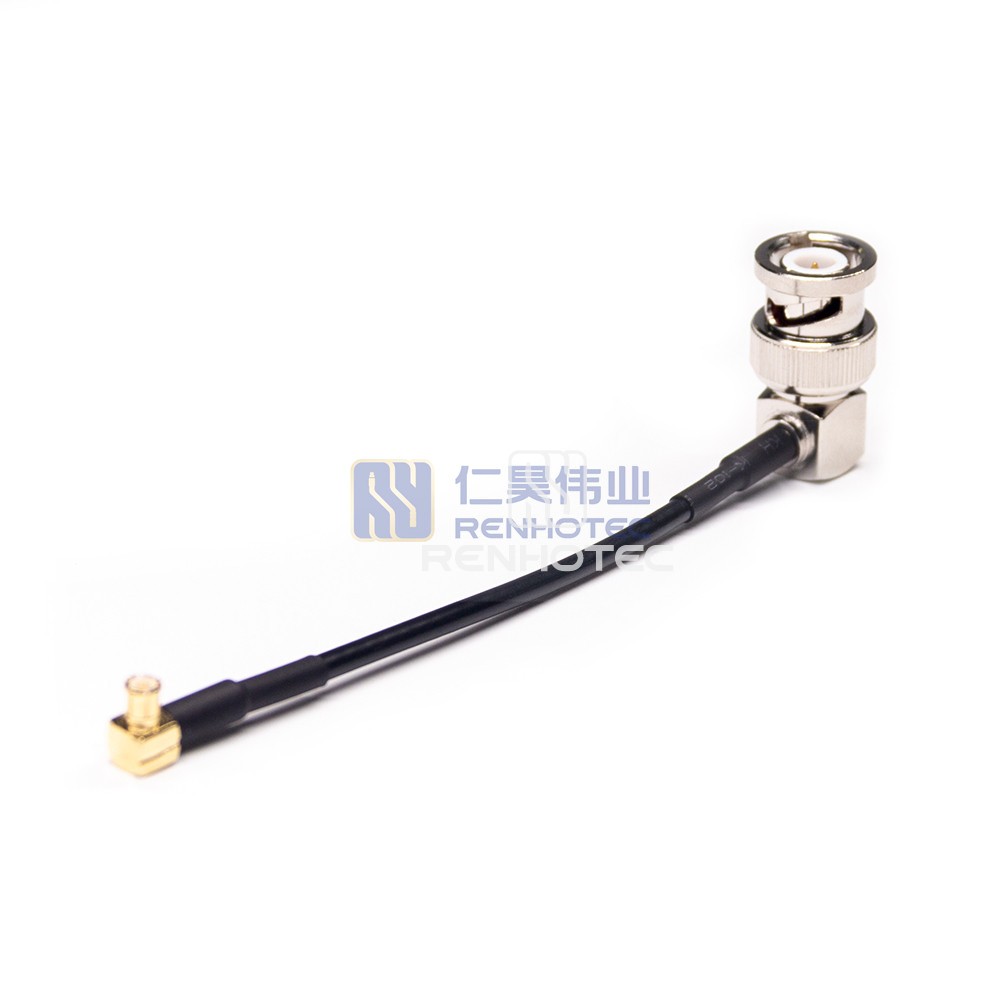

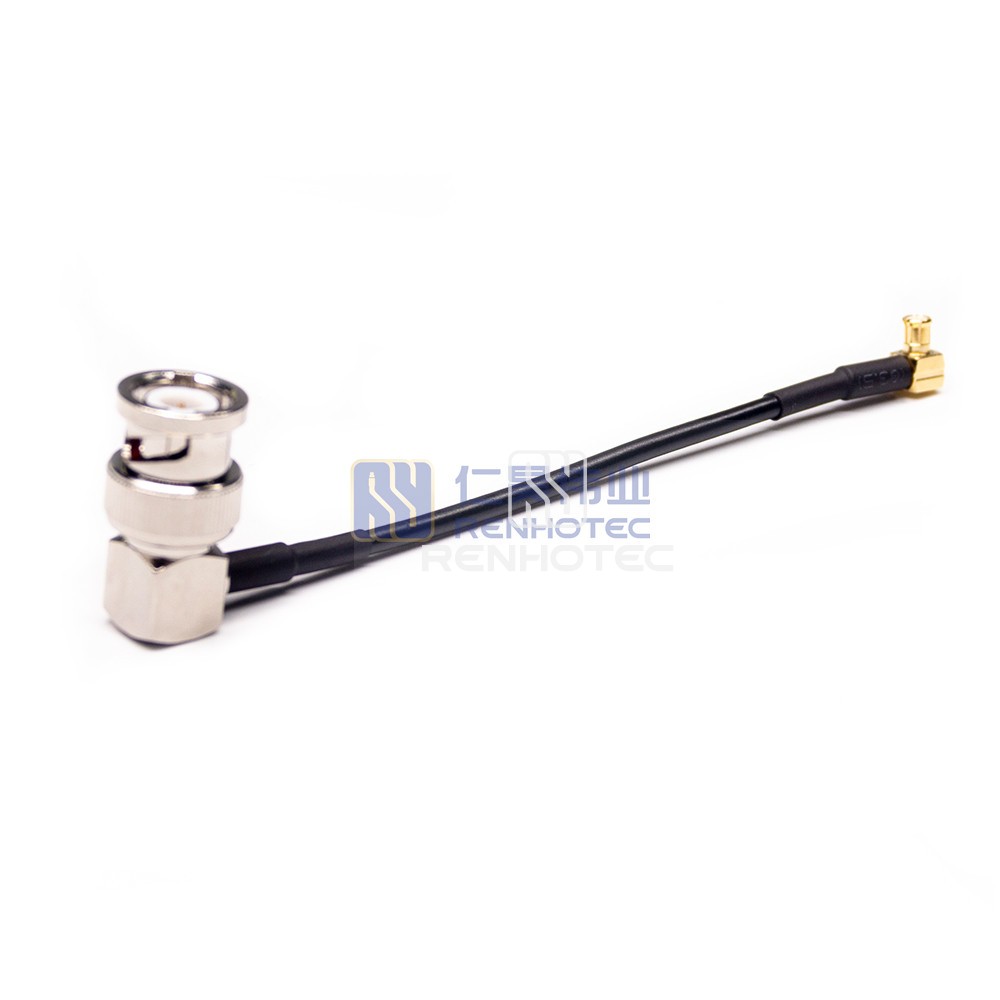

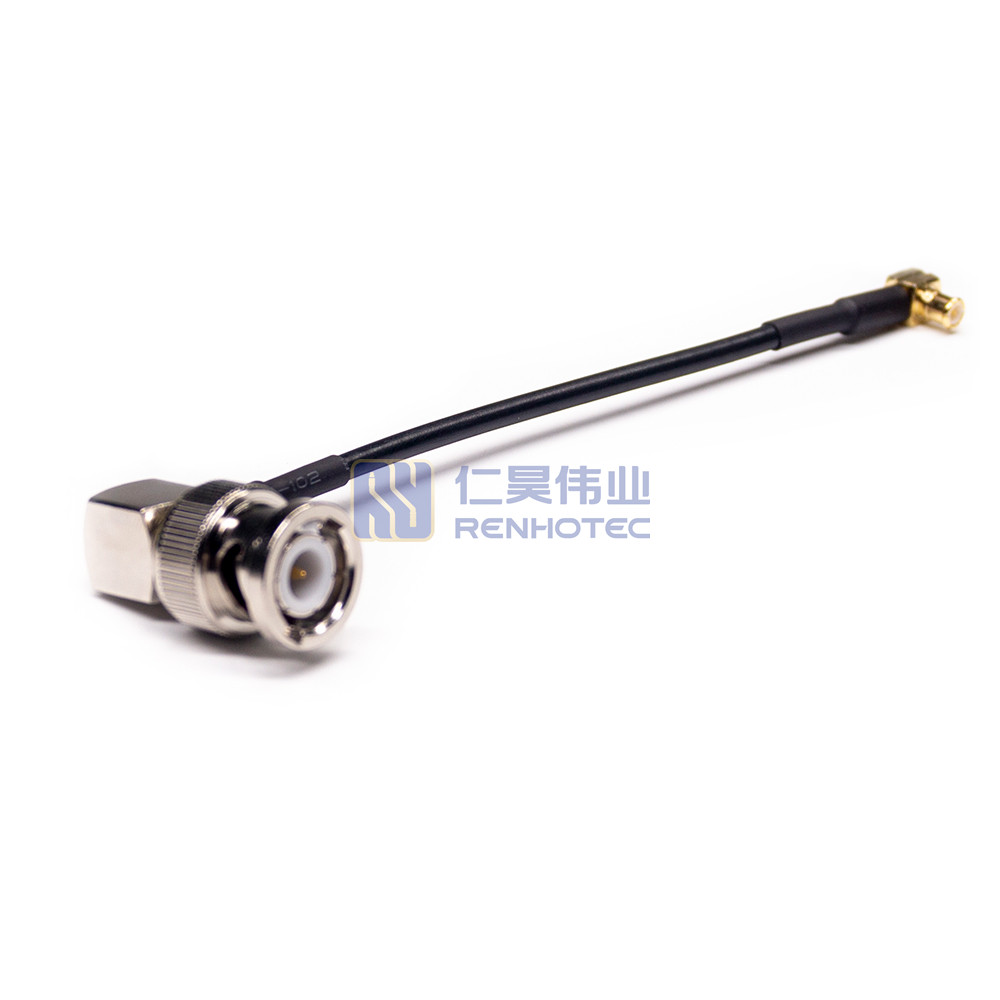

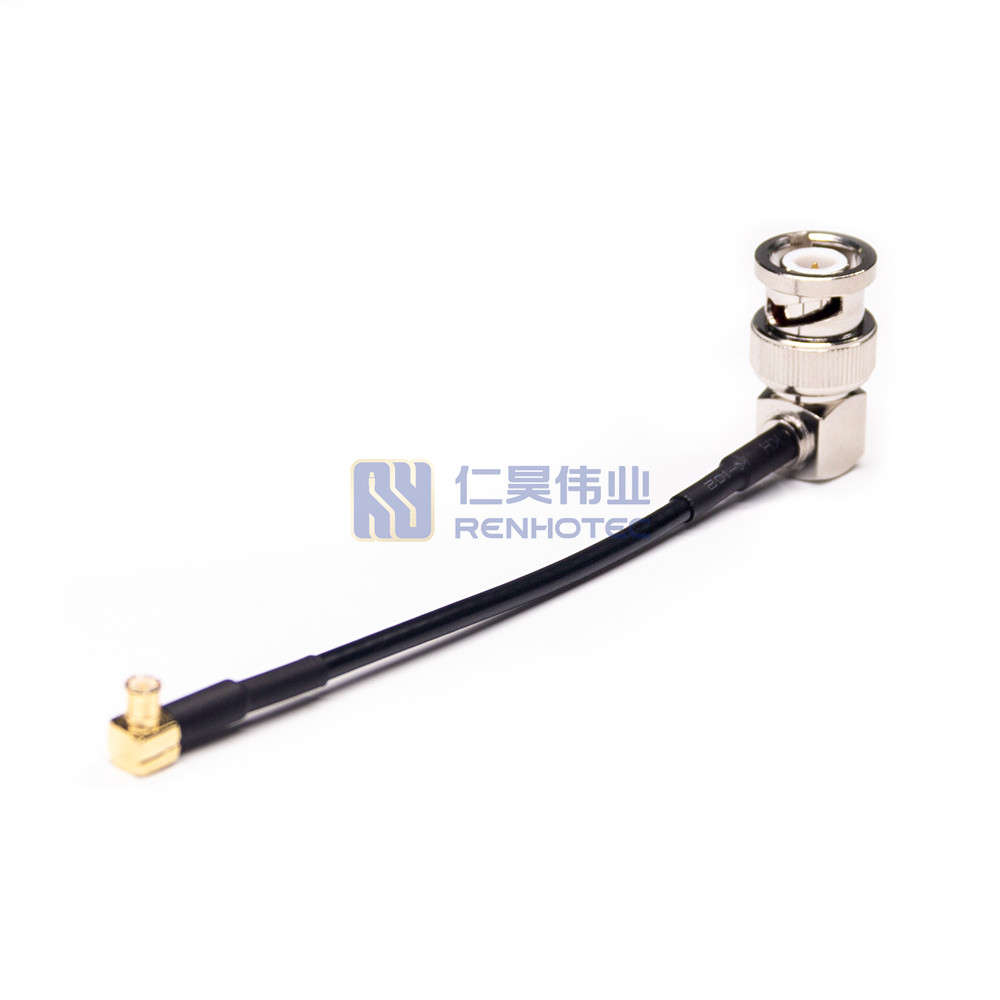

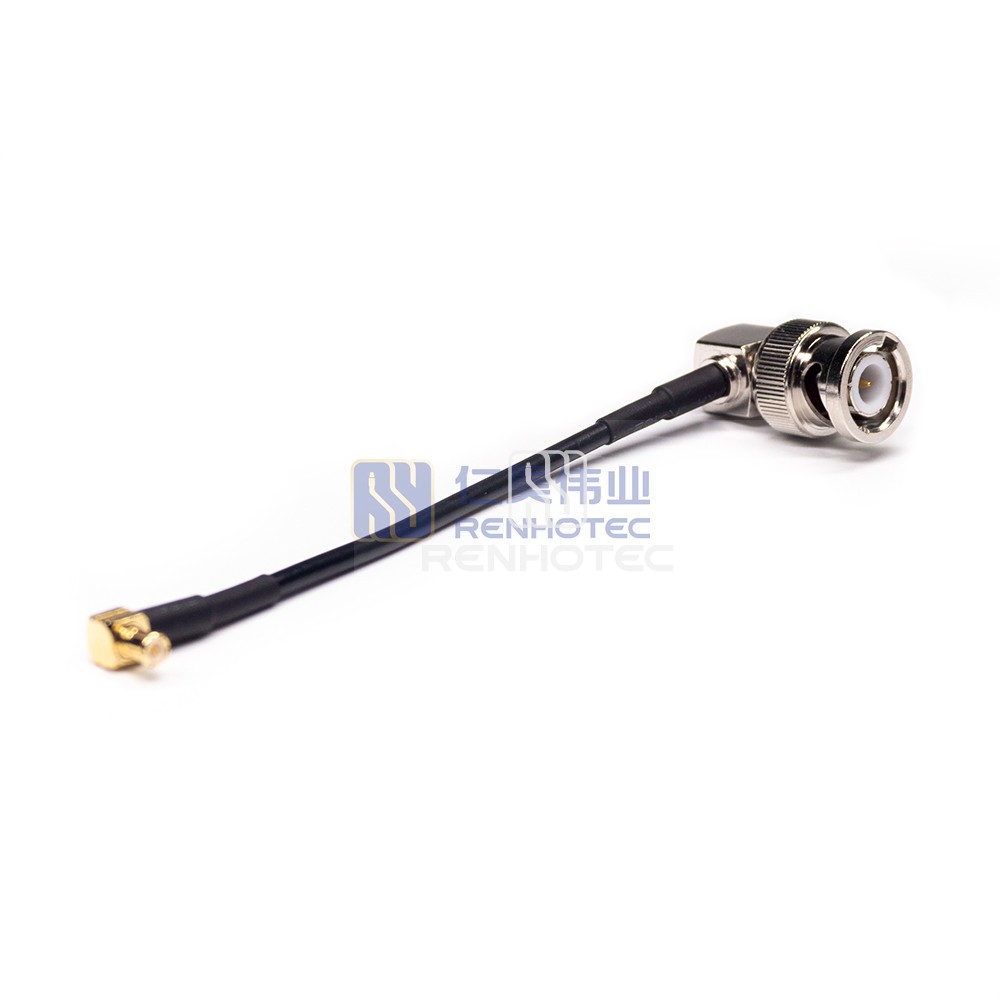

BNC Plug Right Angle to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
