R02-B01-10068-20

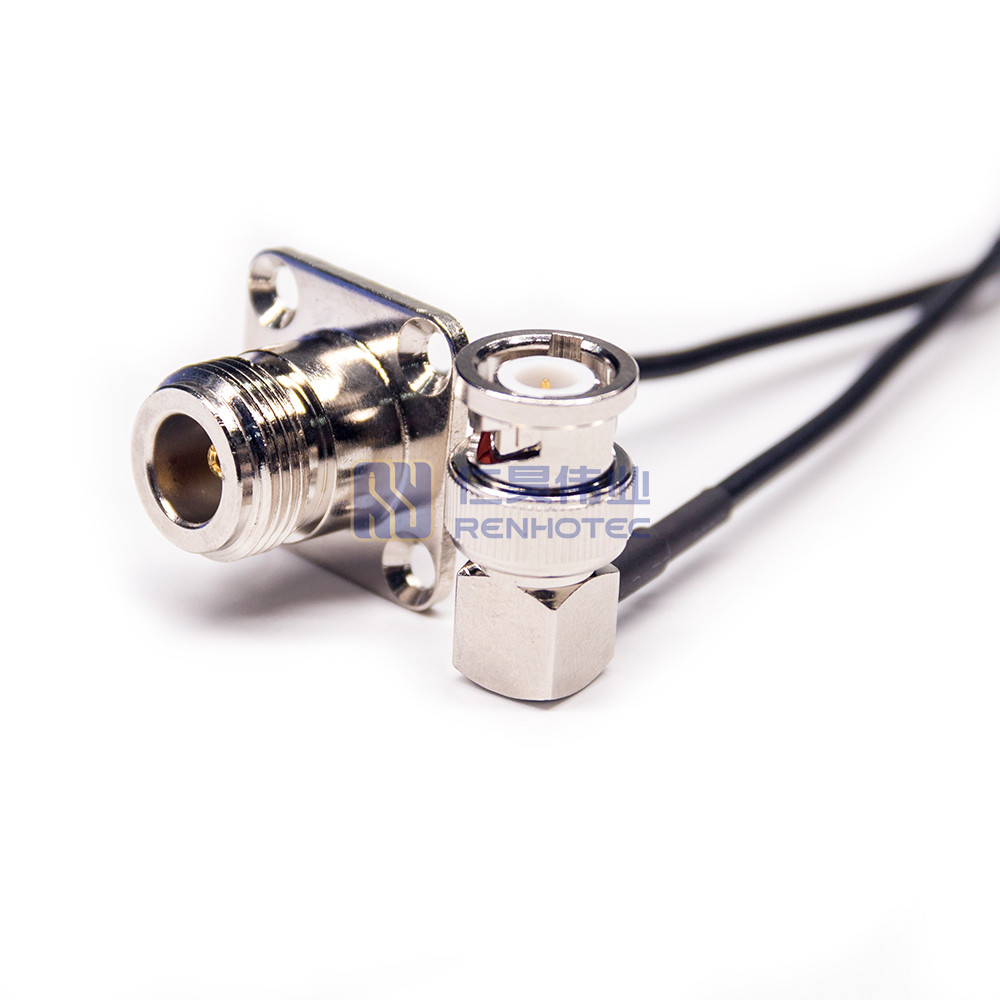

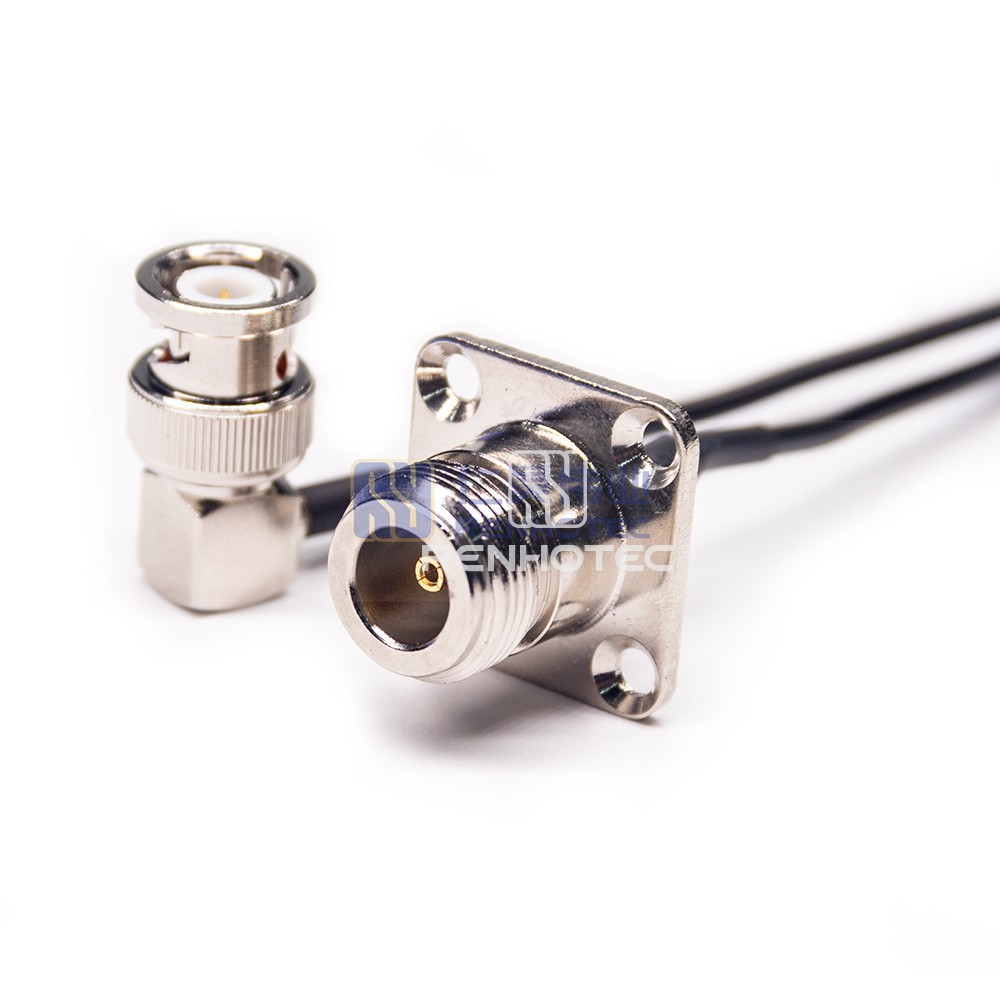

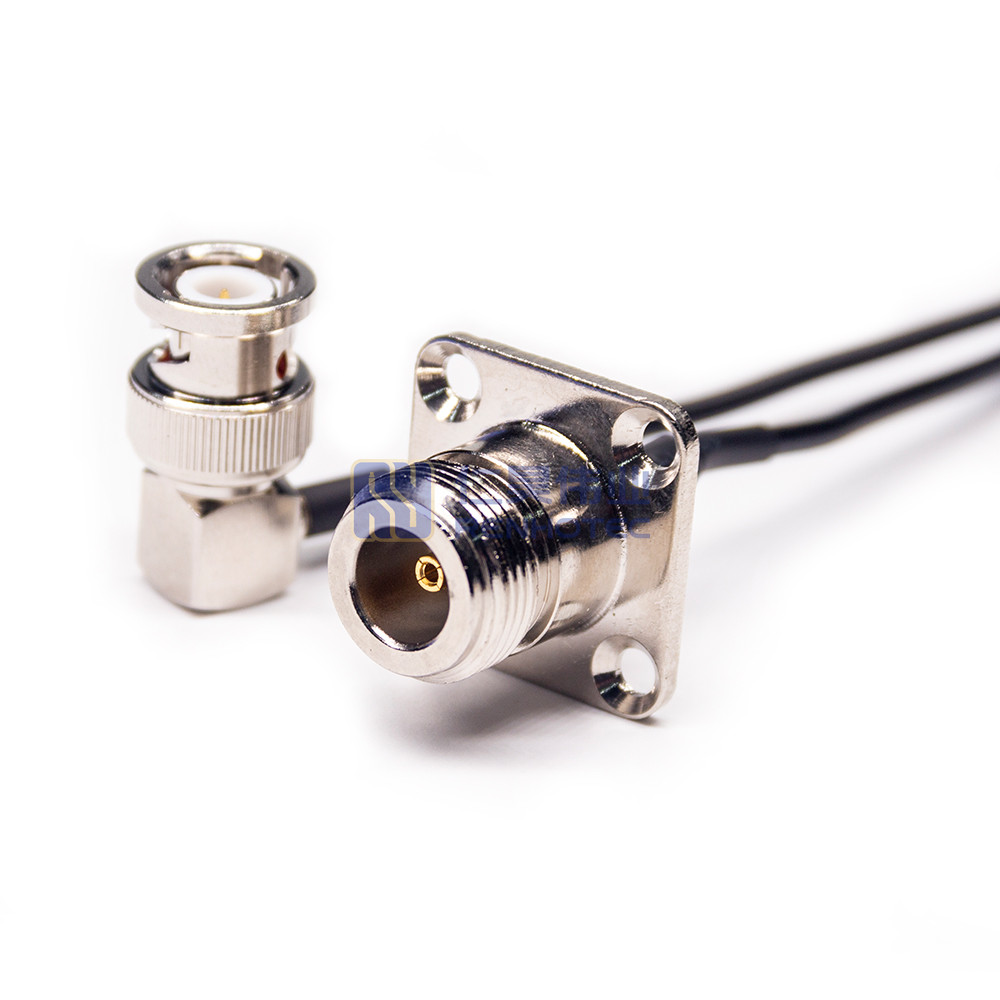

BNC Male Right Angle to N Female Flange RF Cable Assembly with 50 Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure reliable RF signal transmission with this BNC Male Right Angle to N Female Flange RF Cable Assembly featuring 50 Ohm RG174 Coax. Ideal for connecting antennas, radios, and other RF devices efficiently.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesN Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
FeaturesFlange
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
