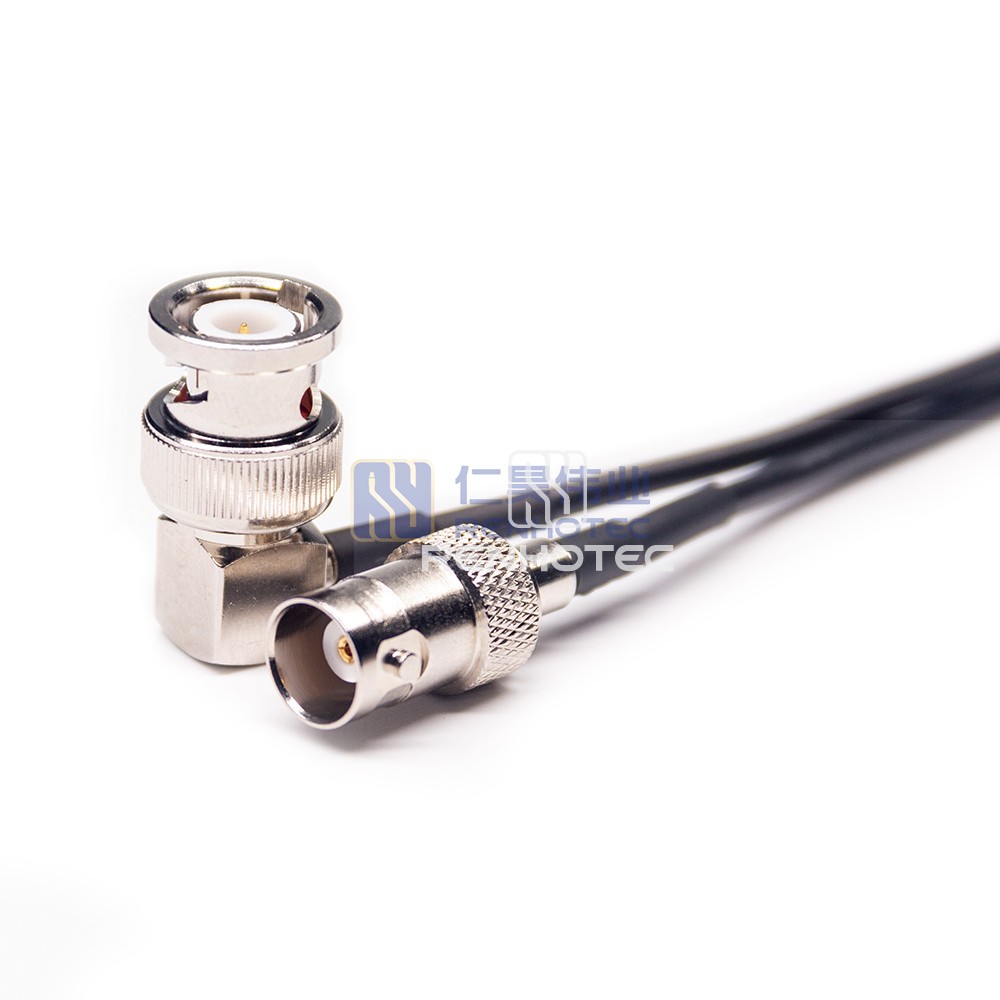

product image

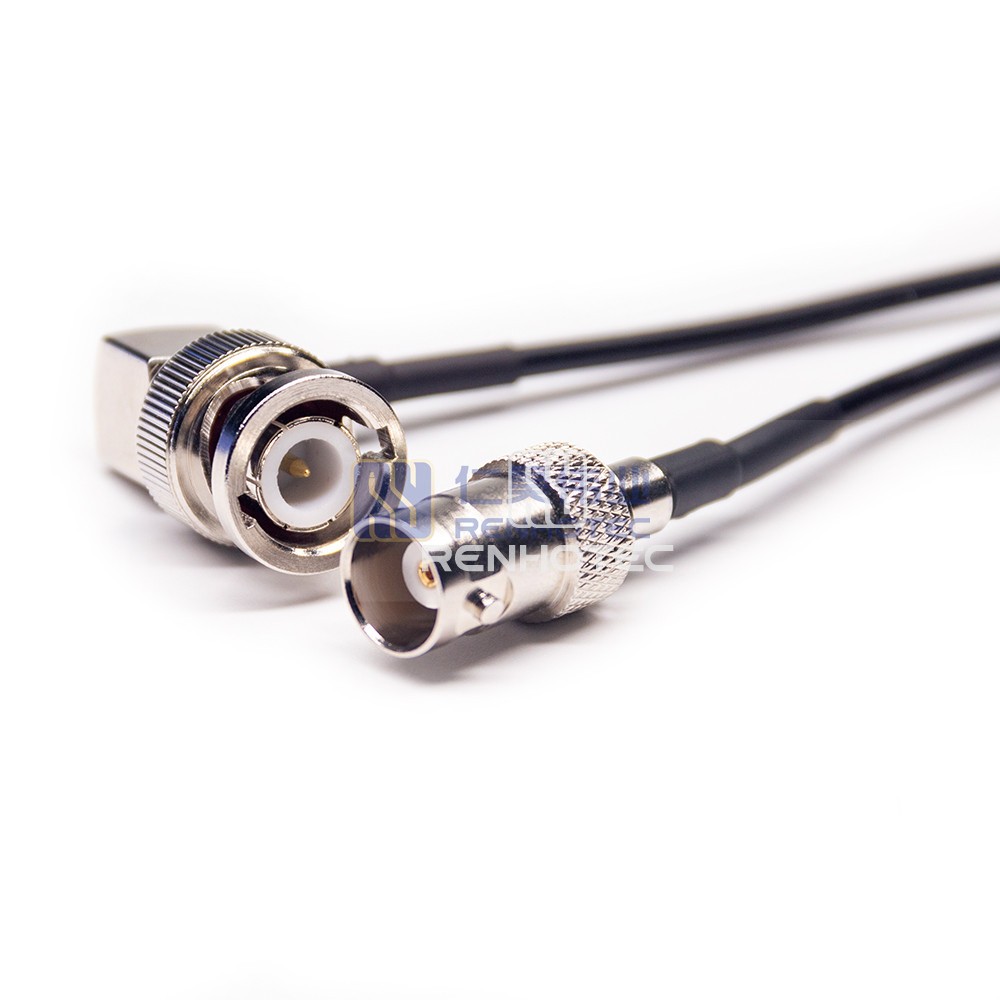

product image

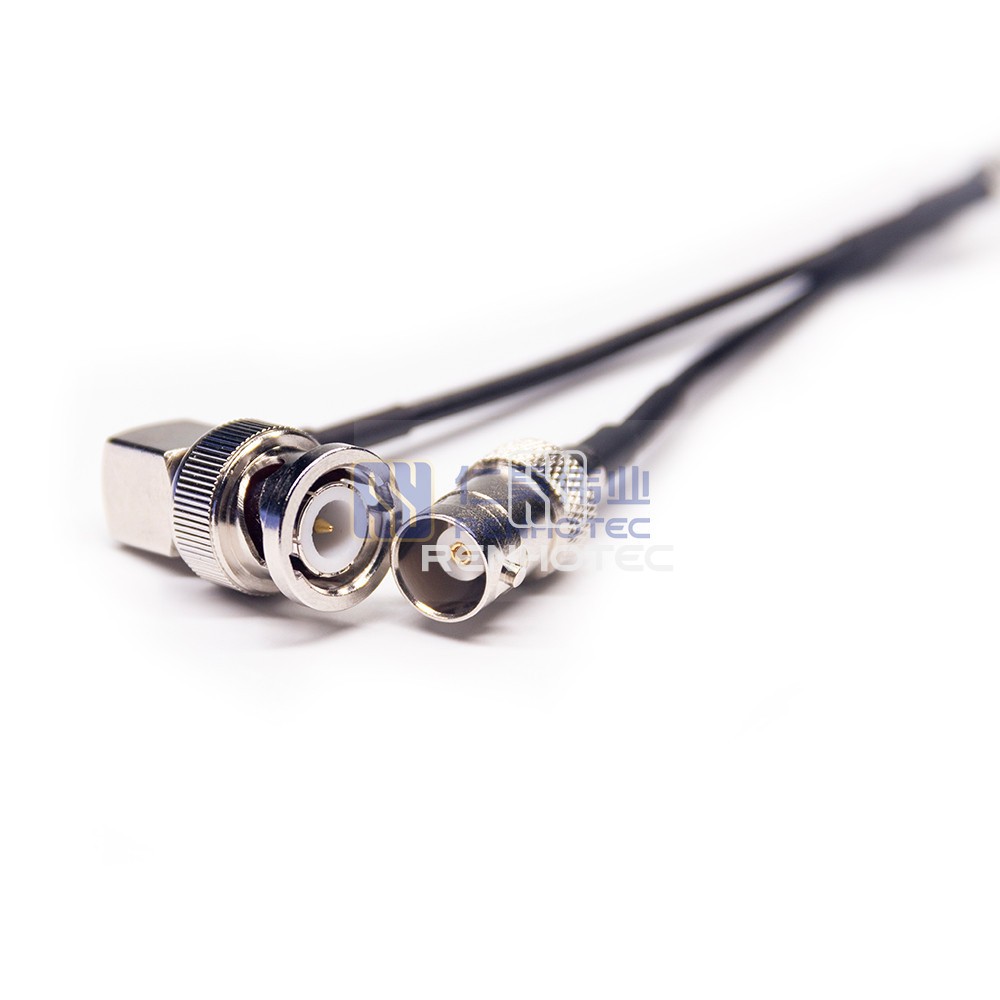

product image

R02-B01-10081-20

BNC Male Right Angle to BNC Female RF Cable Assembly with 50 Ohm RG174 Coaxial Cable
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Male Right Angle to BNC Female RF Cable Assembly with 50 Ohm RG174 Coaxial Cable. Ideal for connecting various RF devices. SKU: R02-B01-10081-20.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesBNC Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
