R02-B01-10078-100

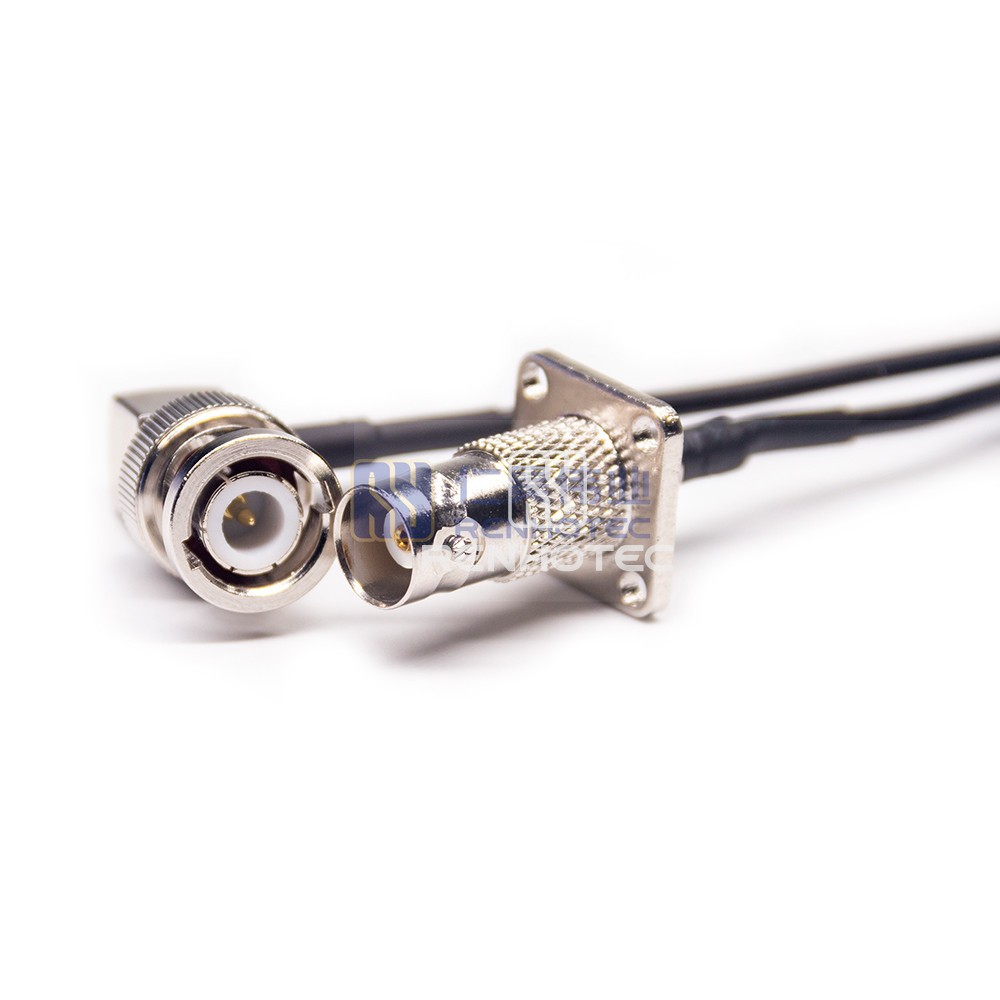

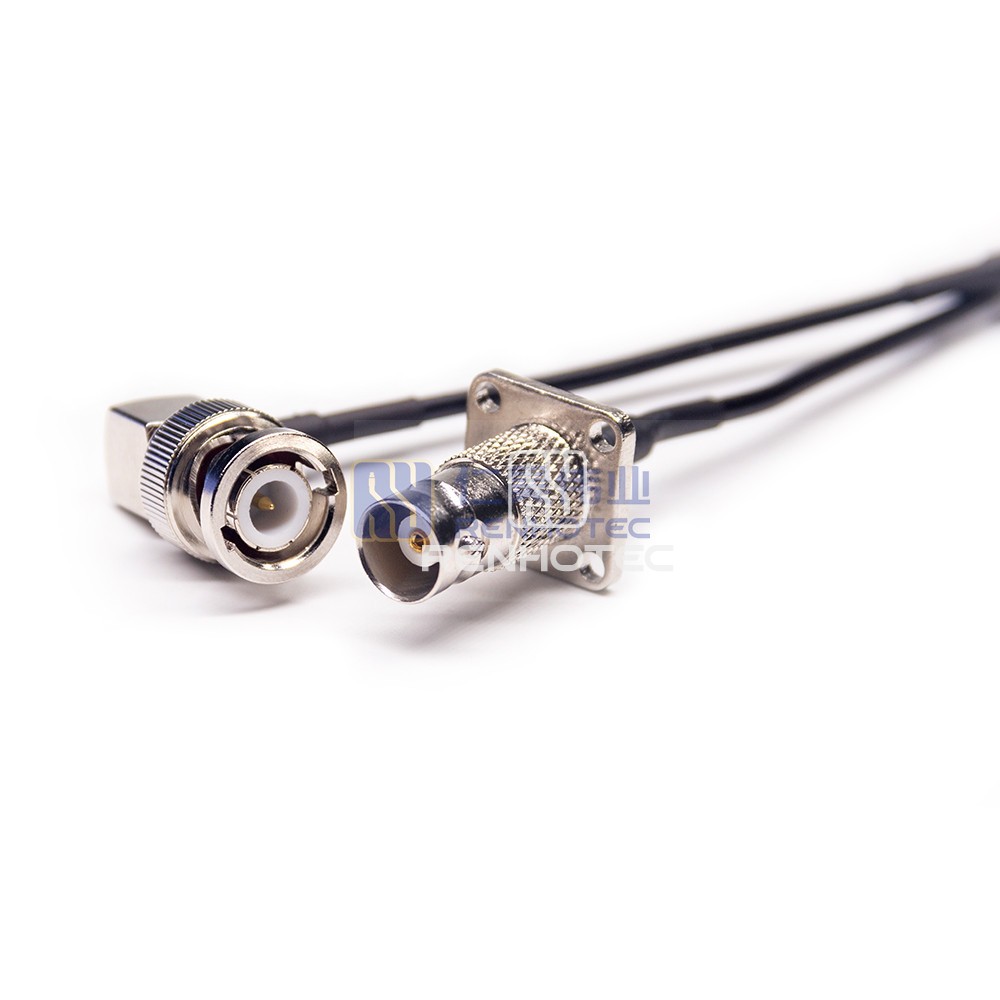

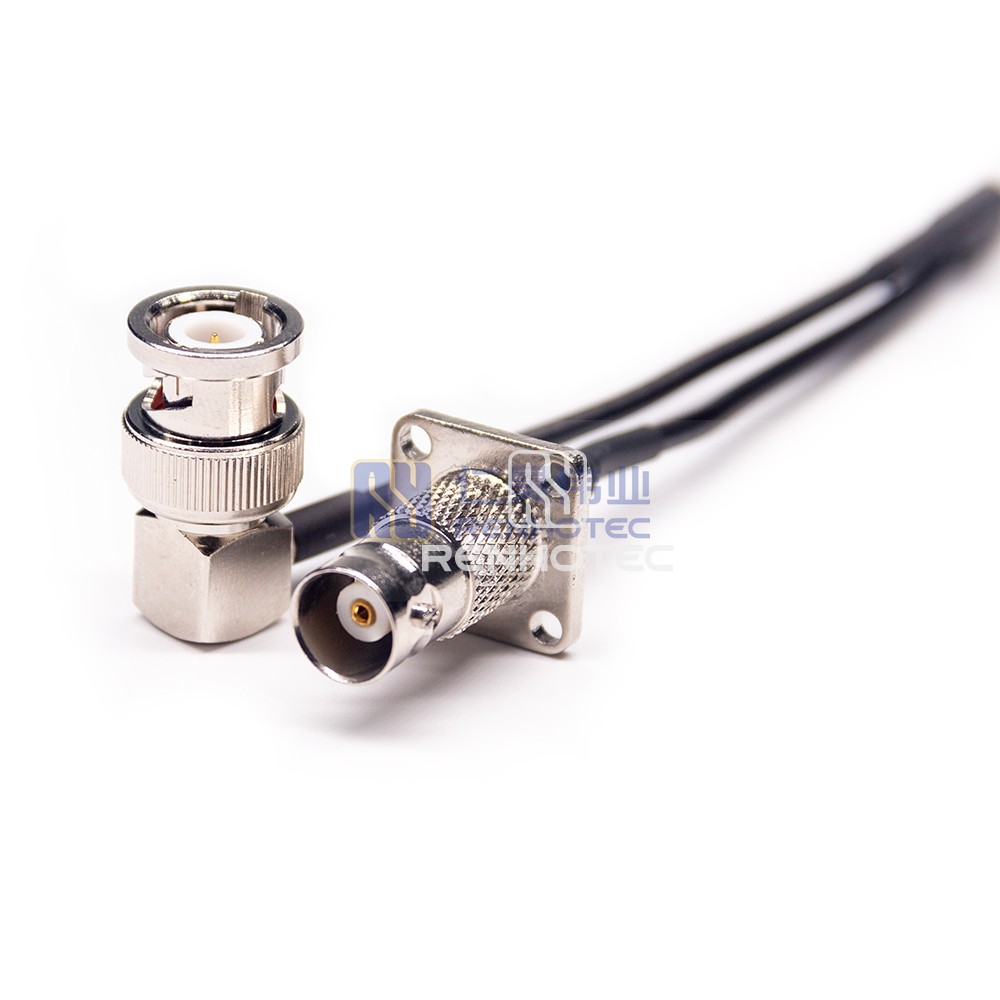

BNC Male Right Angle to BNC Female Flange RF Cable Assembly with 50 Ohm RG174 Coaxial Cable
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Get high-quality signal transmission with this BNC Male Right Angle to BNC Female Flange RF Cable Assembly. The cable features 50 Ohm RG174 Coaxial Cable for reliable performance.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesBNC Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
FeaturesFlange
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
