R02-B01-10026-50

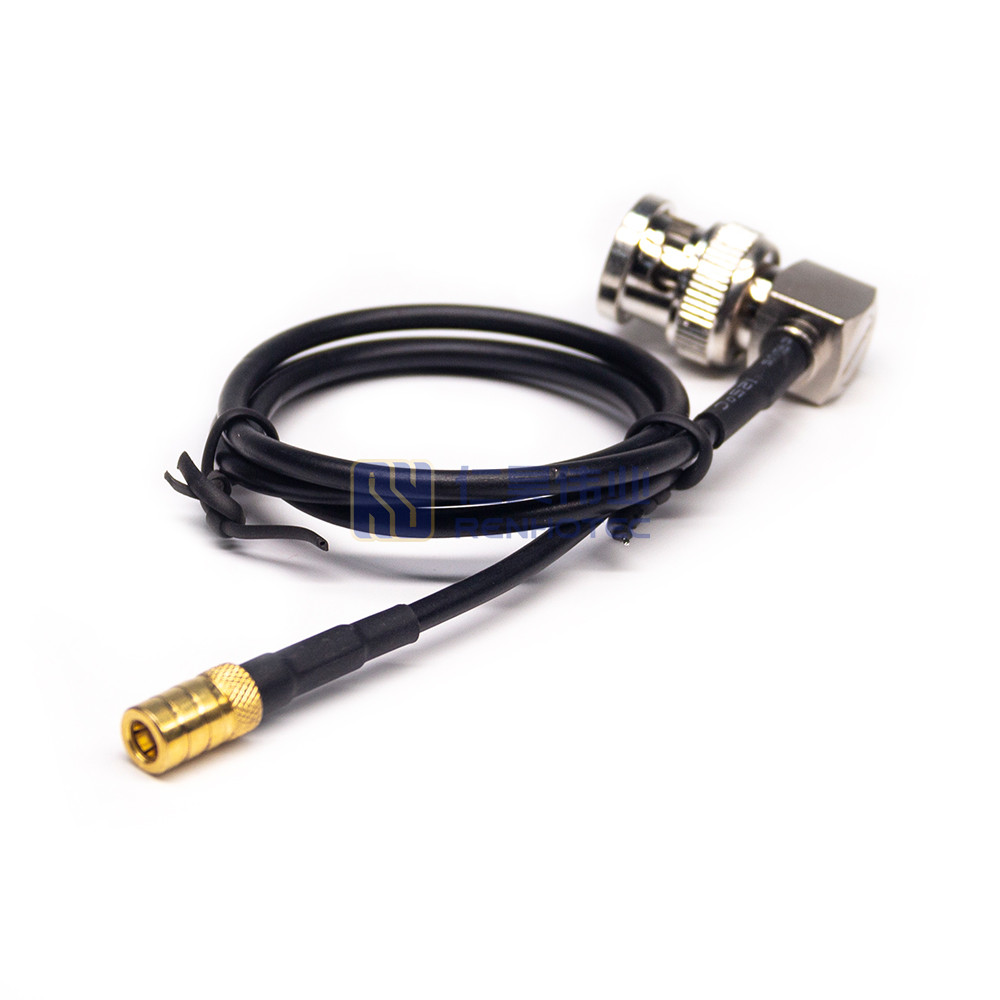

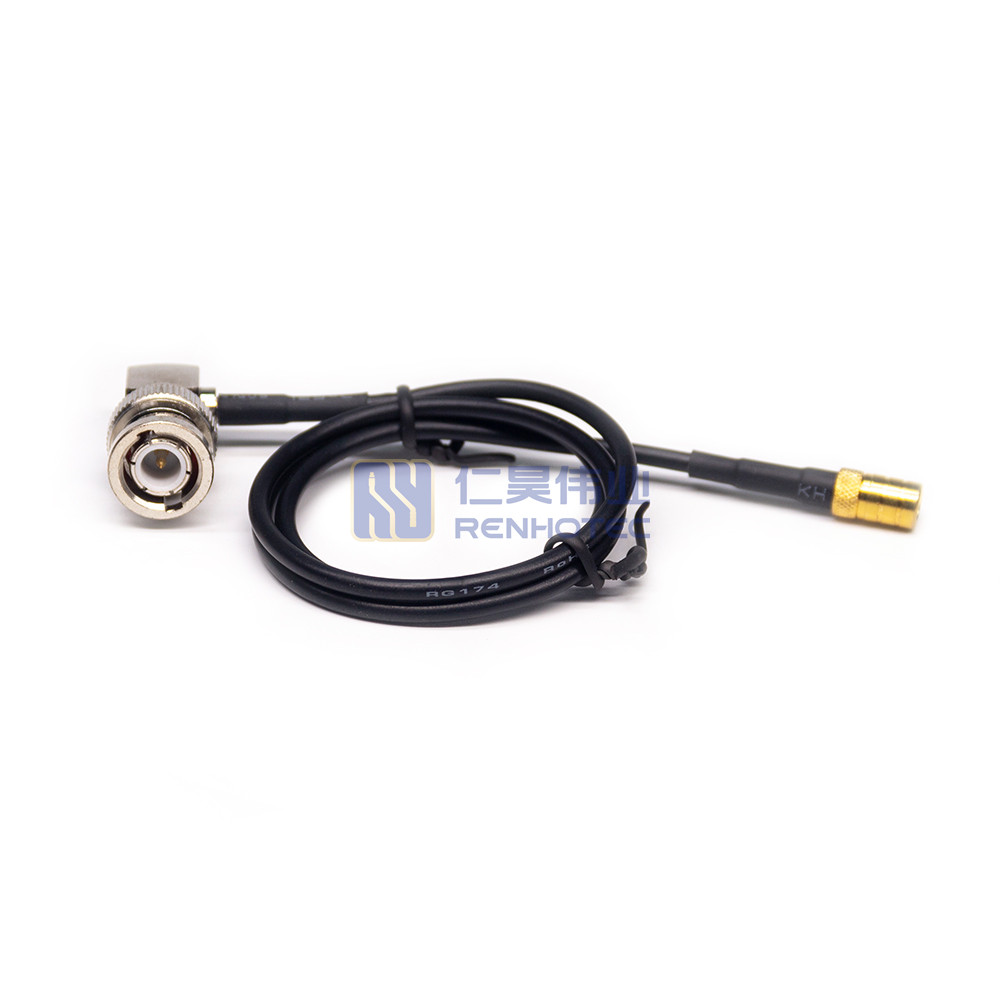

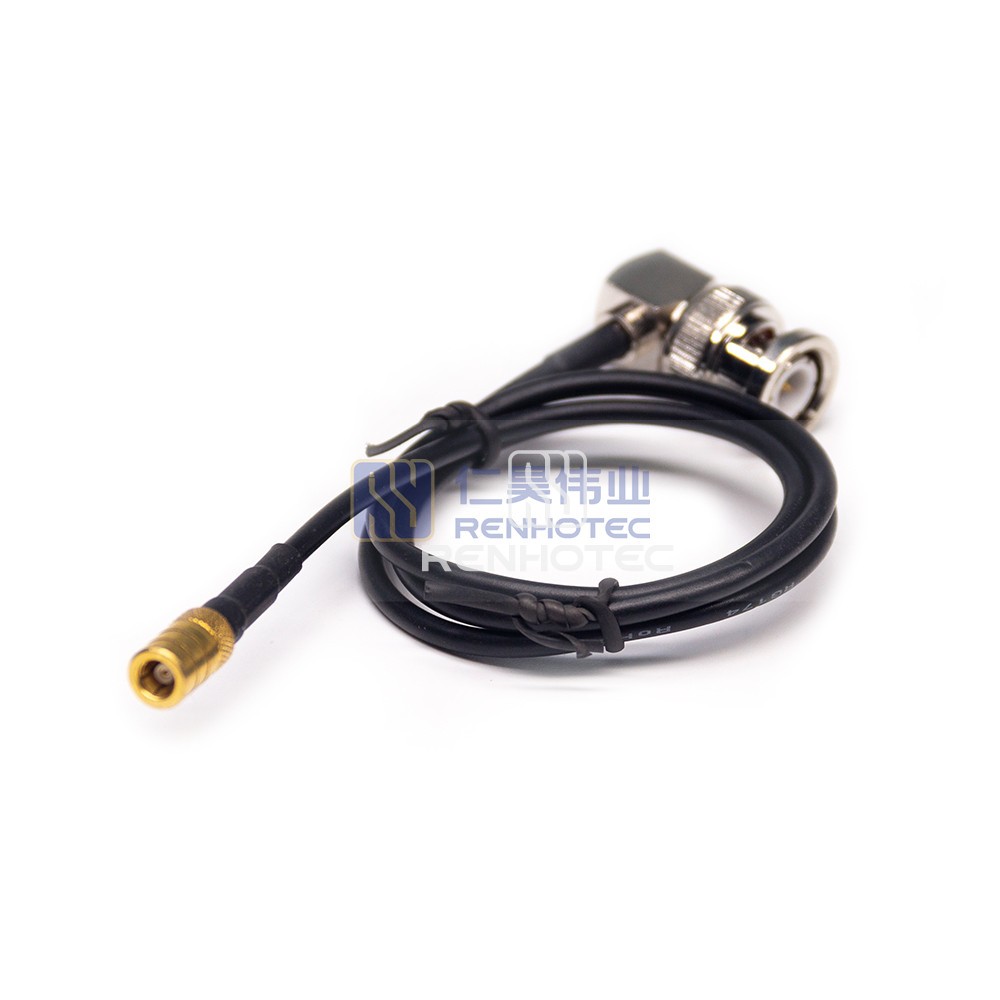

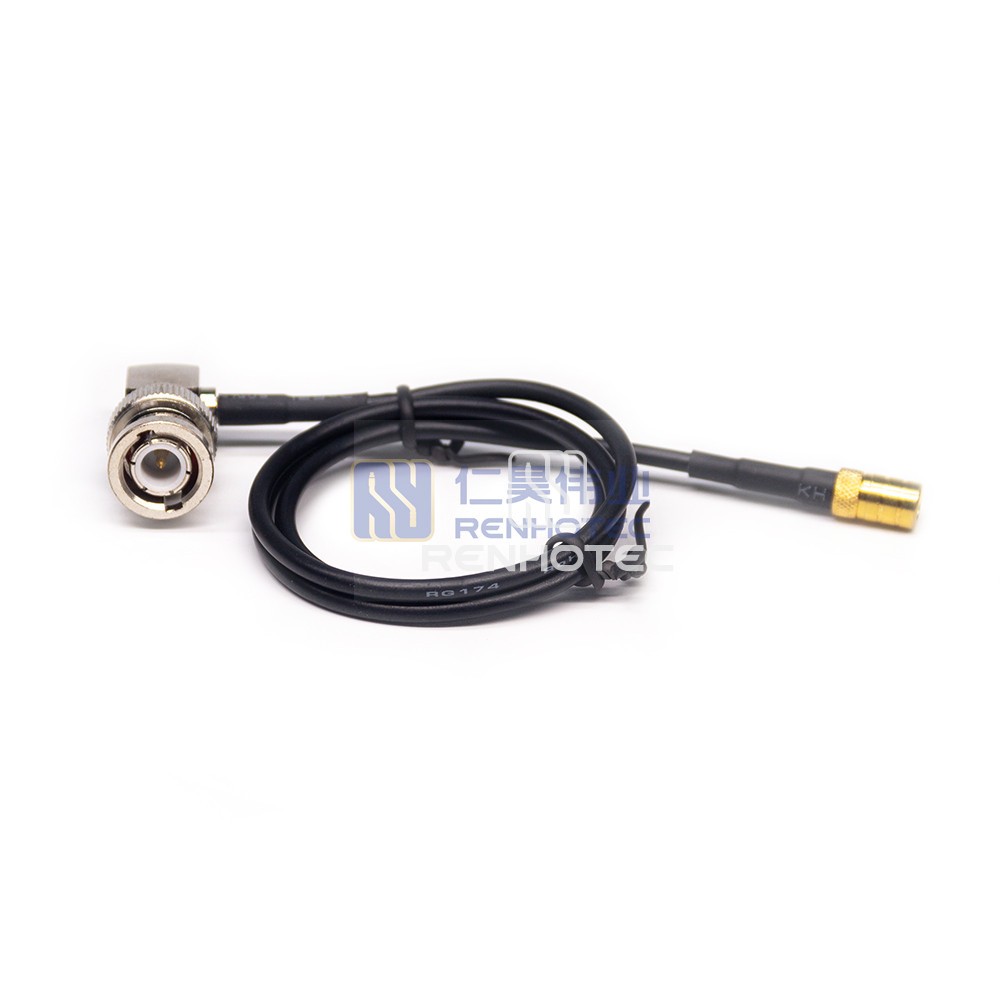

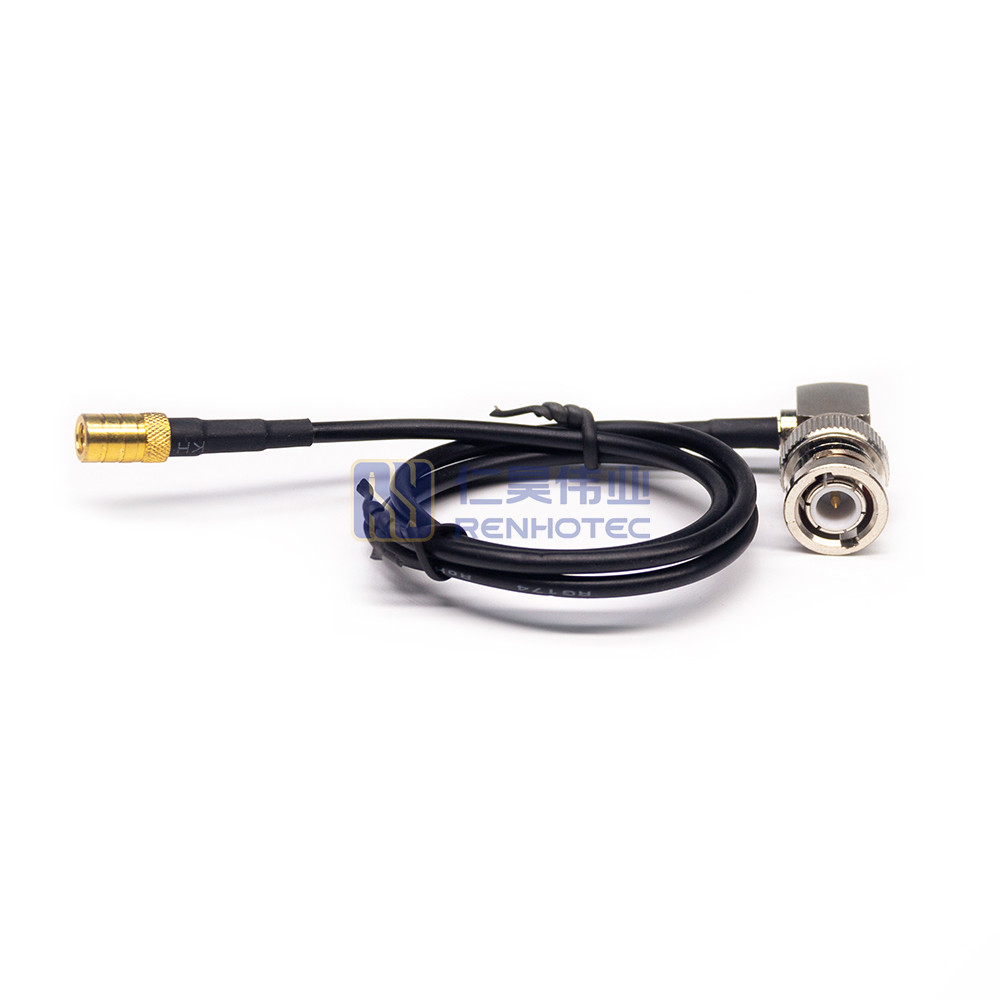

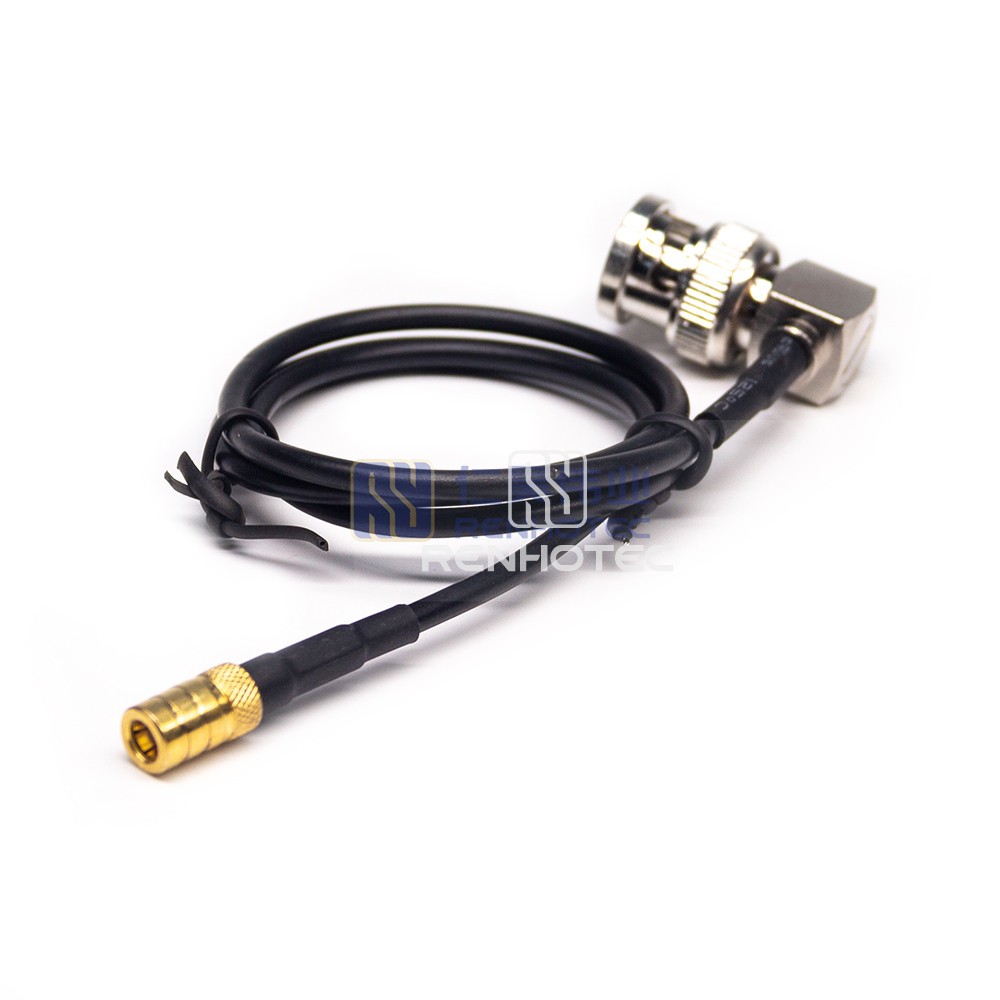

BNC Male Righ Angle to SMB Male Cable Assembly with 50 Ohm RG174 Coaxial Cable
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Male Right Angle to SMB Male Cable Assembly featuring 50 Ohm RG174 coaxial cable. Ideal for seamless signal transmission in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
