R02-B01-10058-10

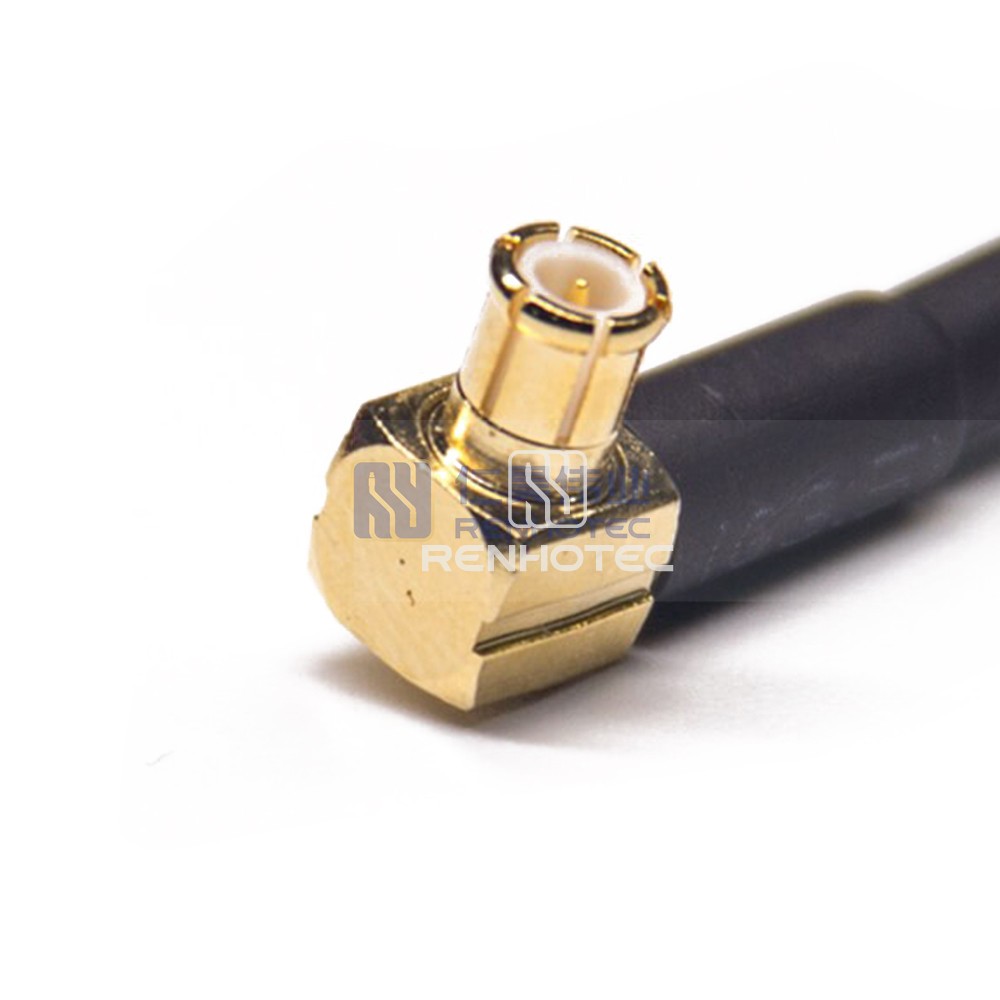

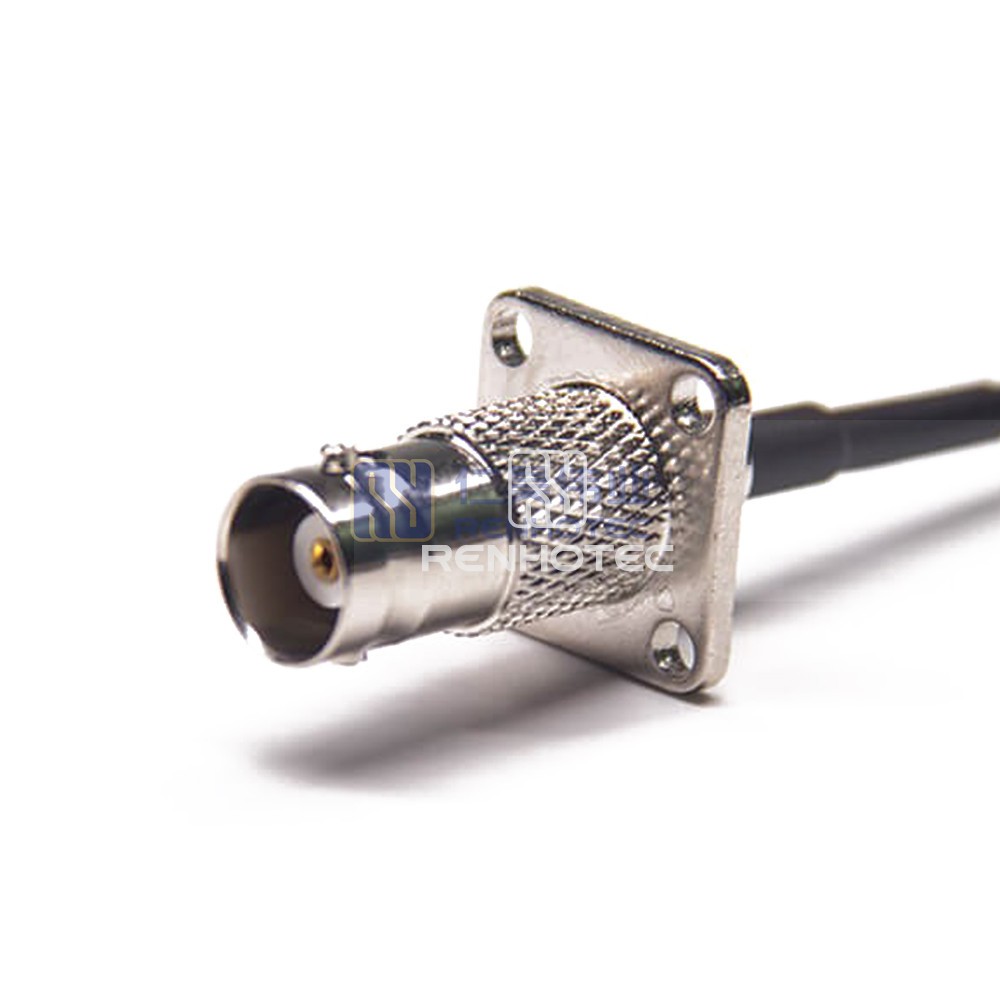

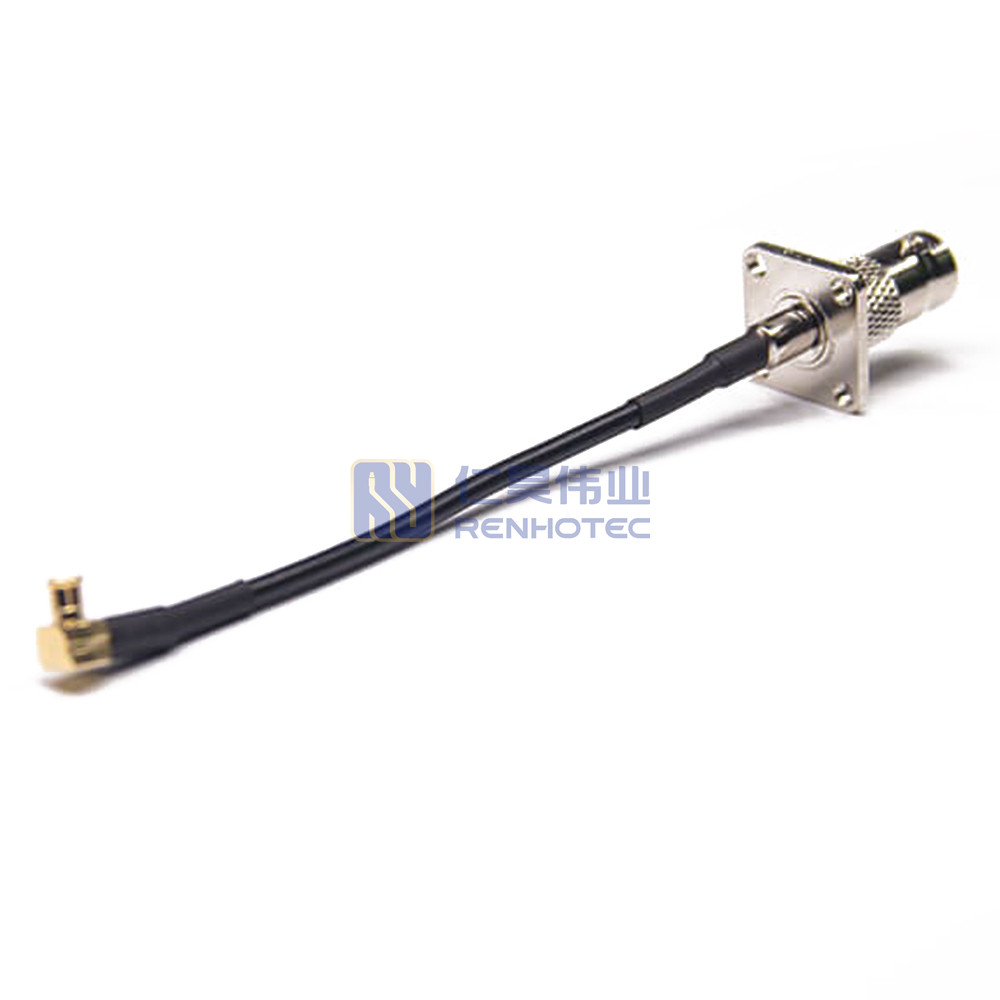

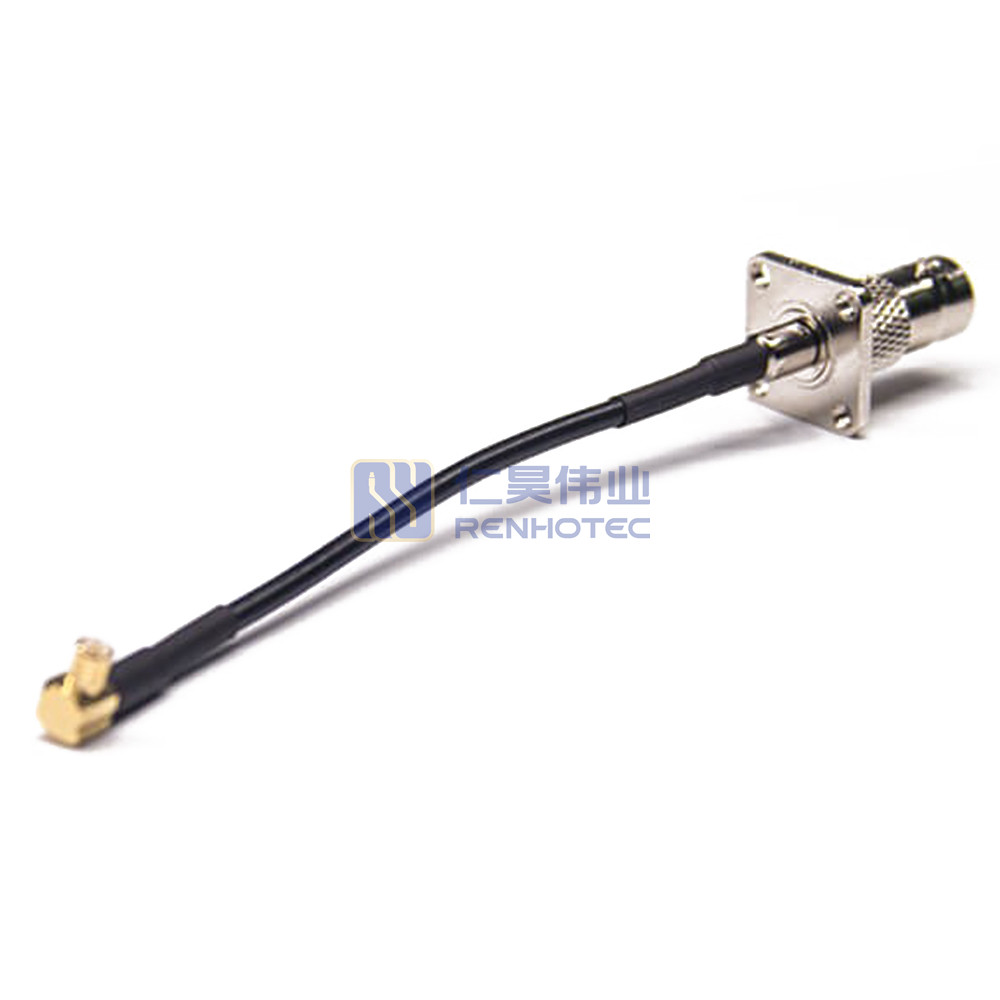

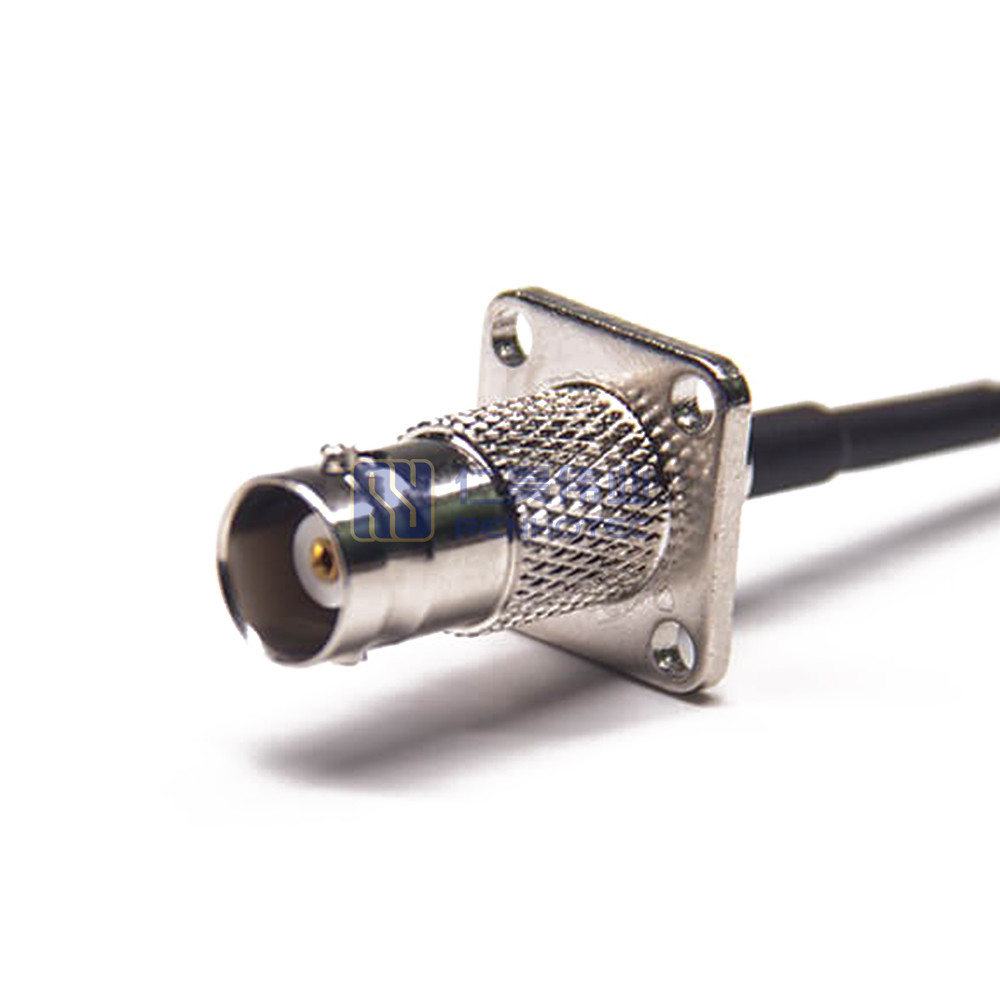

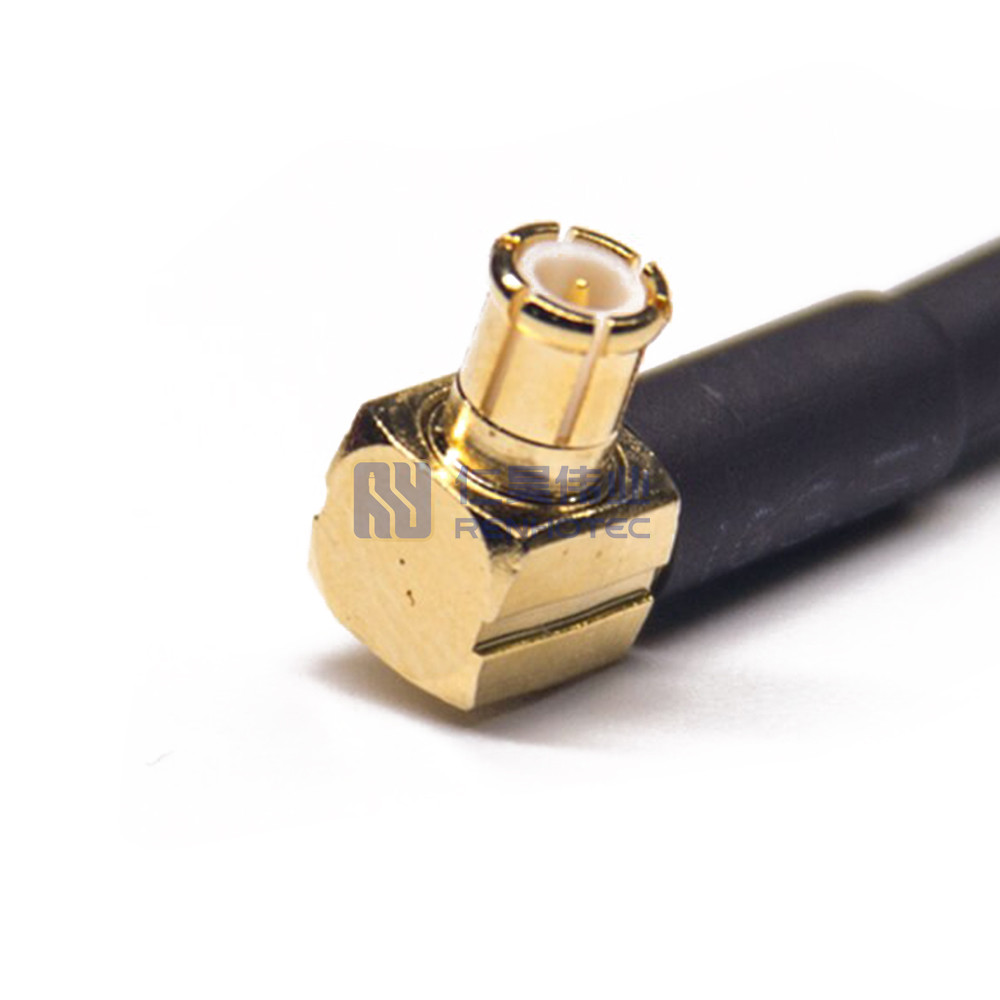

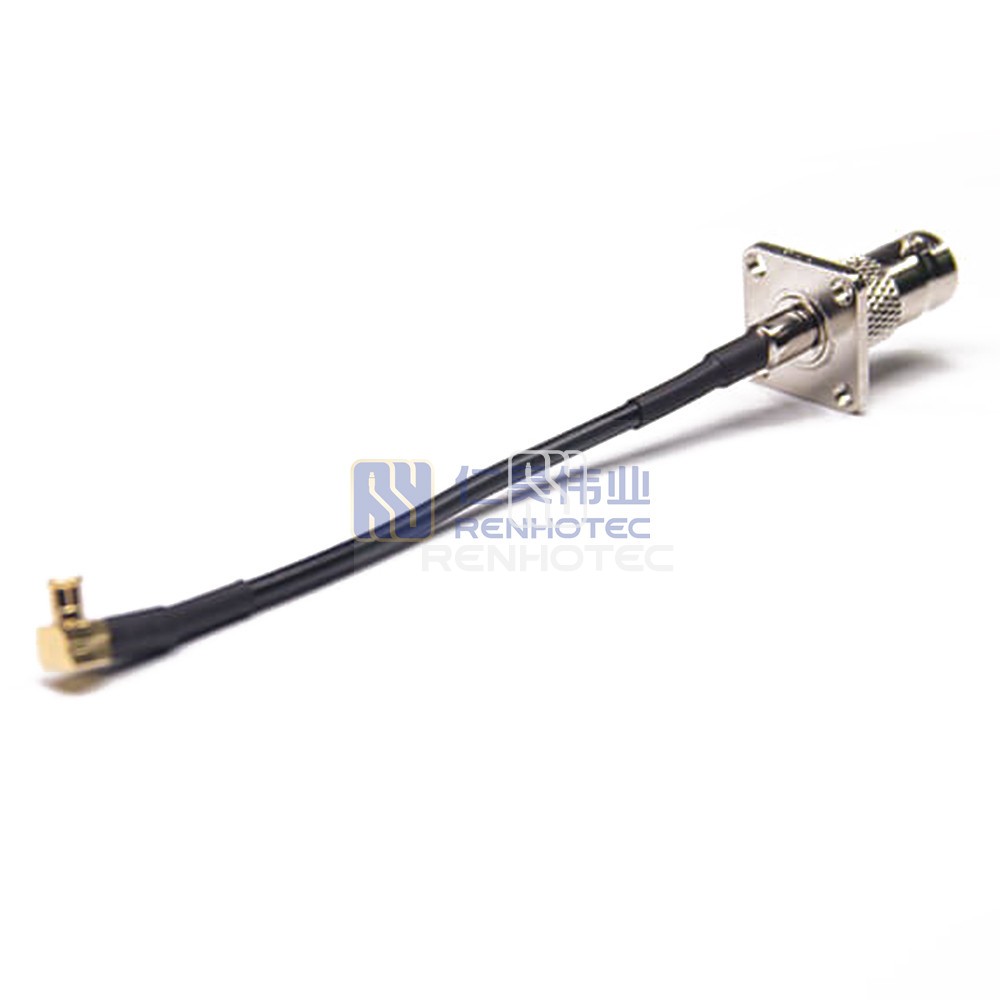

BNC Jack Flange to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Jack Flange to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG174 Coax. Perfect for reliable signal transmission in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
FeaturesFlange
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
