R02-B01-10060-50

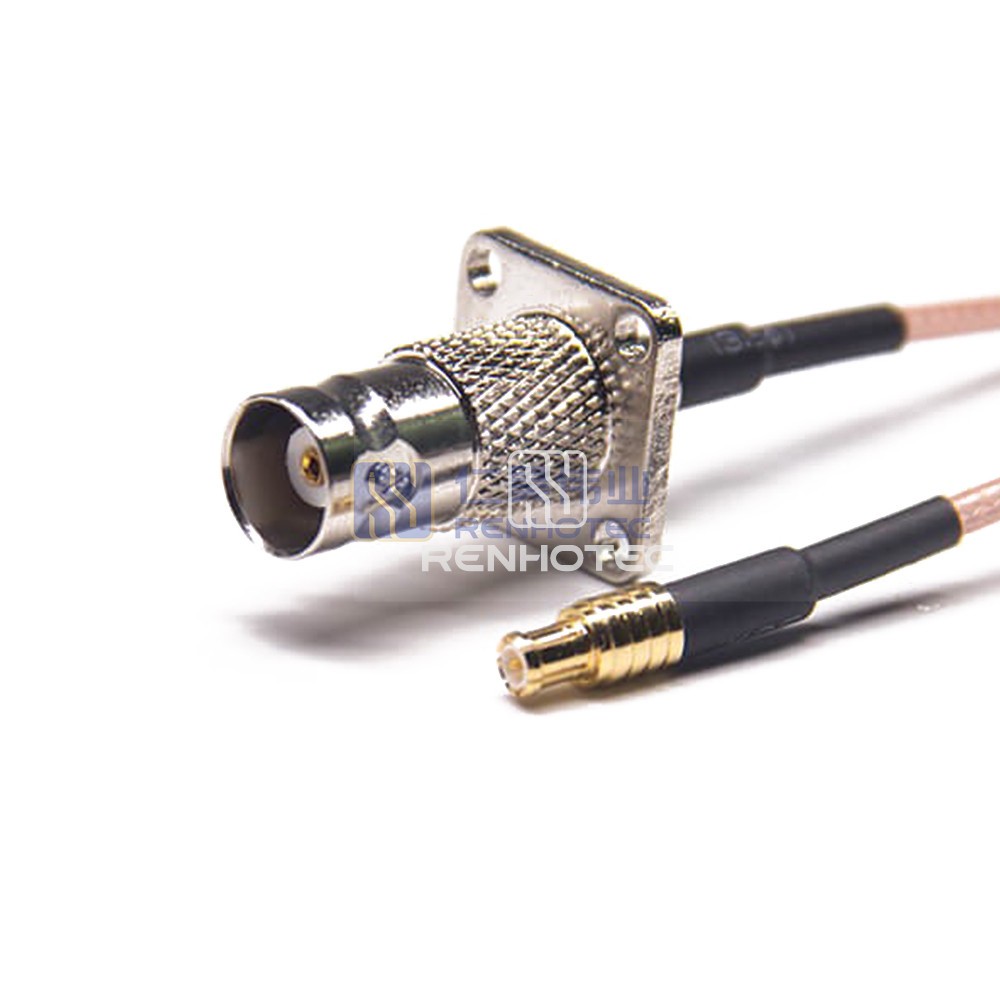

BNC Jack Flange to MCX Plug RF Cable Assembly with 50 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Jack Flange to MCX Plug RF Cable Assembly with 50 Ohm RG316 Coax. Perfect for connecting RF components.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style

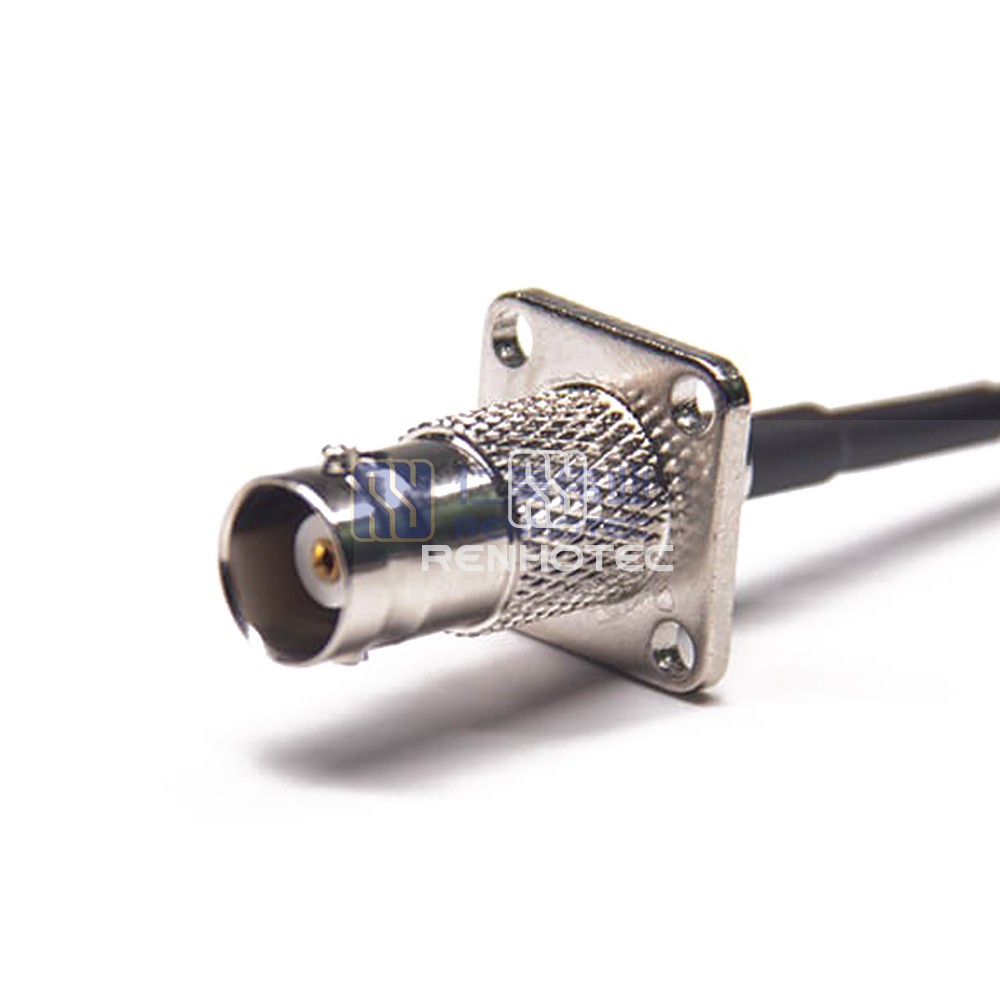

1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight

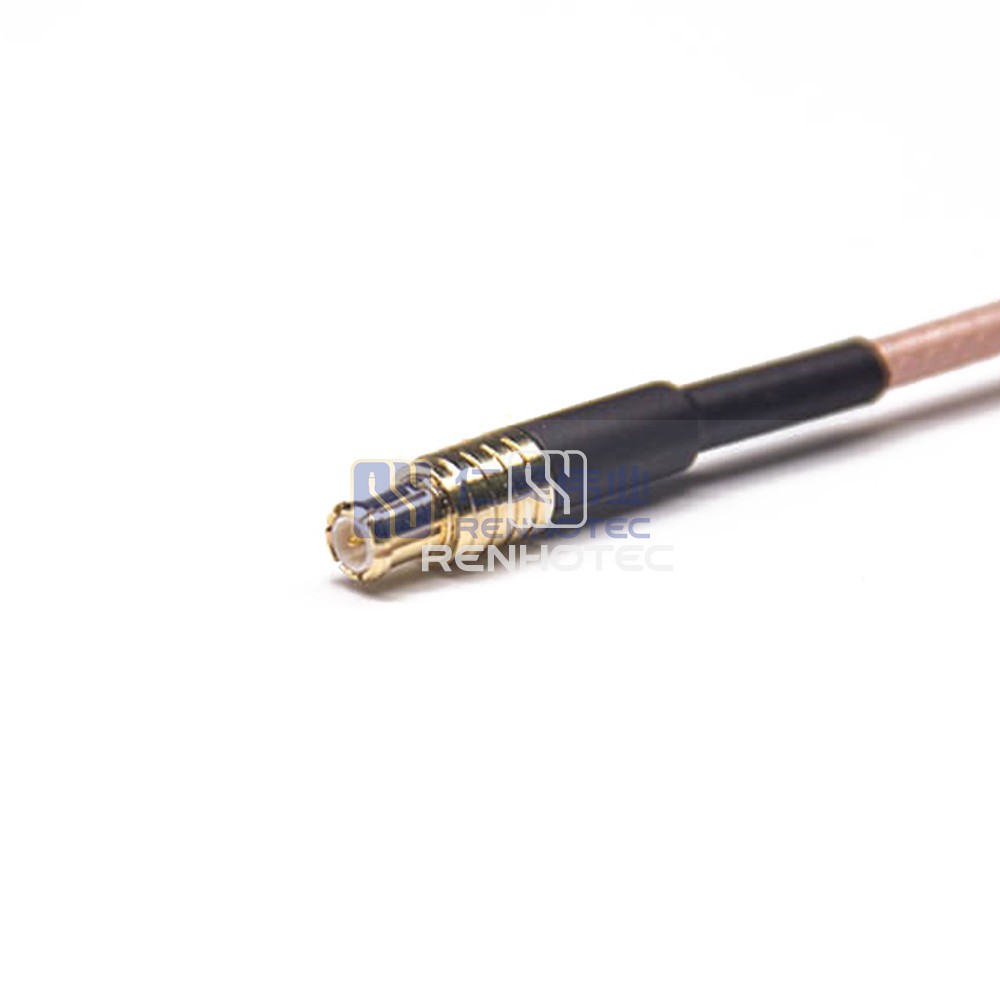

2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
FeaturesFlange
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
