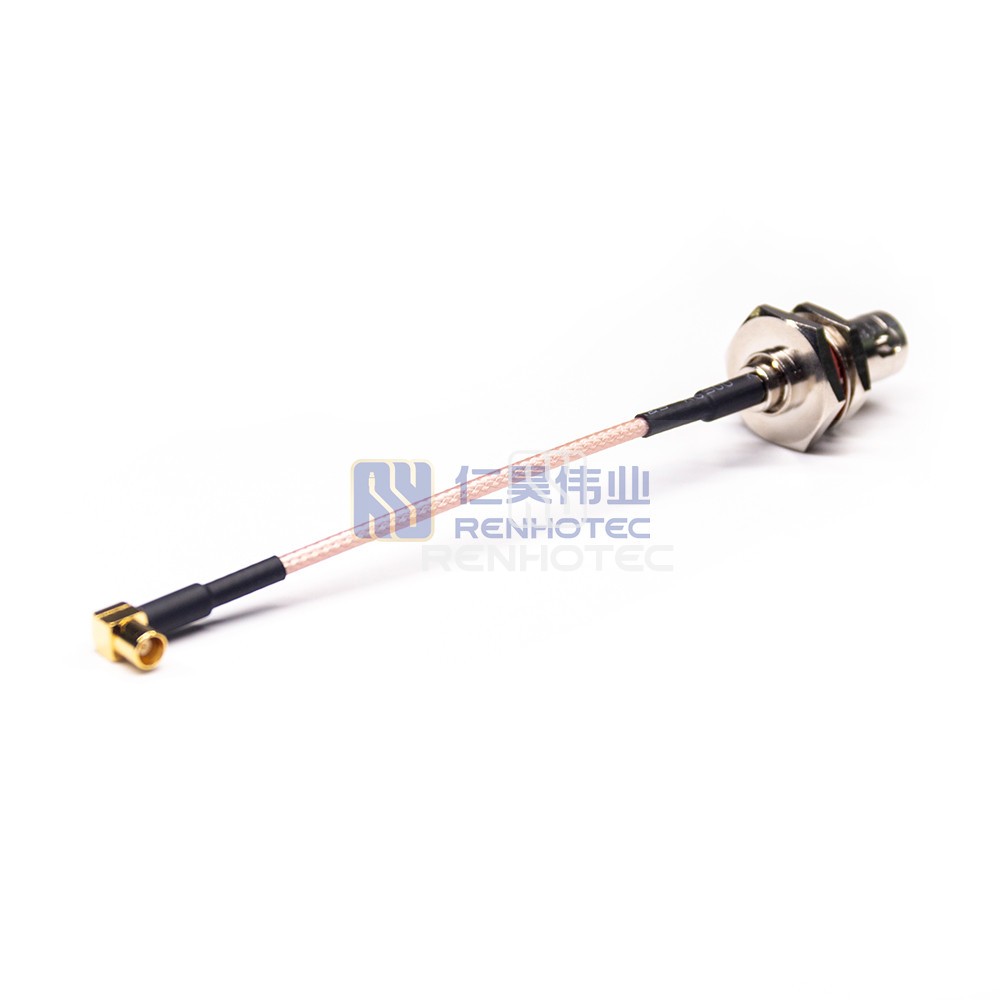

Products > RF Cable Assembly > BNC Jack Bulkhead Front Side Nut to MCX Jack Right Angle RF Cable Assembly with 50 Ohm RG316 Coax
R02-B01-10057-10
BNC Jack Bulkhead Front Side Nut to MCX Jack Right Angle RF Cable Assembly with 50 Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality BNC Jack Bulkhead Front Side Nut to MCX Jack Right Angle RF Cable Assembly with 50 Ohm RG316 Coax. Perfect for secure and reliable RF connections in various electronic applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |

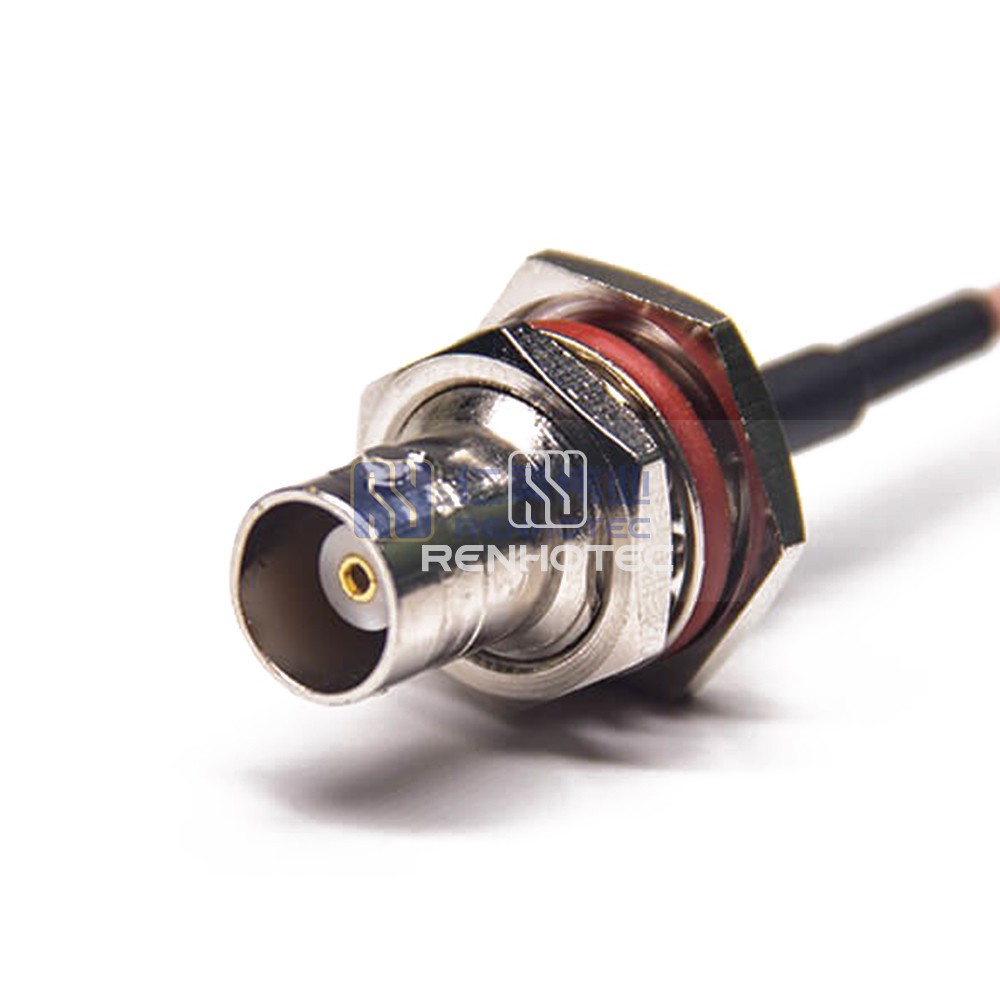

1st Connector Series | BNC Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |

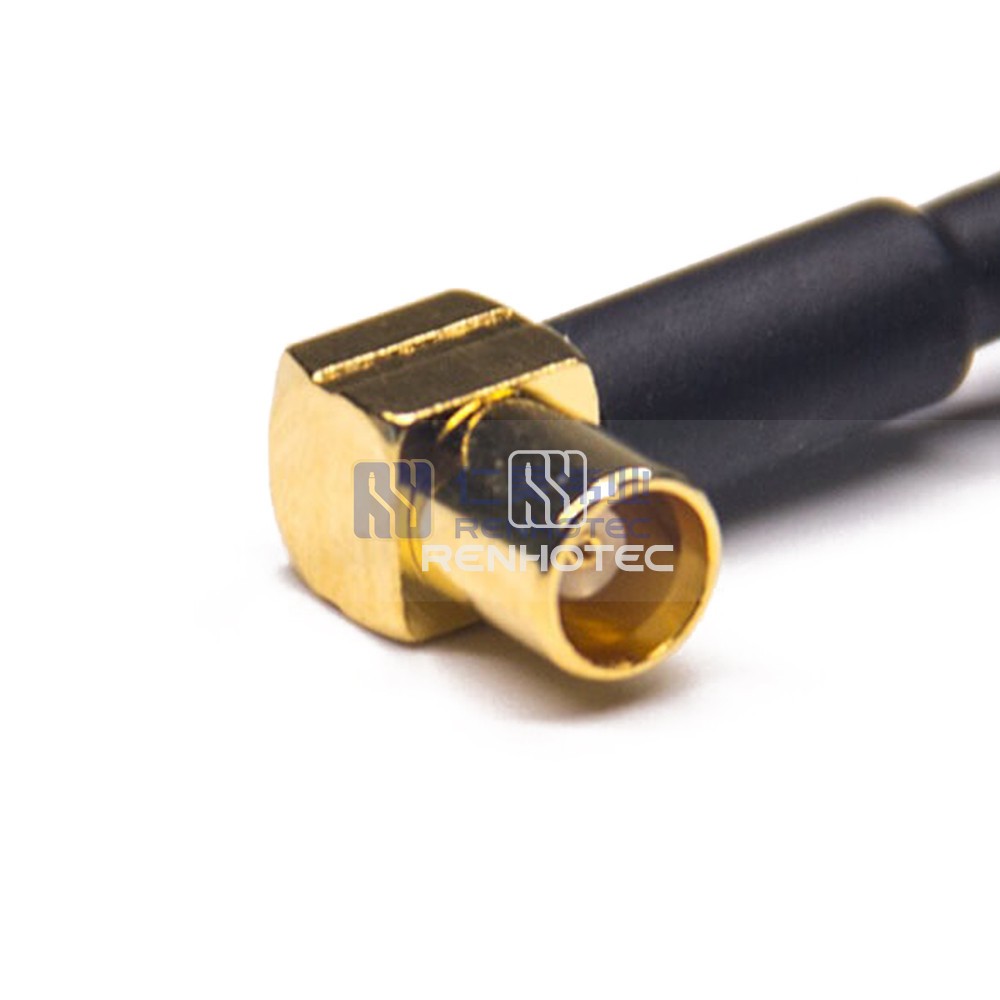

2nd Connector Series | MCX Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Features | Waterproof |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
