R02-B01-10130-20

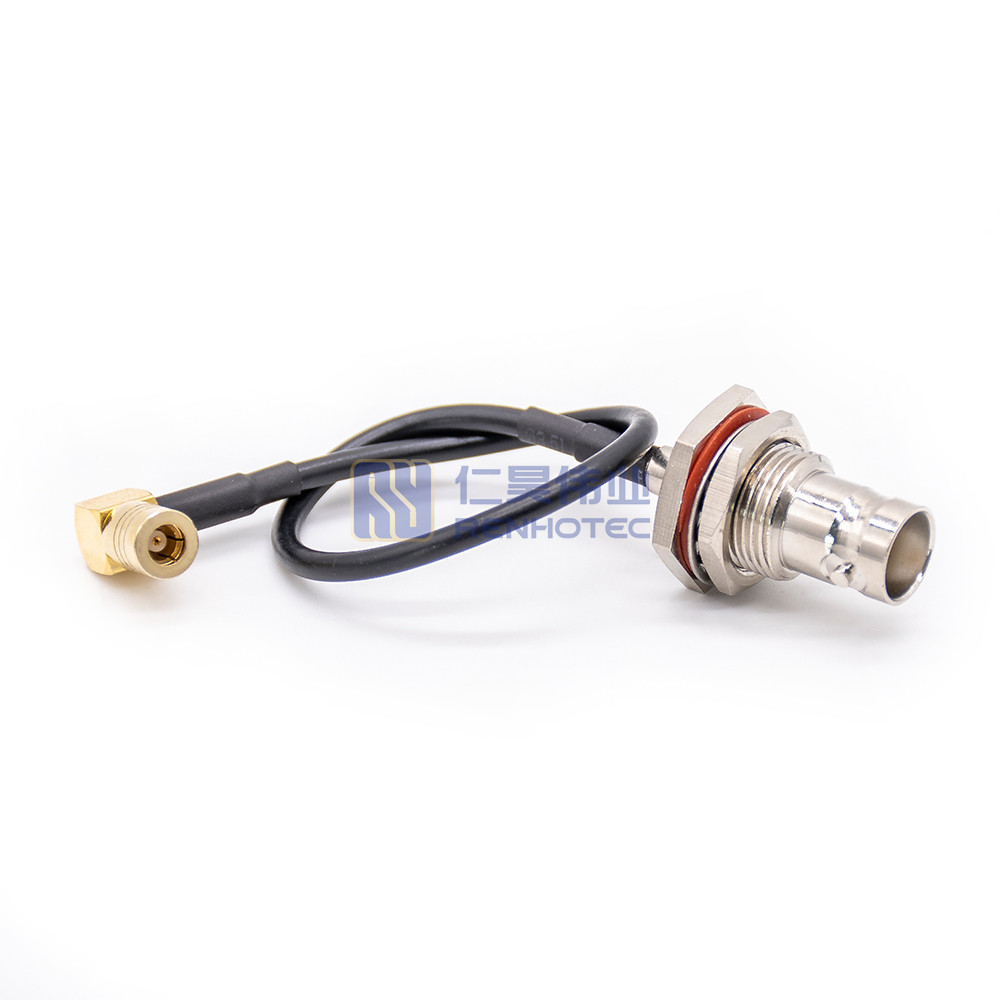

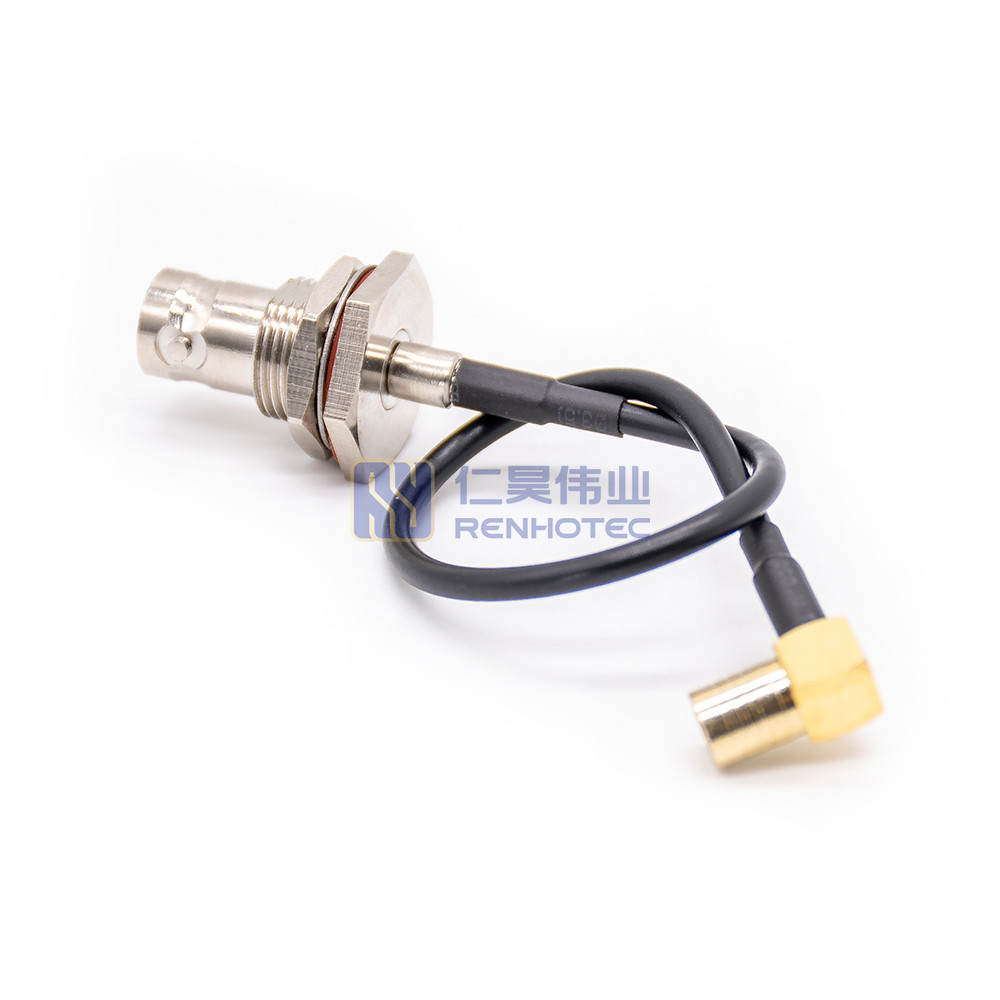

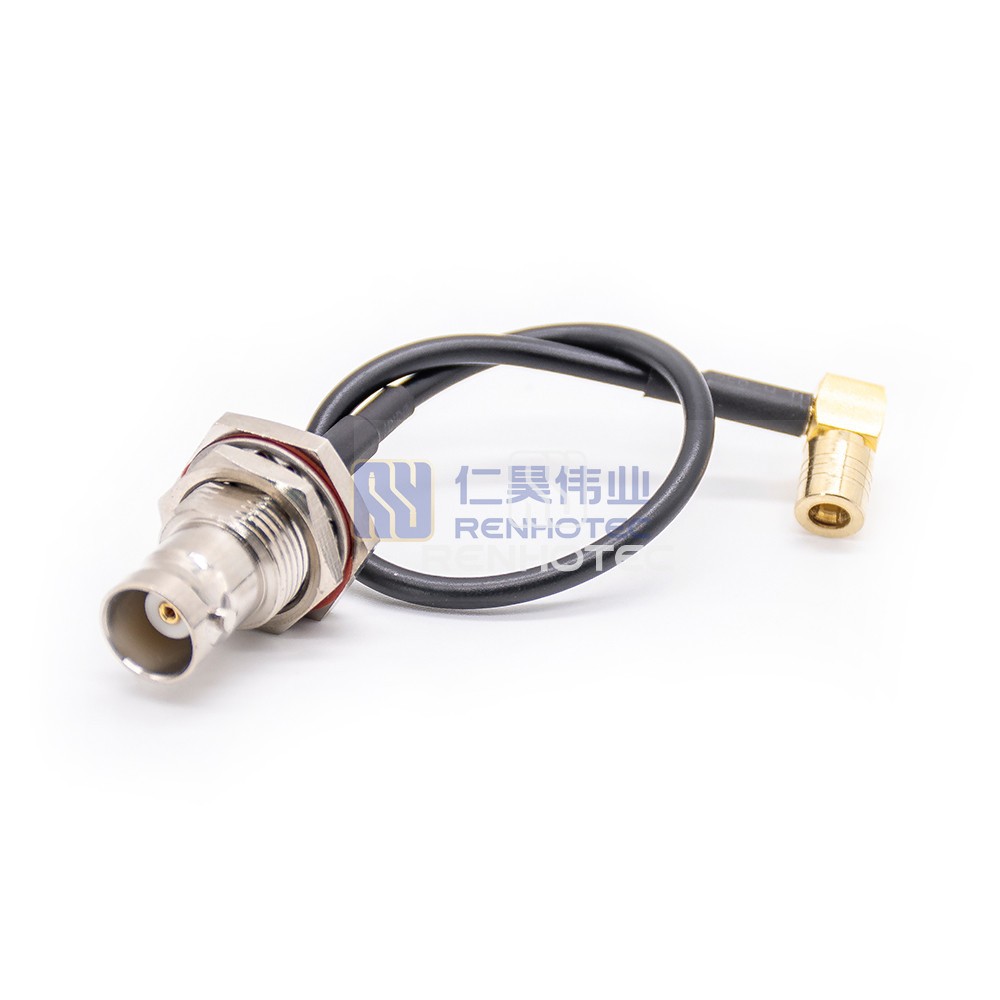

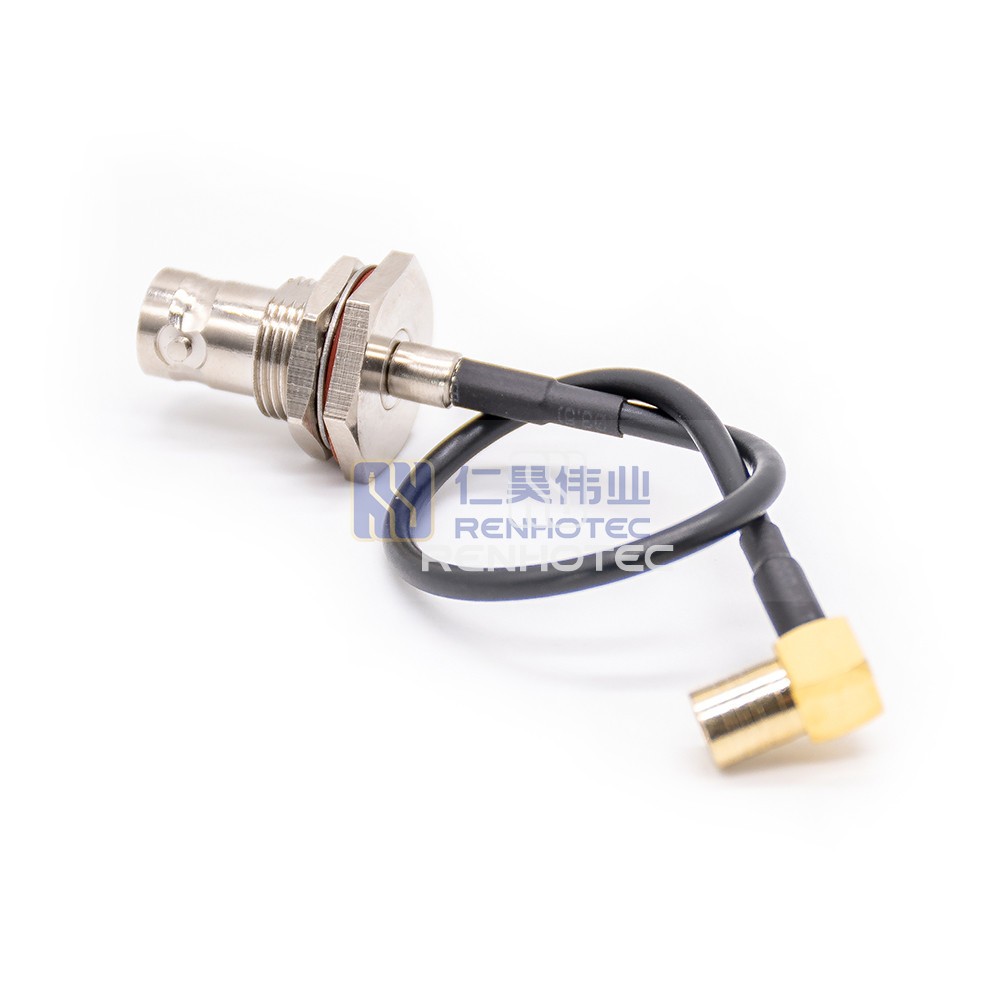

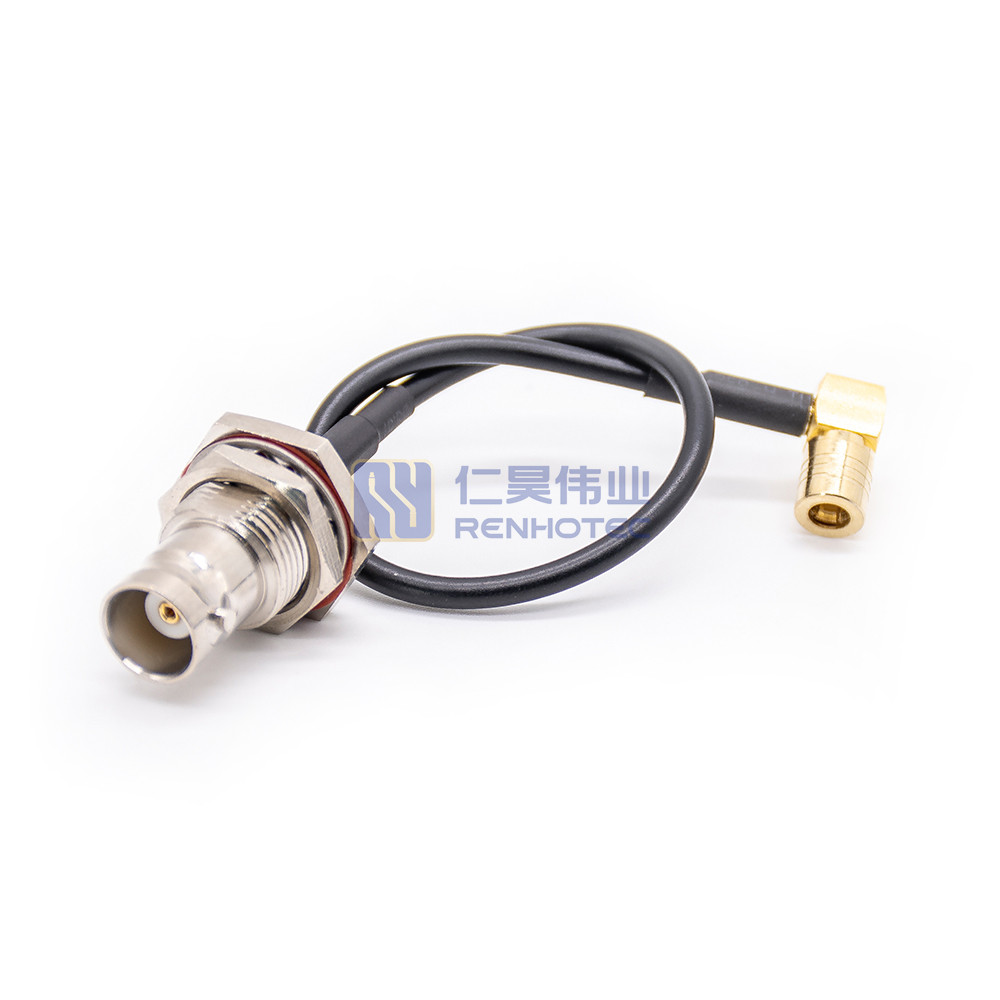

BNC Female Bulkhead Front Side Nut to SMB Righ Angle Male Cable Assembly with 50 Ohm RG174 Coaxial Cable
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure seamless connectivity with this BNC Female Bulkhead to SMB Right Angle Male Cable Assembly featuring 50 Ohm RG174 Coaxial Cable. Ideal for secure and reliable signal transmission in various electronic applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationRight Angle
FeaturesWaterproof
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
