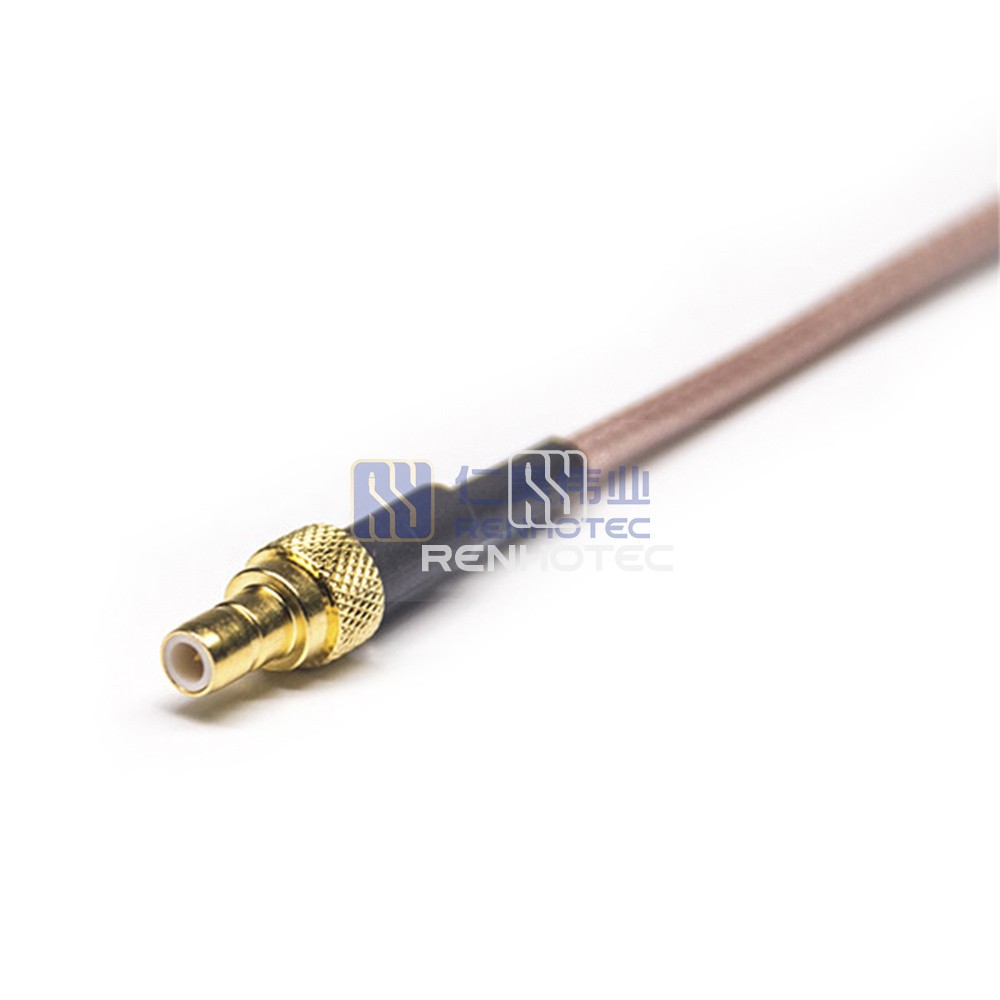

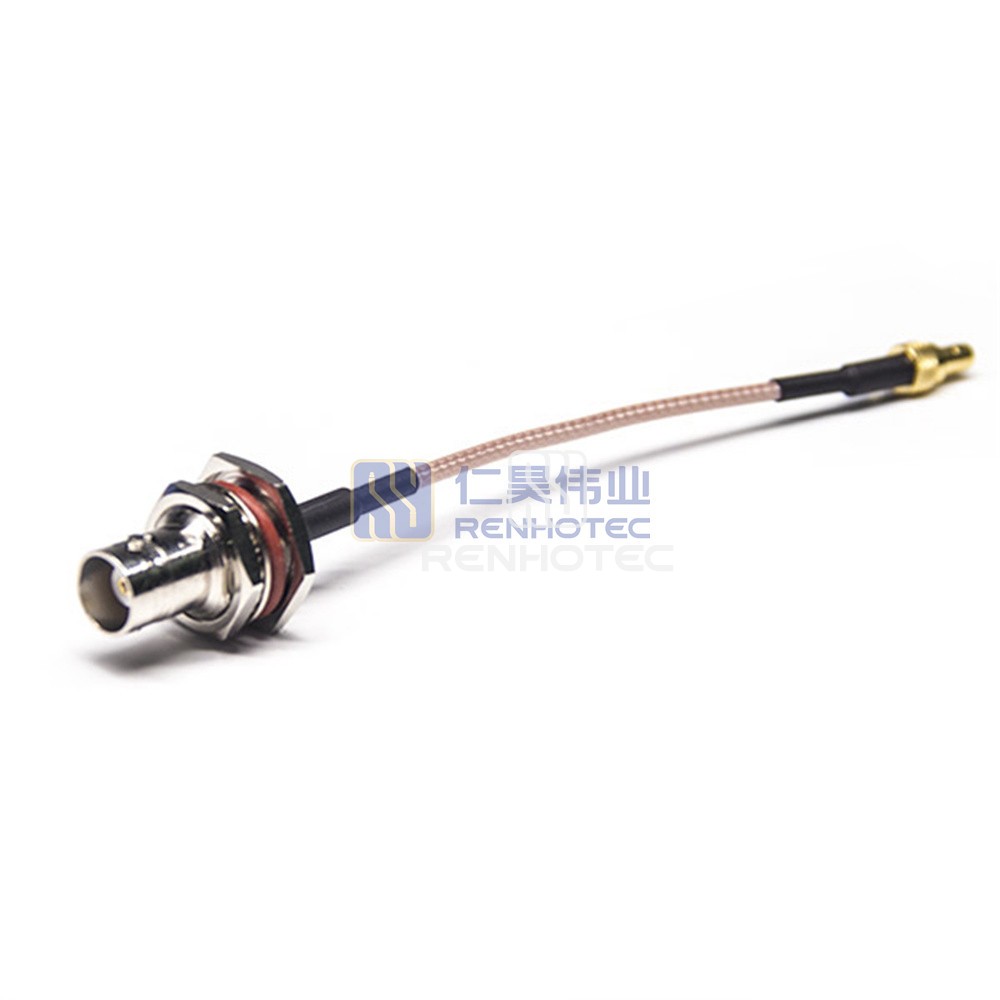

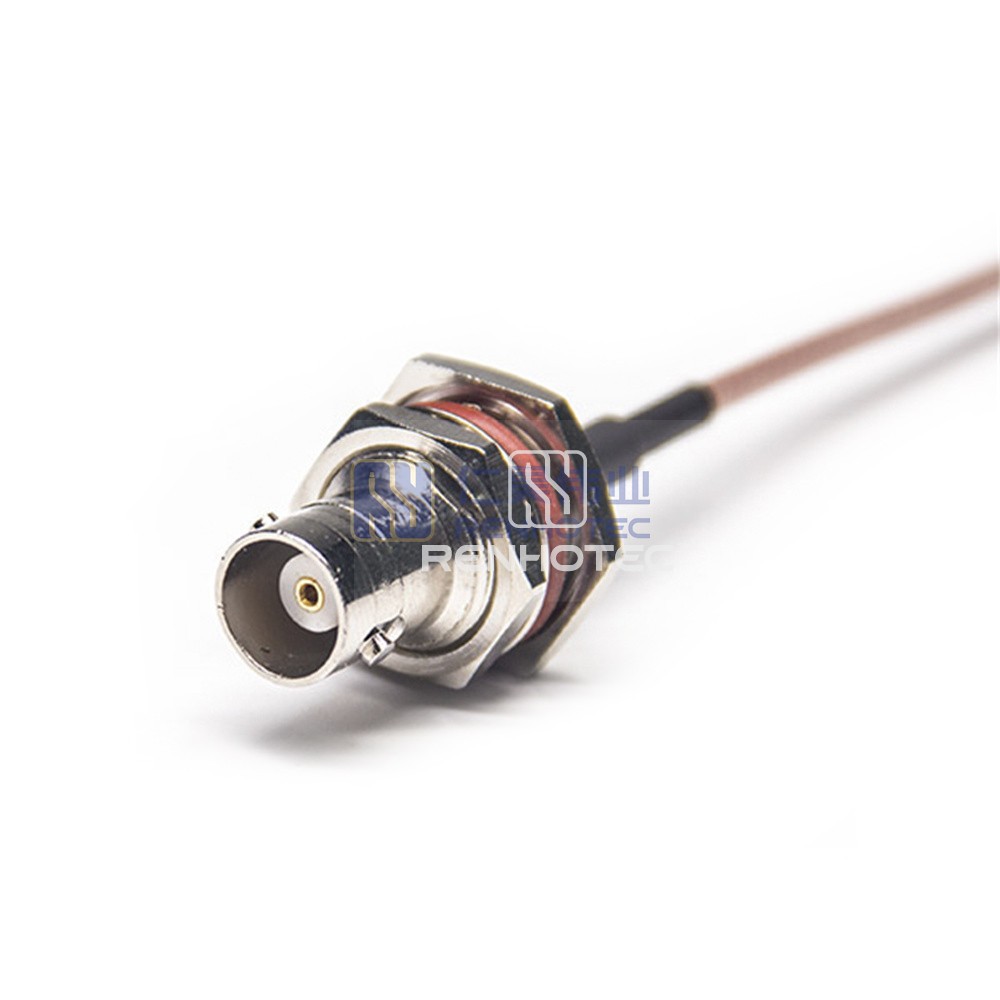

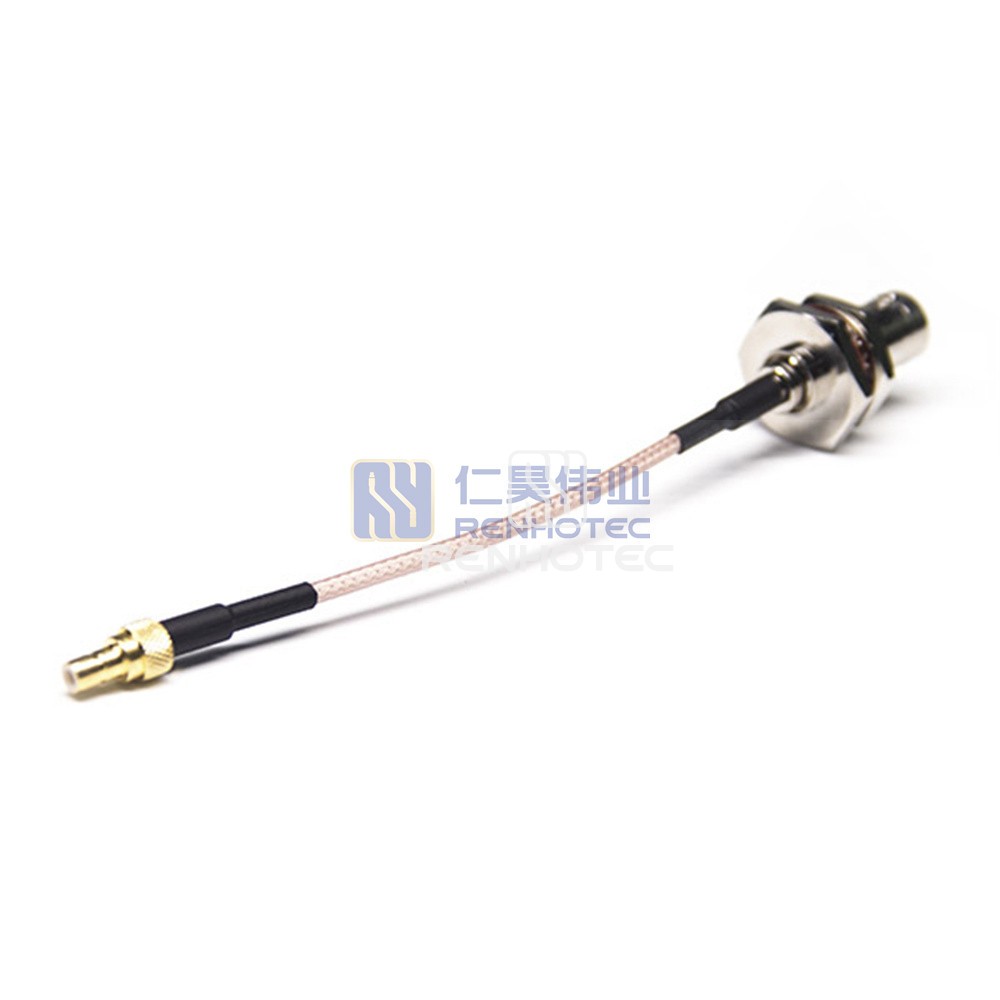

BNC Female Bulkhead Front Side Nut to SMB Female Cable Assembly with 50 Ohm RG316 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality BNC female bulkhead to SMB female cable assembly featuring 50 Ohm RG316 coaxial cable. Perfect for RF signal transmission in various applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | BNC Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
2nd Connector Series | SMB Jack |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Straight |
Features | Waterproof |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
