CA3106A16S-1P

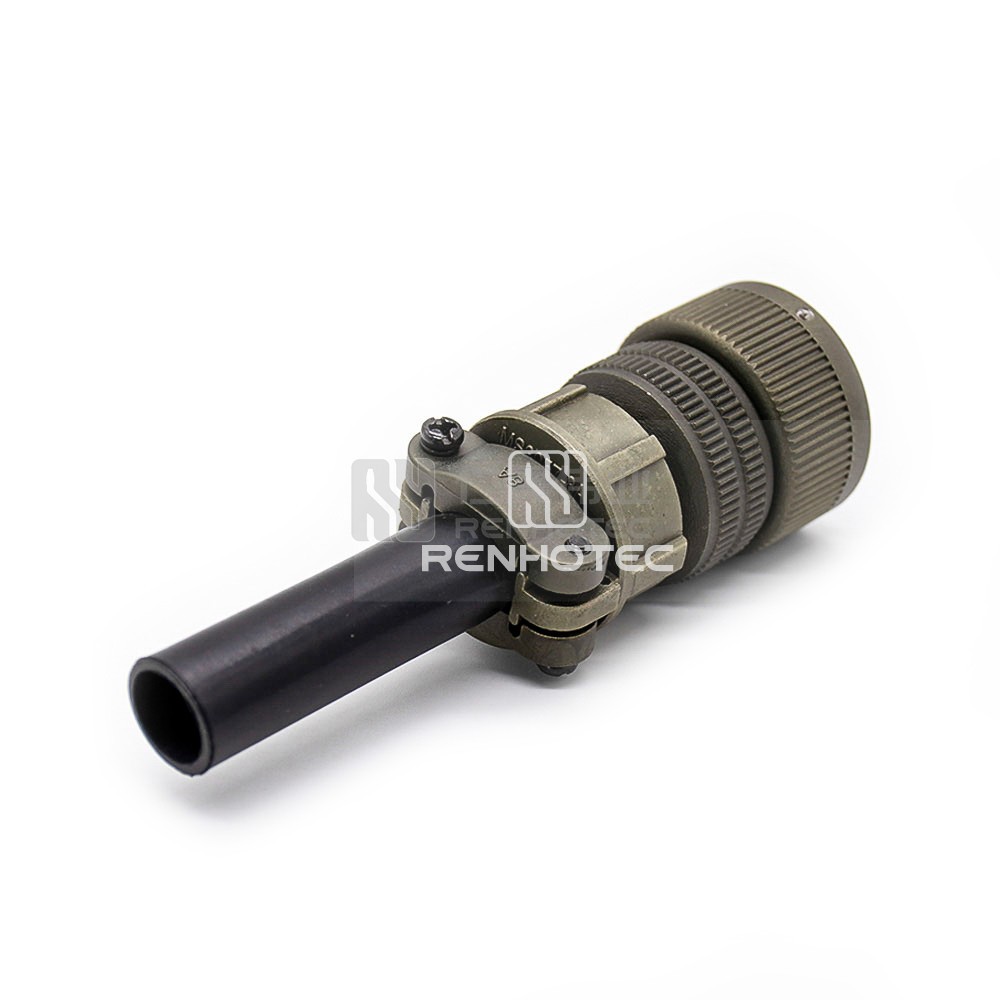

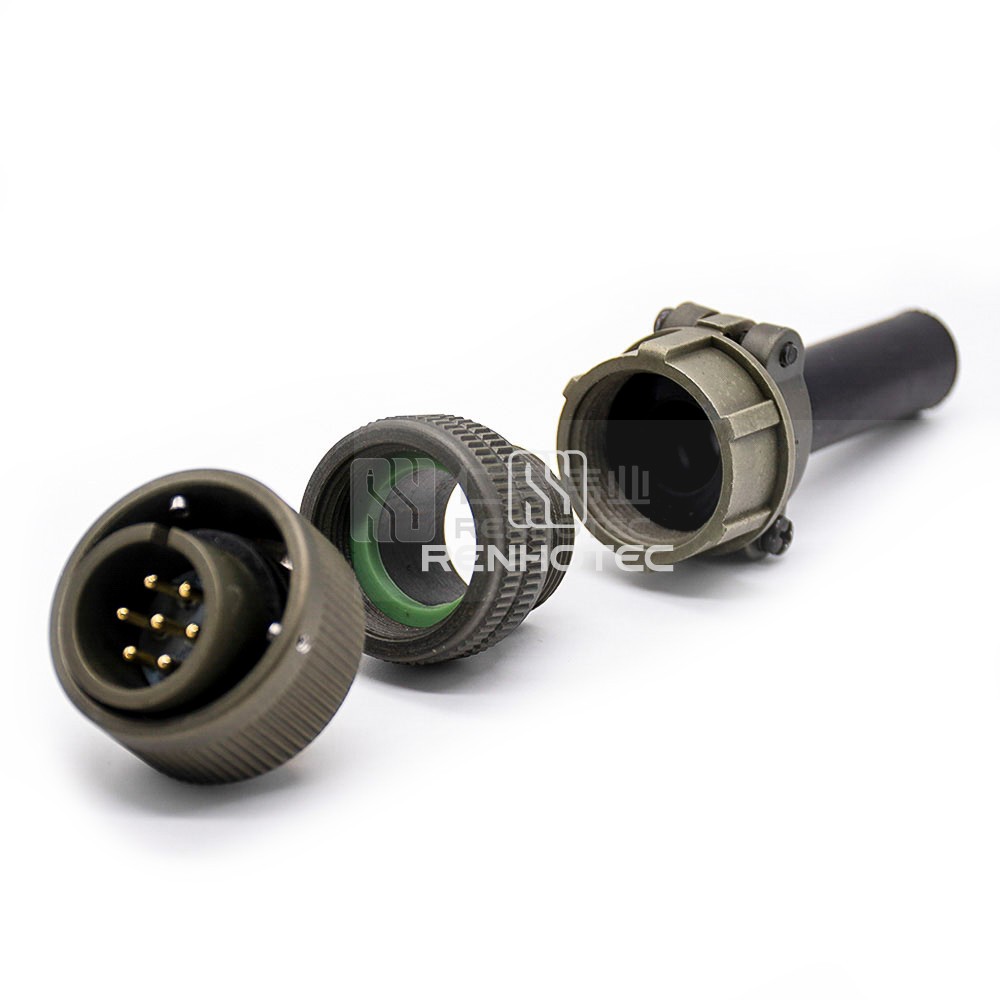

Bayonet Lock CA3106A16S-1P 7Pin Male Straight Plug Solder Cup
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

High-quality 7-pin male straight plug solder cup with bayonet lock mechanism for secure connections. Compatible with CA3106A16S-1P connectors.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeMale Pin
Number of Positions7
Contact Arrangements16S-1
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or Range20-16AWG
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size16S
Electrical
ShieldingUnshielded
Rated Current15A
Rated Voltage500V
