CA3106A16-12P

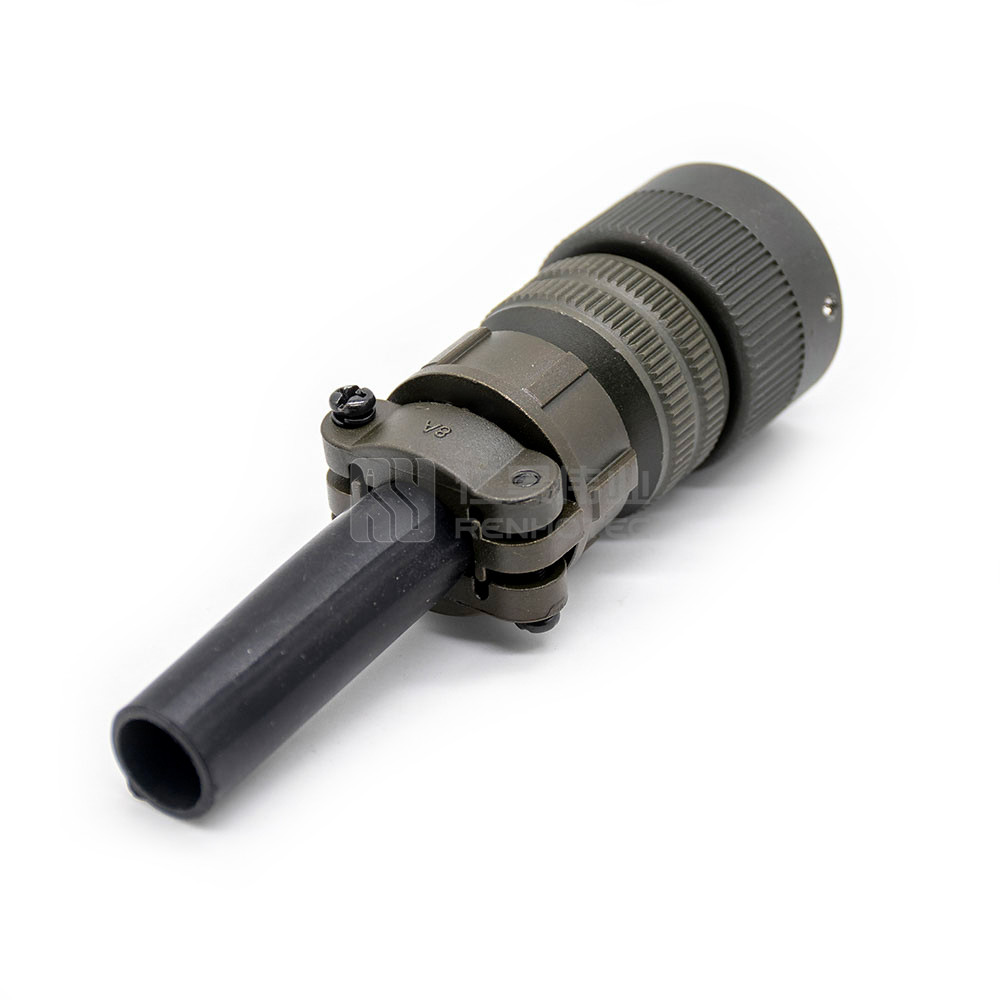

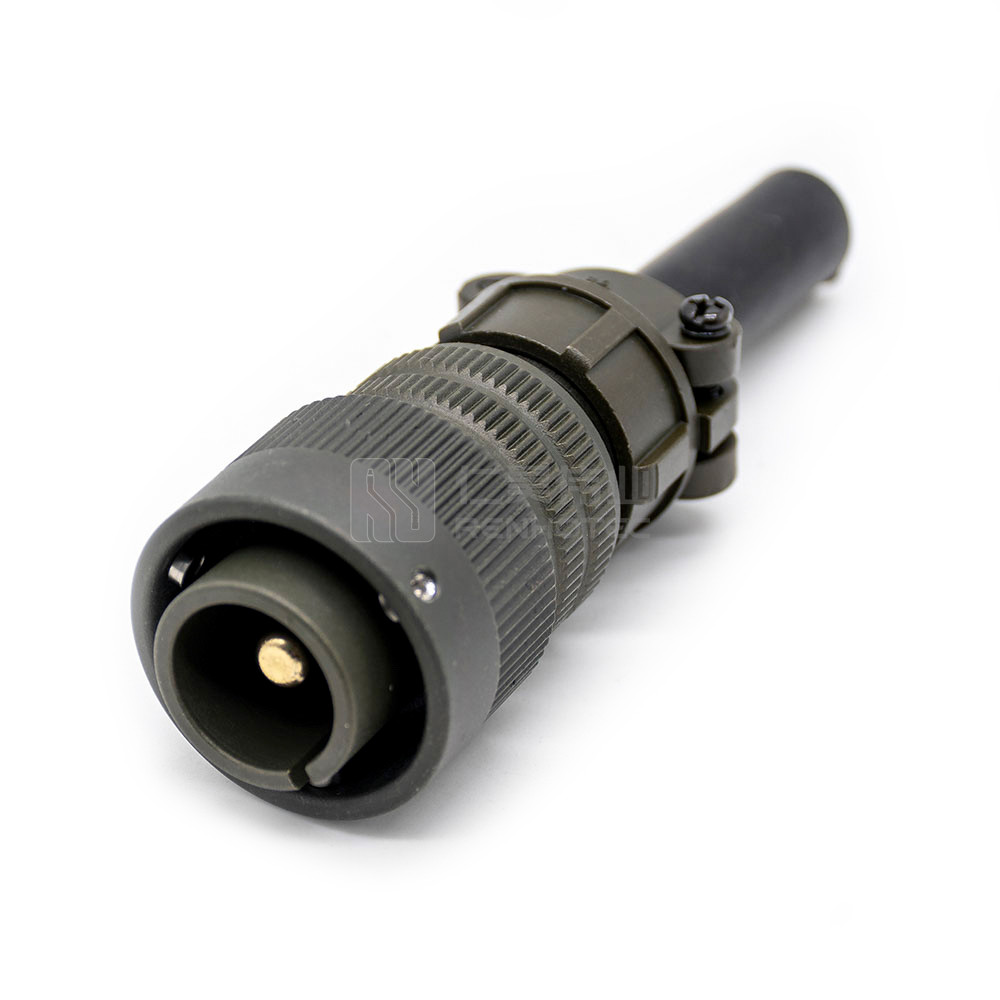

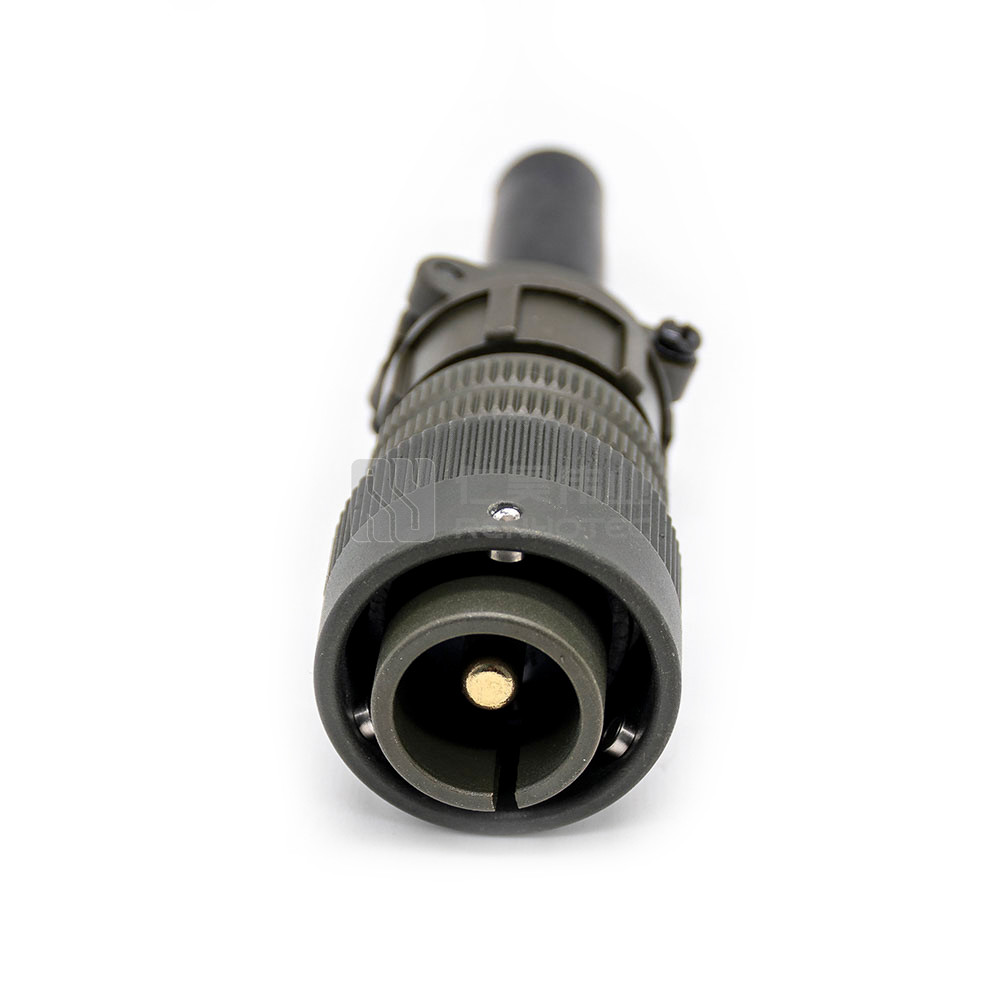

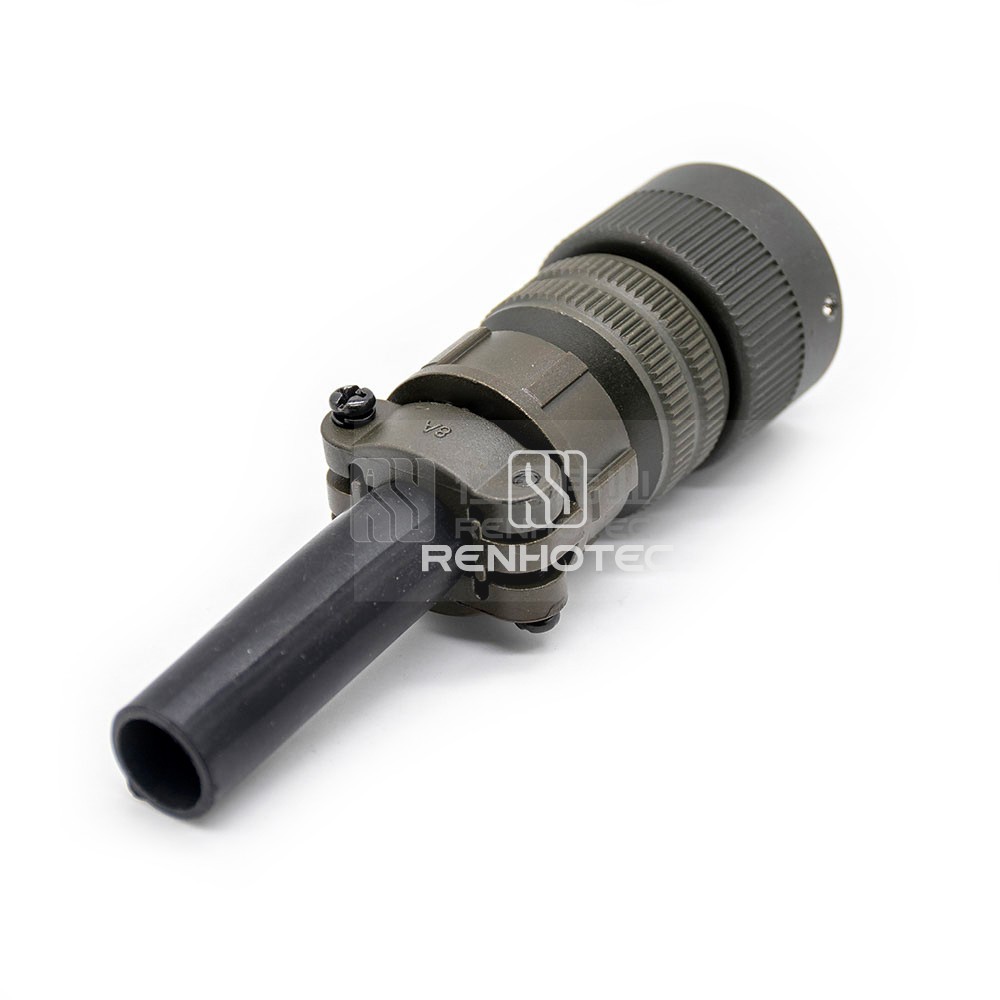

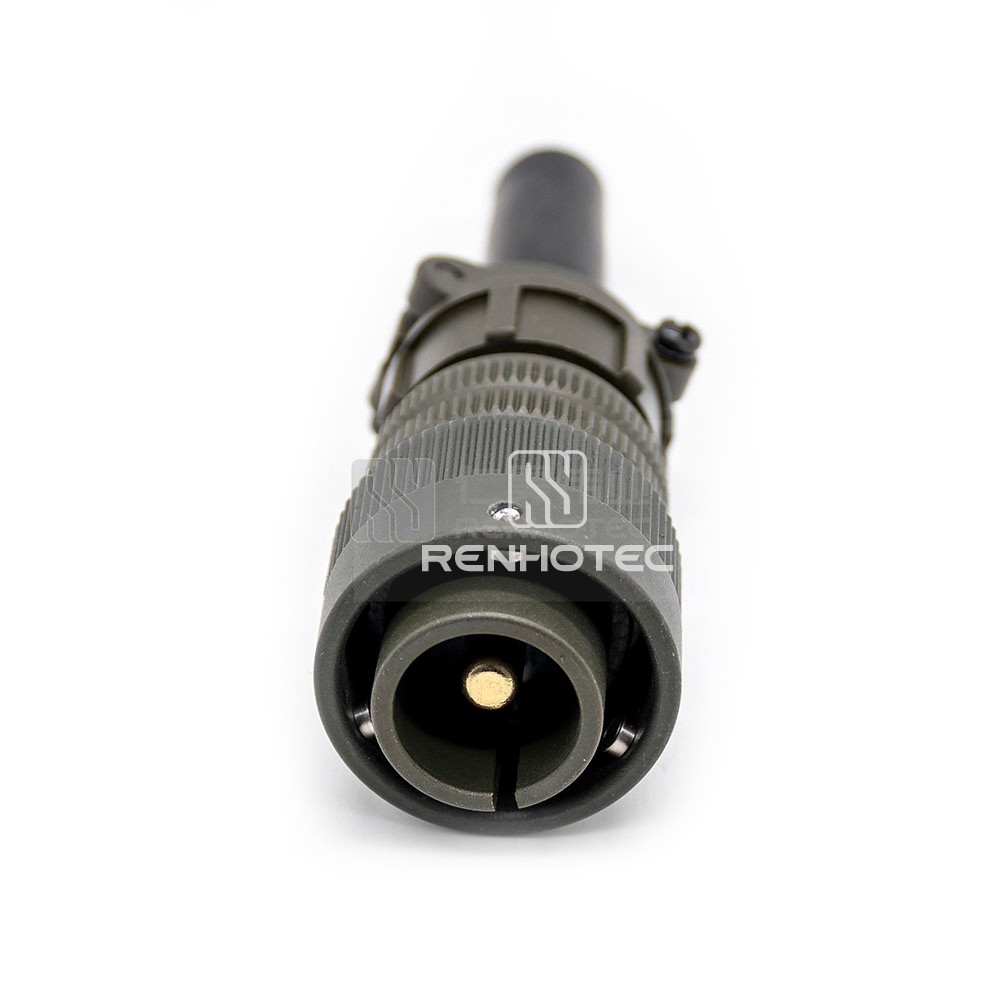

Bayonet Lock CA3106A16-12P 1Pin Male Straight Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
High-quality Bayonet Lock CA3106A16-12P 1Pin Male Straight Plug Solder Cup designed for secure and reliable connections. Ideal for various electronic applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 1 |
Contact Arrangements | 16-12 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 16 |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 6-4AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 80A |
Rated Voltage | 500V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Certification
MS5015 Test Report | Download |
