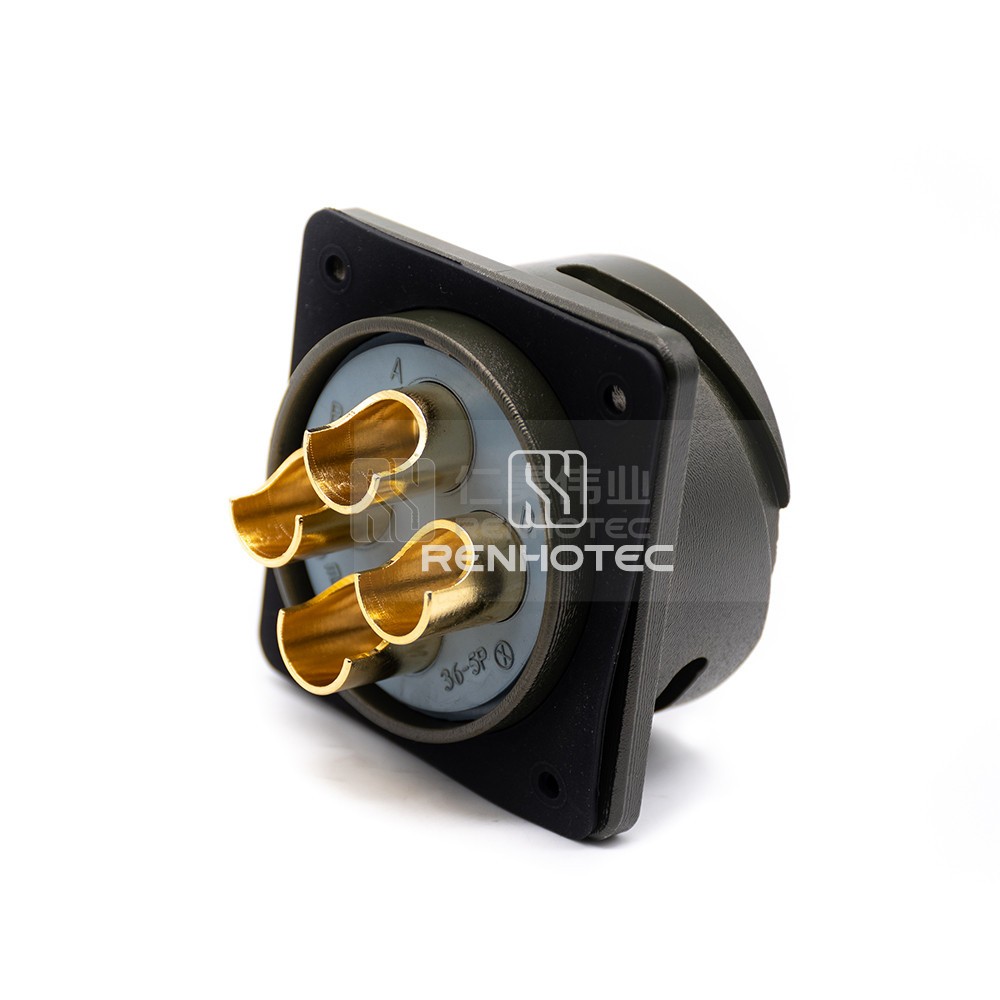

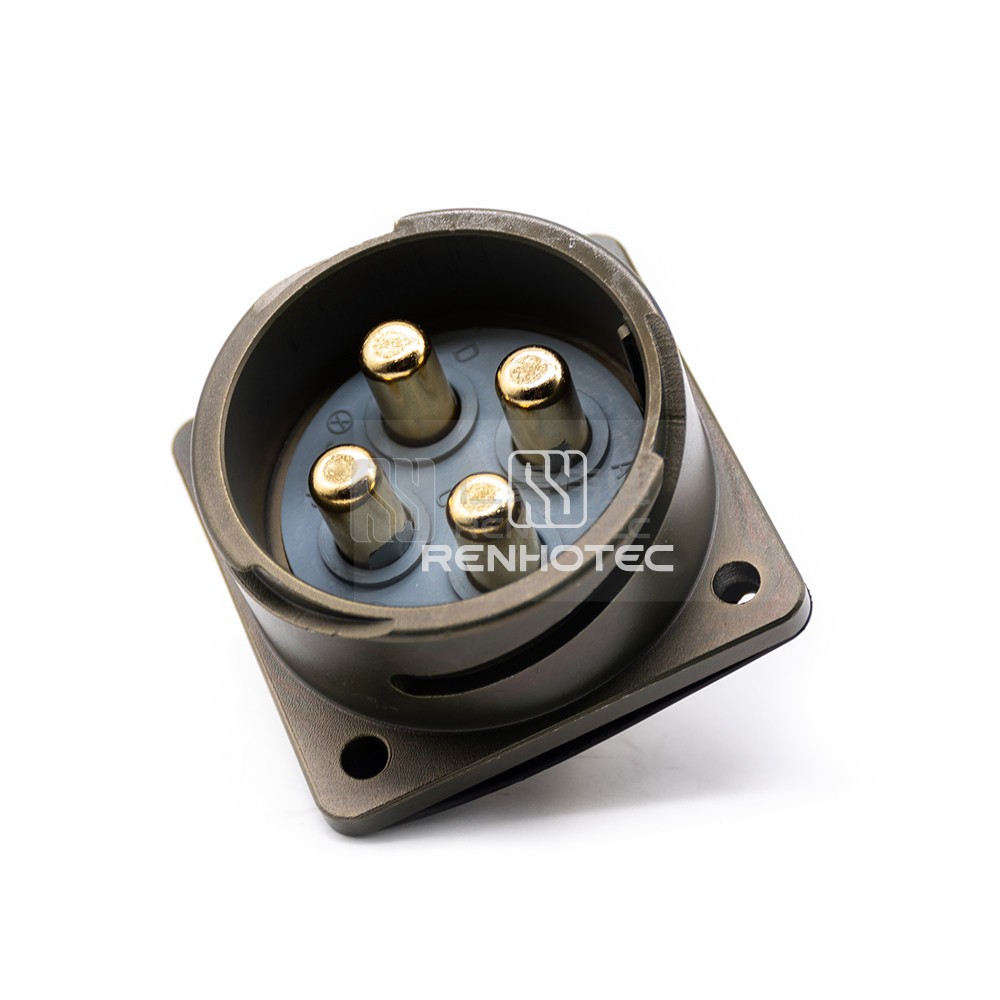

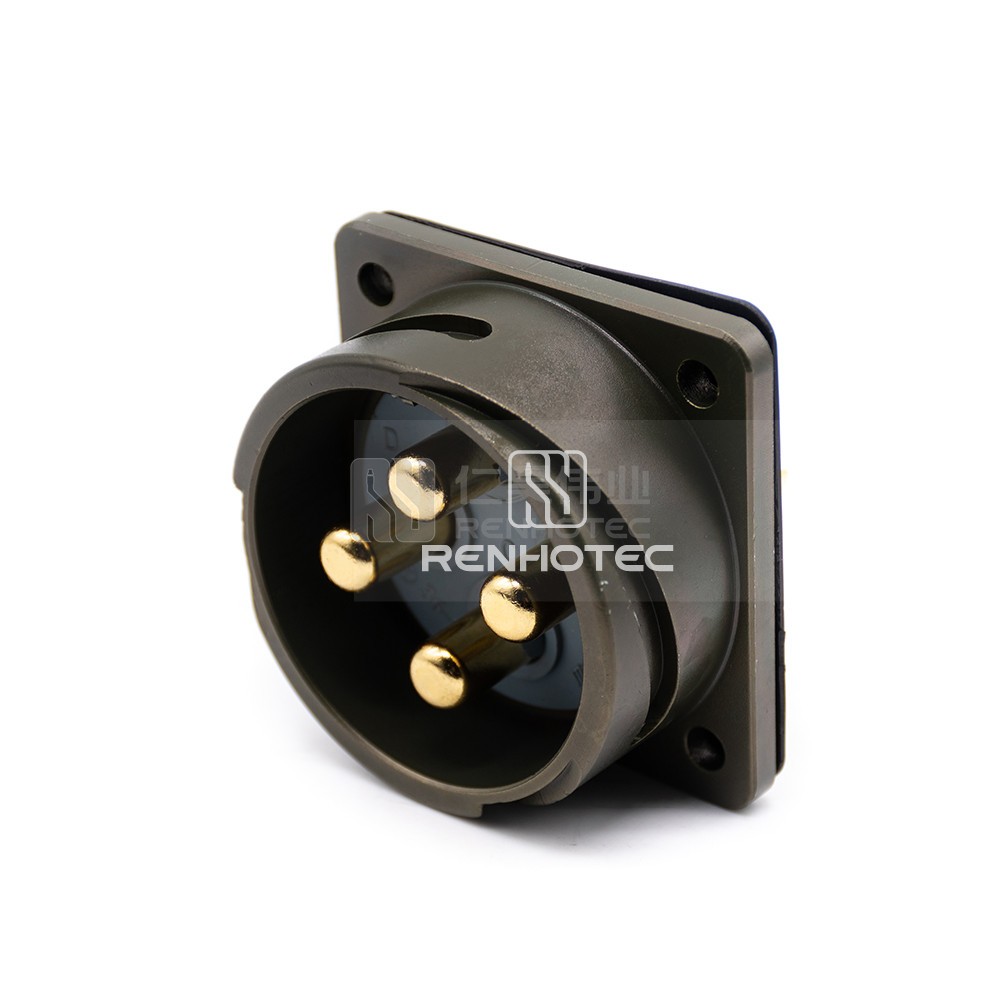

Products > MIL Spec Connector > Bayonet Lock CA3102A36-5P 4Pin Male Box Mounting Receptacle Solder Cup
CA3102A36-5P
Bayonet Lock CA3102A36-5P 4Pin Male Box Mounting Receptacle Solder Cup- Overview
- Technical data
- Certification
- Download
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 4 |
| Contact Arrangements | 36-5 |
| Contact Termination | Solder Cup |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 36 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Wire Gauge or Range | 2-0AWG |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Gold |
| Environmental | |
|---|---|
| Ingress Protection | IP55 |
| Operating Temperature | -55°C ~ + 125°C |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 120A |
| Rated Voltage | 500V |
Certification
| MS5015 Test Report | Download |
