Products > Energy Storage Connector > Battery Storage Connector Right Angle 250A Orange 70mm2 Unshielded Cable Z Key
FSP840180TZ-70U0A1RH

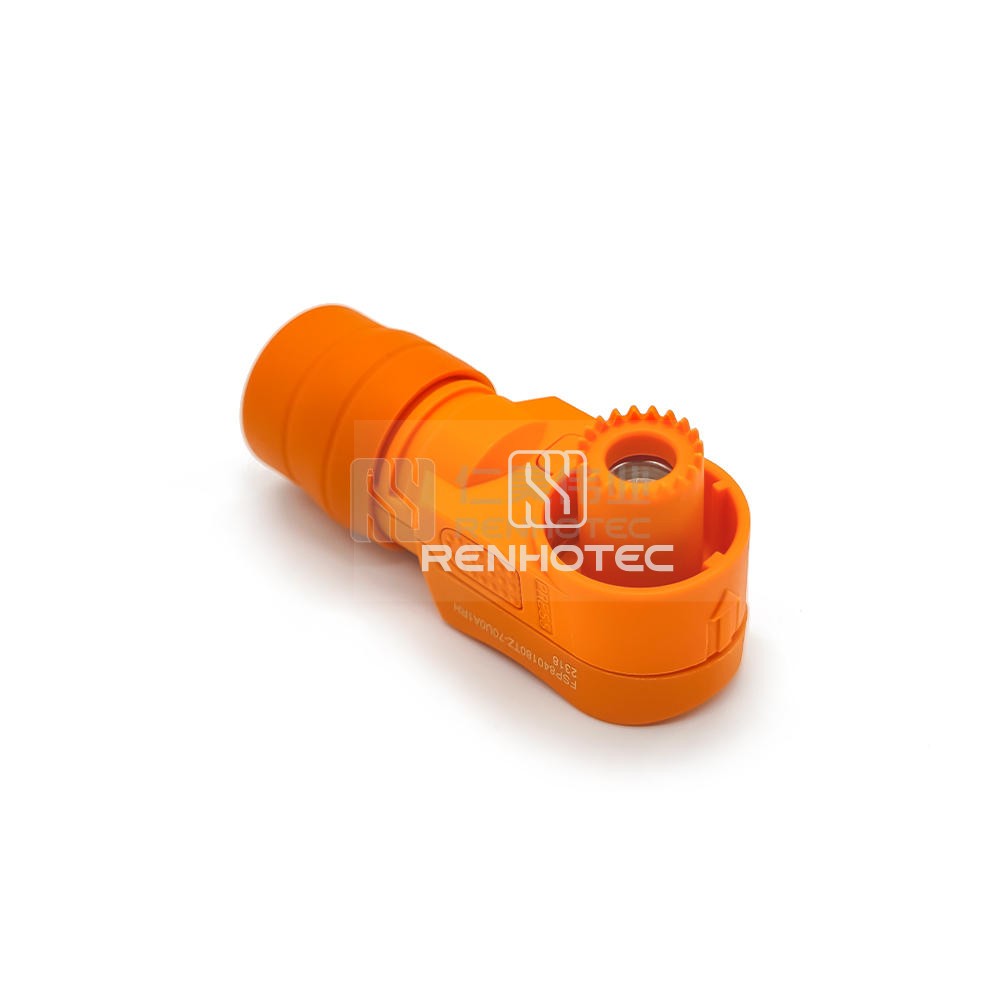

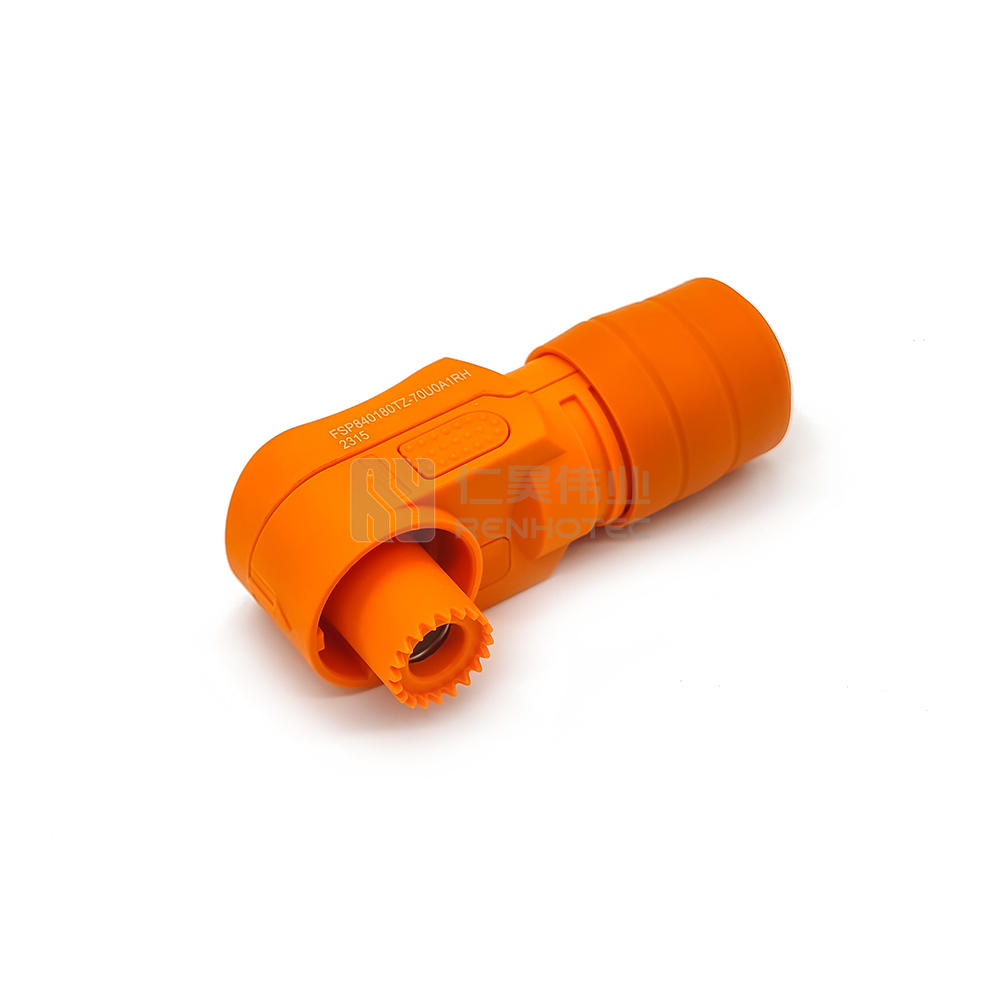

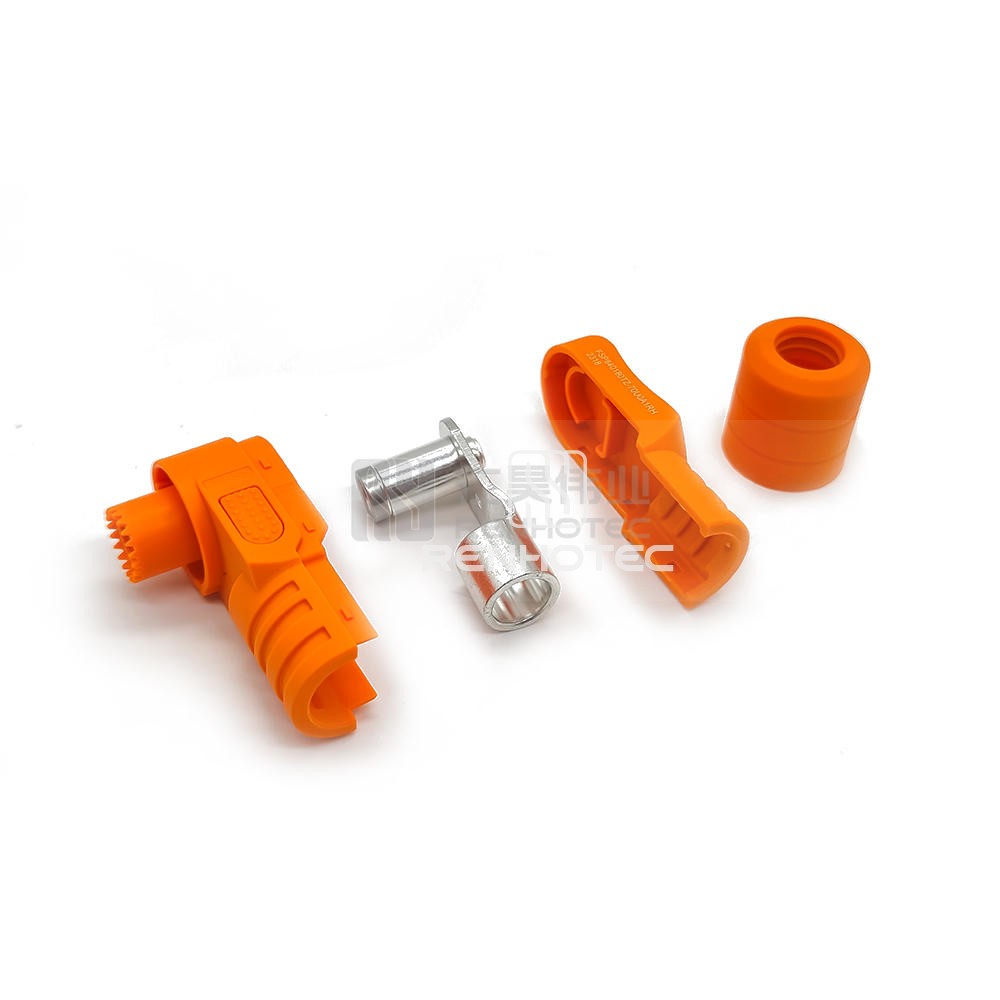

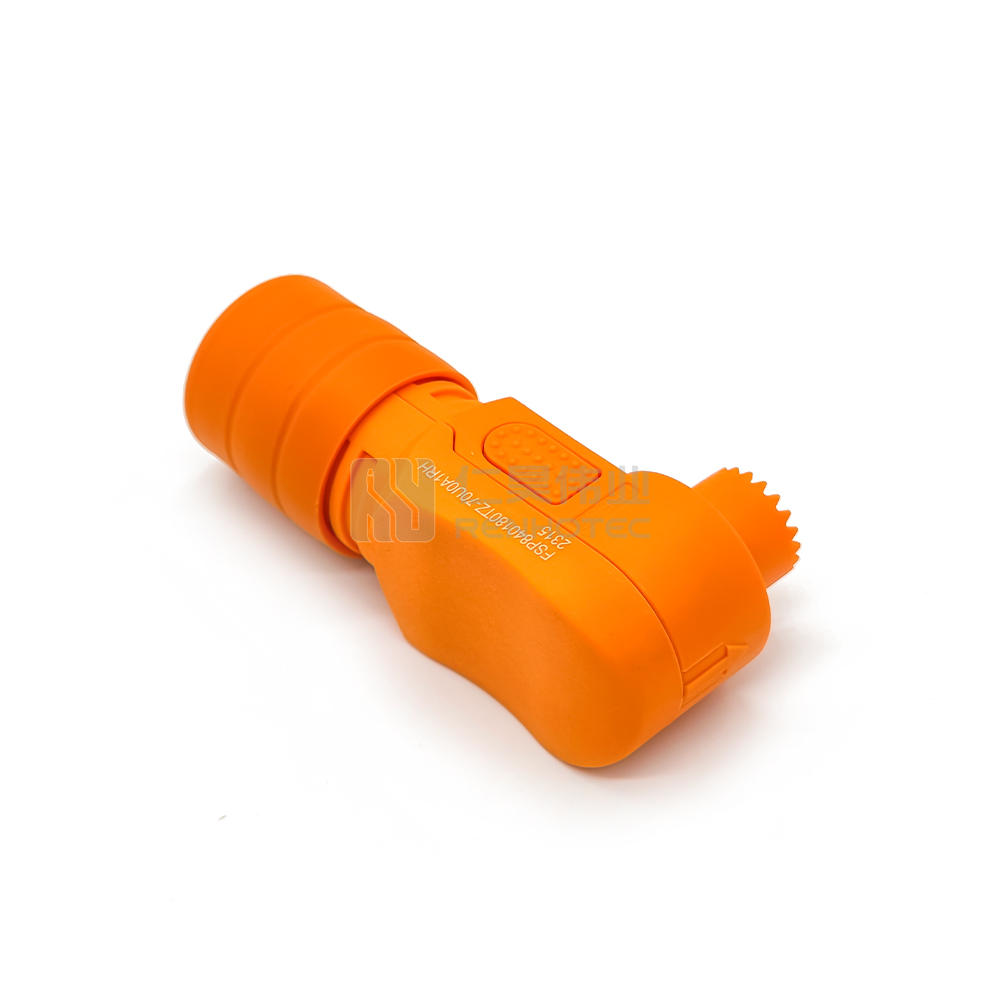

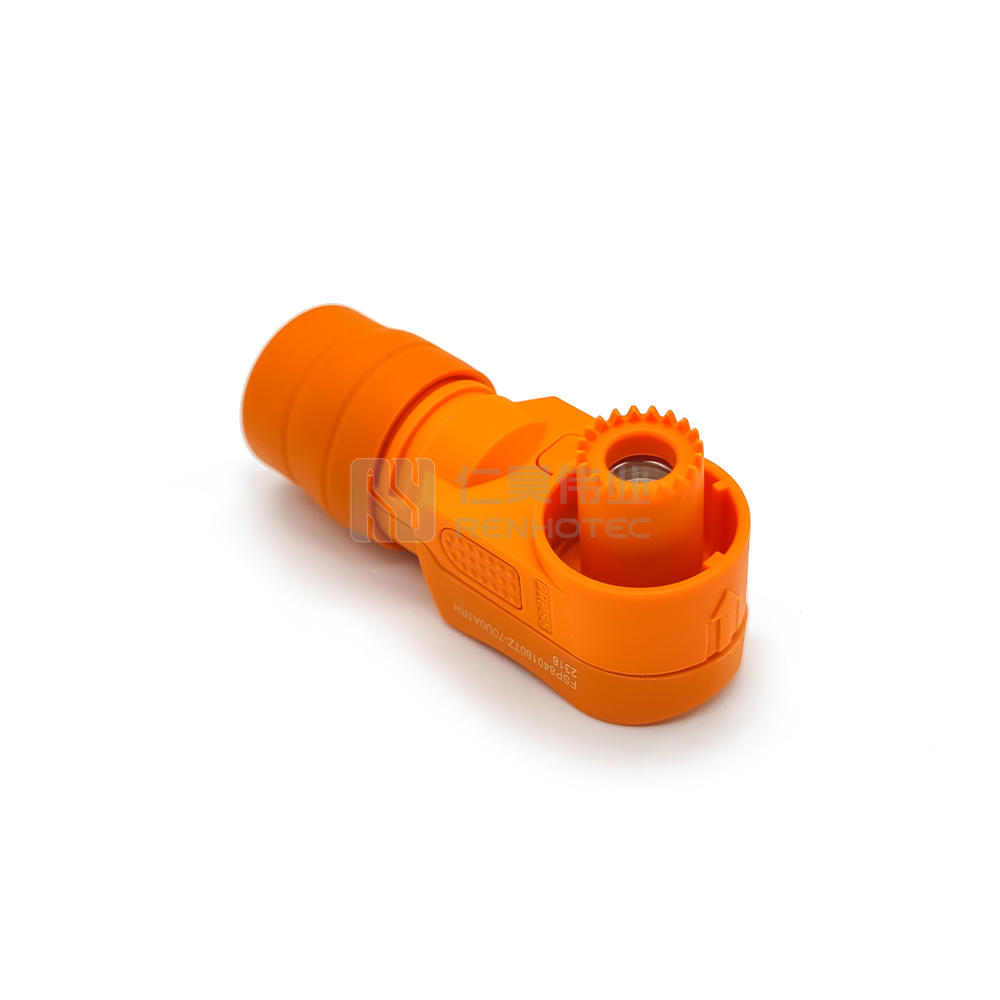

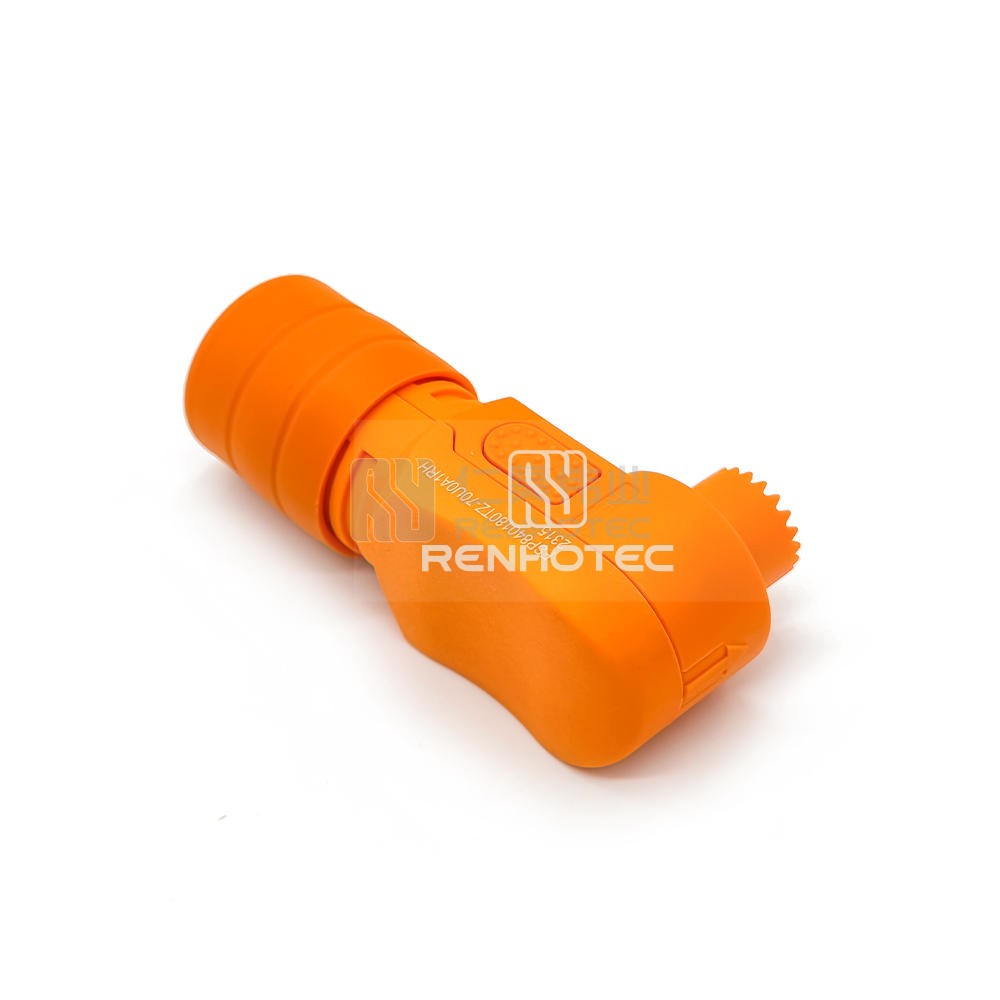

Battery Storage Connector Right Angle 250A Orange 70mm2 Unshielded Cable Z Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure secure and efficient battery storage with this right angle connector capable of handling 250A. Crafted with durable orange 70mm2 unshielded cable, featuring a Z key design for easy installation and increased safety.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Termination | Crimp |
| Key | Z |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 250A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
