PG80-00-27.0-02P-C-B

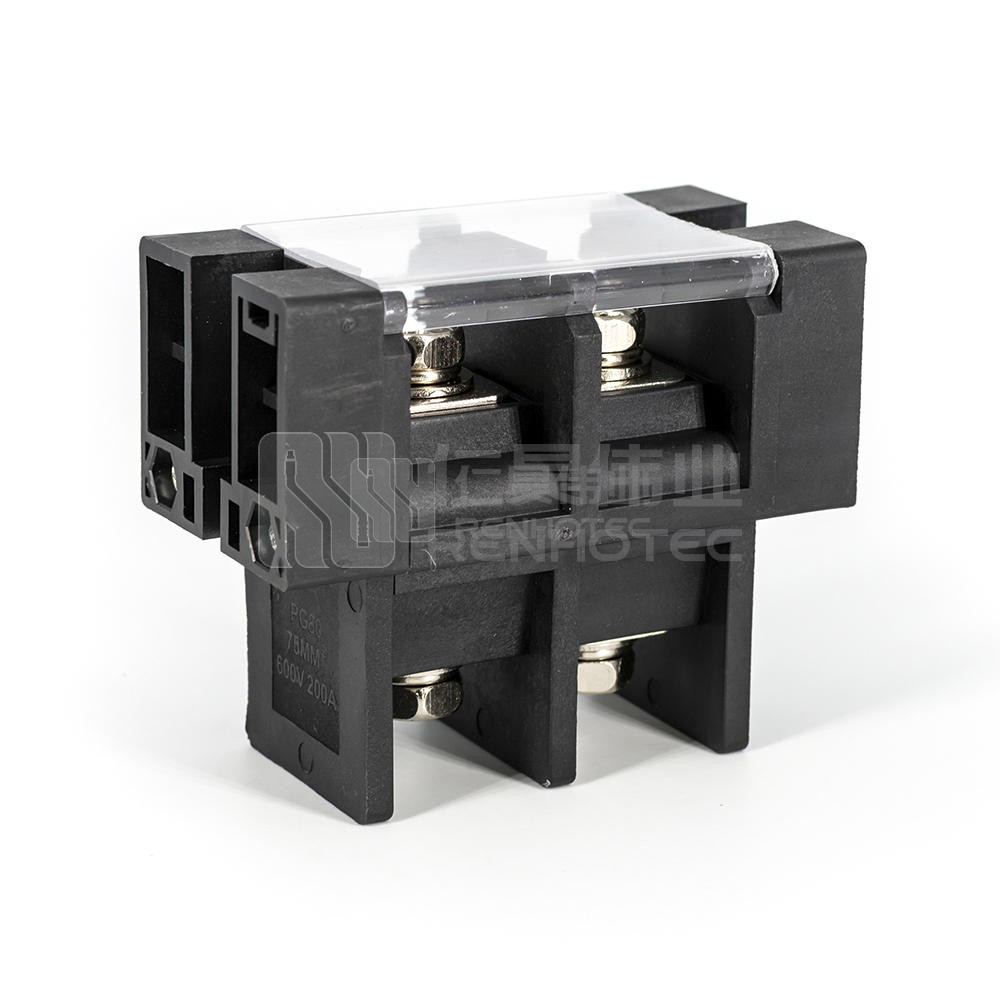

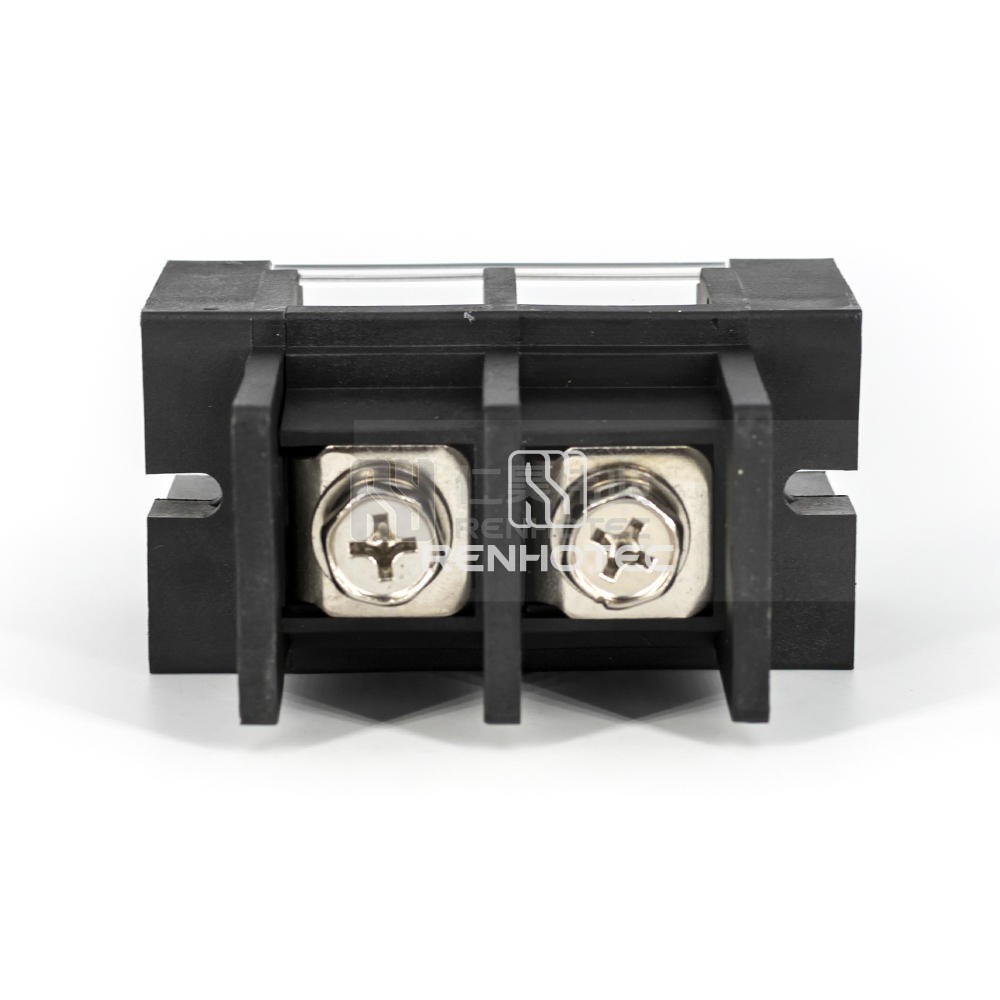

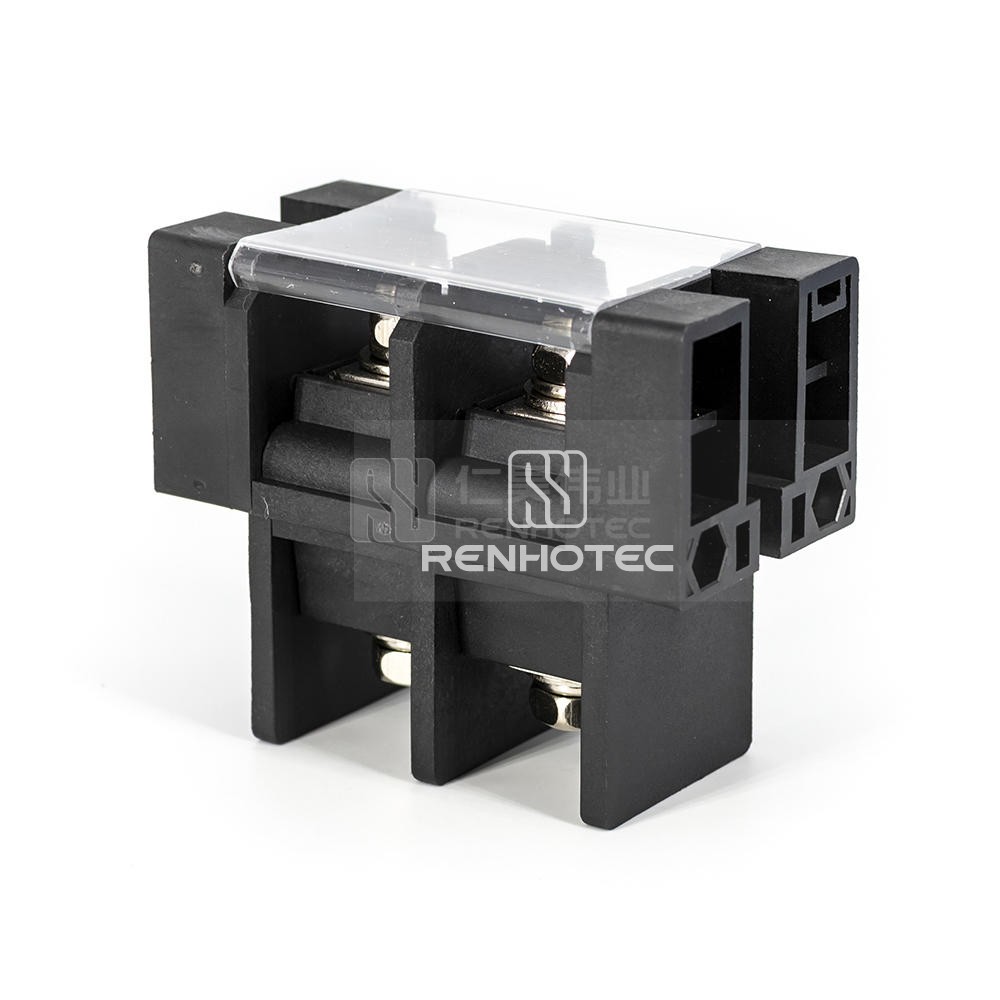

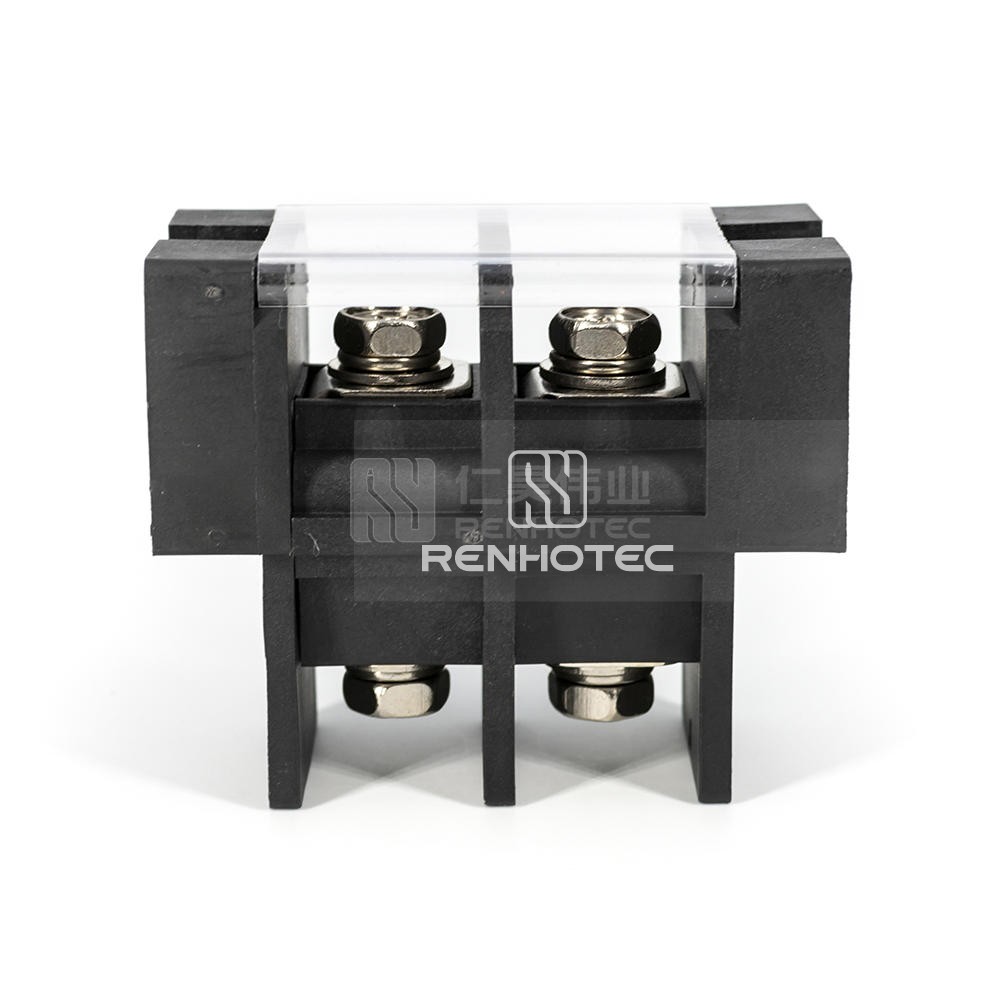

Barrier Terminal Block 2 Circuts Pitch 27mm Black- Overview
- Technical data
- Certification
- Download
Product excerpt
Enhance your electrical connections with this waterproof Barrier Terminal Block. Featuring 2 circuits and a 27mm pitch, this black terminal block ensures secure and reliable connections for your projects.
MechanicalGeneralElectricalMaterialEnvironmental
| Mechanical | |
|---|---|
| Terminal Block Type | Barrier Block |
| Pitch | 27mm |
| Mounting Feature | Flange |
| Wire Gauge or Range | 2/0-14AWG |
| Bottom Termination | Screw |
| Top Termination | Screw |
| General | |
|---|---|
| Number of Circuts | 2 |
| Number of Wire Entries | 2 |
| Number of Rows | 1 |
| Color | Black |
| Features | With Cover/Flange |
| Electrical | |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 200A |
| Material | |
|---|---|
| Terminal Screw Material | Steel |
| Terminal Screw Finish | Nickel |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 105°C |
| Flammability | UL94 V-0 |
