PG38-11-21.0-02P-C-R

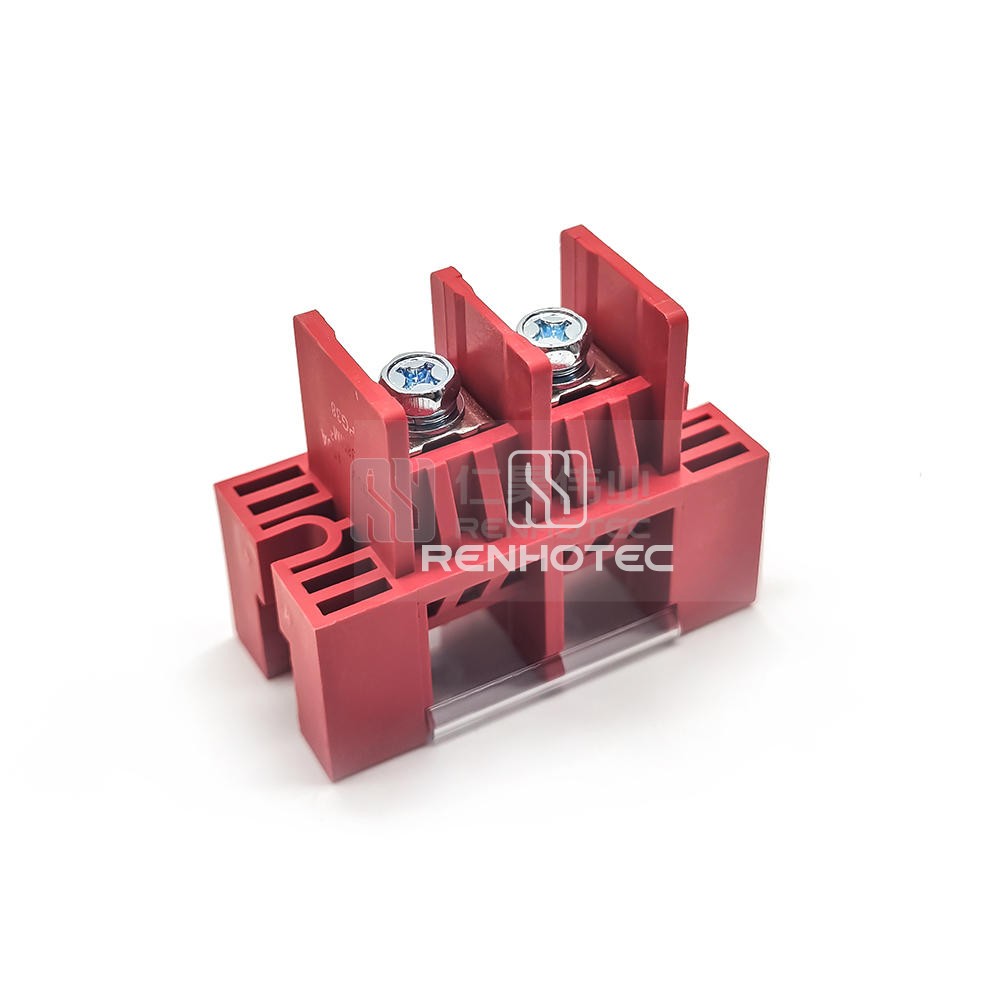

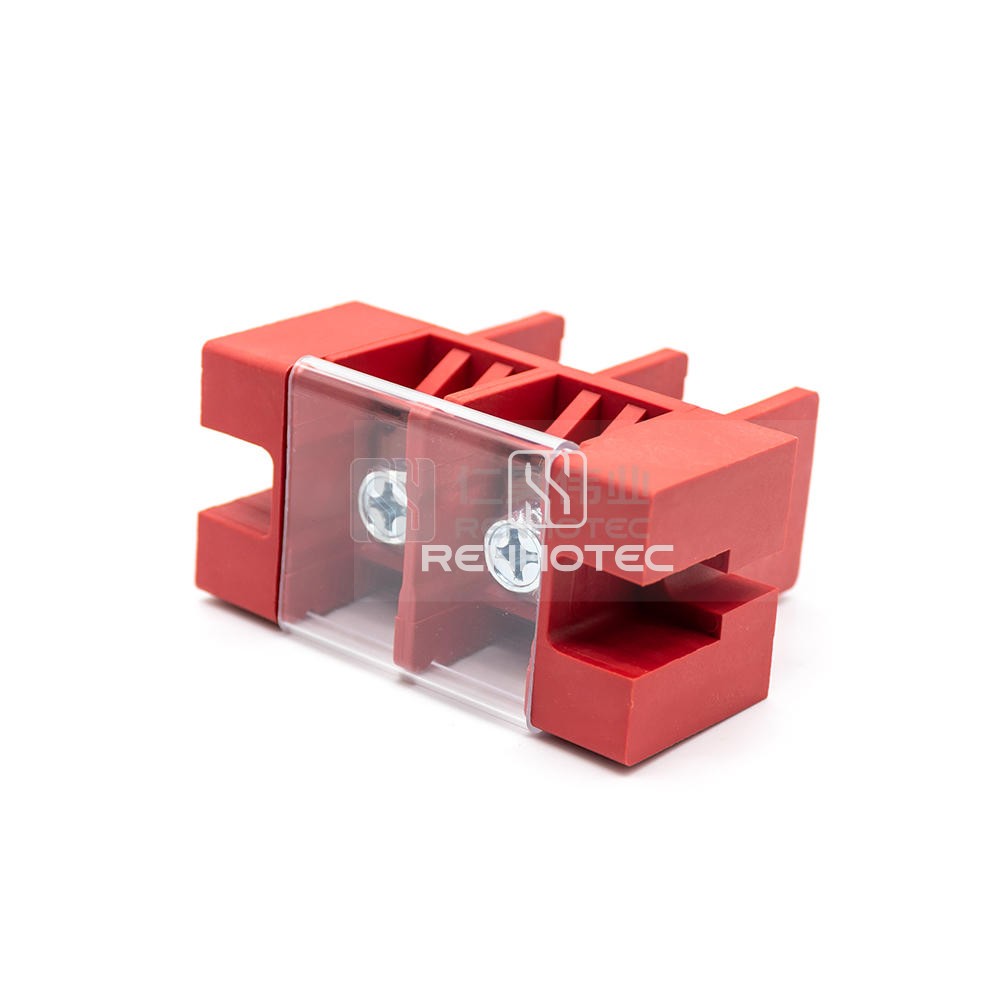

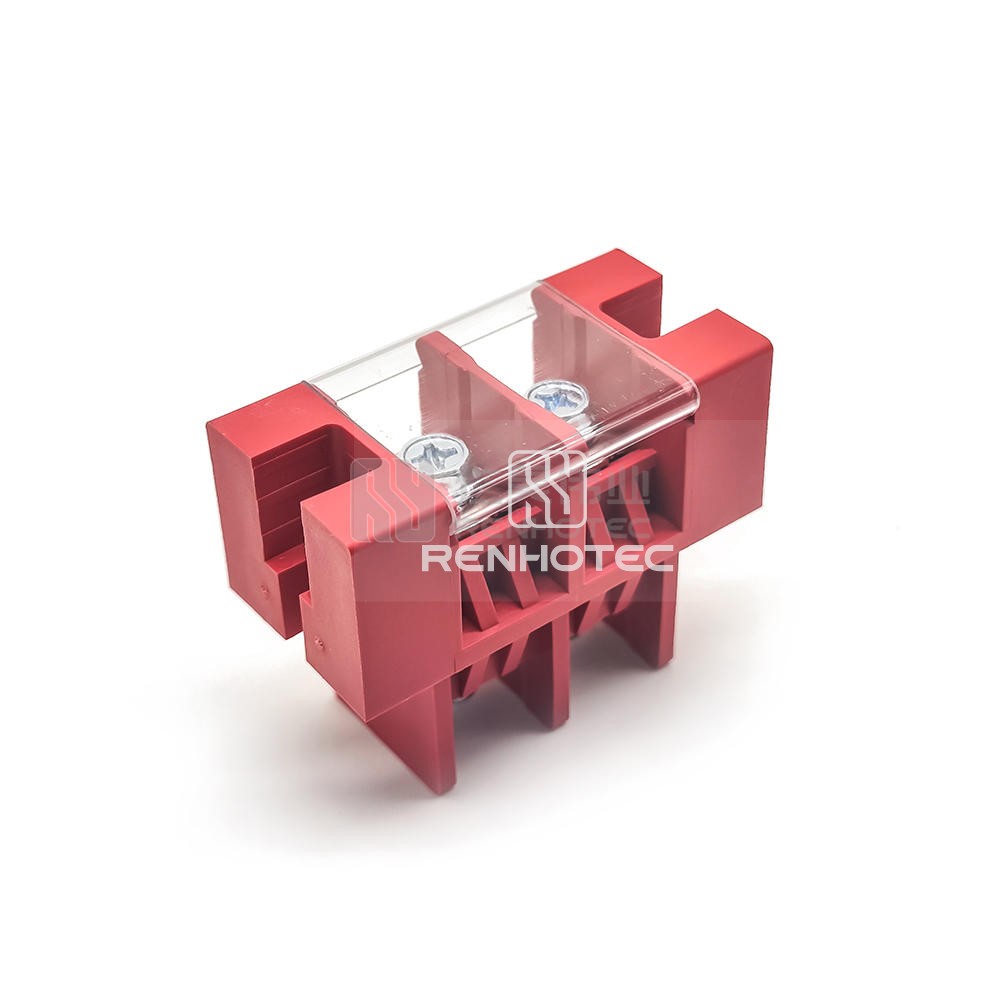

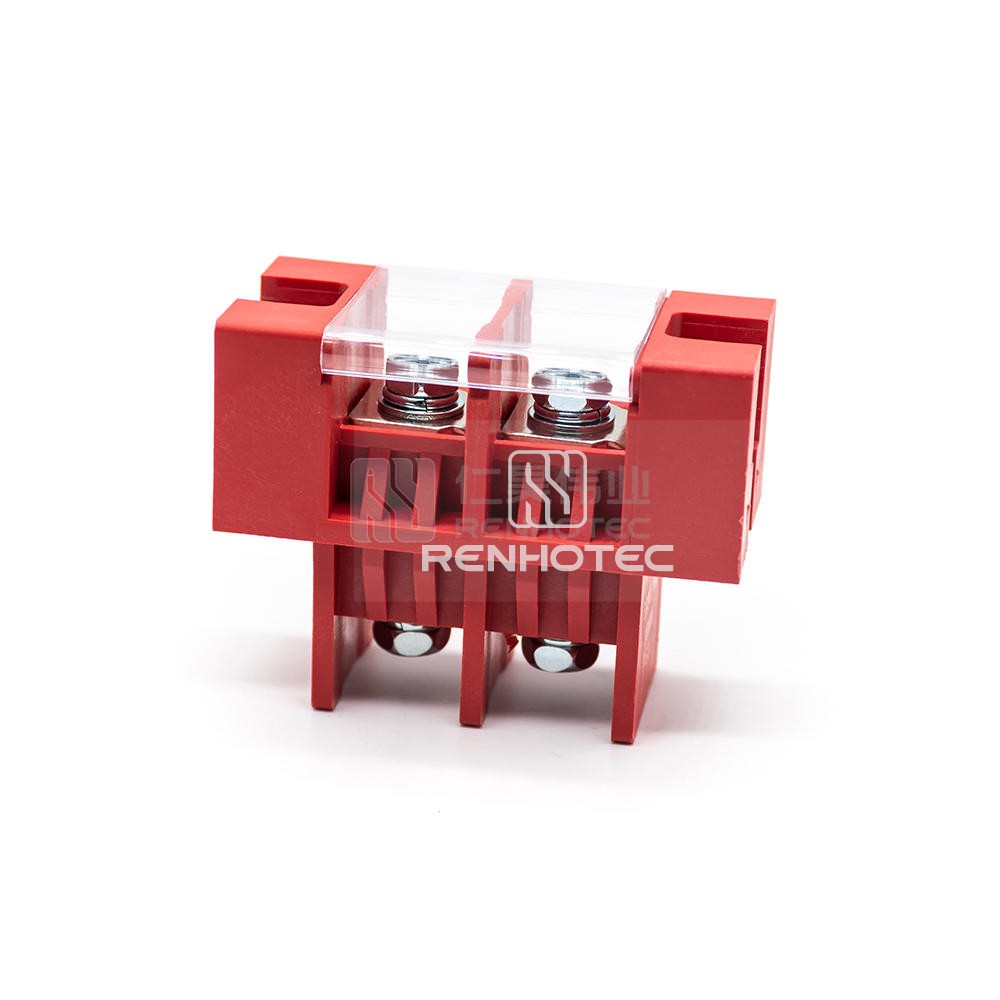

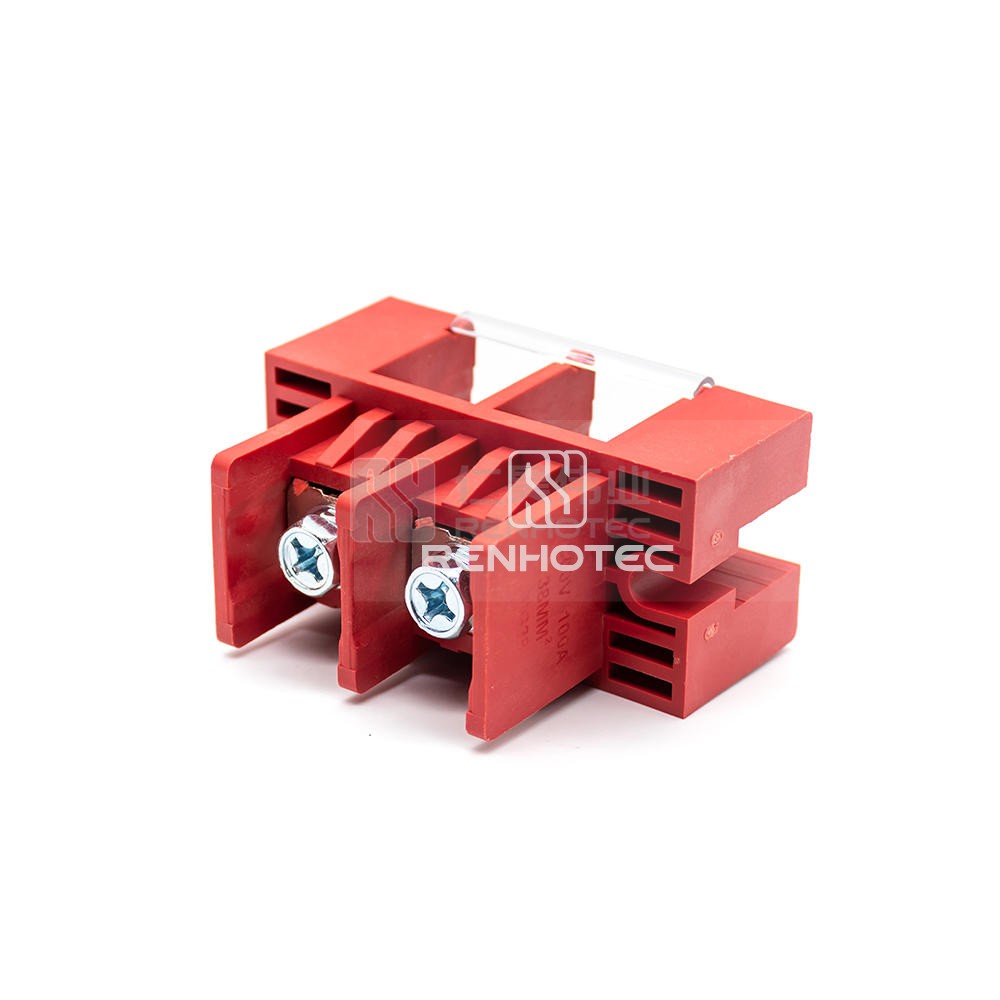

Barrier Terminal Block 2 Circuts Pitch 21mm Red- Overview
- Technical data
- Certification
- Download
Product excerpt
This red Barrier Terminal Block features 2 circuits with a 21mm pitch, providing secure electrical connections. Waterproof design ensures durability and reliability in various environments.
MechanicalGeneralElectricalMaterialEnvironmental
| Mechanical | |
|---|---|
| Terminal Block Type | Barrier Block |
| Pitch | 21mm |
| Mounting Feature | Flange |
| Wire Gauge or Range | 2-8AWG |
| Bottom Termination | Screw |
| Top Termination | Screw |
| General | |
|---|---|
| Number of Circuts | 2 |
| Number of Wire Entries | 2 |
| Number of Rows | 1 |
| Color | Red |
| Features | With Cover/Flange |
| Electrical | |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 100A |
| Material | |
|---|---|
| Terminal Screw Material | Steel |
| Terminal Screw Finish | Nickel |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 105°C |
| Flammability | UL94 V-0 |
