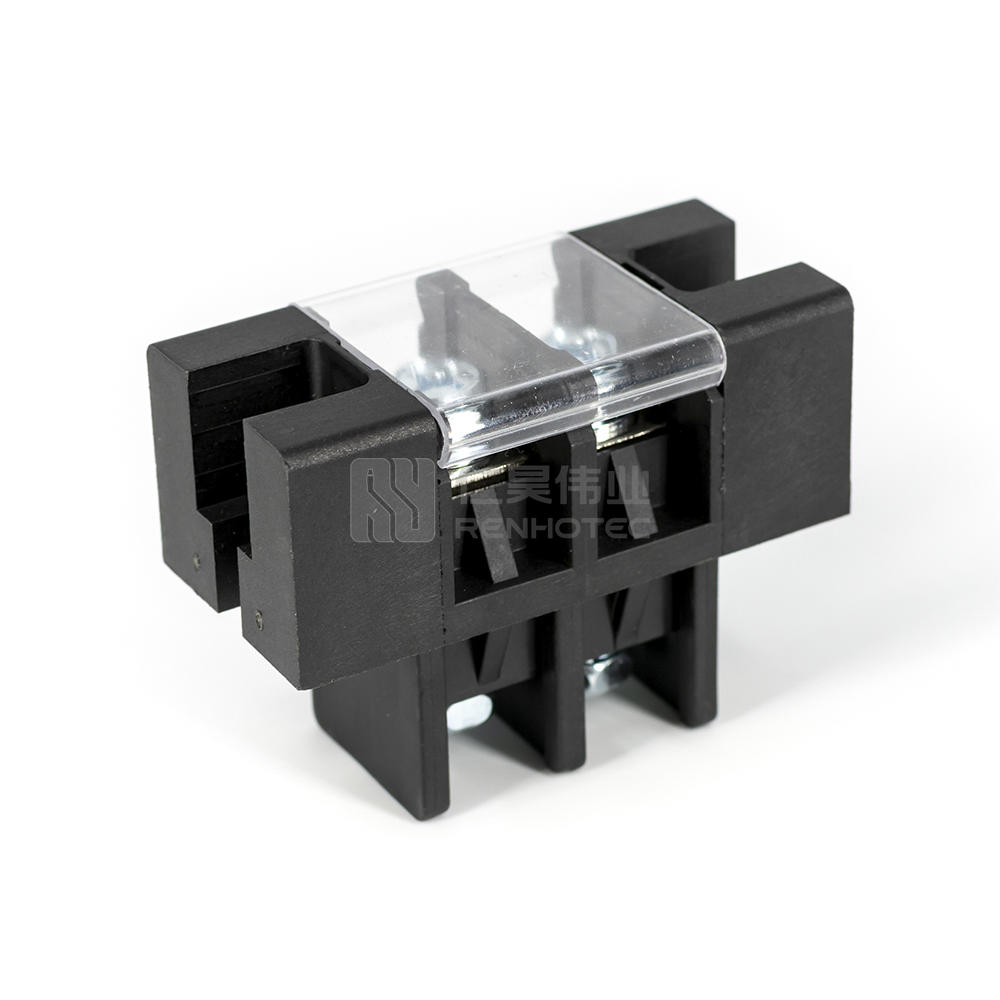

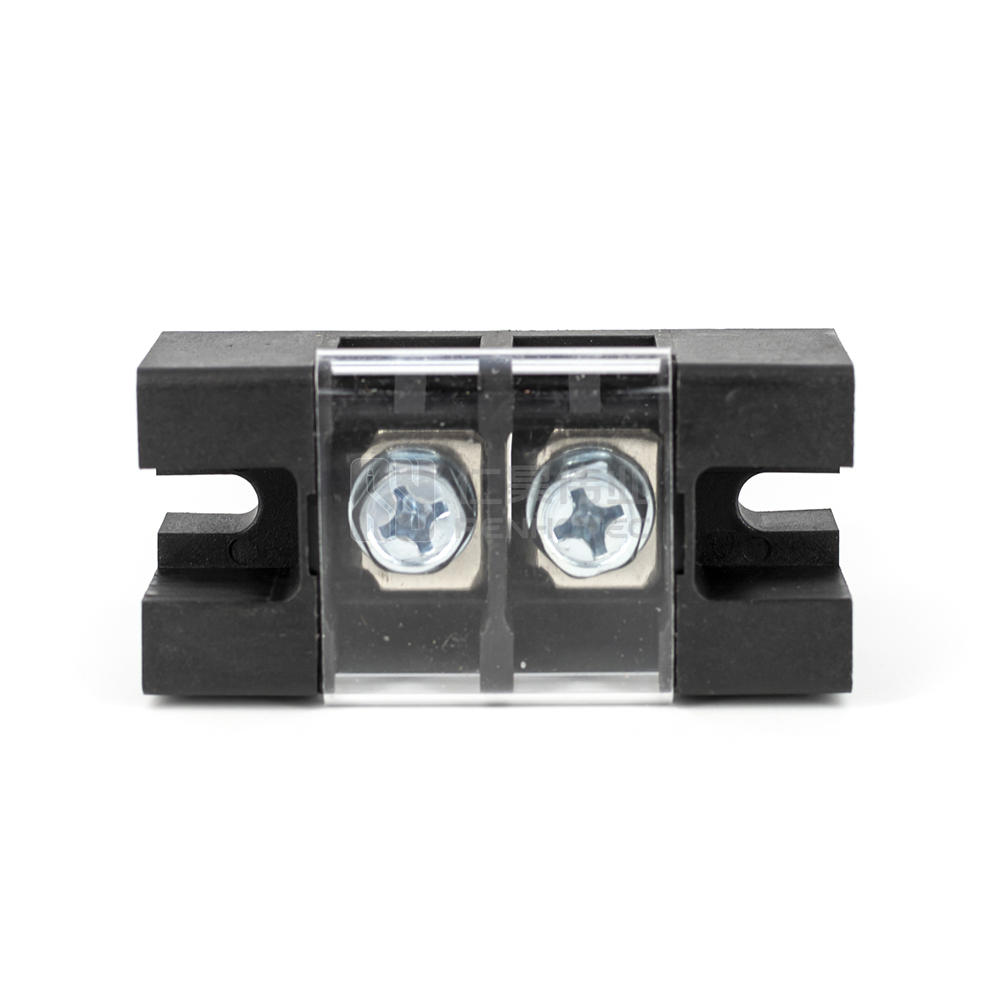

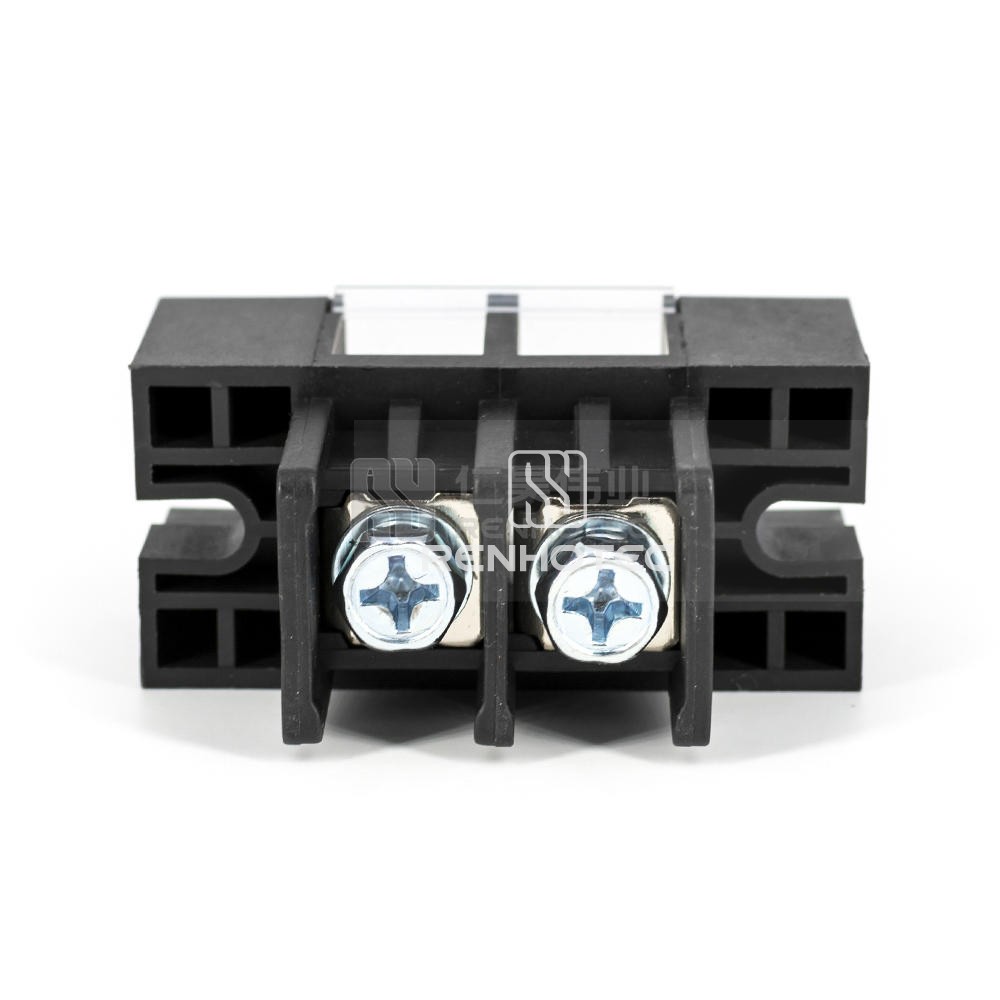

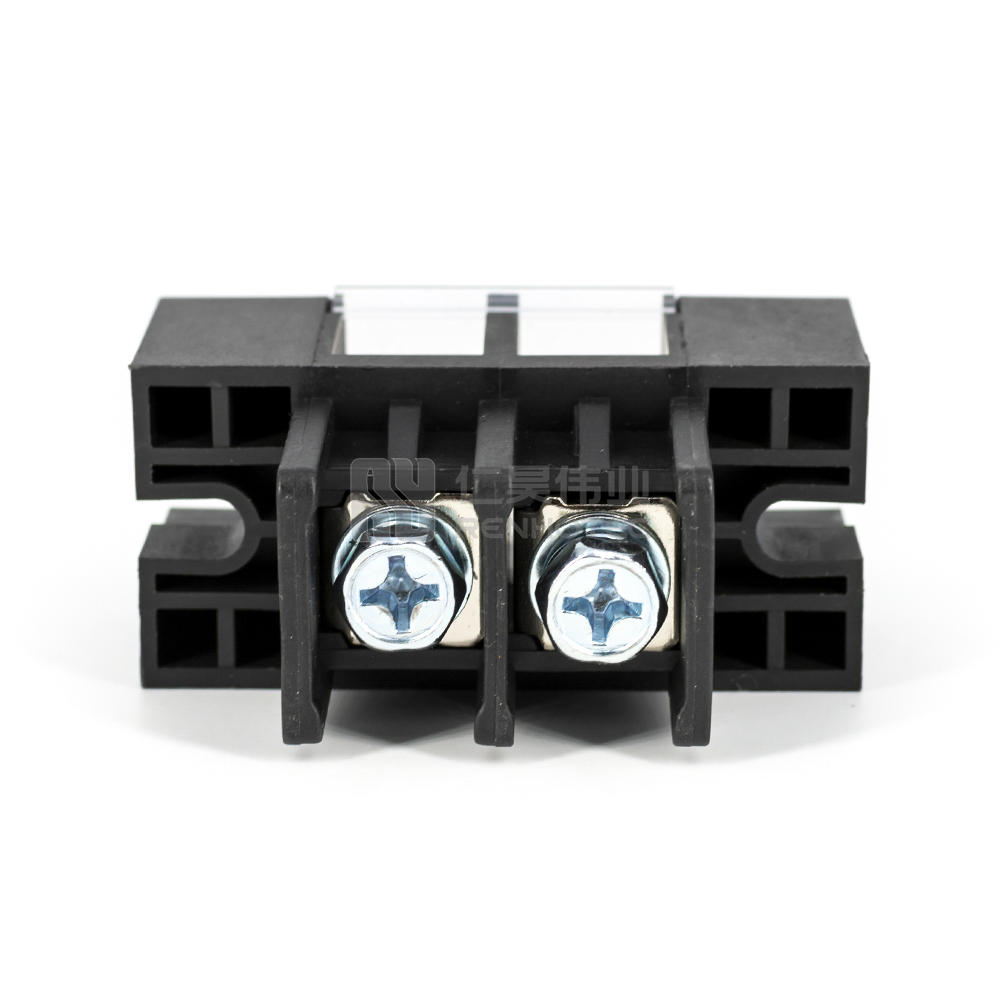

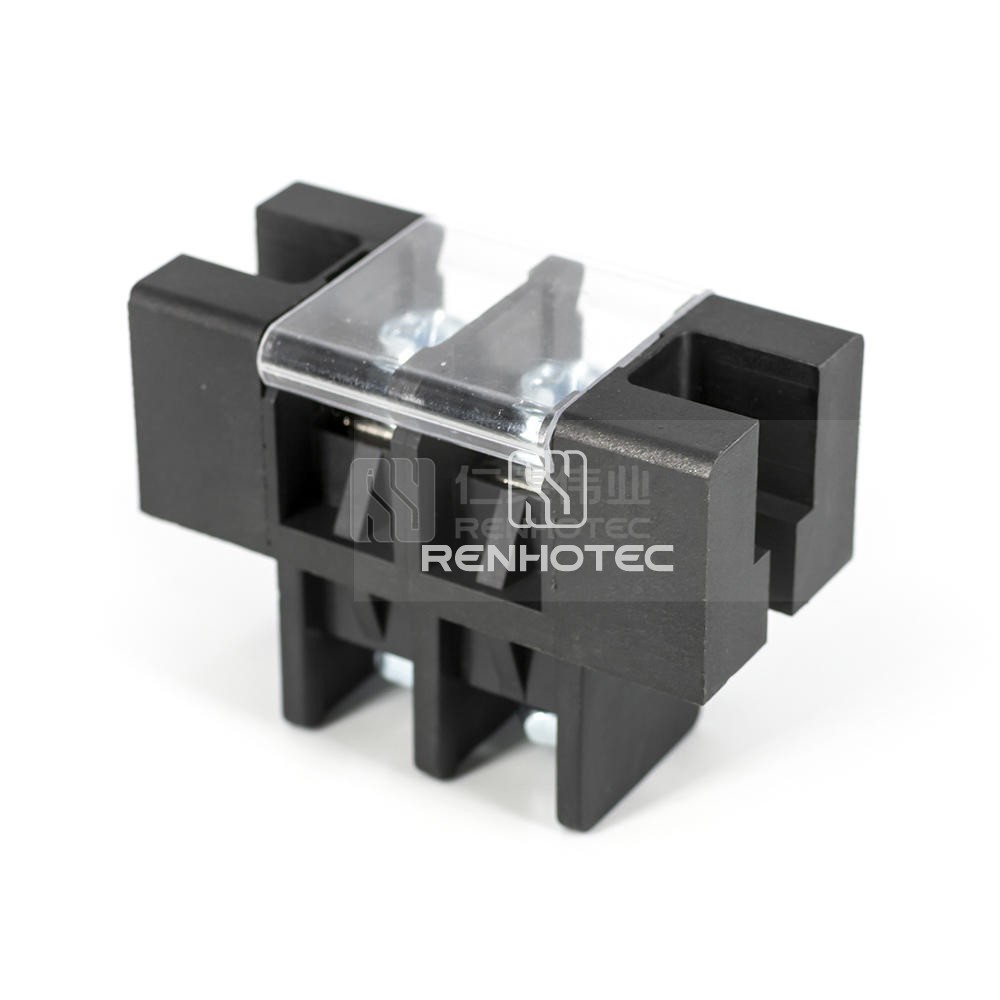

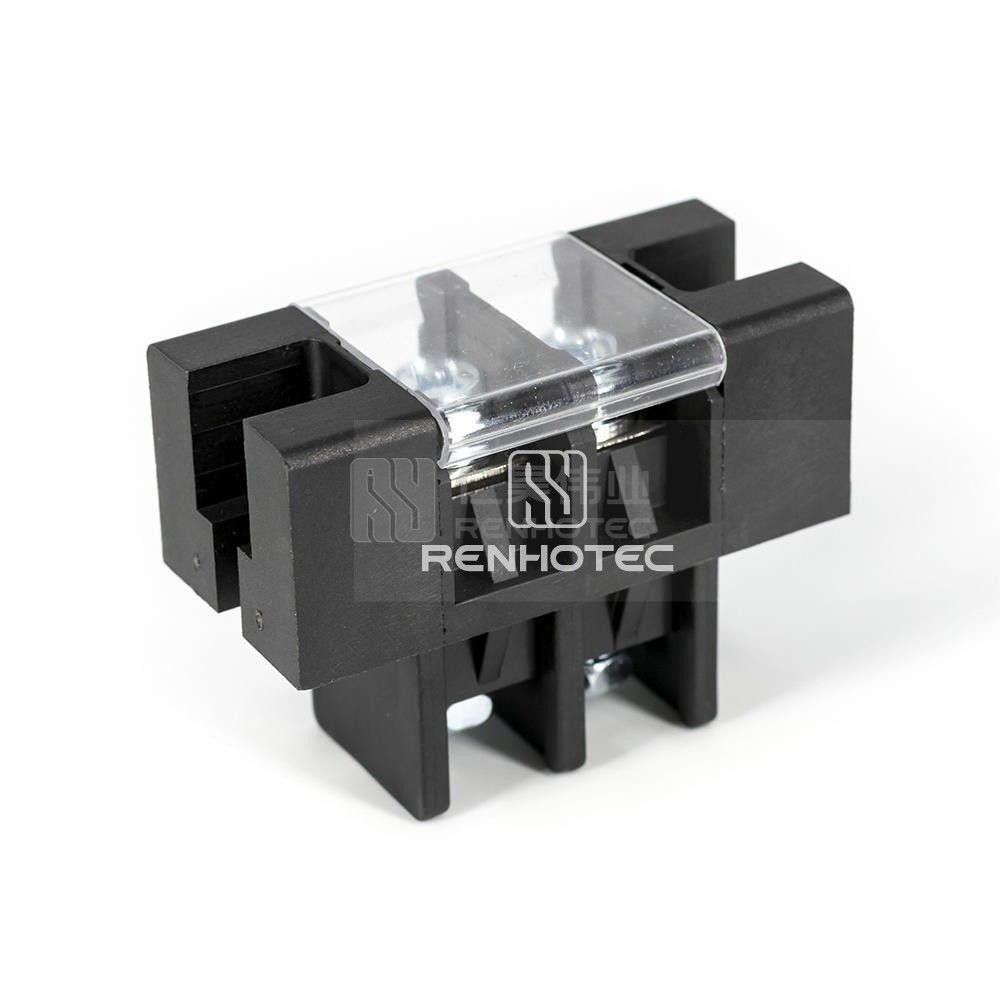

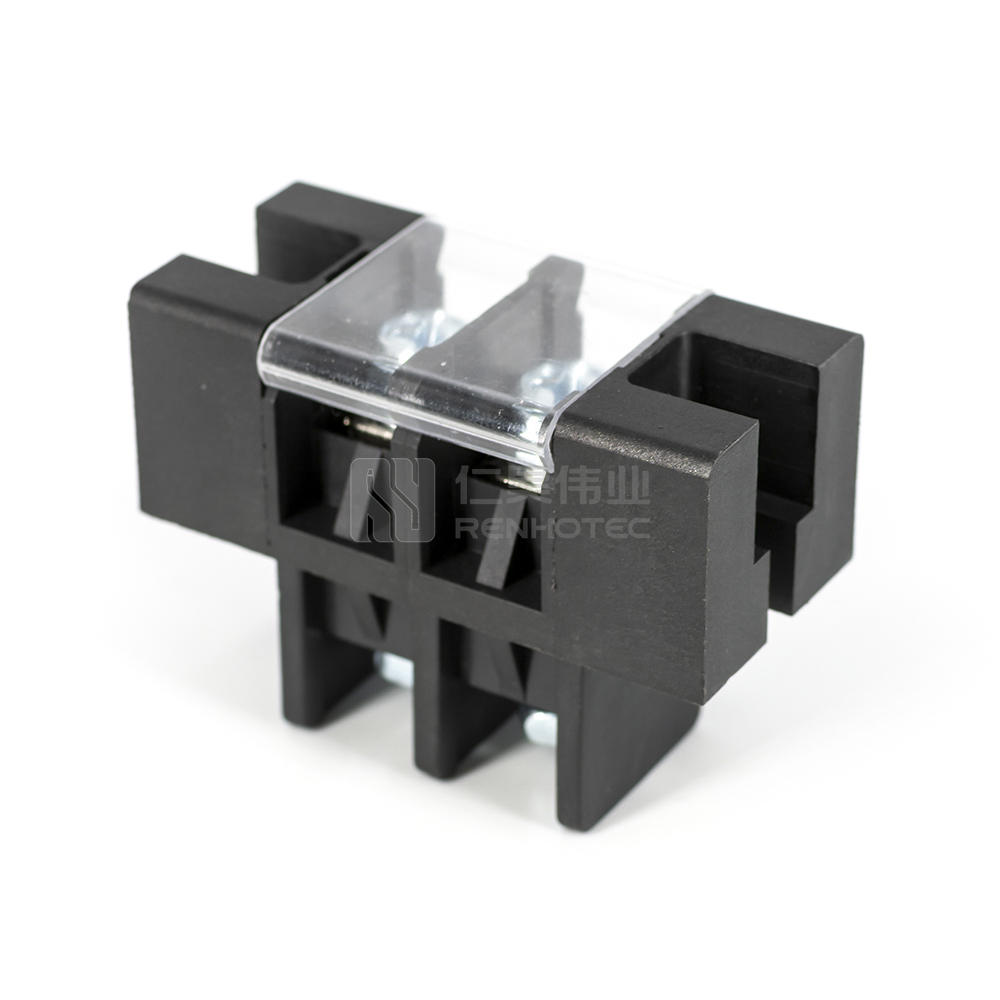

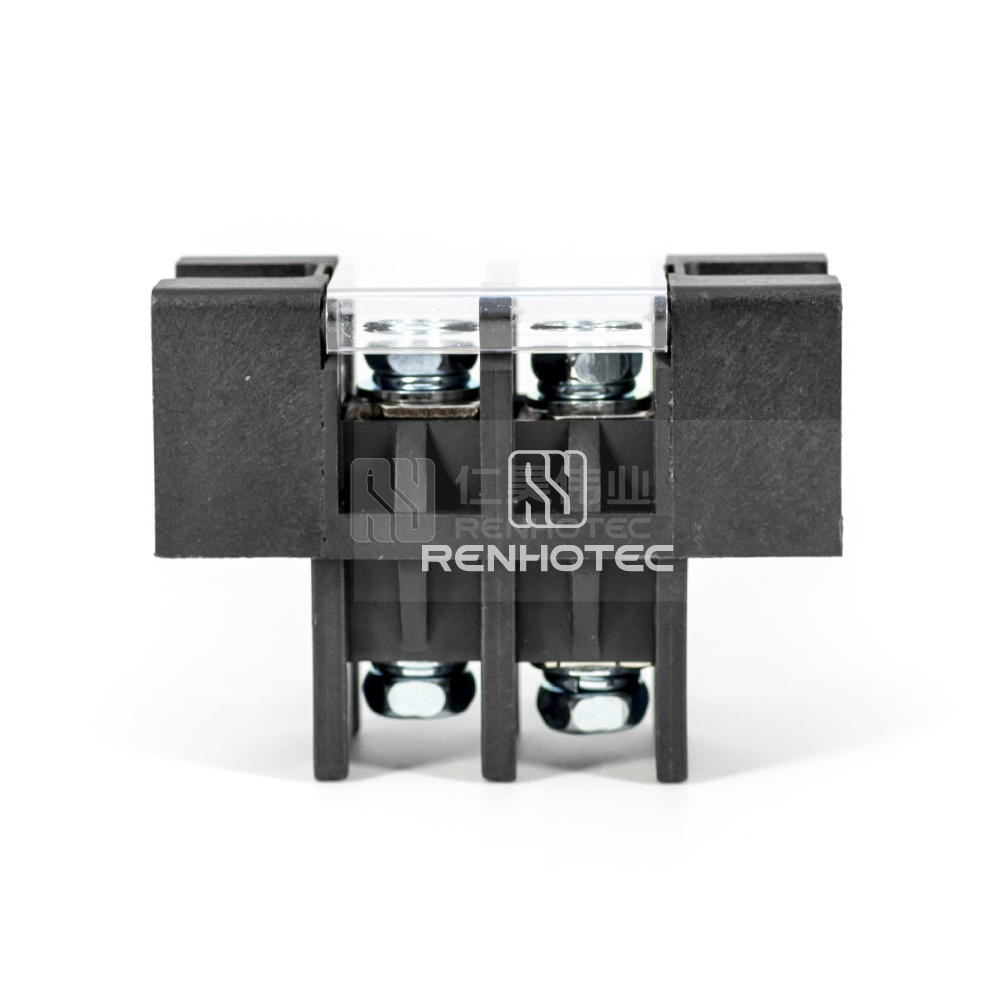

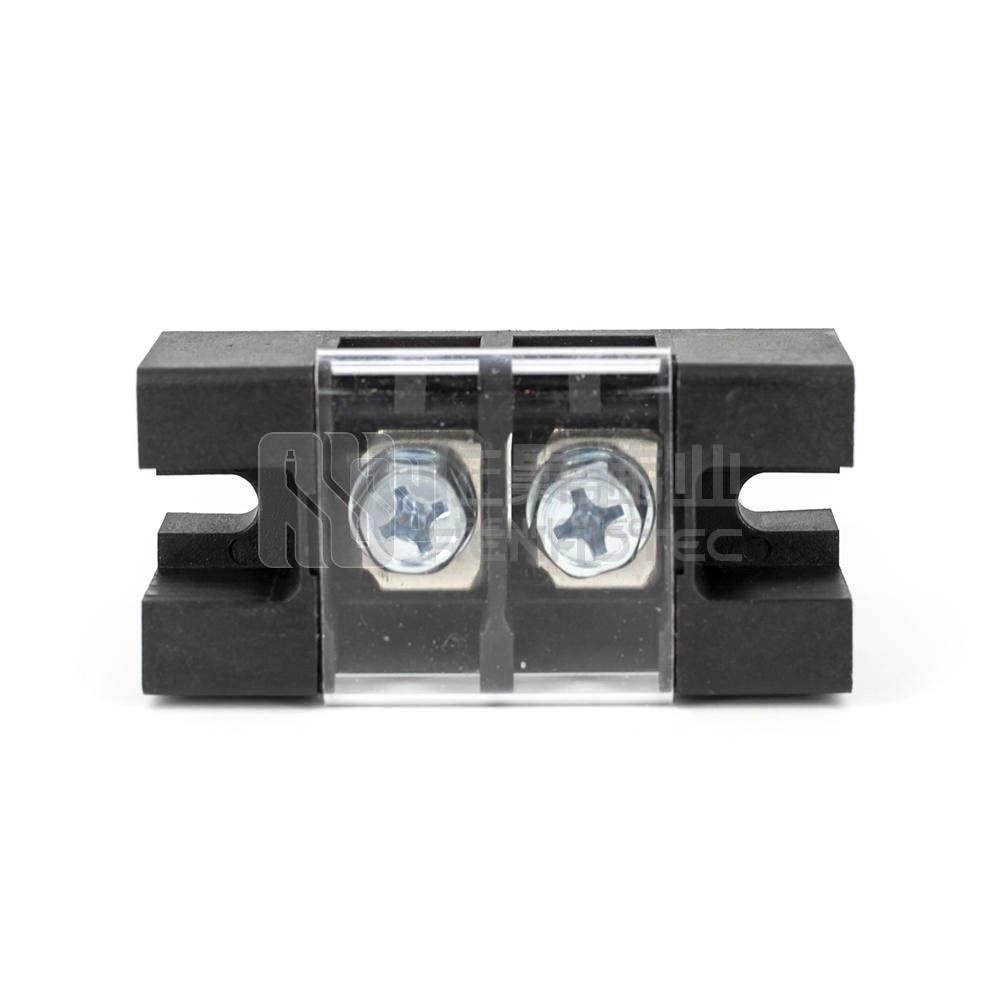

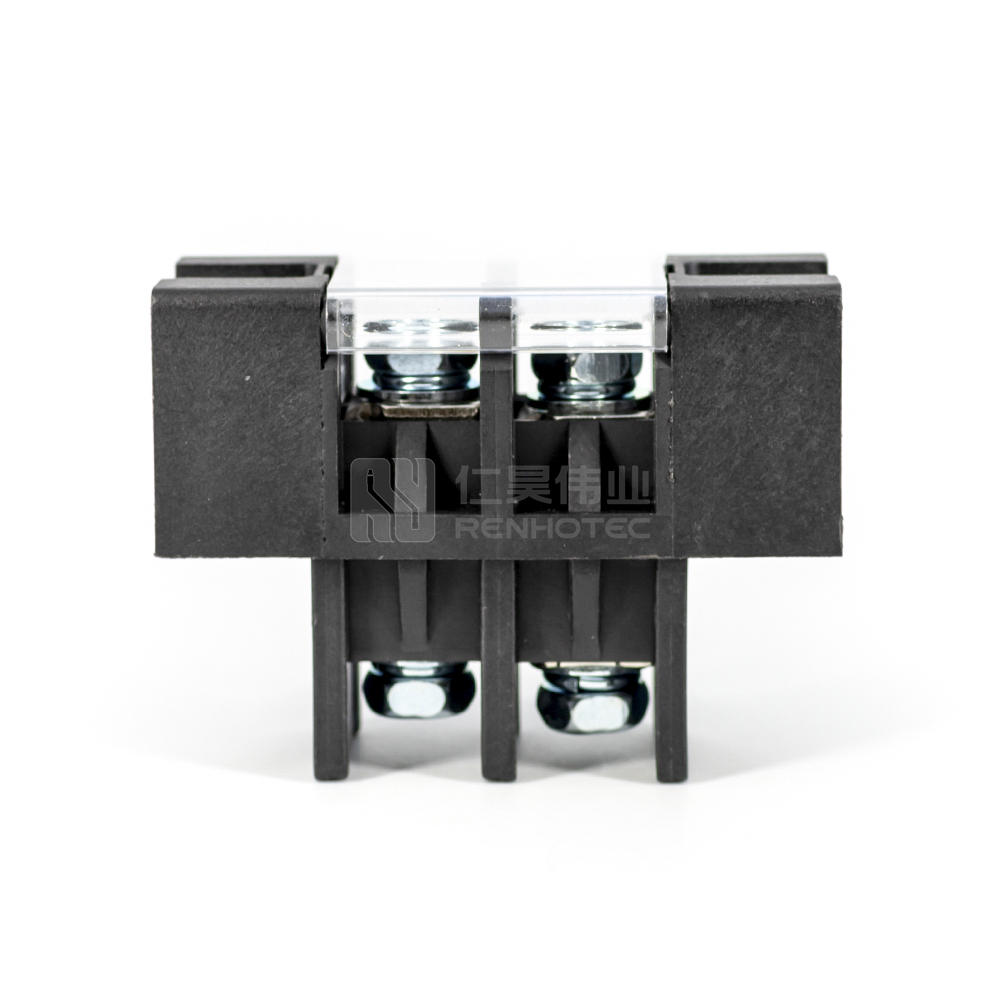

PG22-11-16.0-02P-C-B
Barrier Terminal Block 2 Circuts Pitch 16mm Black
Get a Quote
- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure reliable connections with this waterproof Barrier Terminal Block featuring 2 circuits and a 16mm pitch. Ideal for secure electrical installations.
MechanicalGeneralElectricalMaterialEnvironmental
Mechanical | |
---|---|
Terminal Block Type | Barrier Block |
Pitch | 16mm |
Mounting Feature | Flange |
Wire Gauge or Range | 6-10AWG |
Bottom Termination | Screw |
Top Termination | Screw |
General | |
---|---|
Number of Circuts | 2 |
Number of Wire Entries | 2 |
Number of Rows | 1 |
Color | Black |
Features | With Cover/Flange |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 75A |
Material | |
---|---|
Terminal Screw Material | Steel |
Terminal Screw Finish | Nickel |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 105°C |
Flammability | UL94 V-0 |
