Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 3B 305 CLL Back Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/04/EGG.3B.305.CLL_661cc8cc0e223.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/EGG.3B.305.CLL_661cc8cc0e223.jpg)

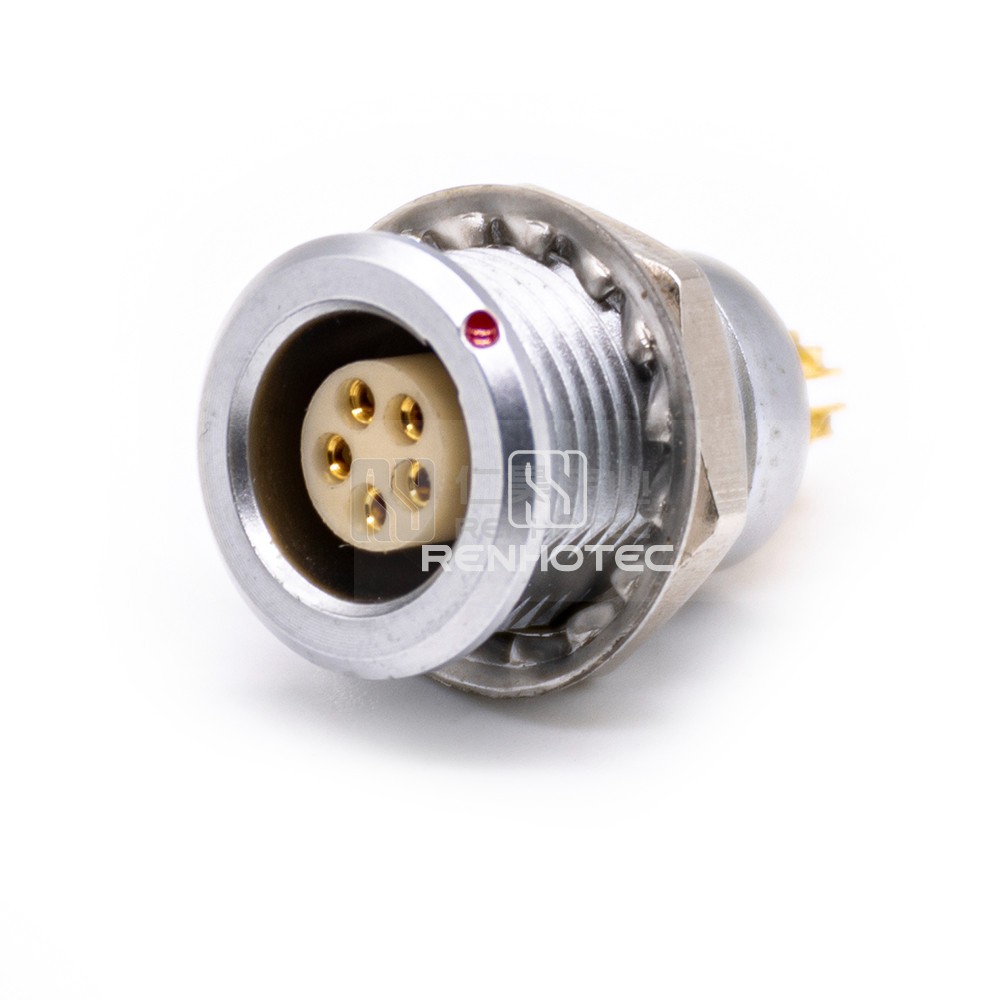

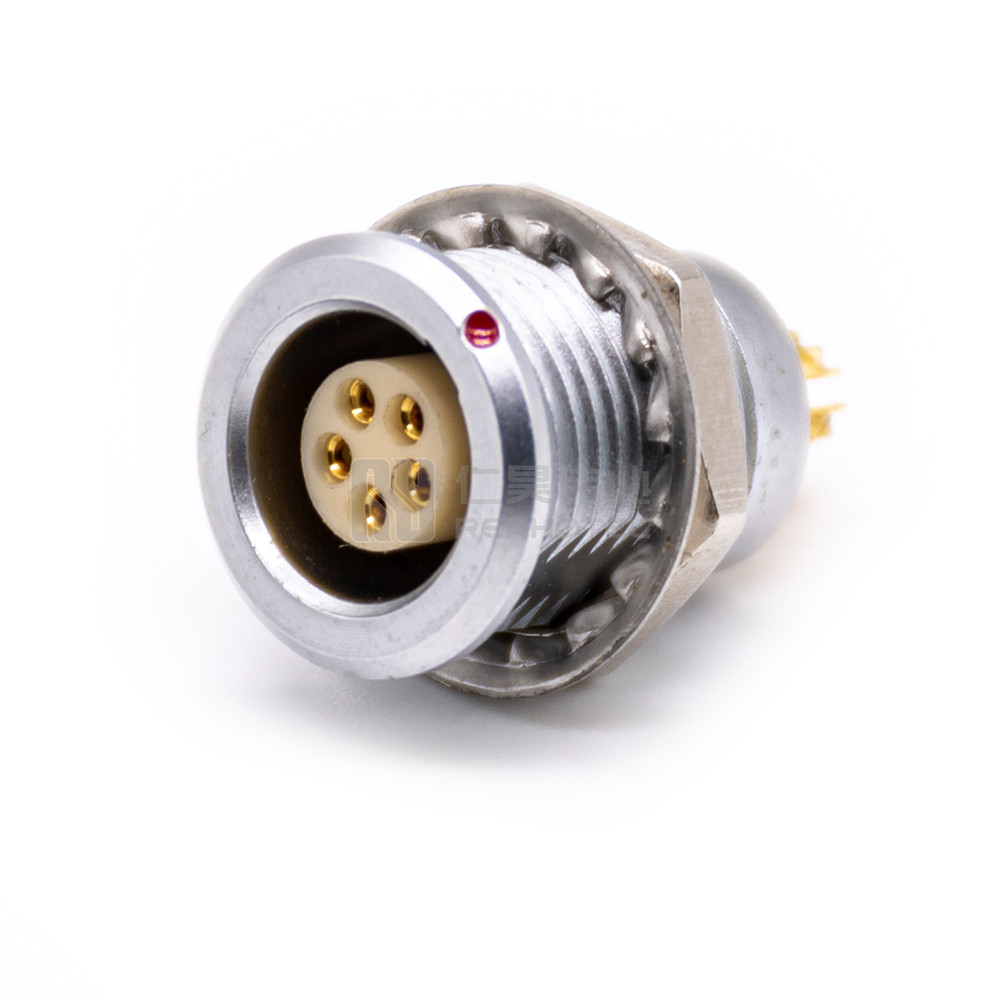

EGG.3B.305.CLL
B Series Push Pull Self-locking Connector Socket Female Straight EGG 3B 305 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series Push Pull Self-locking Connector Socket Female Straight EGG 3B 305 CLL Back Mount for secure and reliable electrical connections. Ideal for various applications where a strong connection is needed.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 5 |
Shell | |
---|---|
Shell Size | M18 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 24-16AWG |
Mounting Feature | Bulkhead - Rear Fastened |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 19A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
Catelog
RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
