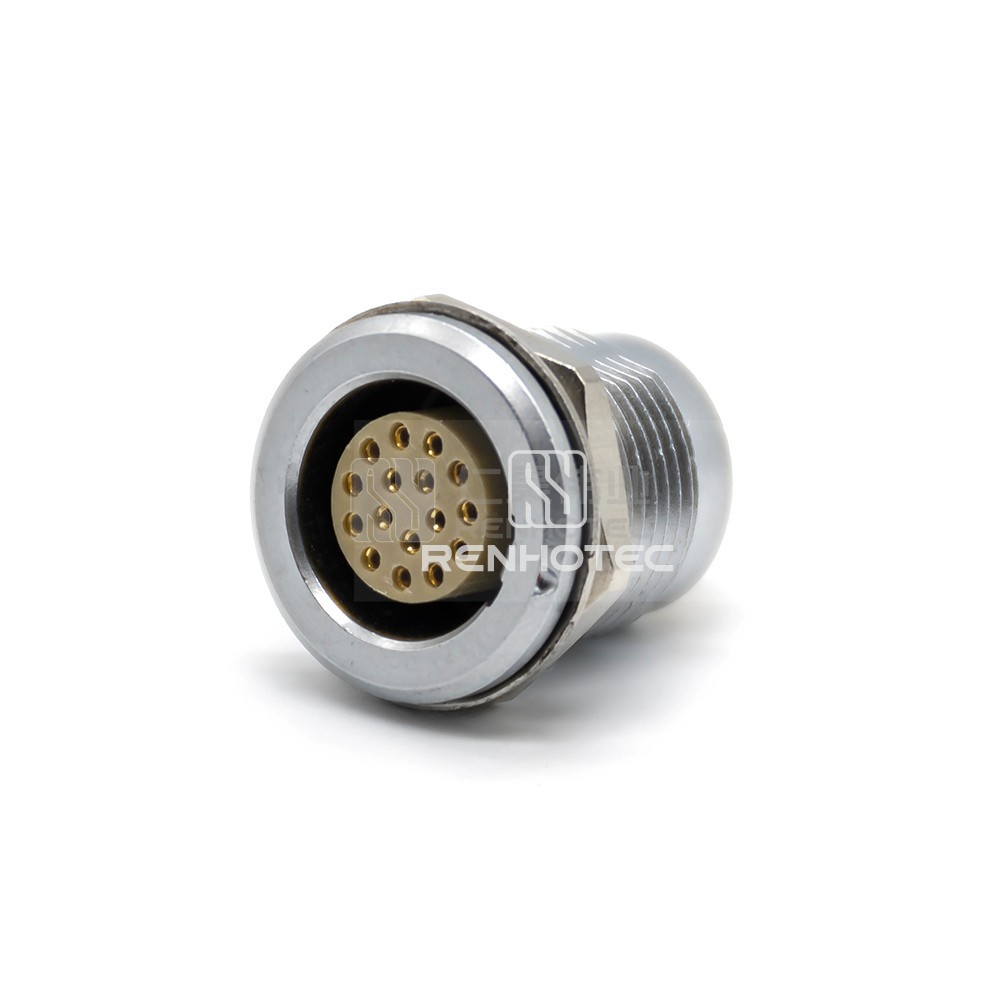

product image

EGG.2B.316.CLL

B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 316 CLL Back Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 316 CLL Back Mount connector for secure and reliable connections. Suitable for various industrial applications.
GeneralMechanicalMaterialElectricalEnvironmental
General
Connector TypeSocket
OrientationStraight
Contact TypeFemale Pin
Number of Positions16
Mechanical
Fastening TypeSnap on
Mounting TypePanel Mount
Wire Gauge or Range30-22AWG
Mounting FeatureBulkhead - Rear Fastened
Material
Shell MaterialCopper Alloy
Contact MaterialCopper Alloy
Contact FinishGold
Insulating MaterialPPS
Electrical
ShieldingShielded
Rated Current6A
Environmental
Operating Temperature-55°C ~ + 150°C
