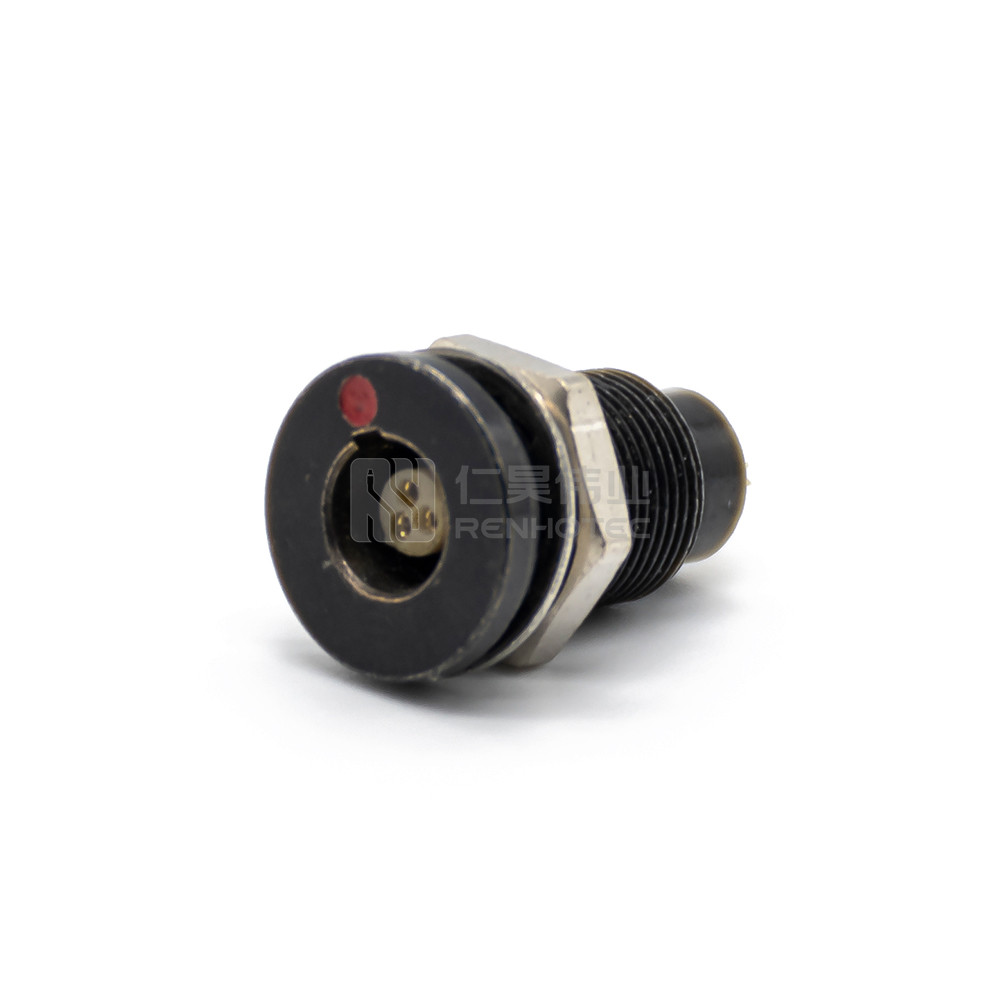

EGG.2B.303.CLL
B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 303 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series push-pull self-locking connector socket female straight EGG 2B 303 CLL back mount for secure and reliable connections. Ideal for a variety of electronic applications.
GeneralMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 3 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 24-16AWG |
Mounting Feature | Bulkhead - Rear Fastened |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 17A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
Catelog
RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
