Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 1B 302 CLL Back Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/04/EGG.1B.302.CLL_661cc880b596e.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/EGG.1B.302.CLL_661cc880b596e.jpg)

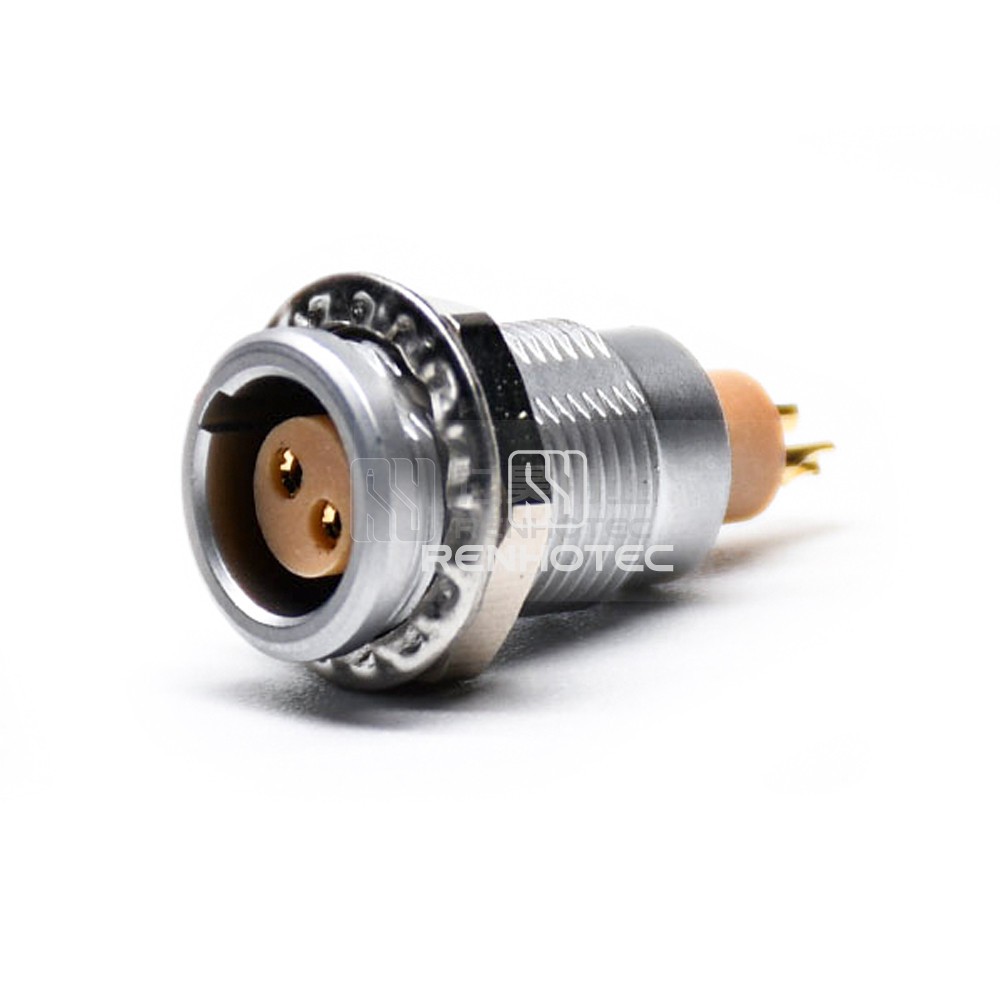

EGG.1B.302.CLL
B Series Push Pull Self-locking Connector Socket Female Straight EGG 1B 302 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 2 |
Shell | |
---|---|
Shell Size | M12 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 28-20AWG |
Mounting Feature | Bulkhead - Rear Fastened |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 10A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
