Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight ECG 2B 314 CLL Back Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/04/ECG.2B.314.CLL_661cc86742b94.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/ECG.2B.314.CLL_661cc86742b94.jpg)

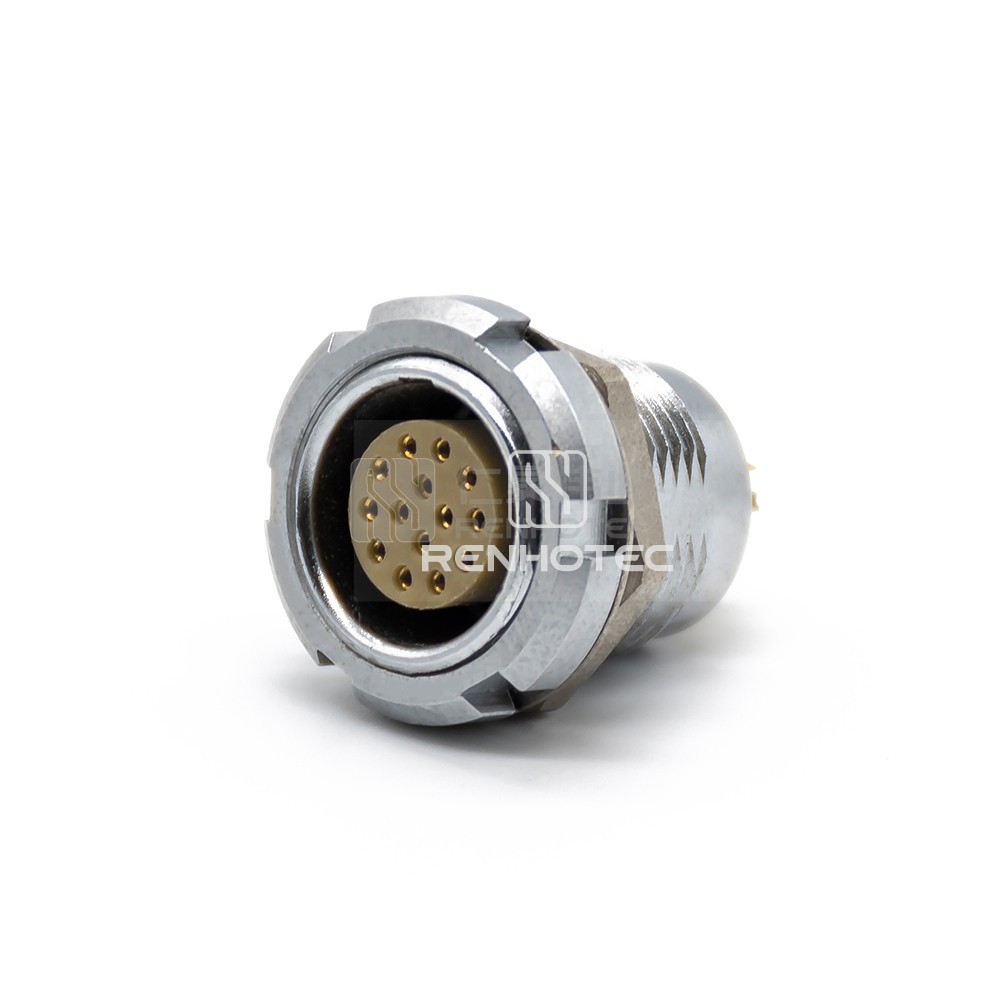

ECG.2B.314.CLL
B Series Push Pull Self-locking Connector Socket Female Straight ECG 2B 314 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
Securely connect your devices with this high-quality B Series Push Pull Self-locking Connector Socket Female Straight ECG 2B 314 CLL designed for back mounting. Enjoy reliable and durable connections for your applications.
GeneralMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 14 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 30-22AWG |
Mounting Feature | Bulkhead - Front Fastened |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 6.5A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
Catelog
RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
