Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Plug Male Right Angle FHG 1B 305 CLAD62Z
![](https://staging.renhotec.com/wp-content/uploads/2024/04/FHG.1B.305.CLAD62Z_661cc9d84d042.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/FHG.1B.305.CLAD62Z_661cc9d84d042.jpg)
FHG.1B.305.CLAD62Z

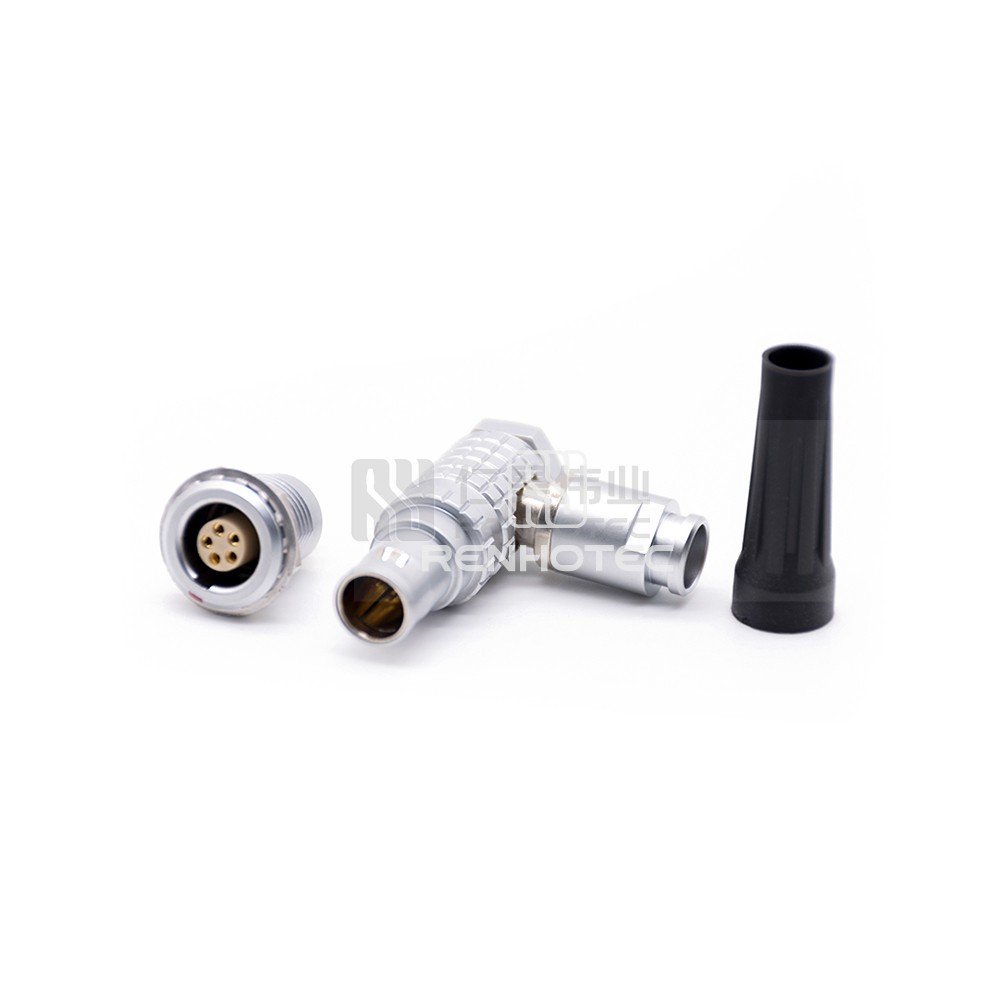

B Series Push Pull Self-locking Connector Plug Male Right Angle FHG 1B 305 CLAD62Z- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series Push Pull Self-locking Connector Plug Male Right Angle FHG 1B 305 CLAD62Z. Ideal for secure and reliable connections in various applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Number of Positions | 5 |
Shell | |
---|---|
Shell Size | M12 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Cable Type |
Wire Gauge or Range | 30-22AWG |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 9A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
Catelog
RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
