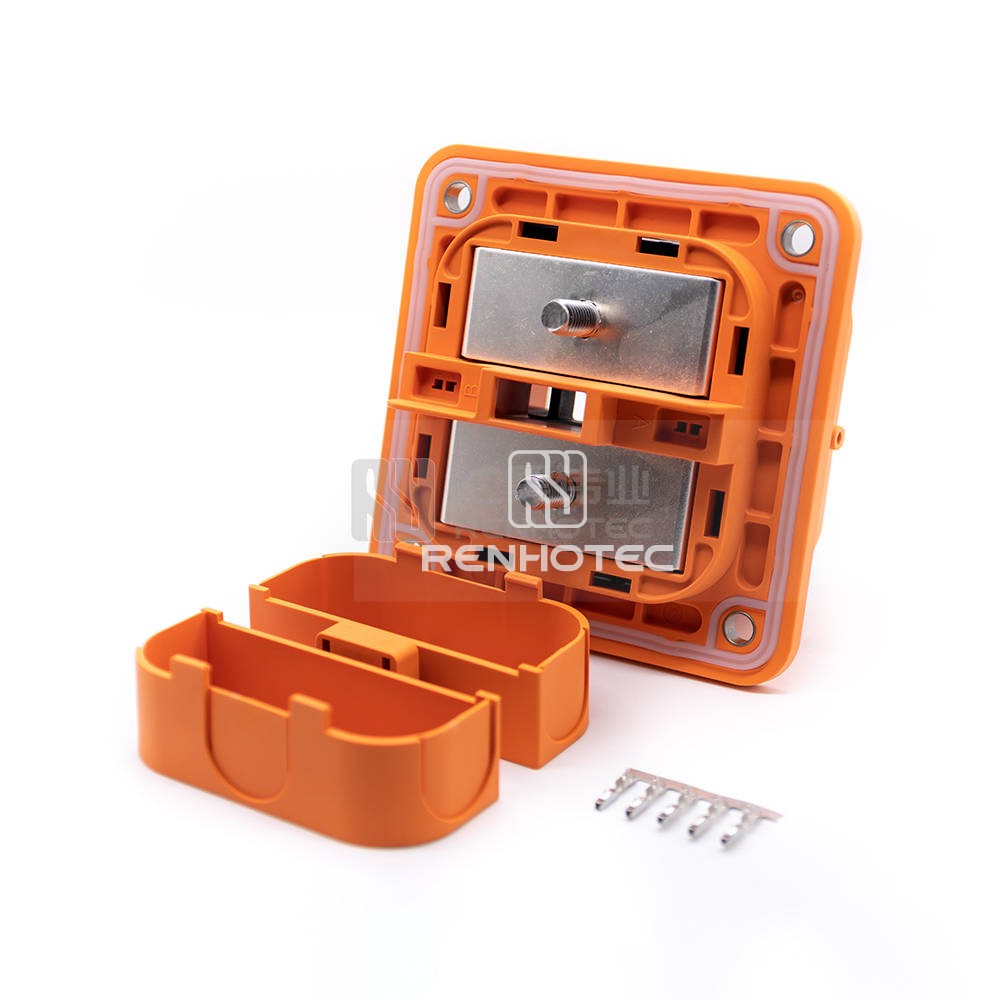

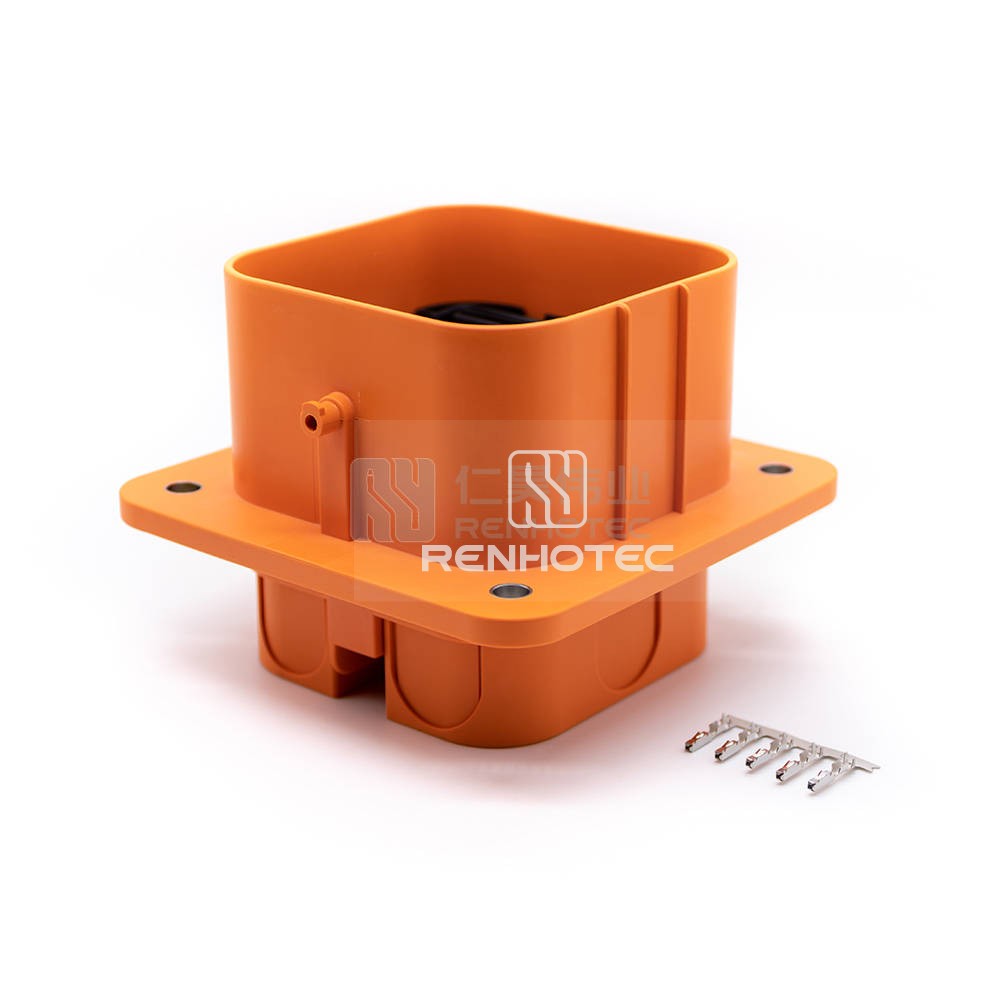

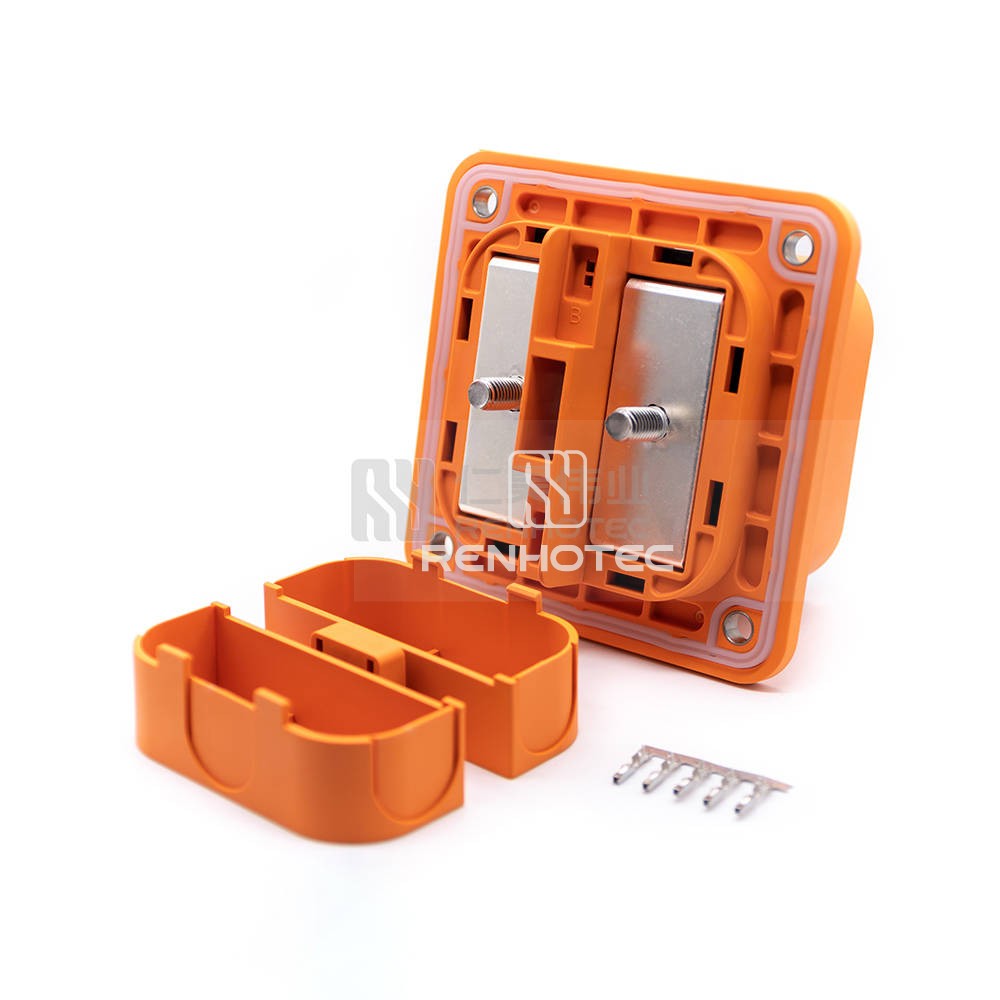

NI4-1-H630-2NYA-S04A
Automotive Connectors MSD Receptacle Front Mount- Overview
- Technical data
- Certification
- Download
GeneralMechanicalElectricalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Number of Positions | 2 |
| Usage | Automotive Electronics |
| Contact Termination | Crimp |
| Key | N |
| Color | Orange |
| Mechanical | |
|---|---|
| Locking Method | Secondary Locking |
| Mounting Type | Panel Mount |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 400A-630A |
| Electrical Protection | IP2XB |
| Shielding | Shielded |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
