Products > Energy Storage Connector > 8.0mm Power Entry Connector 150A Cable Plug Right angled 35mm² Orange
RHT-P008-C35-OG

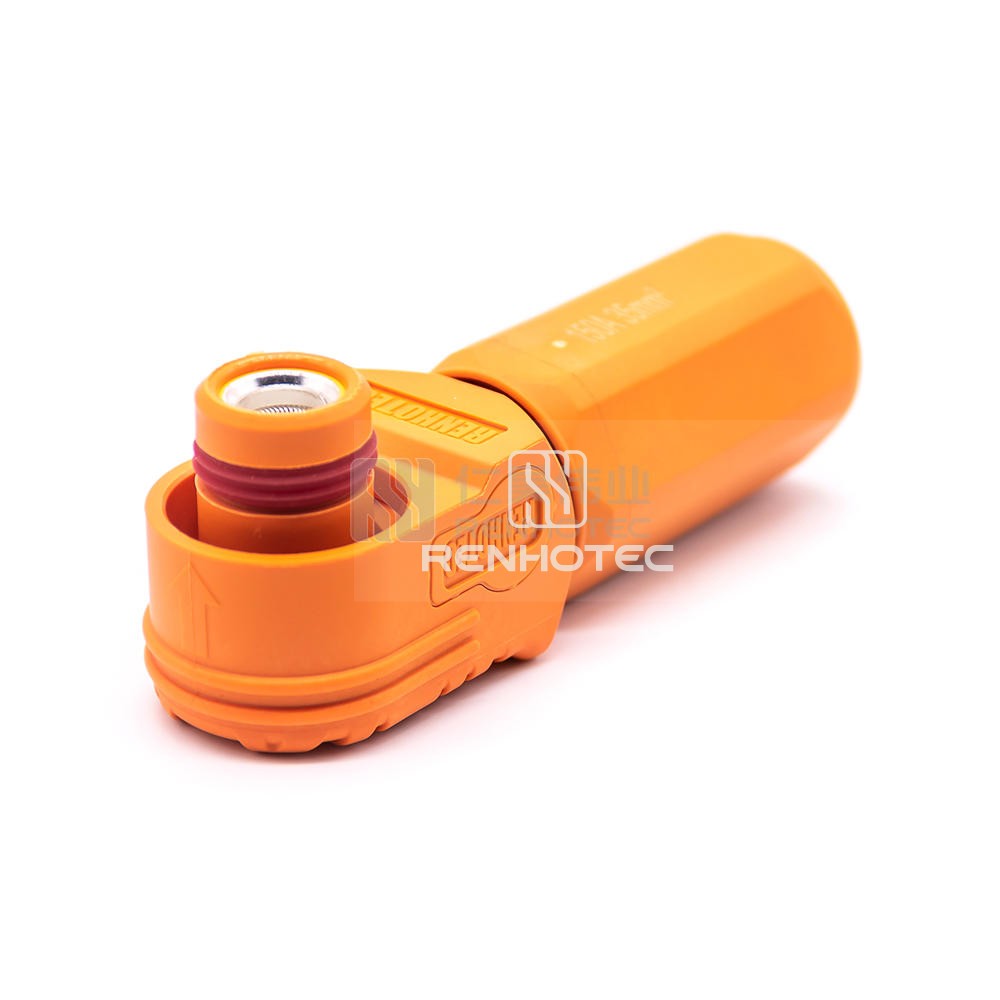

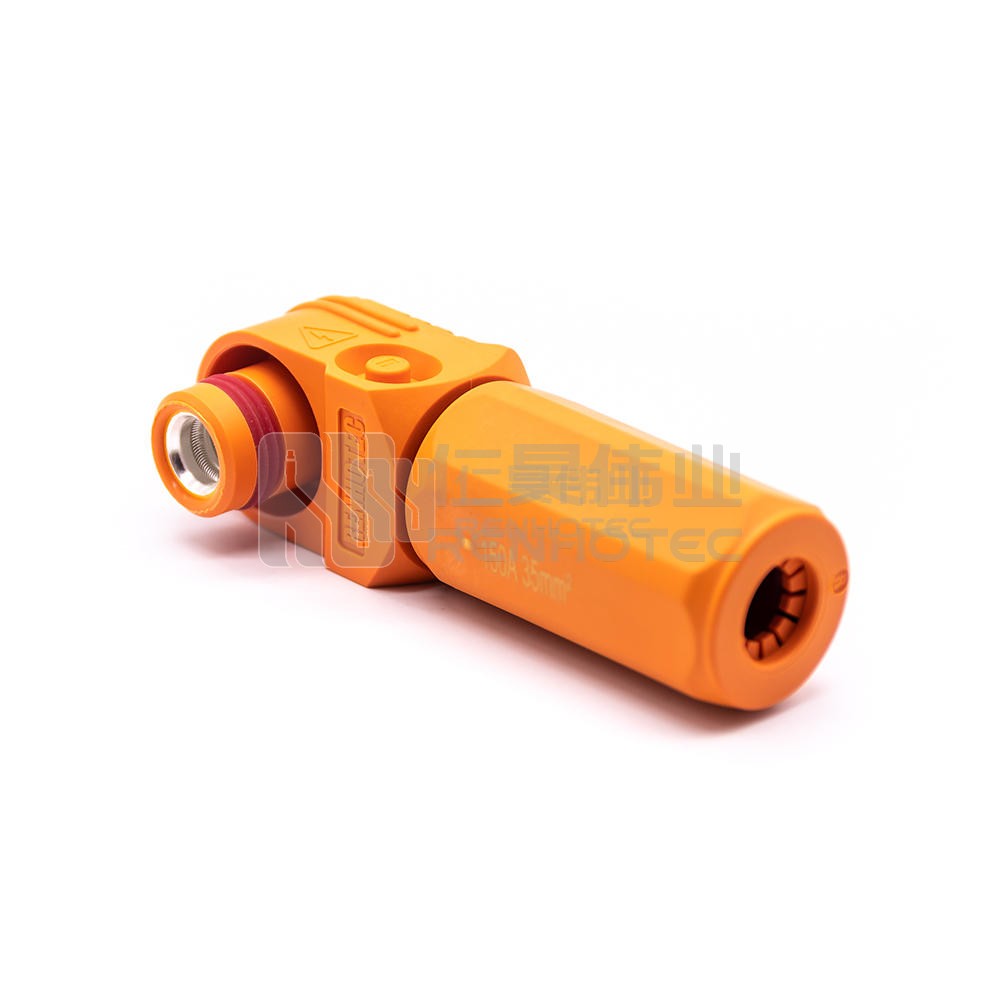

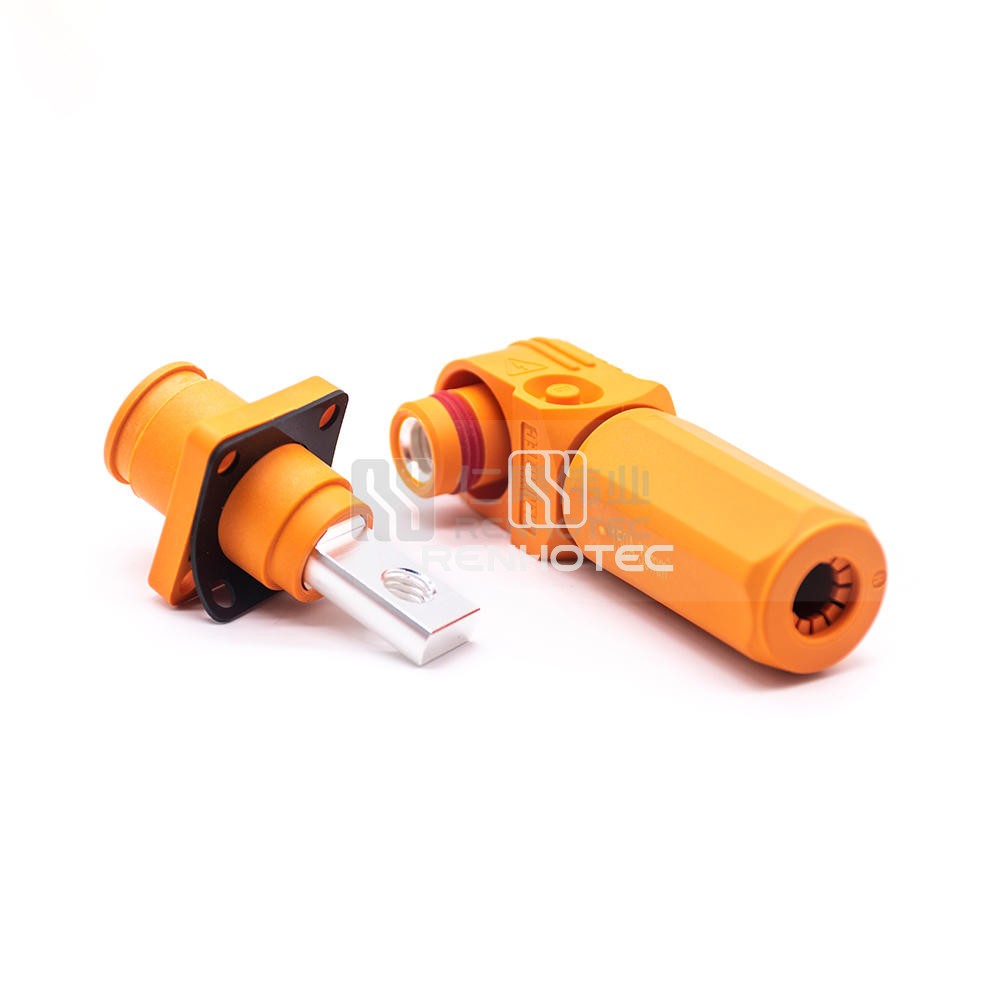

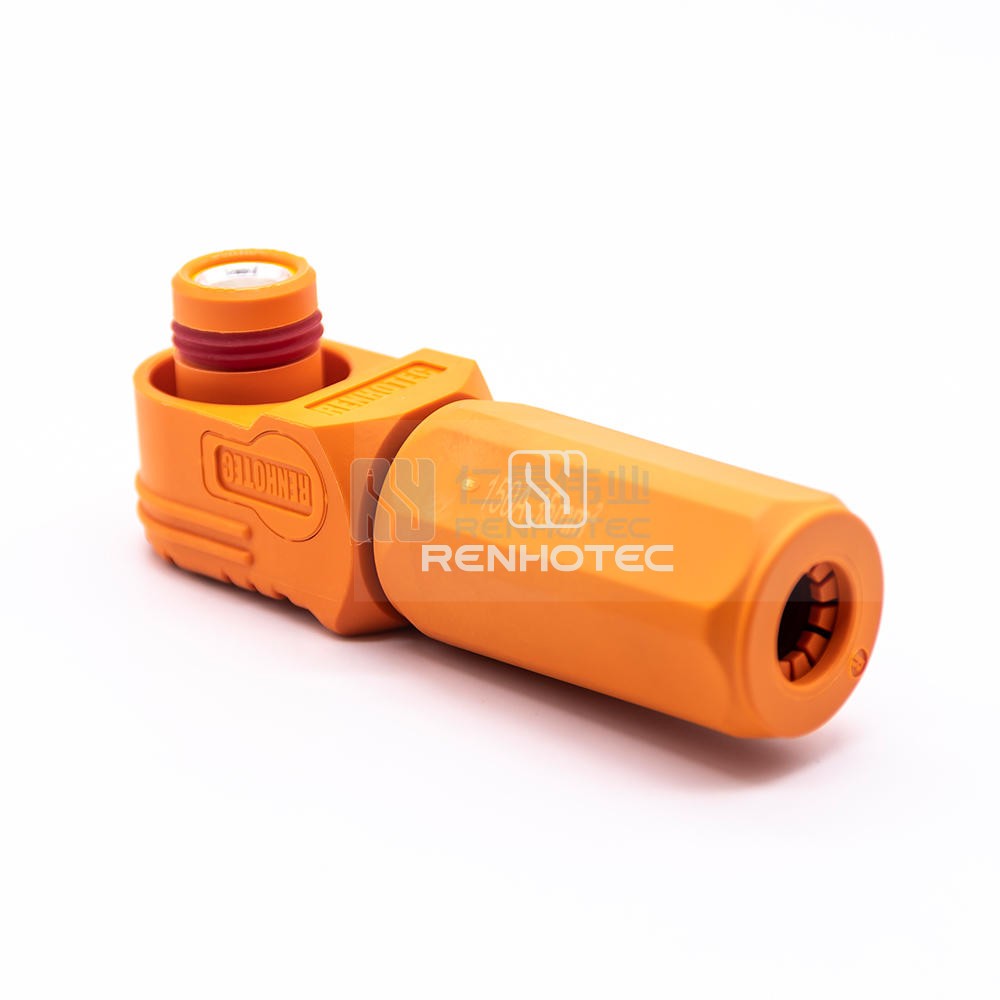

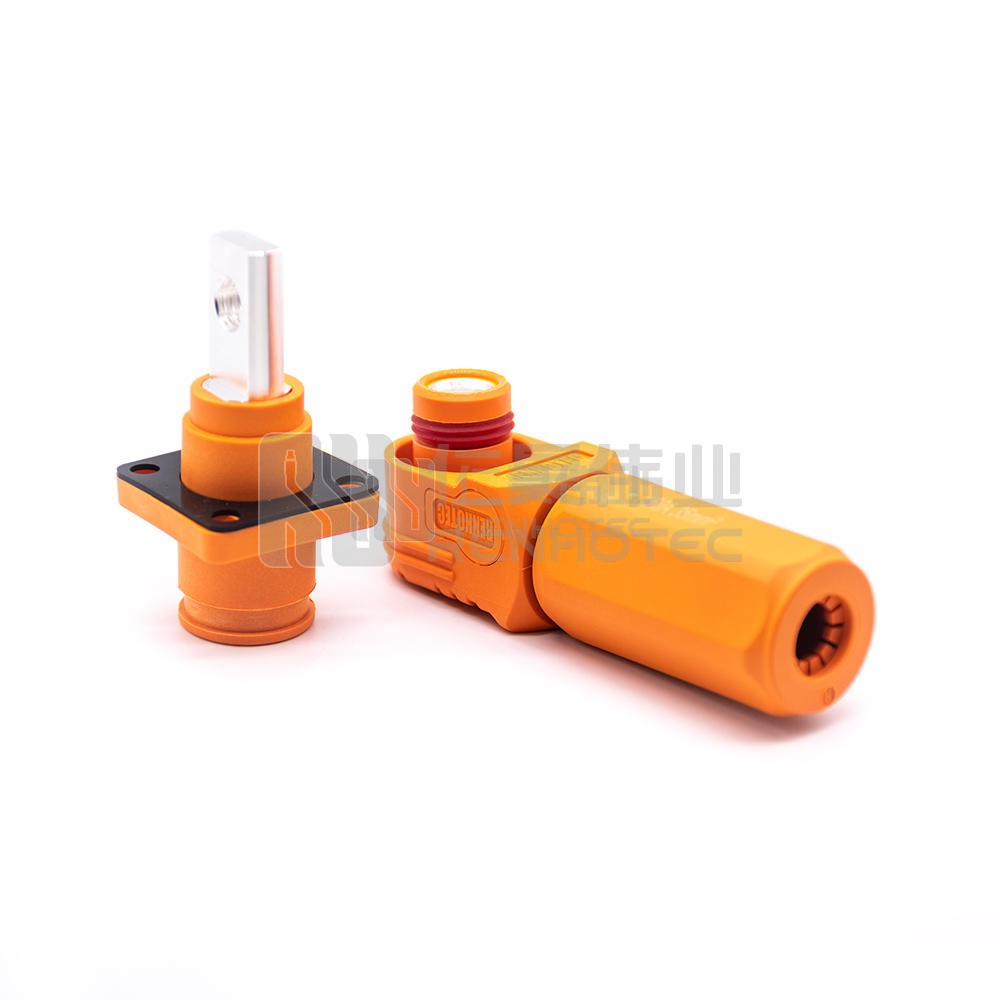

8.0mm Power Entry Connector 150A Cable Plug Right angled 35mm² Orange- Overview
- Technical data
- Certification
- Download
Product excerpt
- This 8.0mm power entry connector is designed for high current applications.
- Capable of handling up to 150A of current.
- Cable plug with a 35mm² capacity for secure connections.
- Features a right-angled design for convenient cable routing.
- Comes in a vibrant orange color for easy identification.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 150A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 25mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
