Products > Energy Storage Connector > 8.0mm Power Entry Connector 150A Cable Plug 35mm² Unshielded Cable Red
FCC0835-F1RR

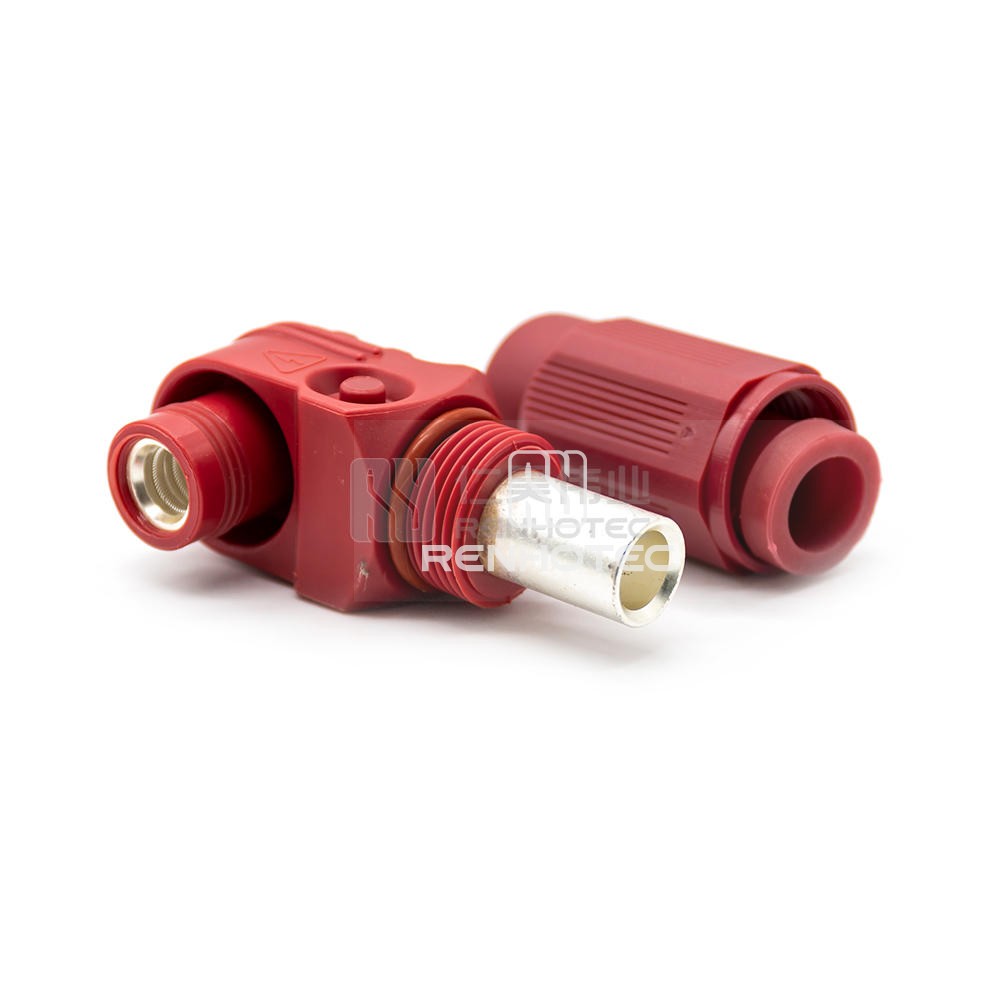

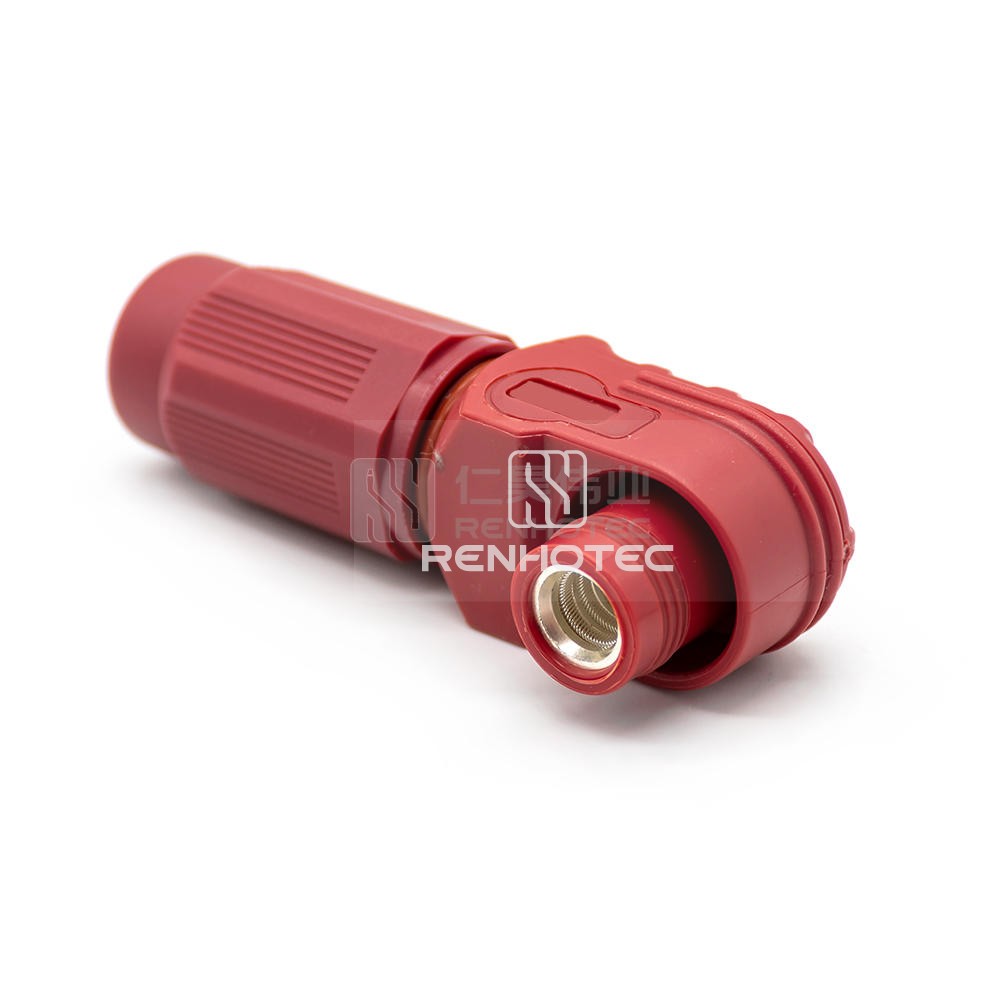

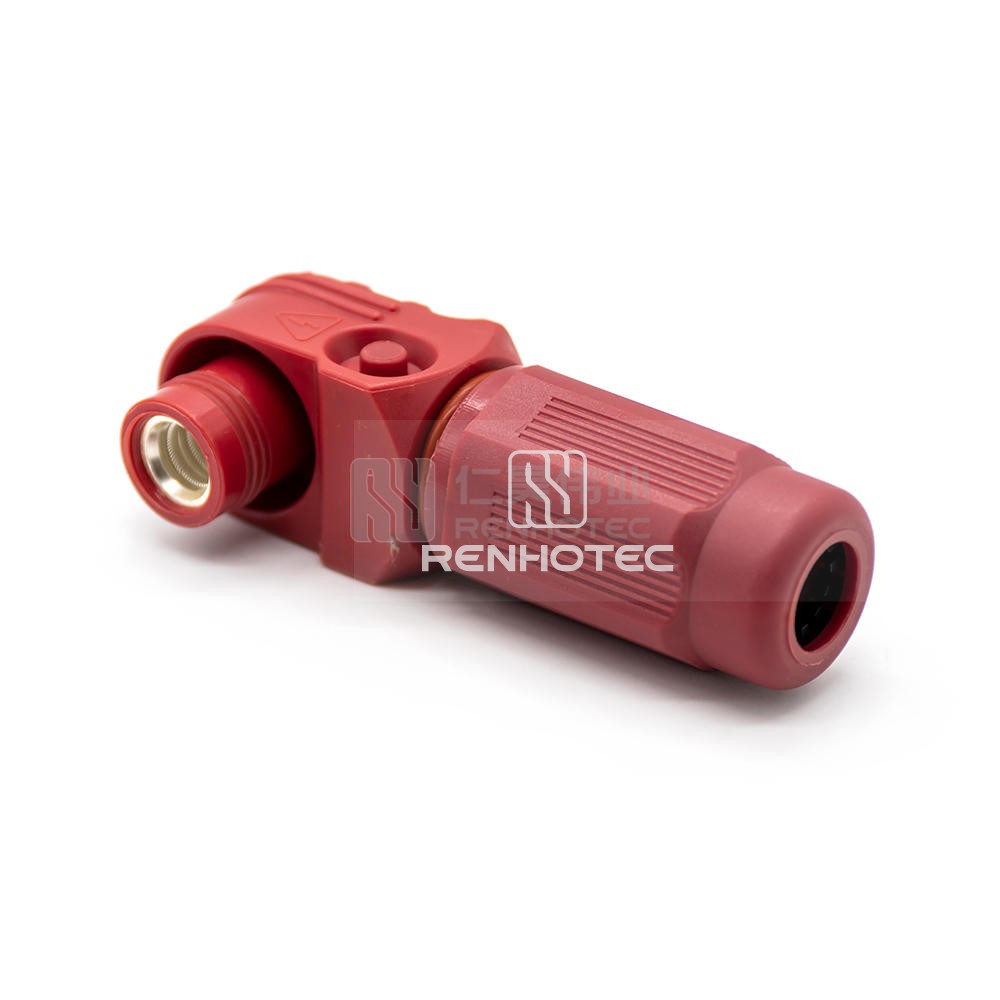

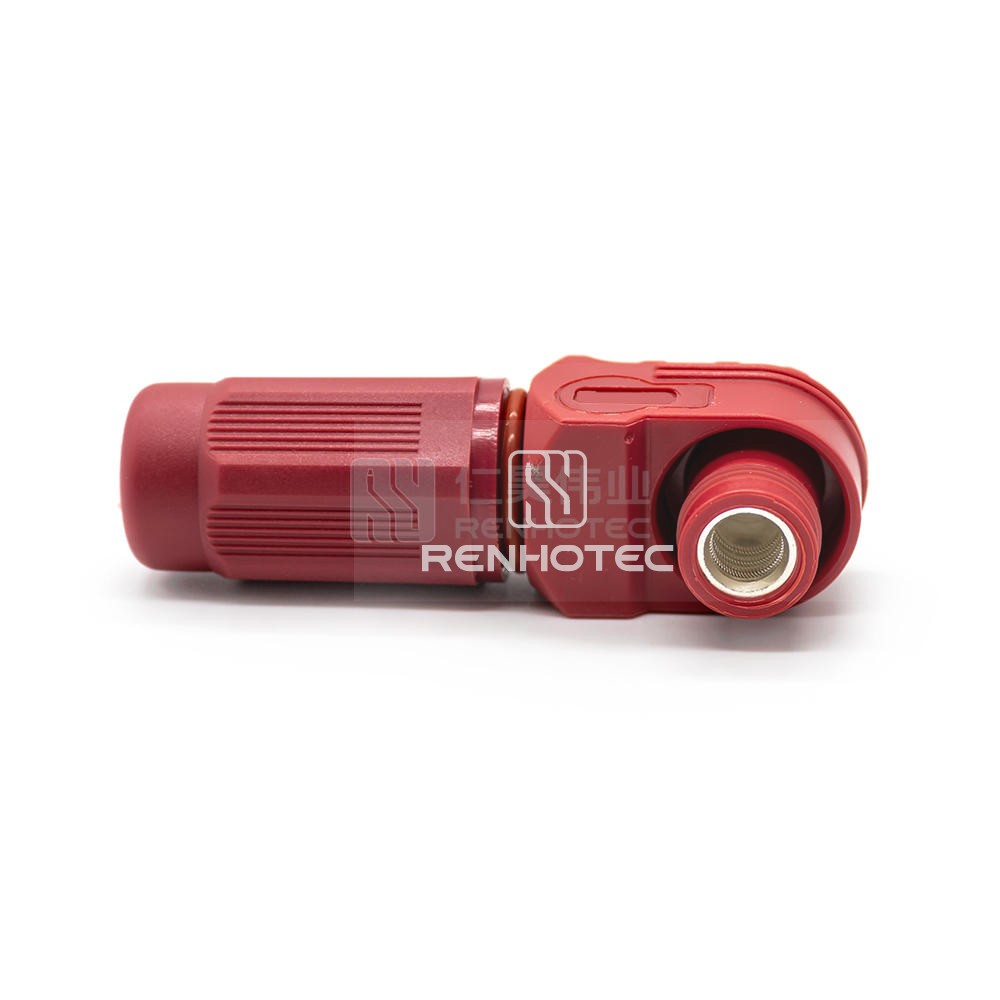

8.0mm Power Entry Connector 150A Cable Plug 35mm² Unshielded Cable Red- Overview
- Technical data
- Certification
- Download
Product excerpt
Enhance your power connection with this 8.0mm Power Entry Connector featuring a 150A capacity, compatible with 35mm² unshielded cables in a vibrant red color. Secure and reliable, this plug ensures a stable power supply for your industrial or commercial applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Color | Red |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 150A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 35mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
