ST534000-A

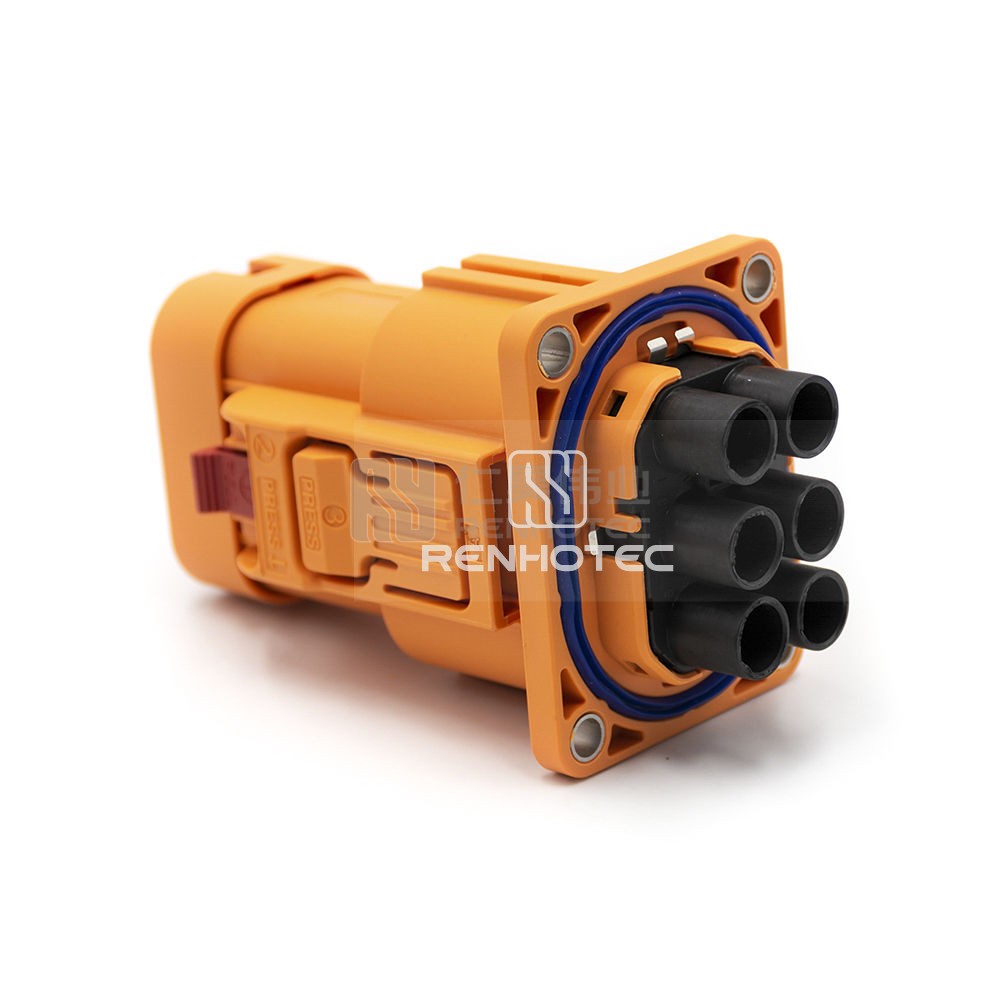

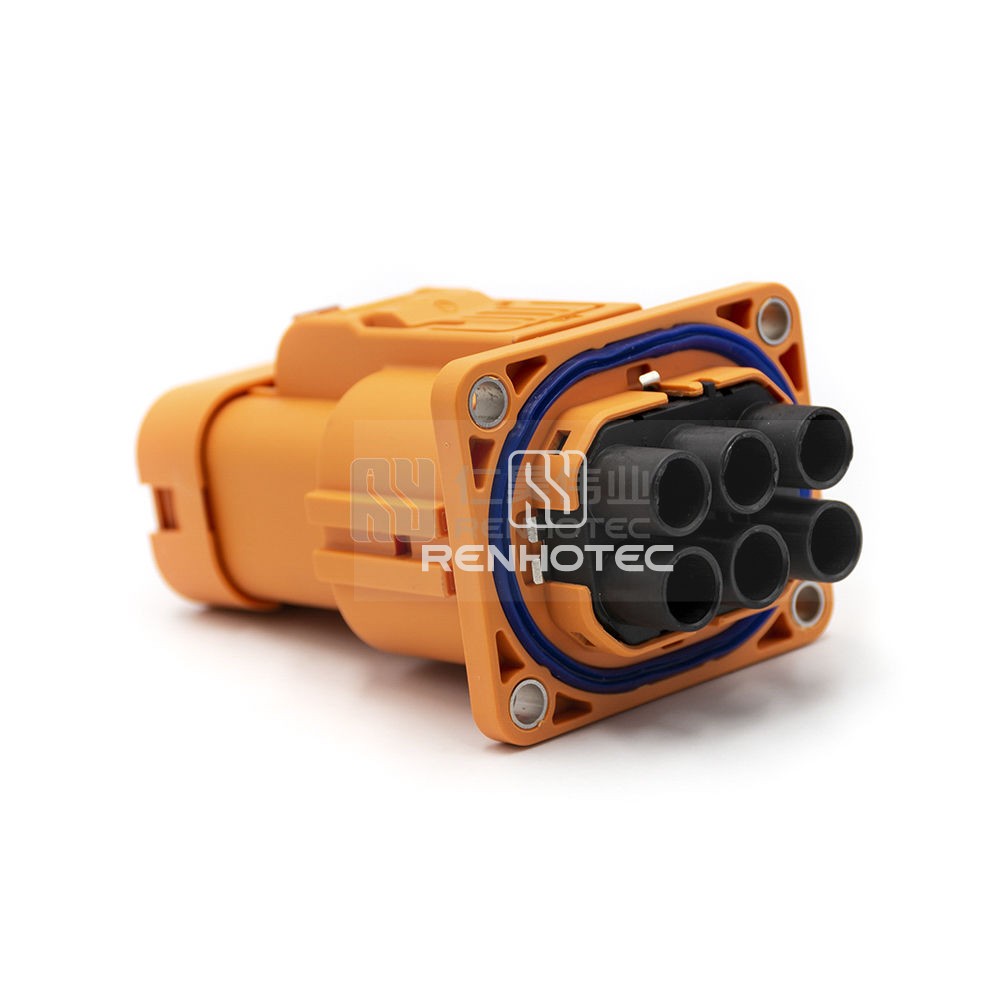

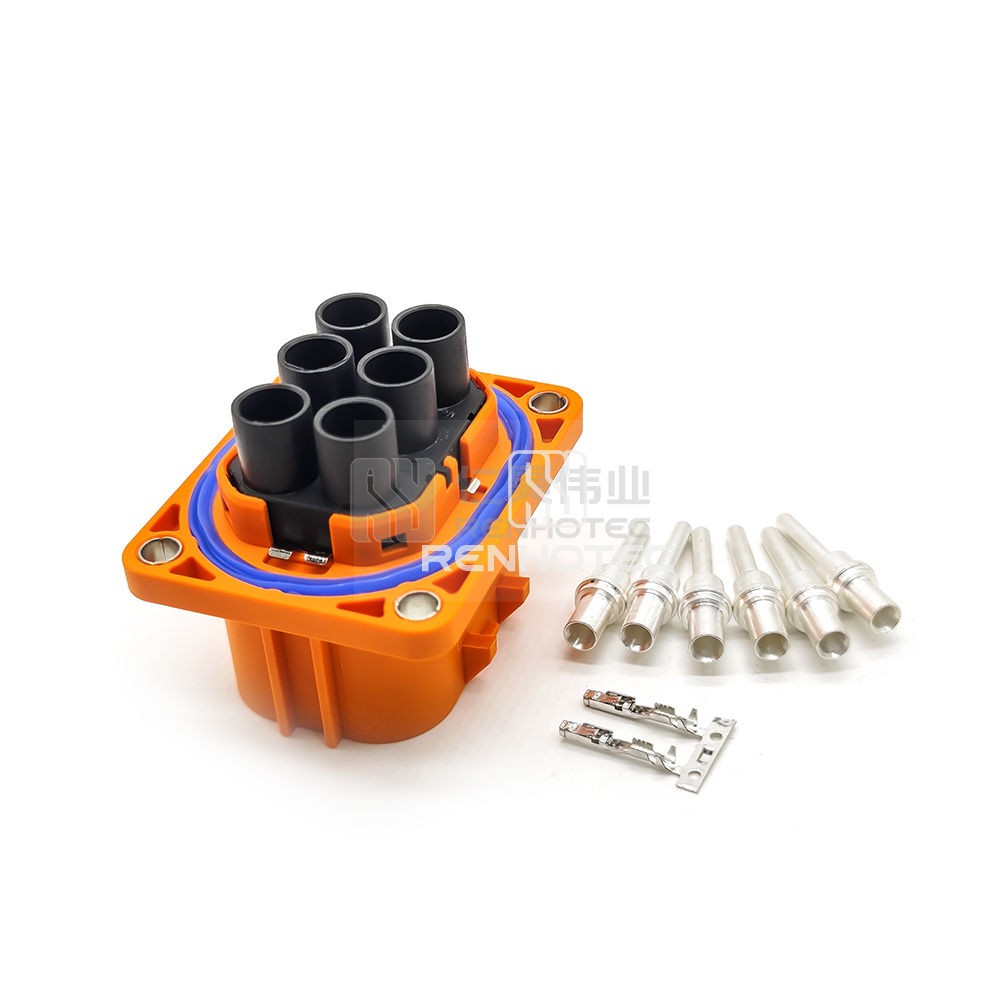

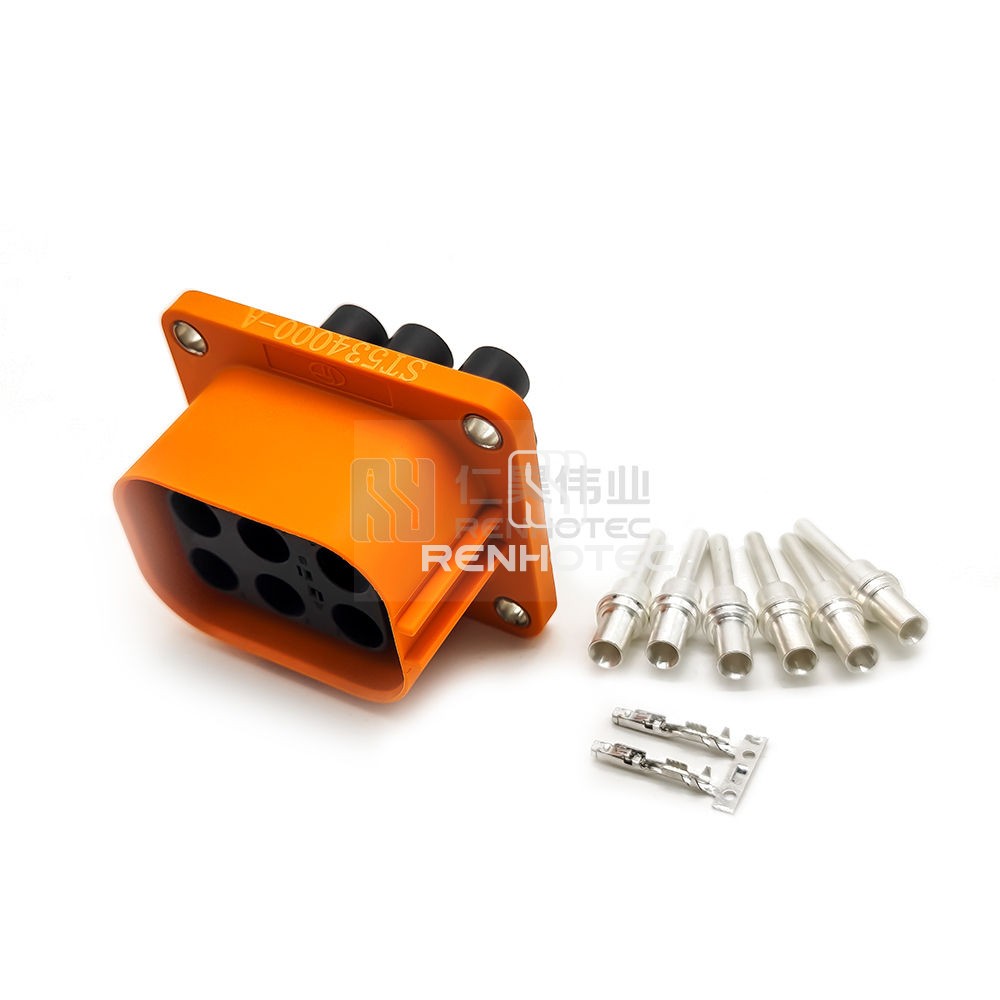

6 POS High Power Electric vehicle connector Socket 40A 6mm2 Shielded Cable A Key
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle connector socket features 6 positions, 40A capacity, and a 6mm² shielded cable with A key. Designed for waterproof touch proof connections, ensuring safety and reliability for electric vehicles.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Number of Positions6
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Electrical
Rated Voltage800V
Rated Current40A
ShieldingShielded
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Range6mm²
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishTin
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
