FSP600160CZ-16U0A2RH

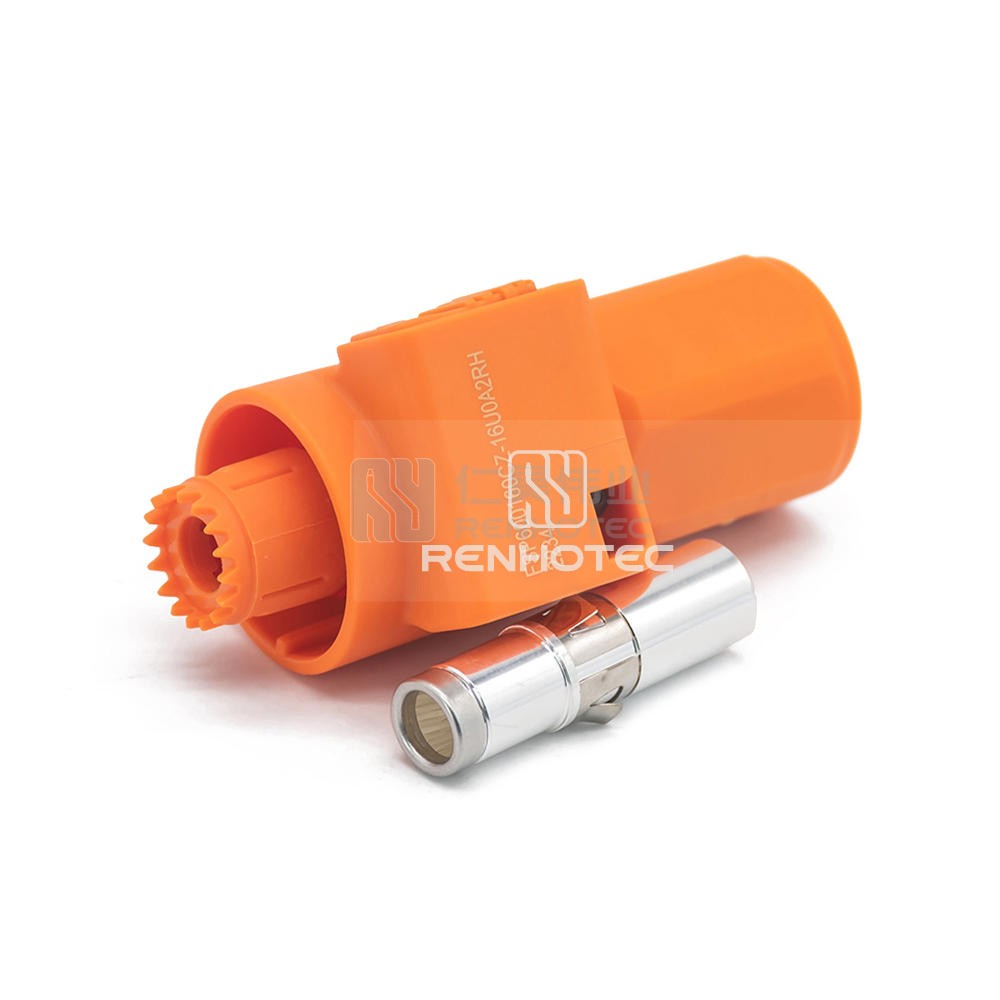

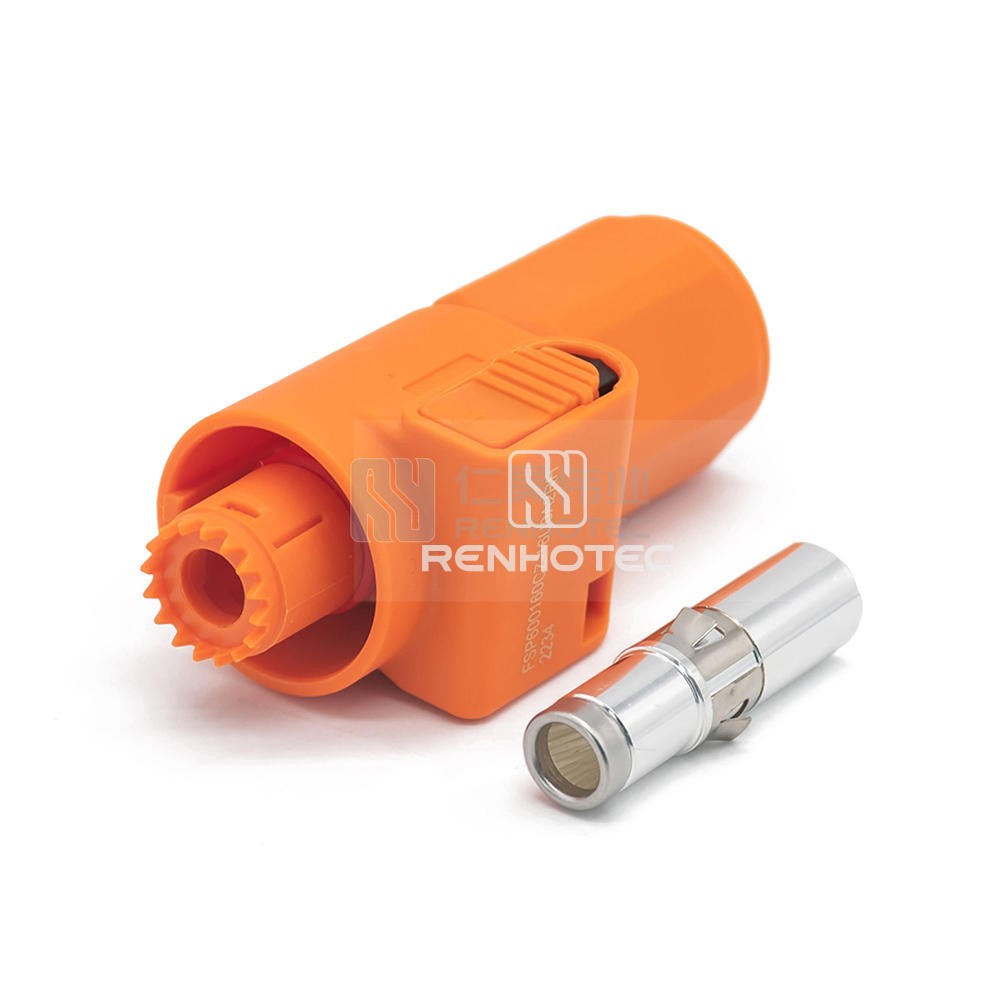

6.0mm Waterproof Battery Storage Connector Straight 100A Orange 16mm² UnShielded Cable Z Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Easily connect your battery with this 6.0mm waterproof storage connector featuring a 100A capacity. The orange 16mm² unshielded cable with Z key design ensures a secure and reliable connection for your electrical needs.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 1 |
Contact Size | 6mm |
Contact Termination | Crimp |
Key | Z |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 100A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 16mm² |
Material | |
---|---|
Shell Material | PA66 |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
