Products > Energy Storage Connector > 6.0mm Power Entry Connector 125A Receptacle Busbar Teminal(M6 screw) Black W Key
FSPC22160W-M6B1RH

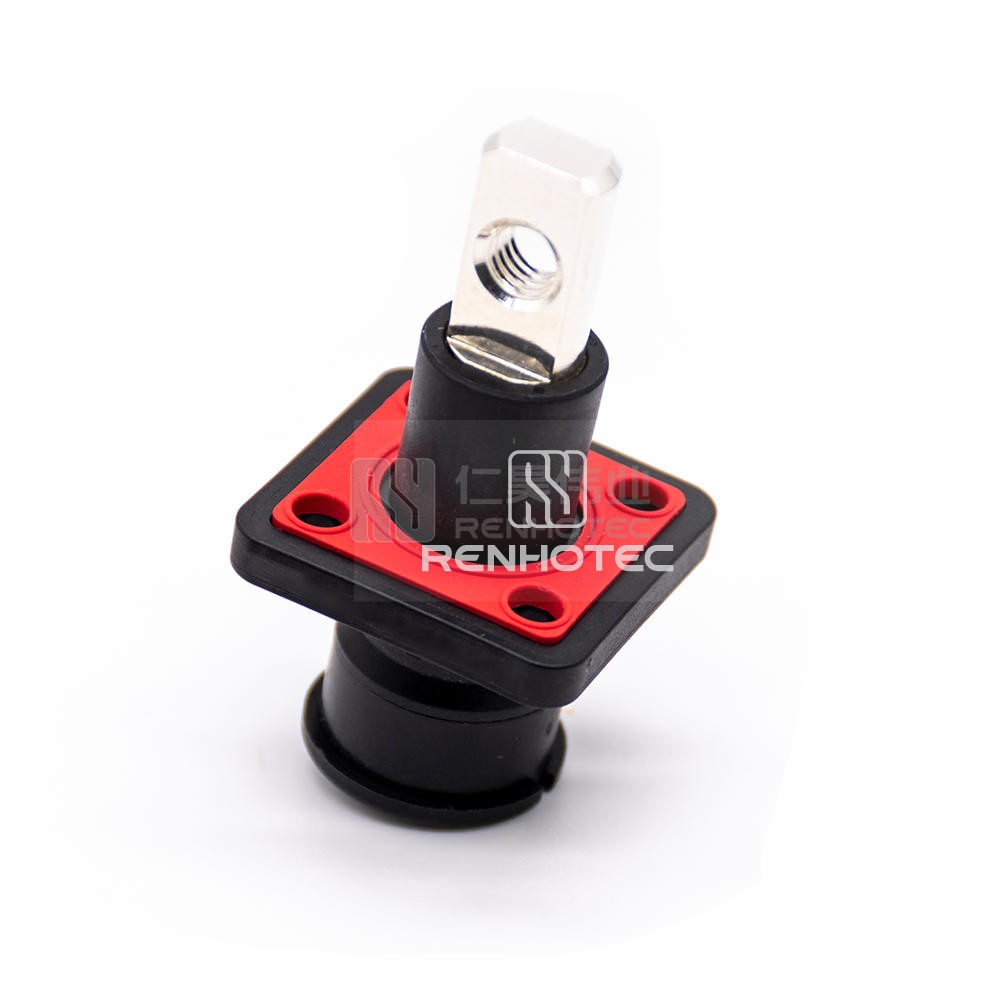

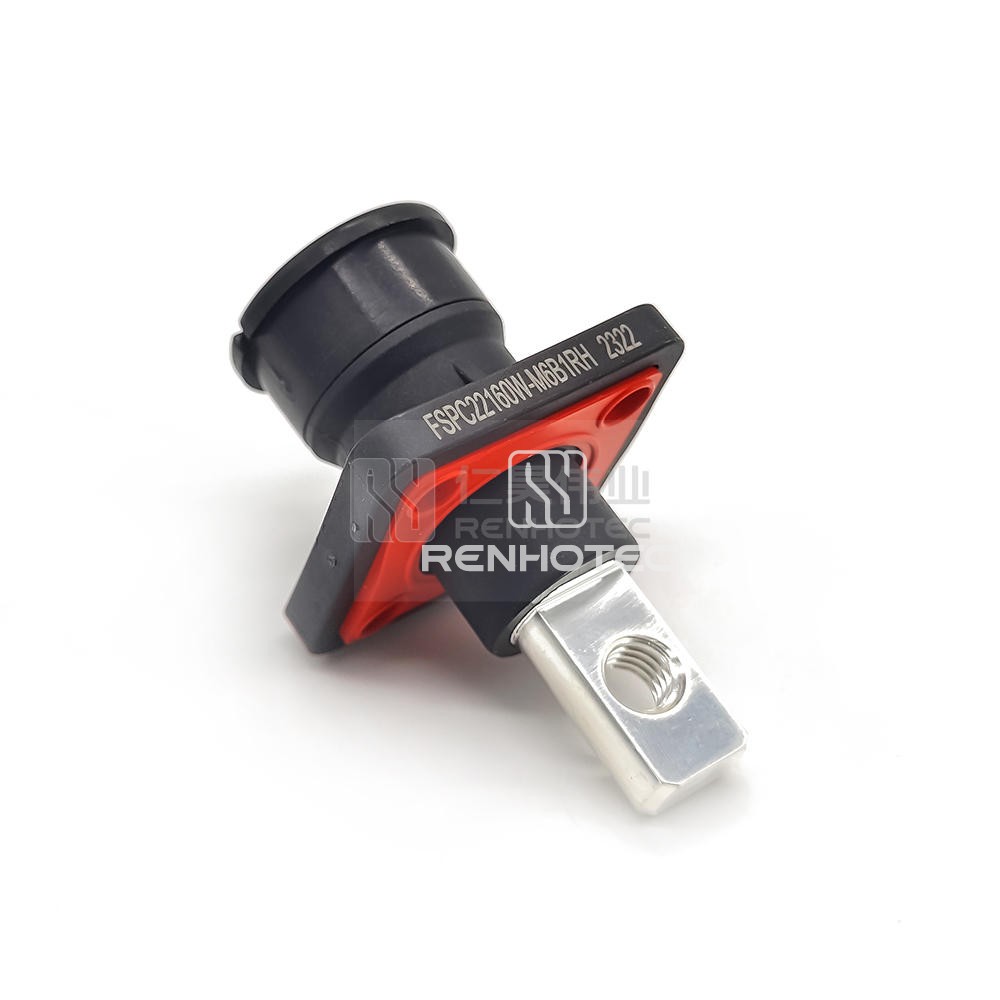

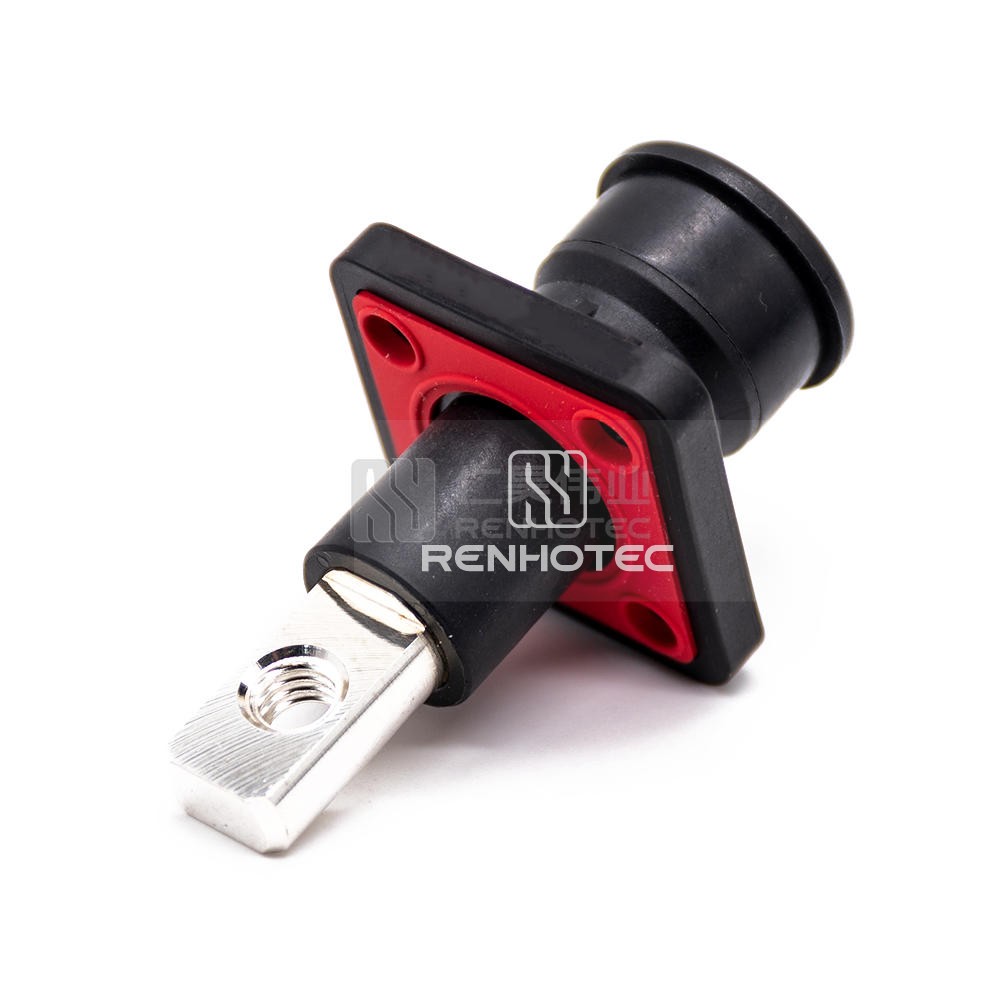

6.0mm Power Entry Connector 125A Receptacle Busbar Teminal(M6 screw) Black W Key- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality 6.0mm power entry connector featuring a 125A receptacle busbar terminal with M6 screw connection. Designed in black with a key for added security. Ensure safe and reliable power connectivity for your applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Size | 6mm |
| Contact Termination | Busbar |
| Key | W |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 125A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
