FCC0616-F1BR
6.0mm Power Entry Connector 100A Cable Plug Right Angled 16mm² Unshielded Cable Black- Overview
- Technical data
- Certification
- Download
Product excerpt

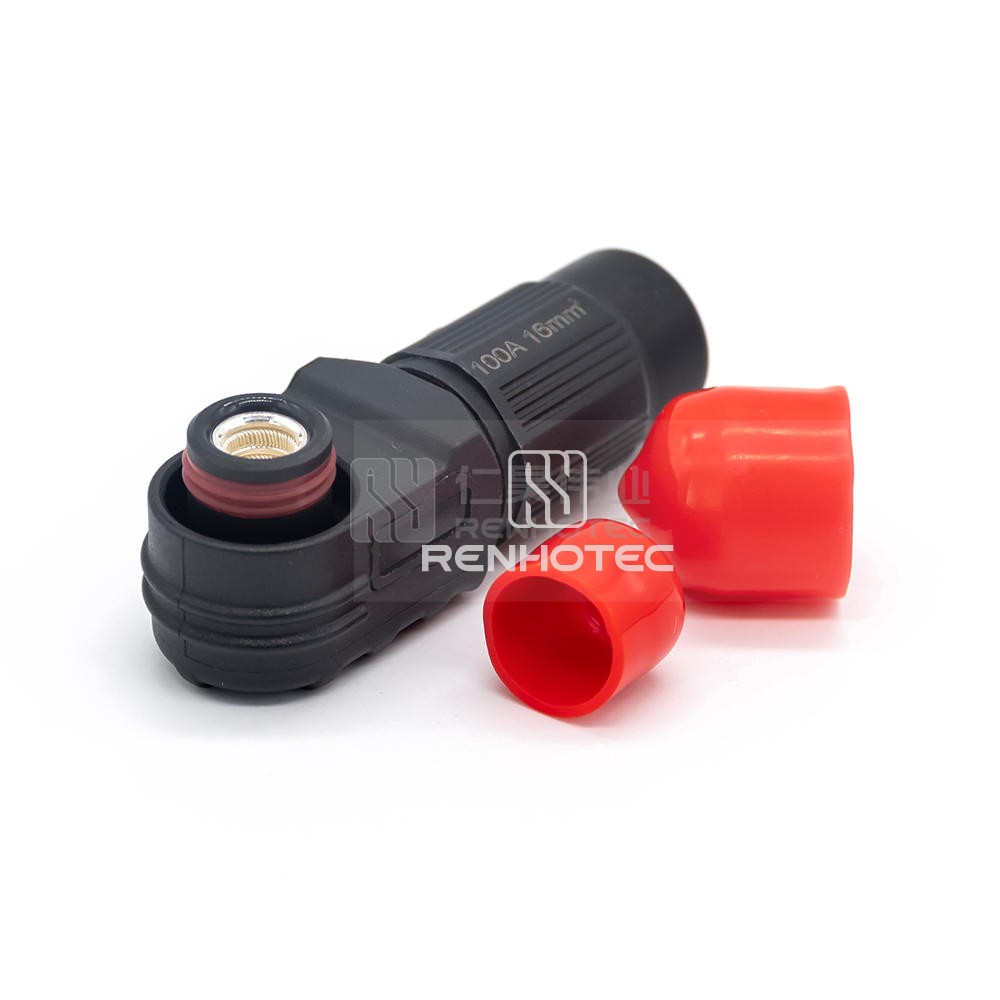

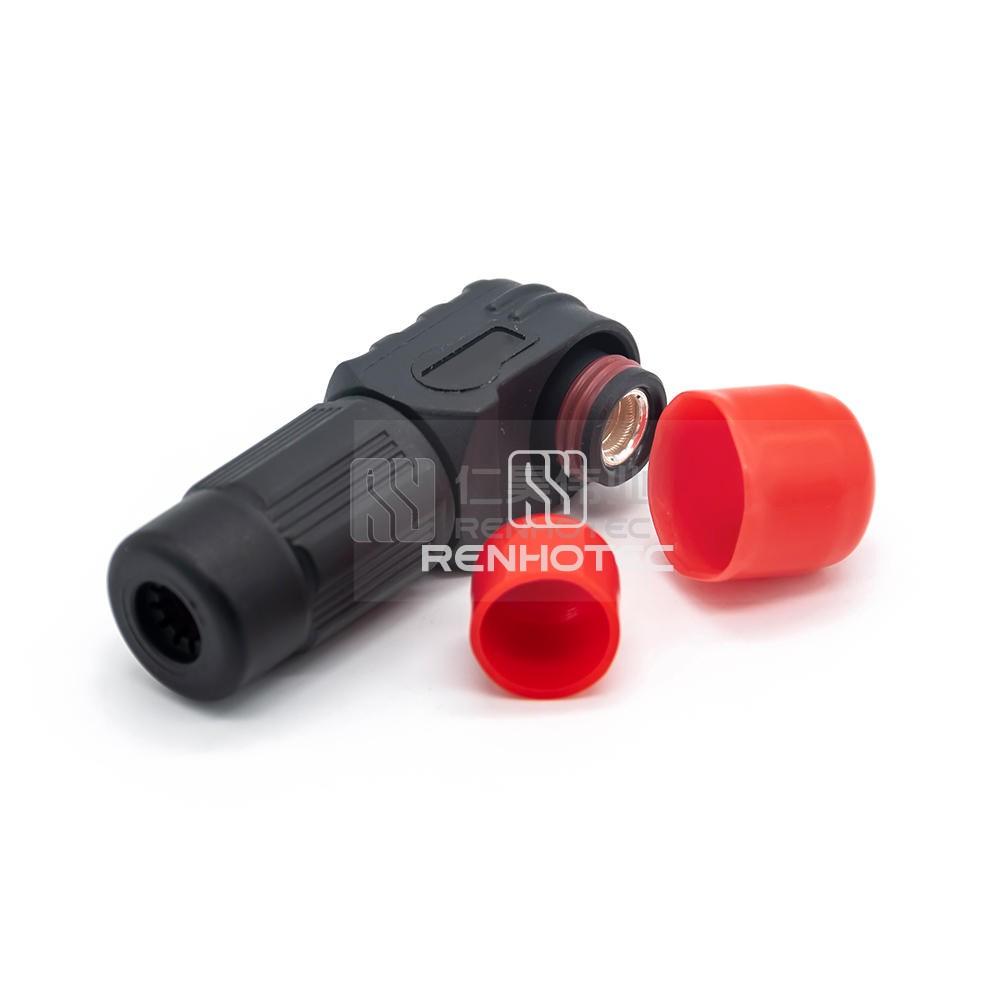

This 6.0mm power entry connector features a 100A cable plug that is right angled and designed for use with 16mm² unshielded cables. The connector is black in color, providing a versatile and durable solution for various applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 6mm |
| Contact Termination | Crimp |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 100A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 16mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
