ST533000-A-4

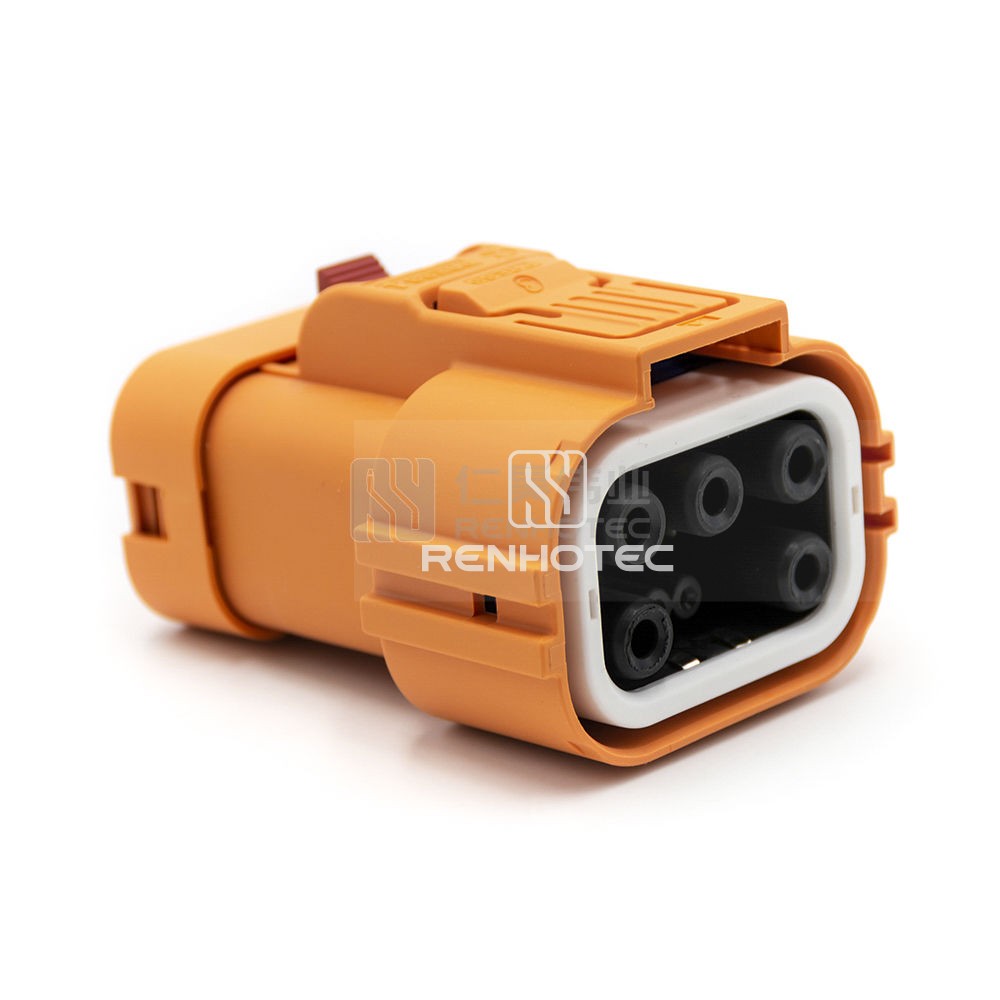

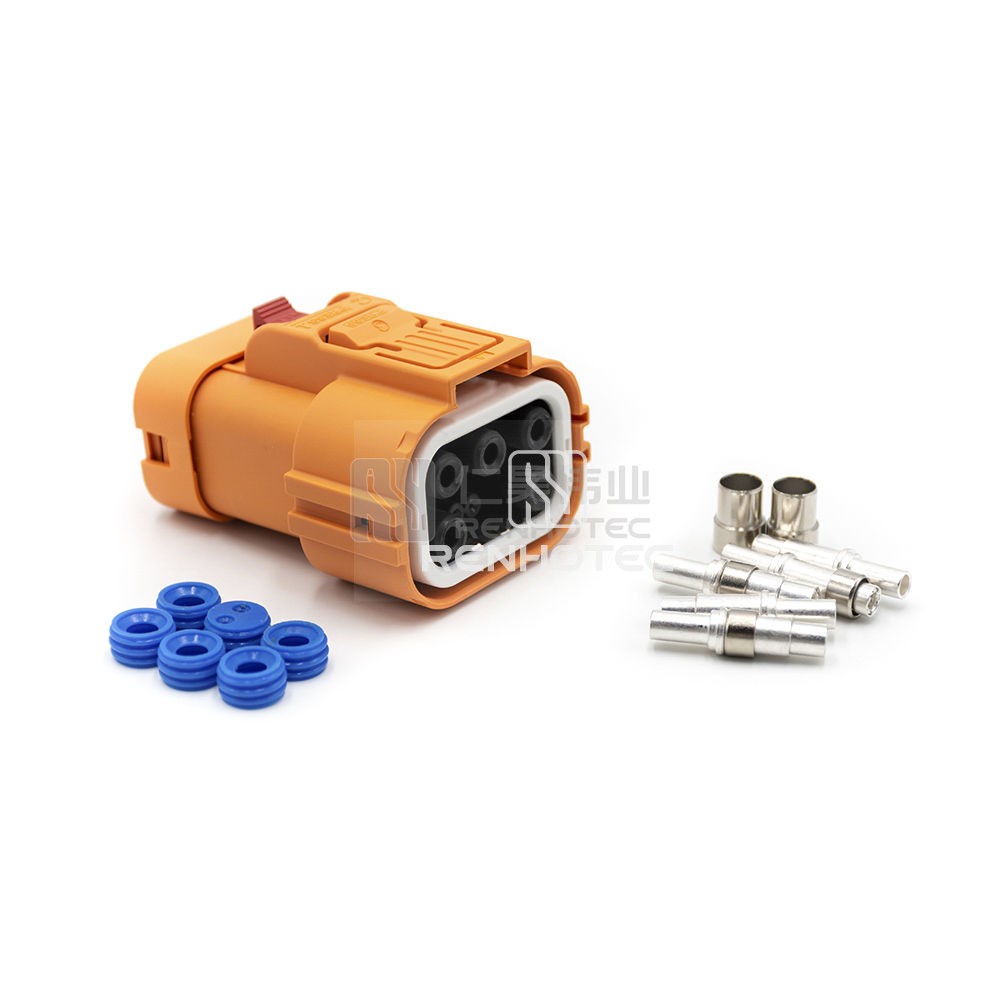

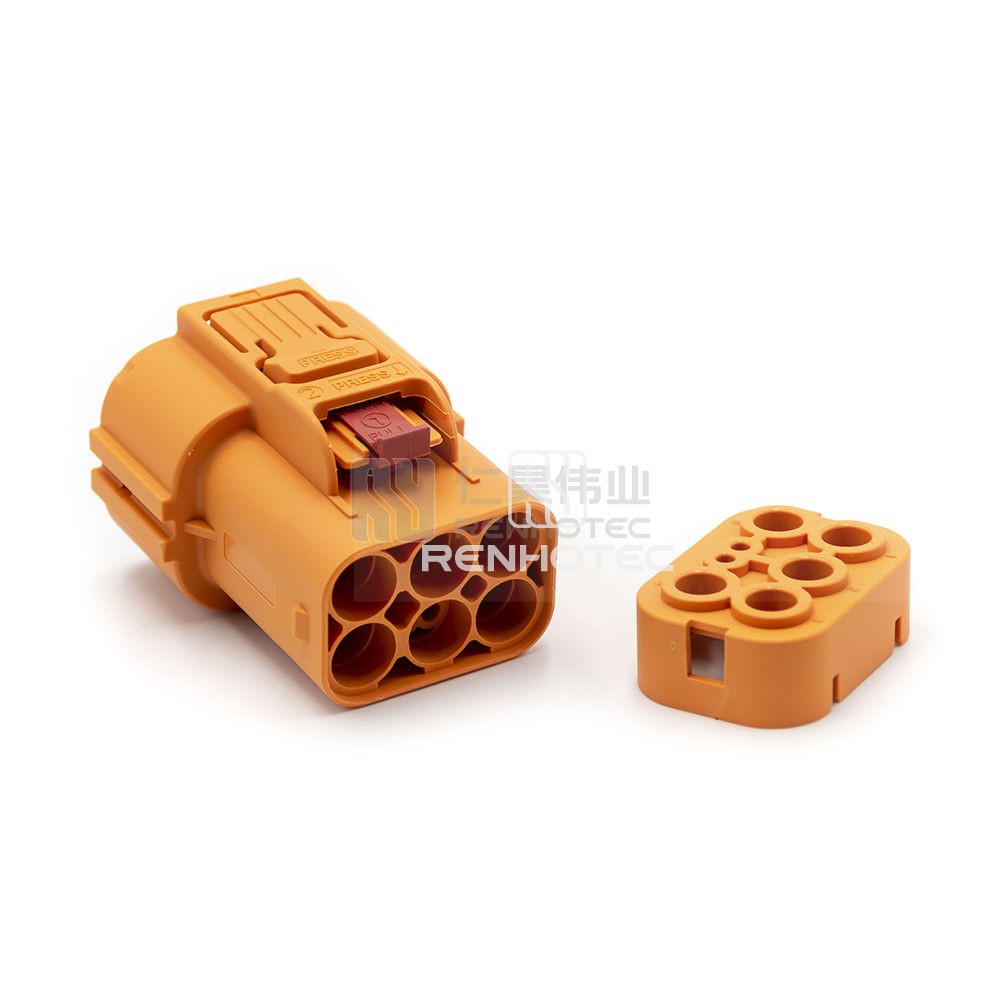

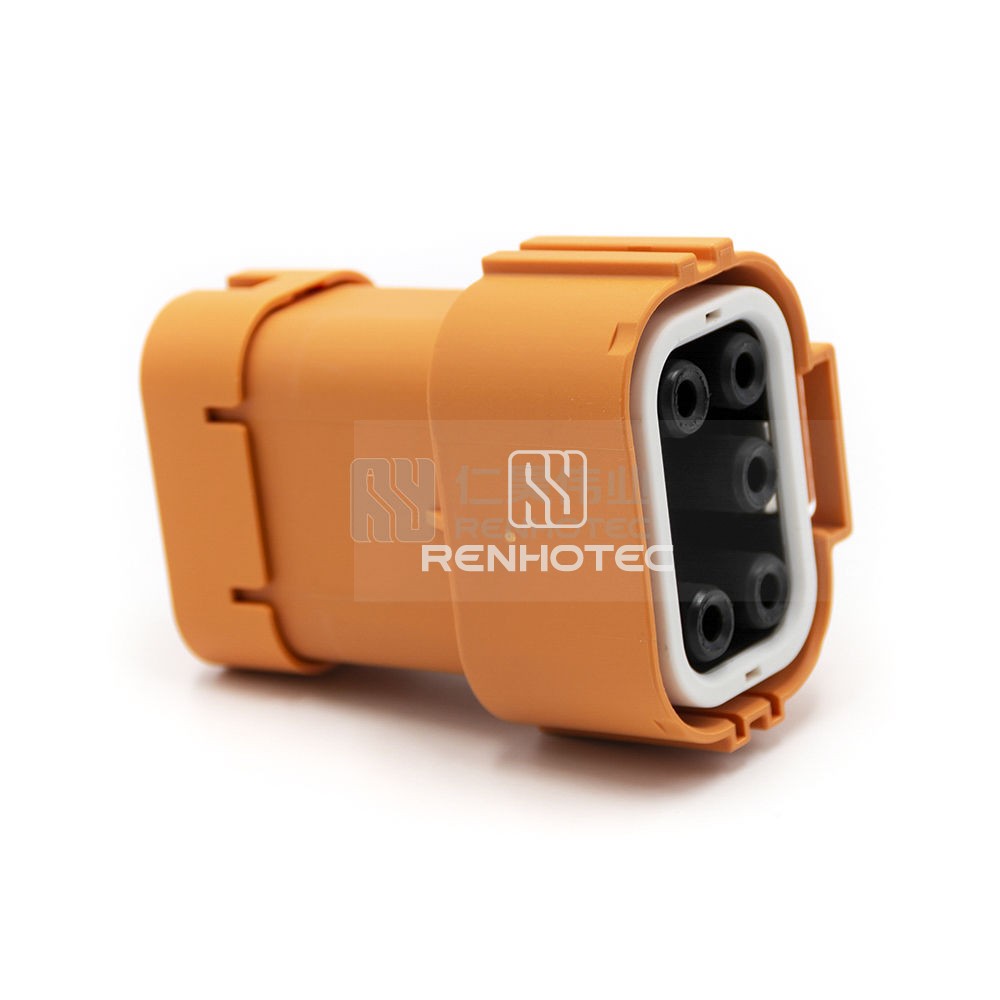

5 POS High Power Electric vehicle Cable Plug 30A 4mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle cable plug features 5 POS design, capable of handling 30A current. The shielded 4mm² cable with A key straight design ensures reliable and secure connections. Ideal for various electric vehicle applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions5
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishTin
Mechanical
Mounting TypeCable Type
Wire Gauge or Range4mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current30A
ShieldingShielded
