ST525000-A-35

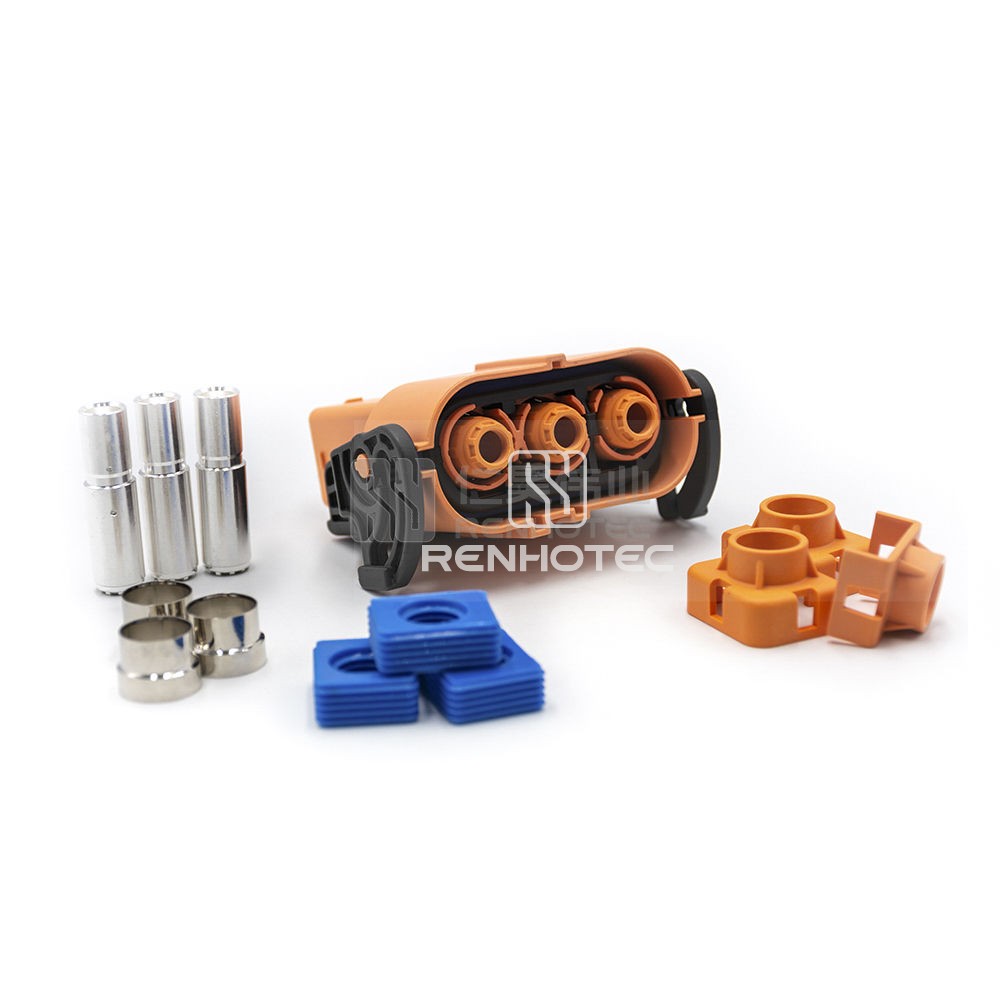

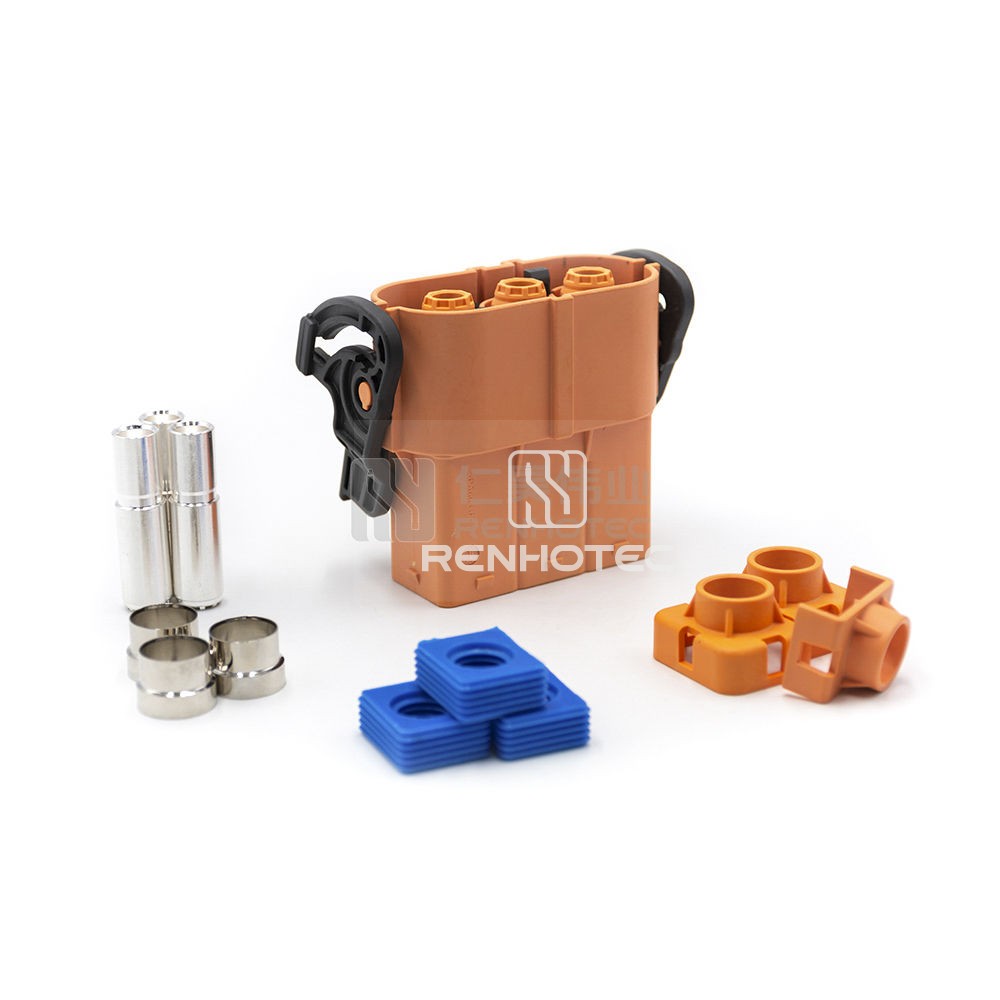

3 POS High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle cable plug is designed to handle up to 200A current with a 35mm² shielded cable. The A key straight design ensures a secure connection. Ideal for charging electric vehicles quickly and efficiently.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationStraight
Number of Positions3
Contact Size8mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Electrical
Rated Voltage1500V
Rated Current200A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range35mm²
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishSilver
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
