Products > HVIL Series Connector > 3 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight
NI1-1-S036-3YYN-C03
3 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable Y Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

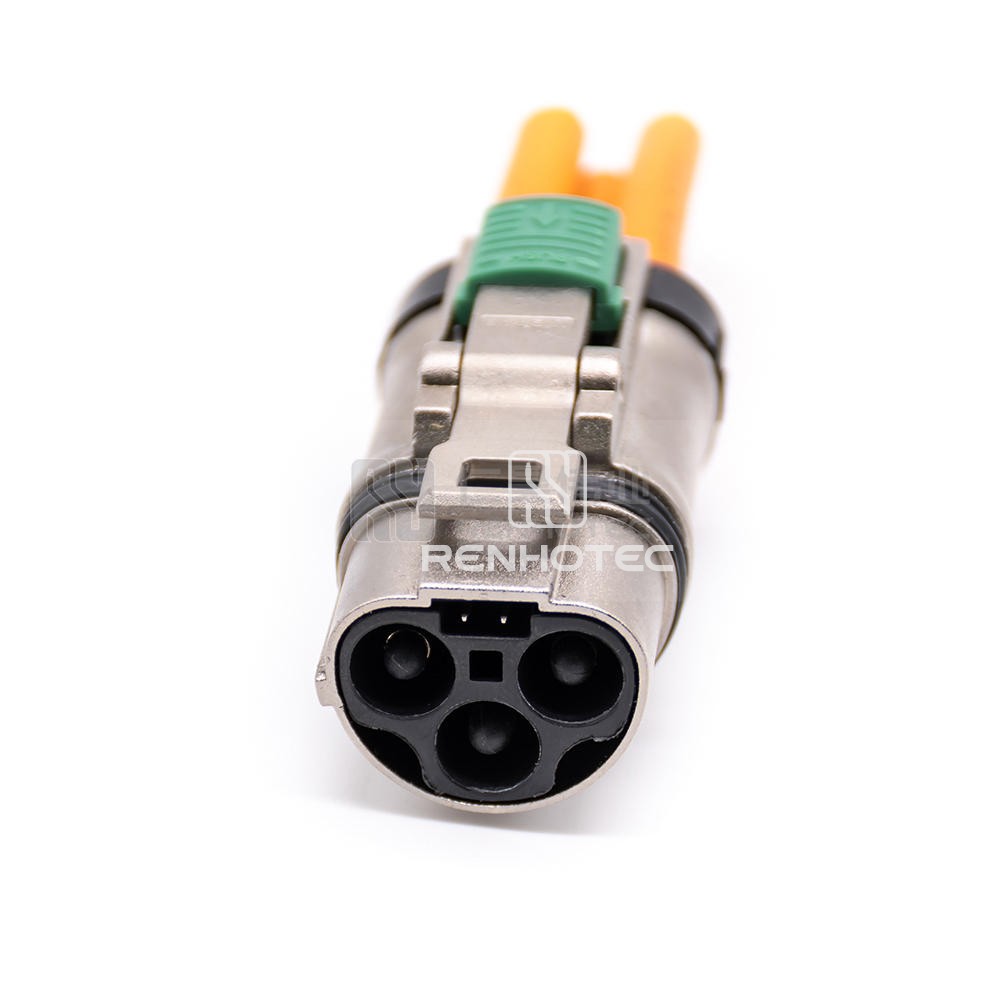

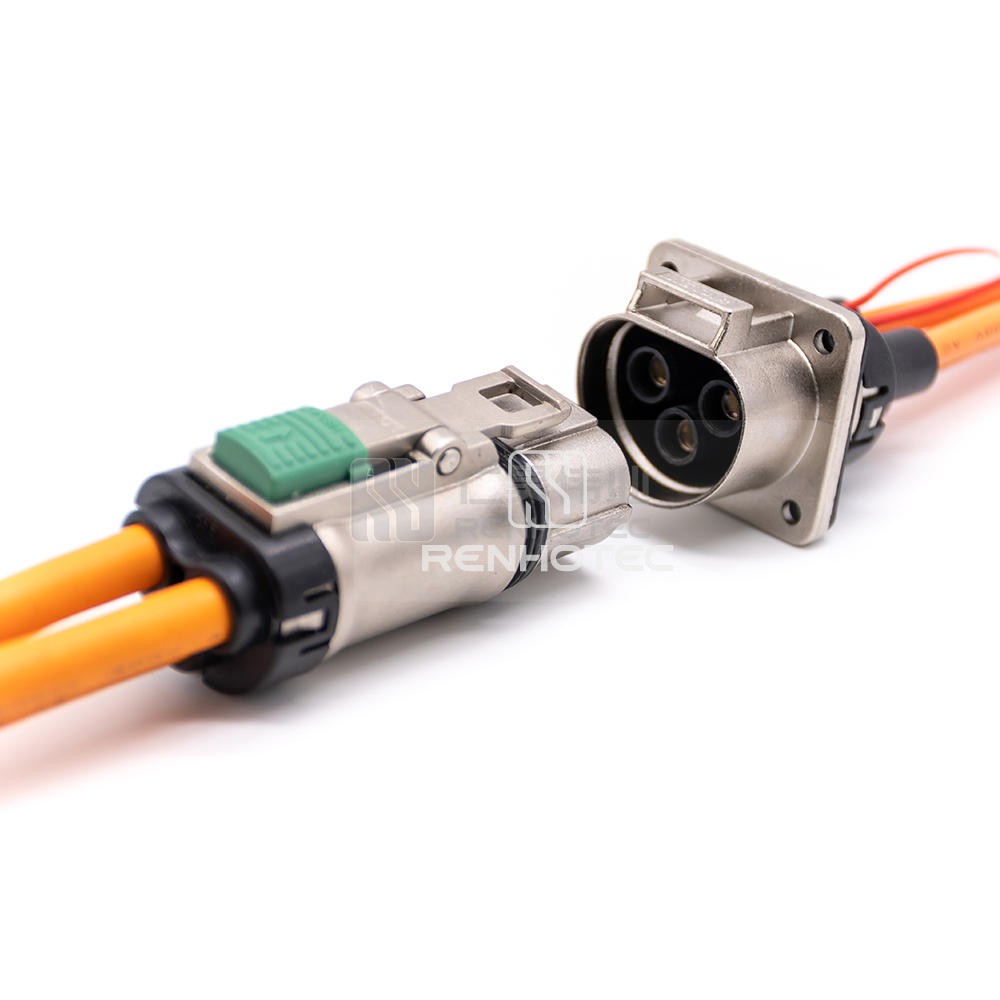

This high-power electric vehicle cable plug features a robust 2.5mm² shielded cable with a 3 POS design, providing 16A of power. With the Y key straight configuration, it ensures secure connections for efficient power transmission. Ideal for electric vehicles and compatible applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 3 |
| Contact Size | 3.6mm |
| Contact Termination | Crimp |
| Key | Y |
| Color | Silver |
| Features | Integrated Internal HVIL |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 16A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 2.5mm² |
| Material | |
|---|---|
| Shell Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
