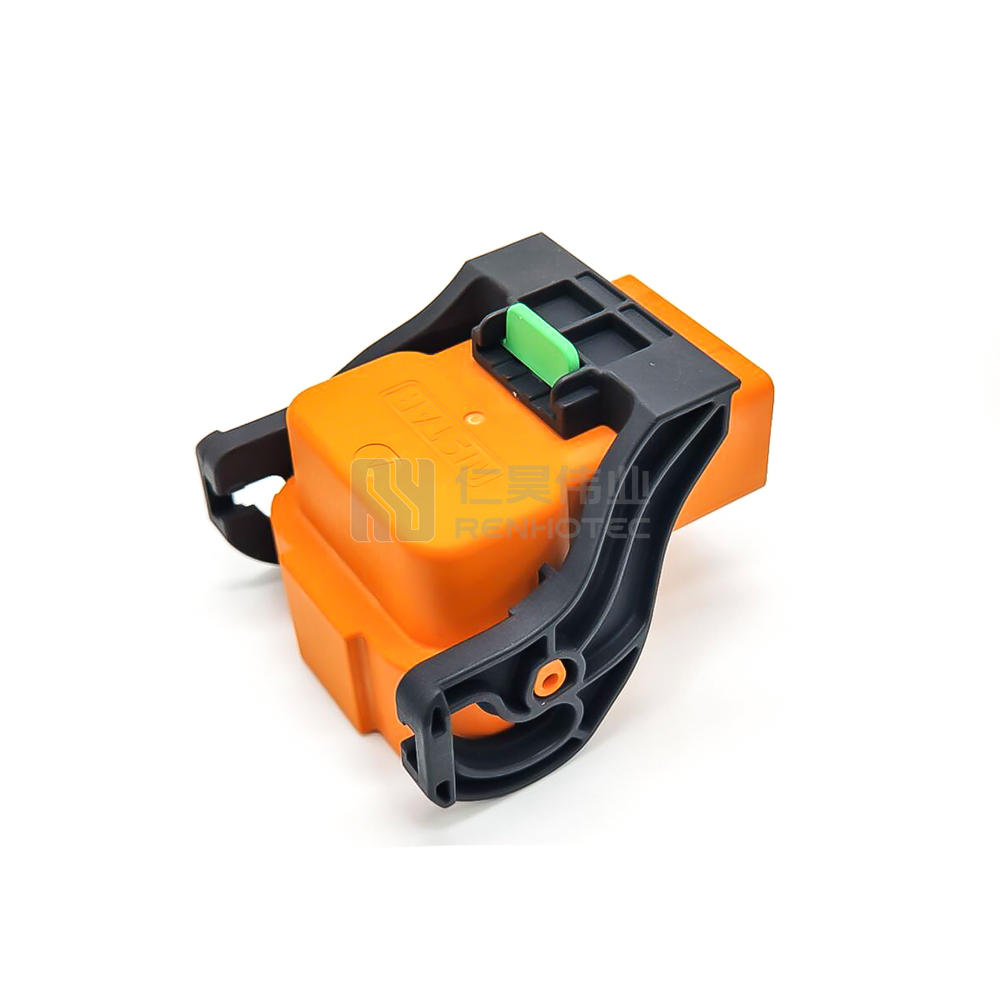

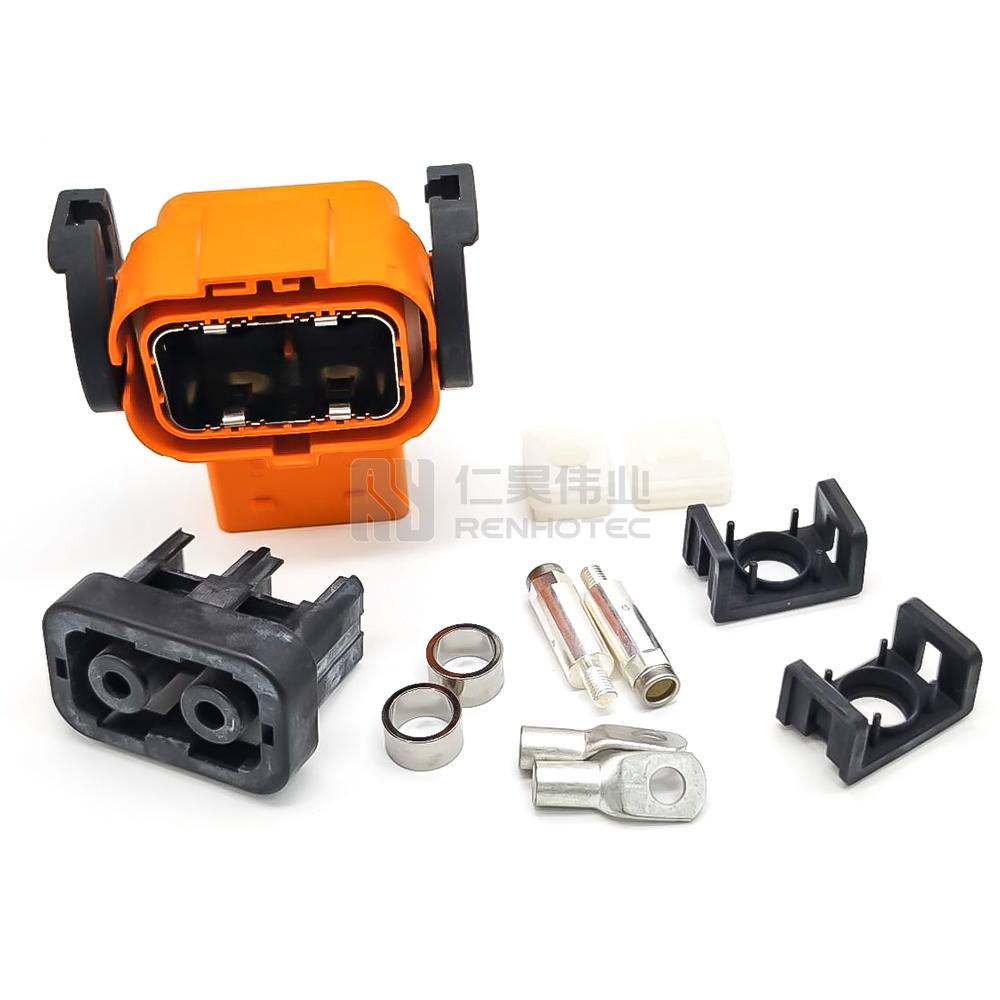

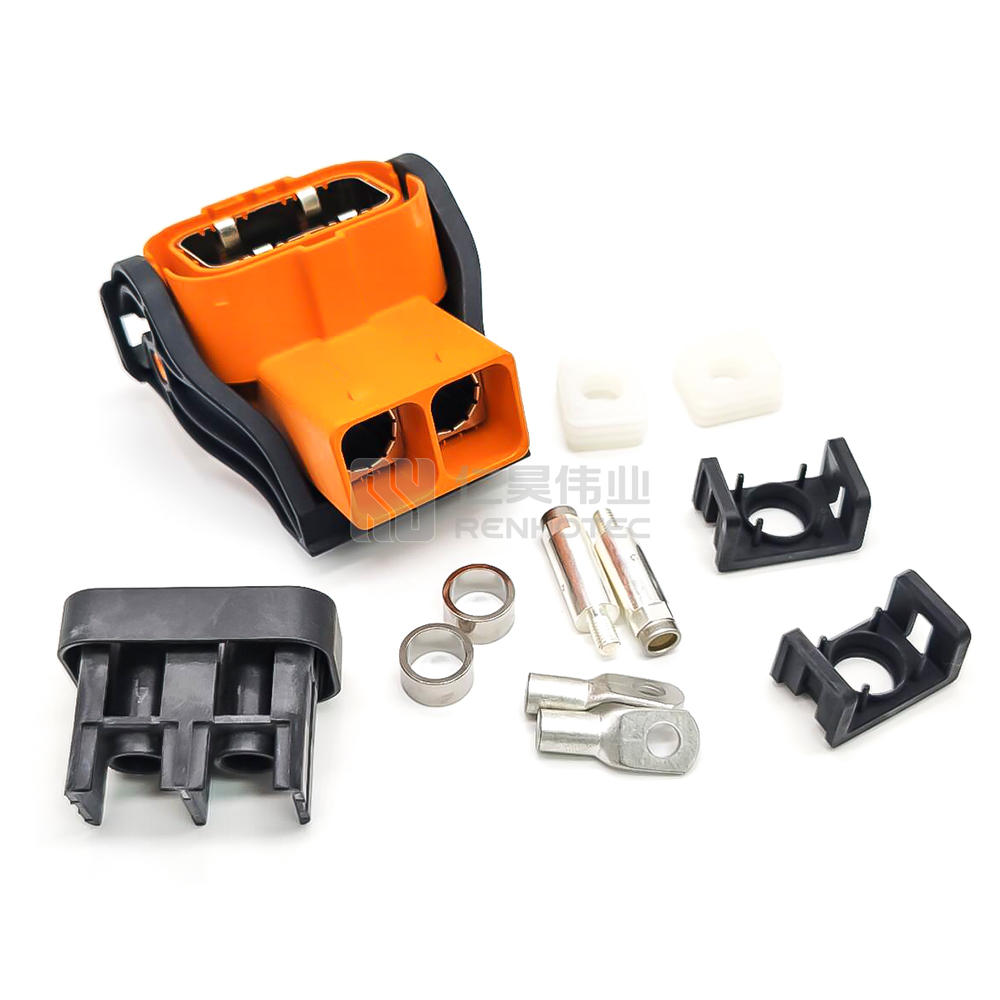

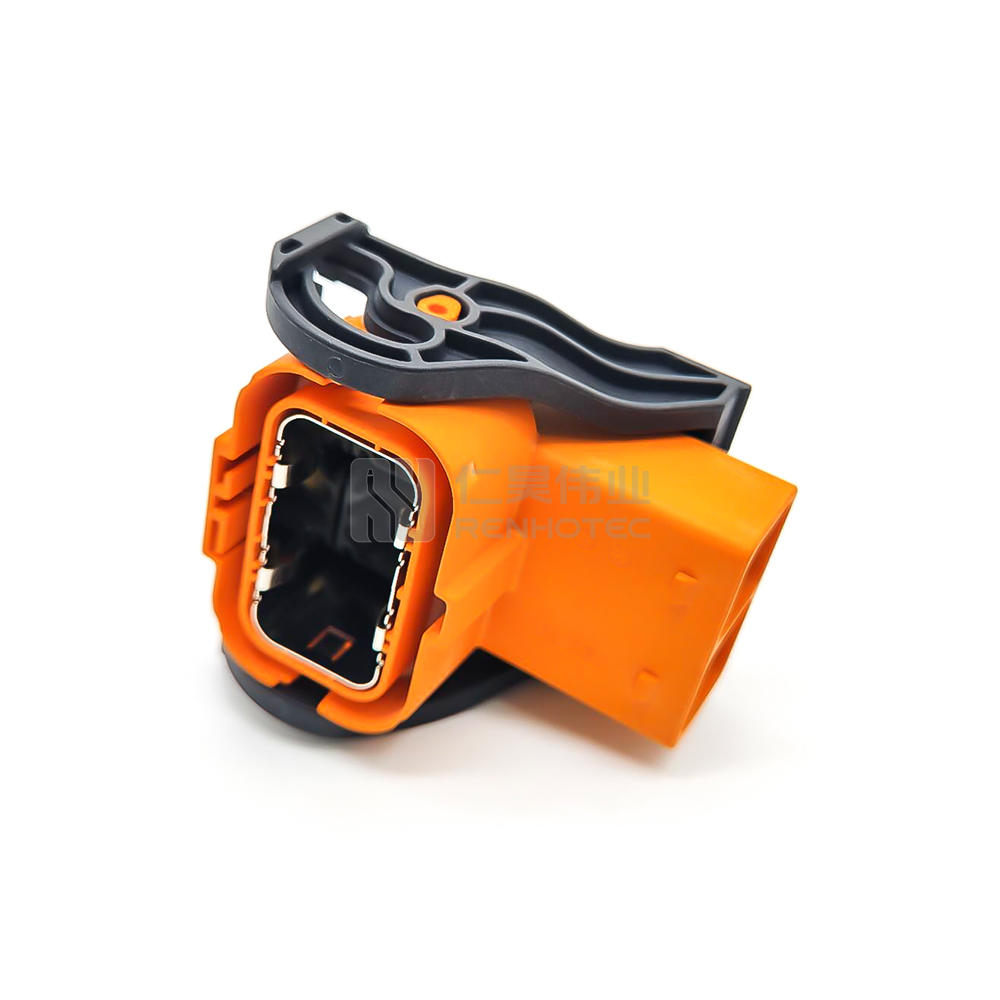

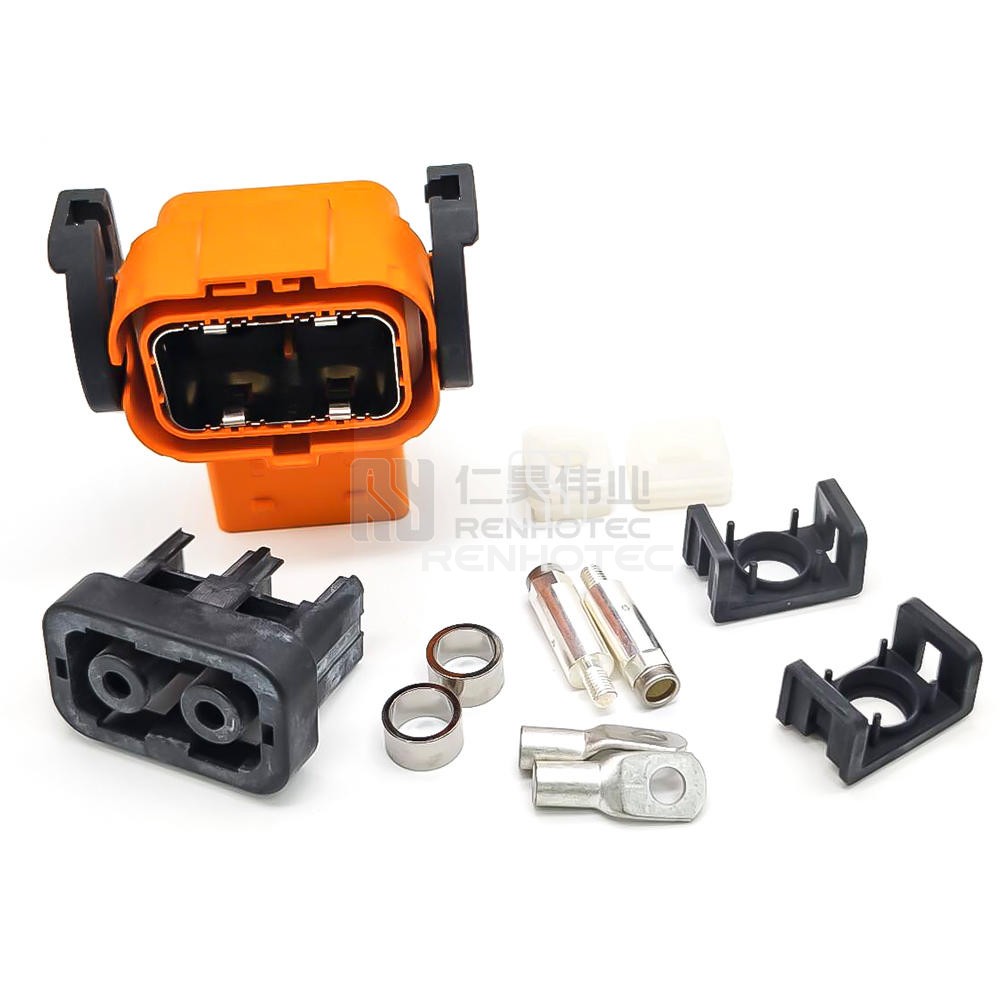

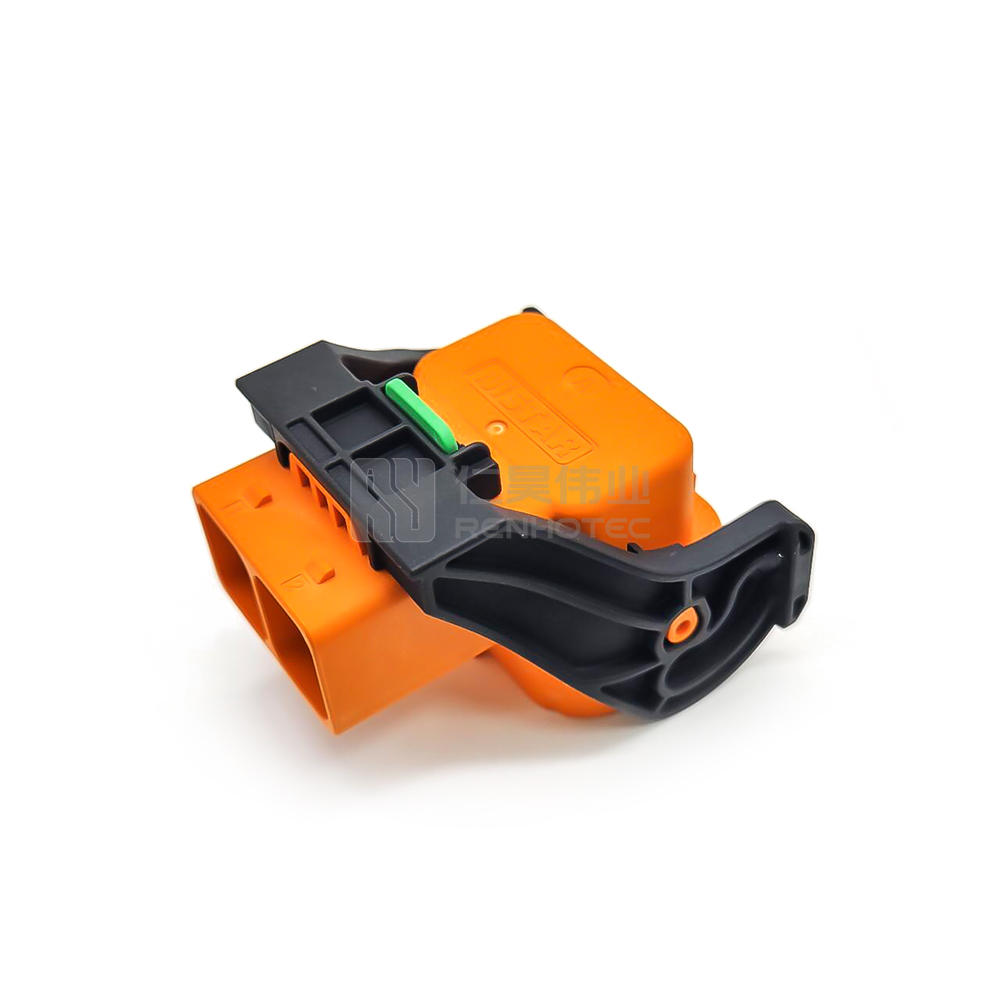

Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable A Key Right Angle
NI2-1-B060-2AYA-C07
2 POS Plastic High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable A Key Right Angle- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 2 |
| Contact Size | 6mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 80A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 16mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
