Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable A Key Right Angle
product image

NI2-1-B080-2AYA-C08

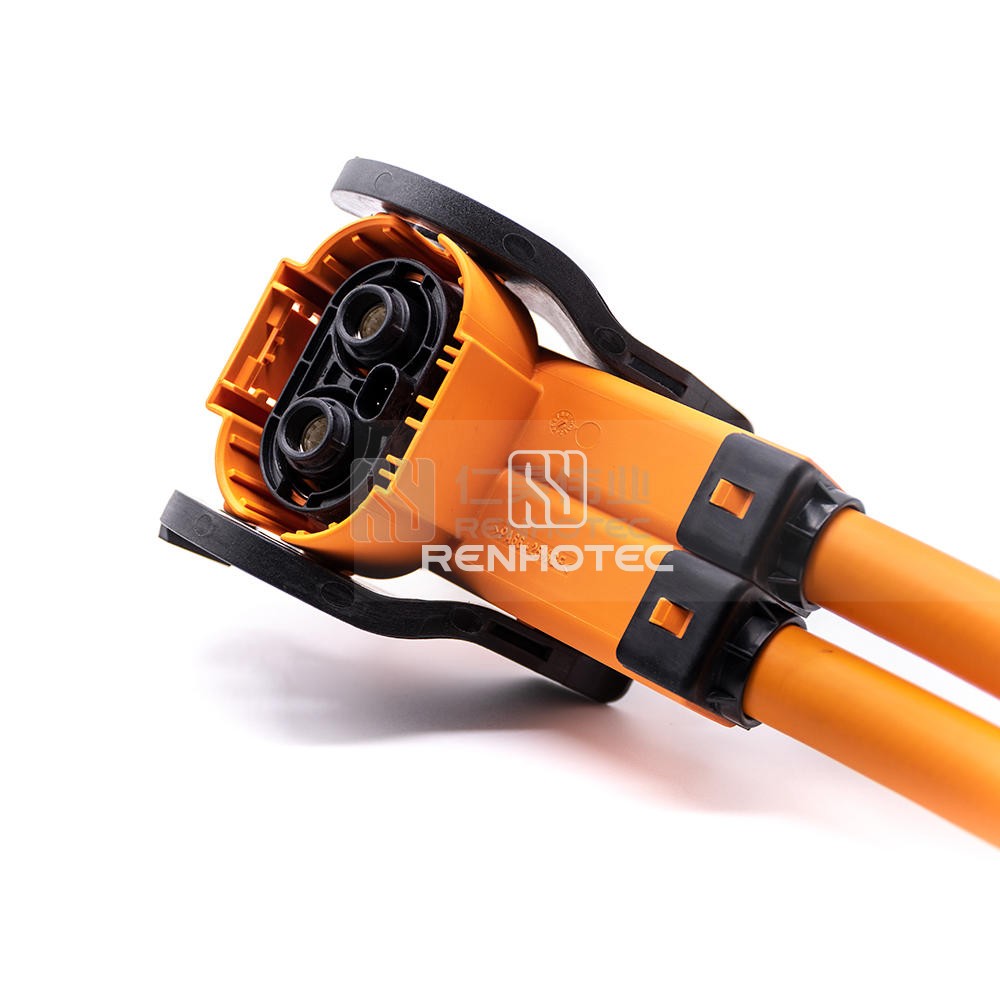

2 POS Plastic High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable A Key Right Angle
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle cable plug features a 125A capacity, 25mm² shielded cable, and a convenient A key right angle design. Ideal for efficient and secure connections in electric vehicles and other high-power applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationRight Angle
Number of Positions2
Contact Size8mm
Contact TerminationCrimp
KeyA
ColorOrange
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Mechanical
Mounting TypeCable Type
Wire Gauge or Range25mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage800V
Rated Current125A
ShieldingShielded

Certification

High Voltage Interlock Connectors CE Download

Catelog

RENHOTEC EV Product Catalog [EN] Download
RENHOTEC HVIL Connector Catalog [EN] Download
