Products > HVIL Series Connector > 2 POS High Voltage Interlock Connector Plastic Plug 23A 4mm² Shielded Cable A Key Straight
NI2-1-S280-2AYA-C04
2 POS High Voltage Interlock Connector Plastic Plug 23A 4mm² Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

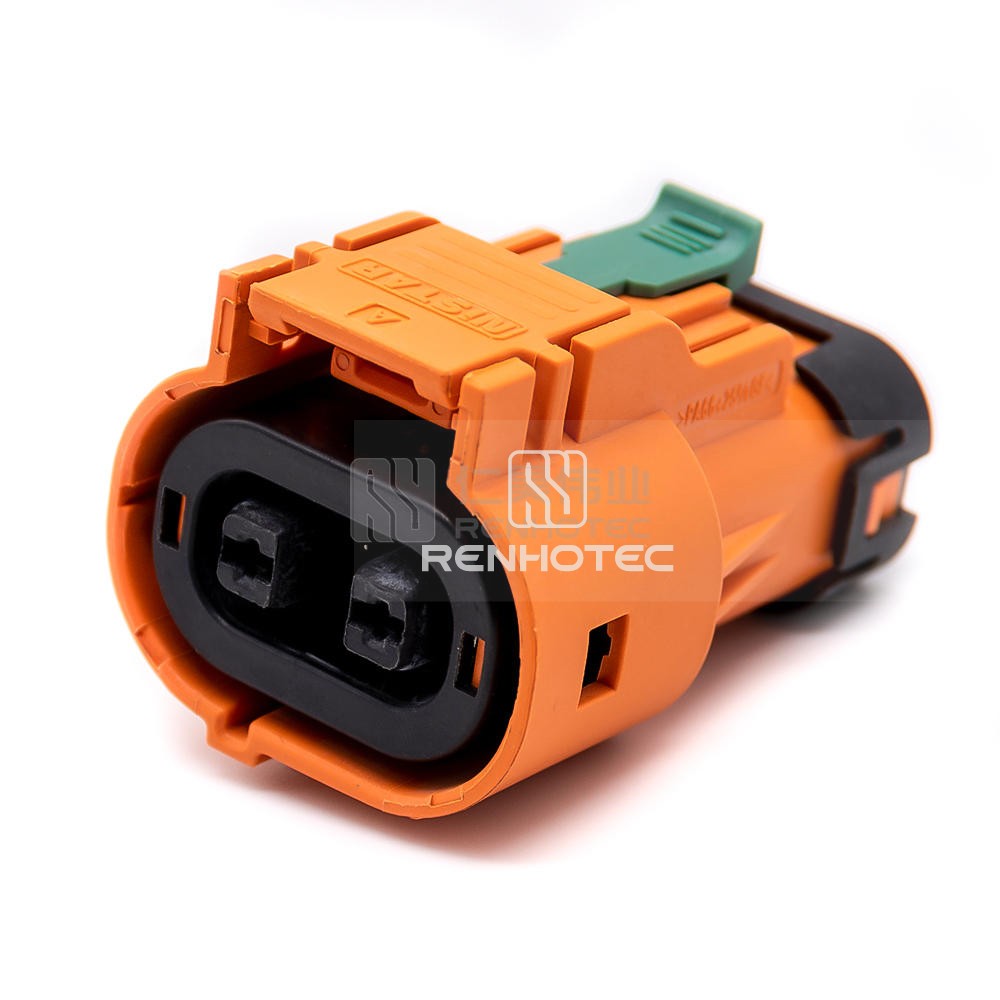

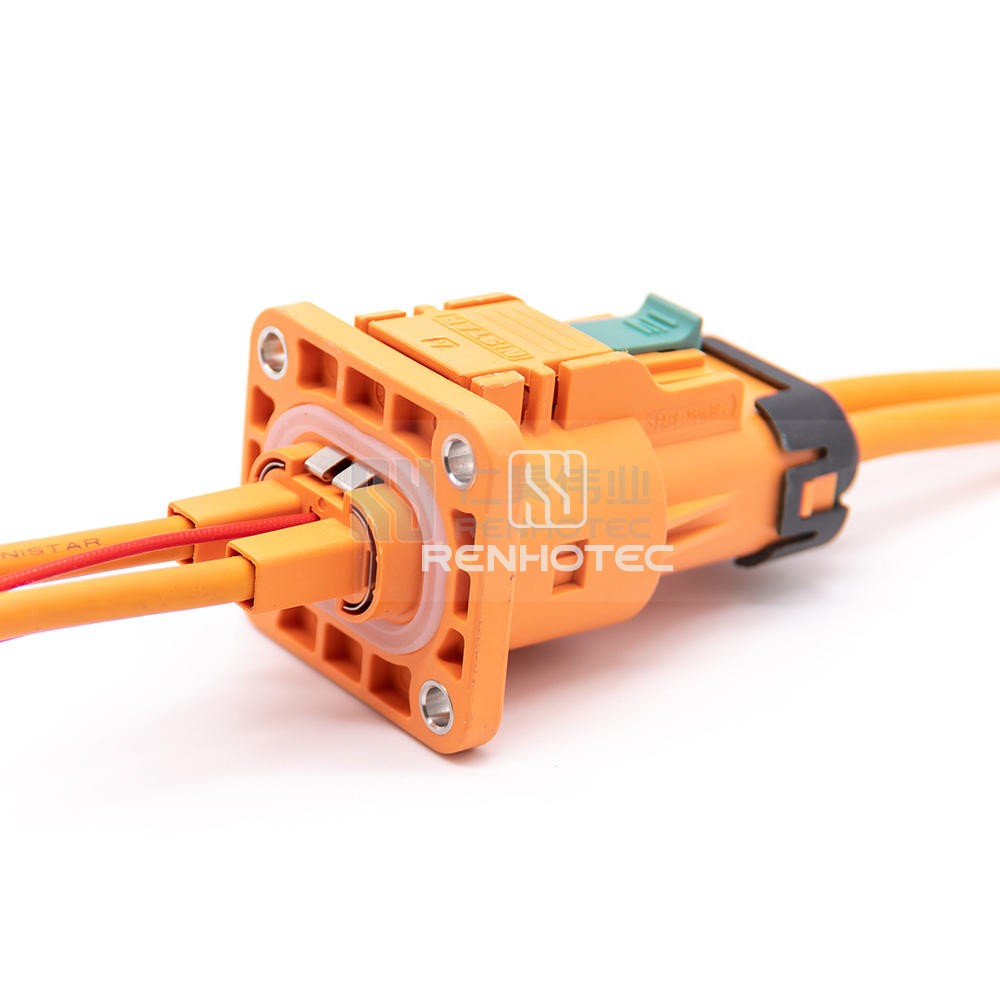

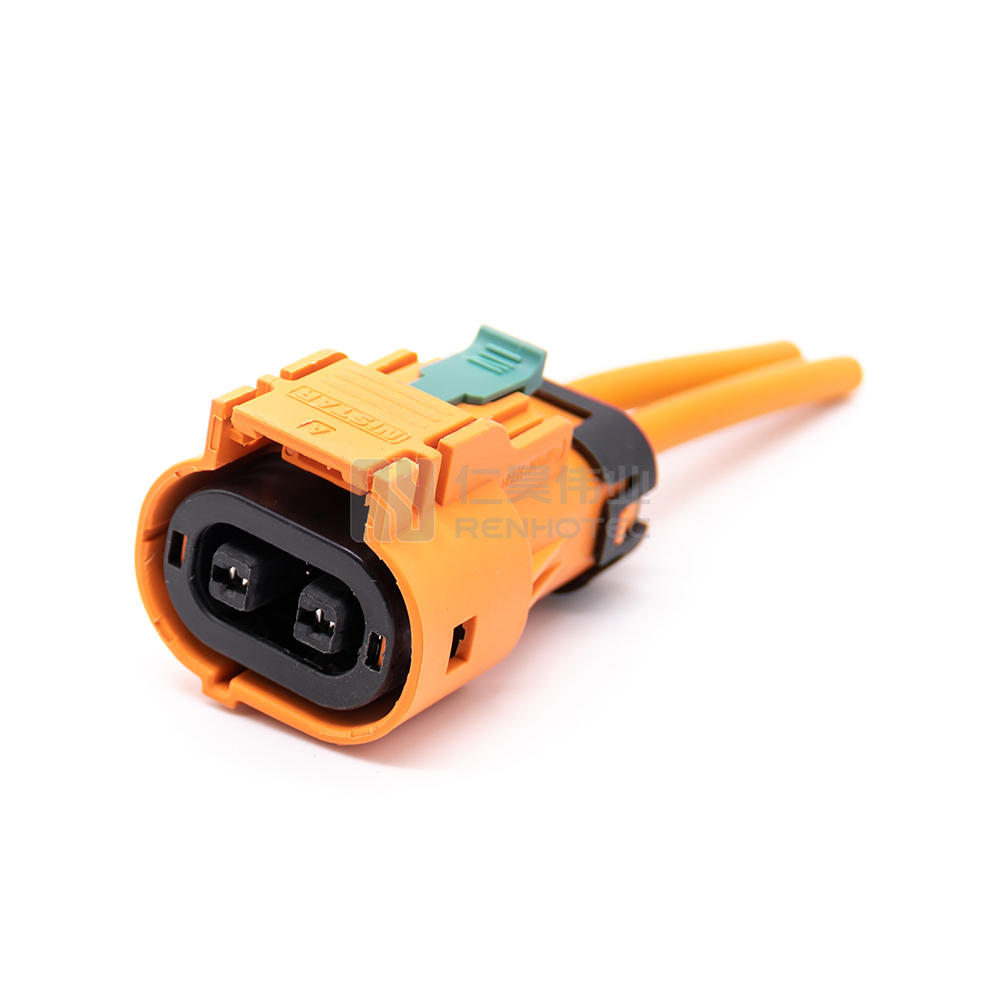

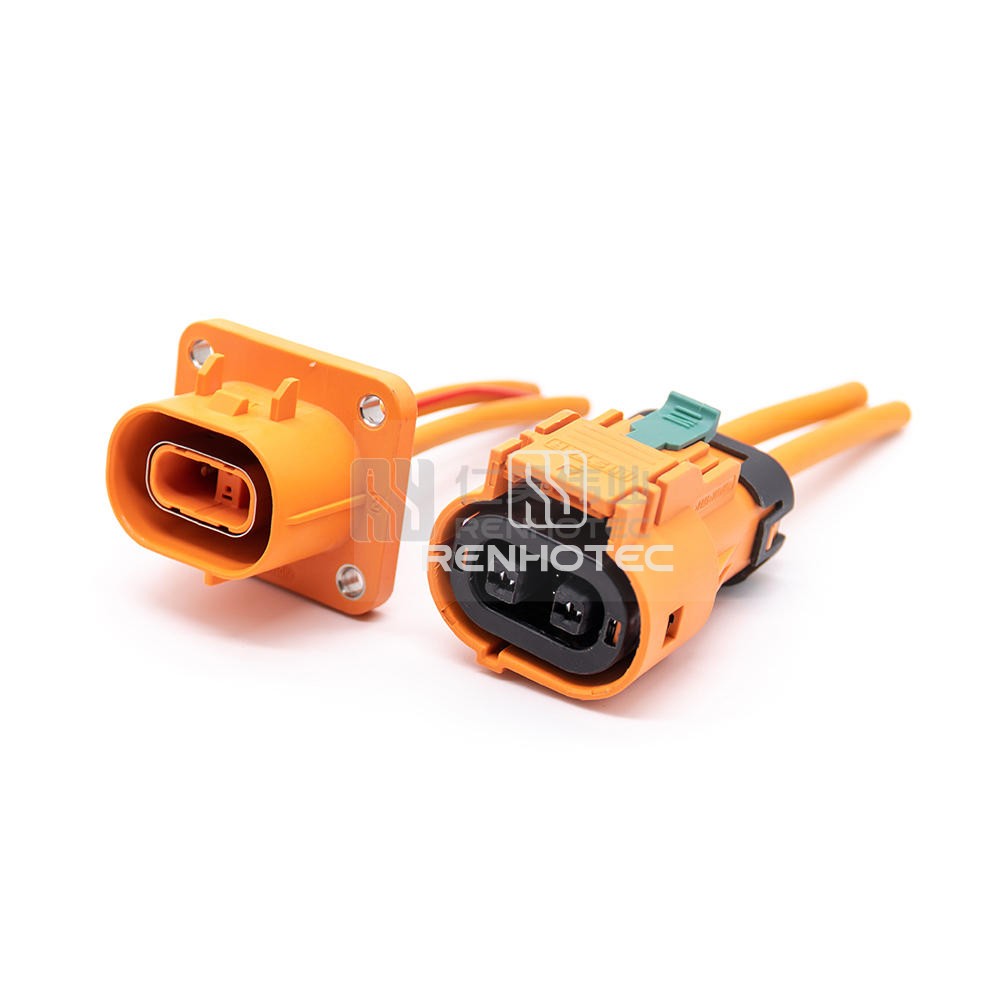

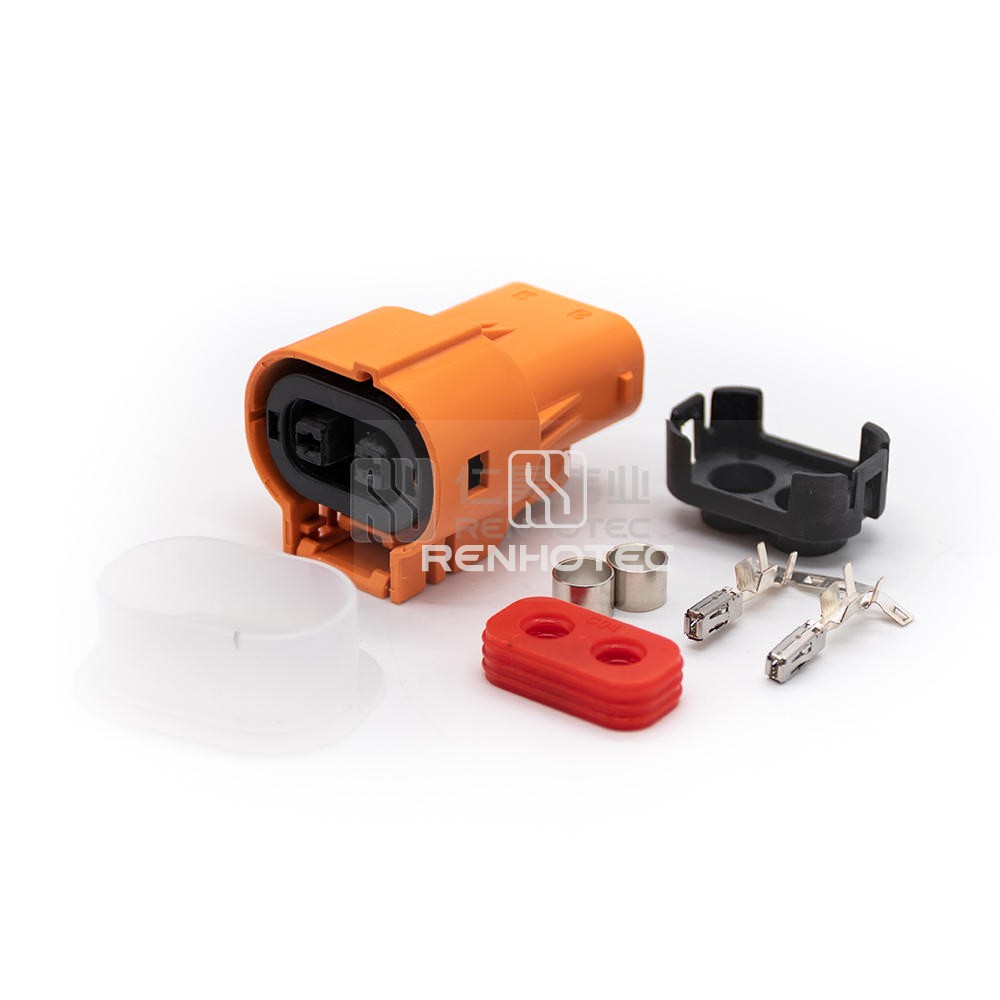

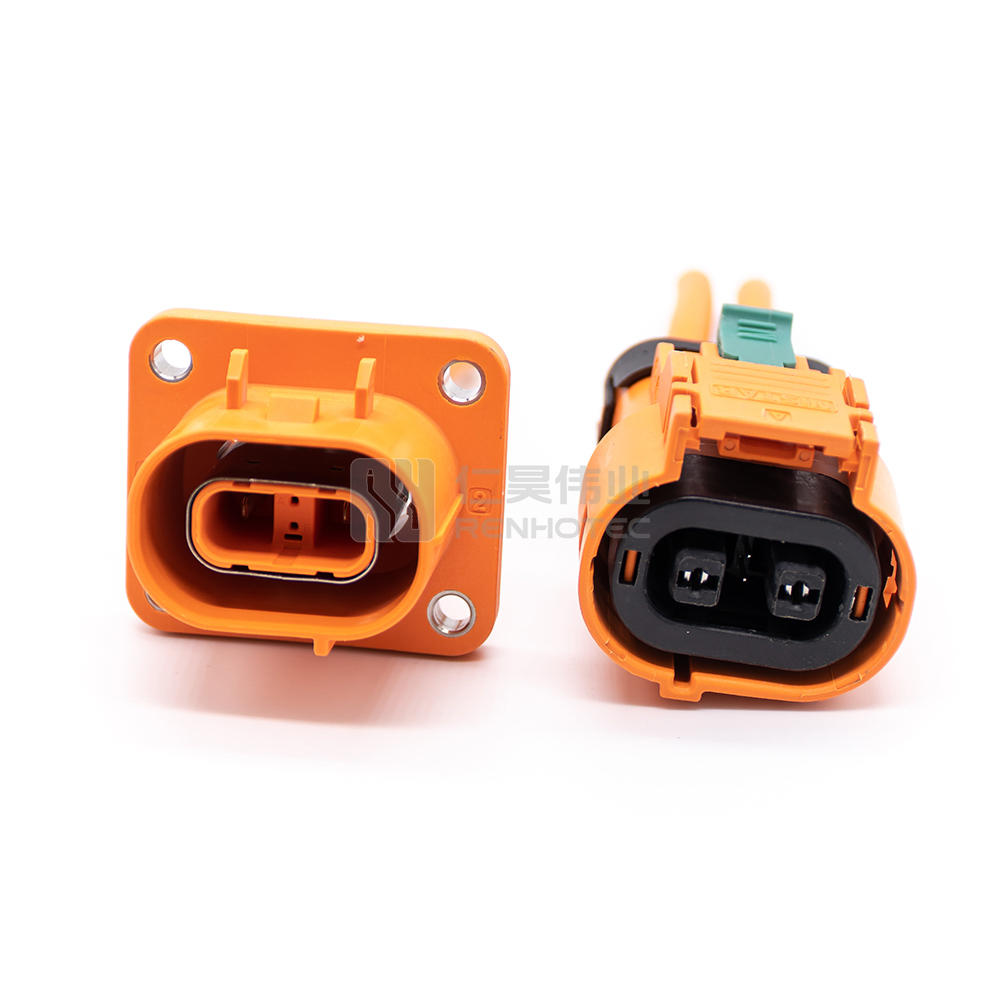

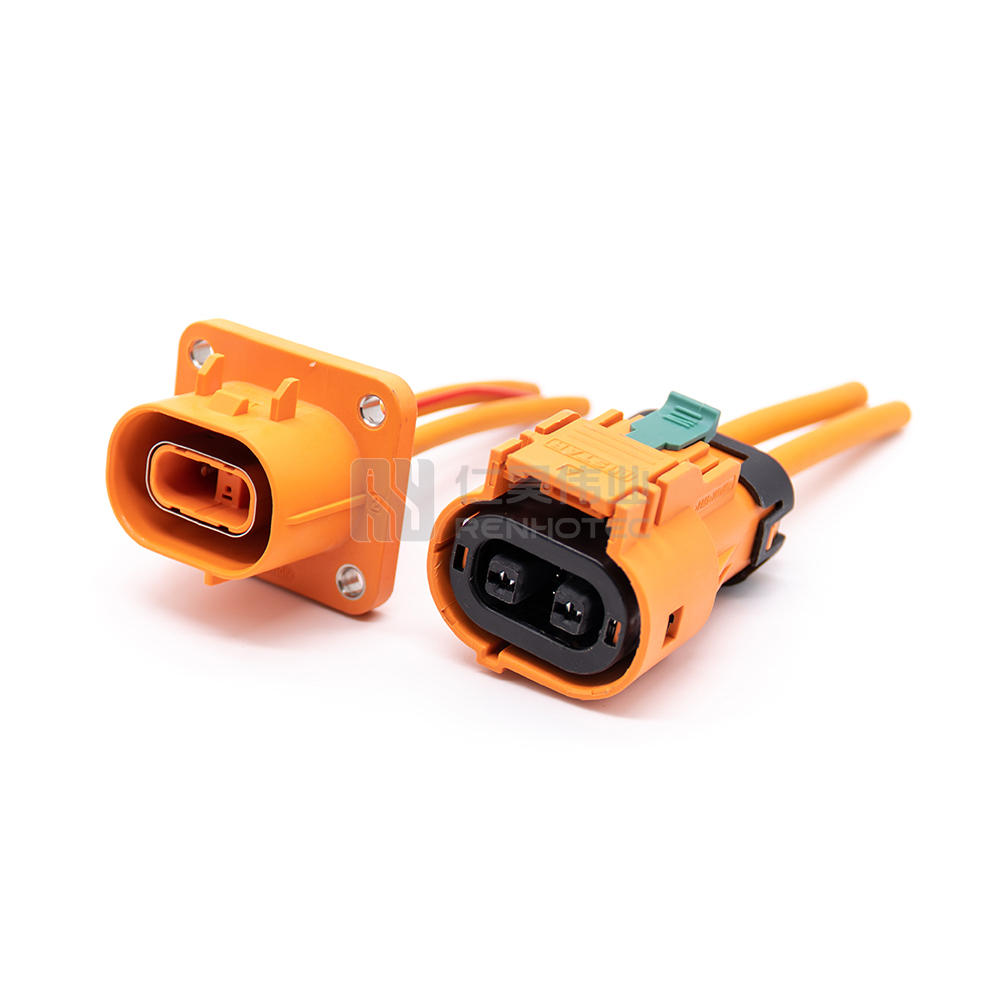

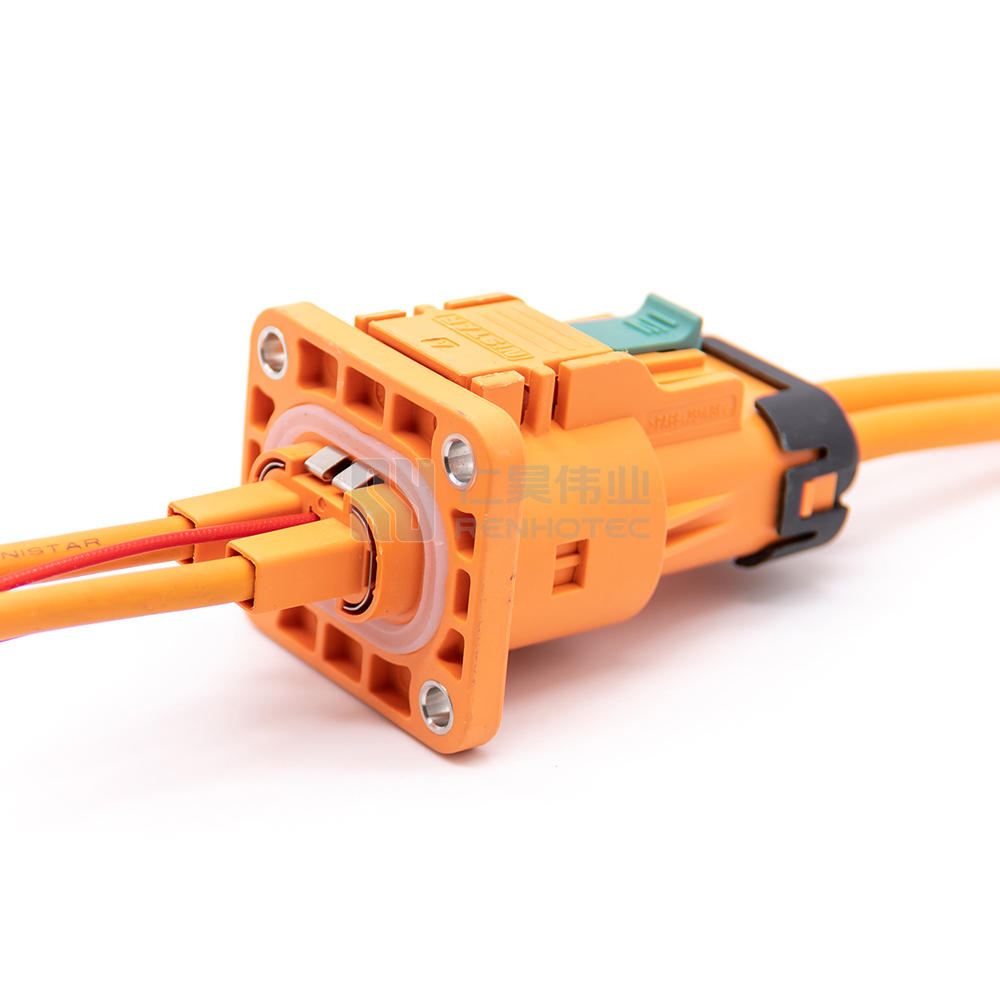

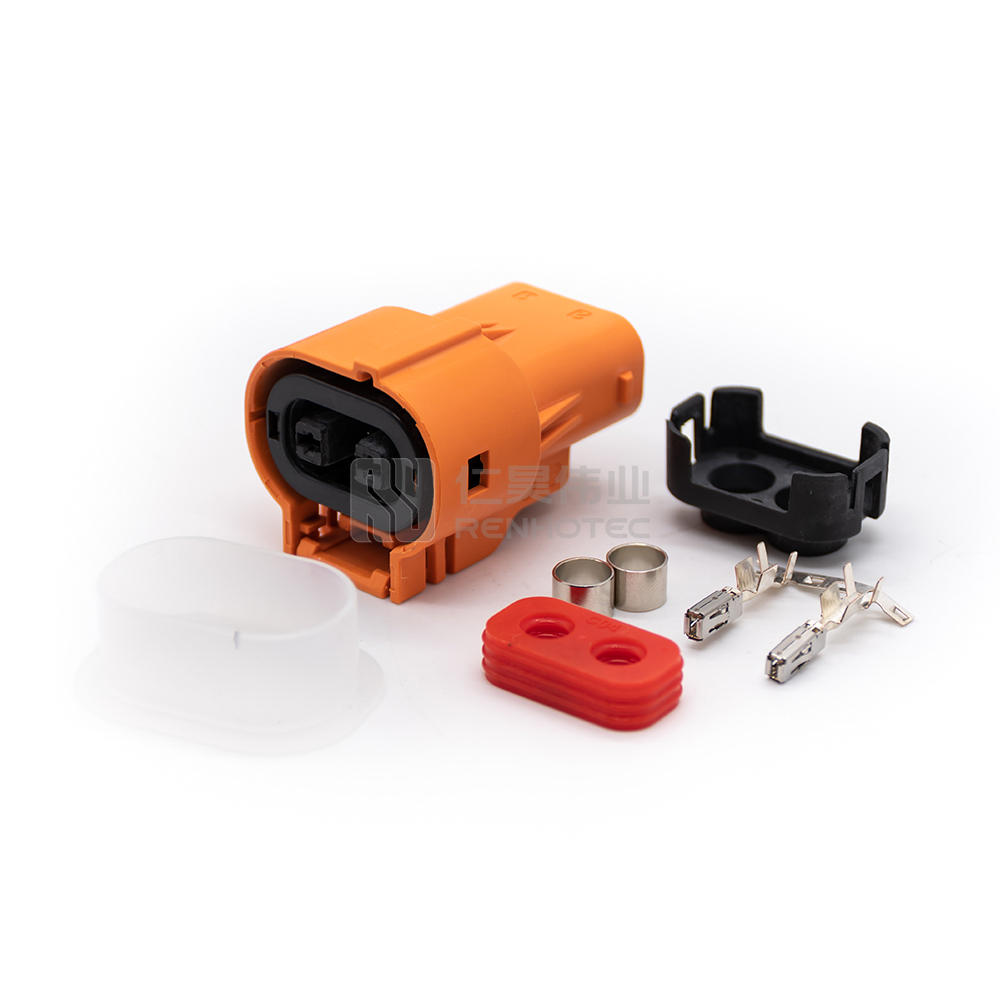

Securely connect high voltage devices with this 2 POS interlock connector plug. This plastic plug is designed for 23A current, 4mm² shielded cable, and features a straight A key for reliable connections. Ideal for professional applications requiring safe and efficient high voltage connections.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 2 |
| Contact Size | 2.8mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Features | Integrated Internal HVIL |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 23A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 4mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
