Products > HVIL Series Connector > 2 POS High Voltage Interlock Connector Plastic Plug 16A 2.5mm2 Shielded Cable Y Key Straight
NI2-1-S280-2YYA-C03
2 POS High Voltage Interlock Connector Plastic Plug 16A 2.5mm2 Shielded Cable Y Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

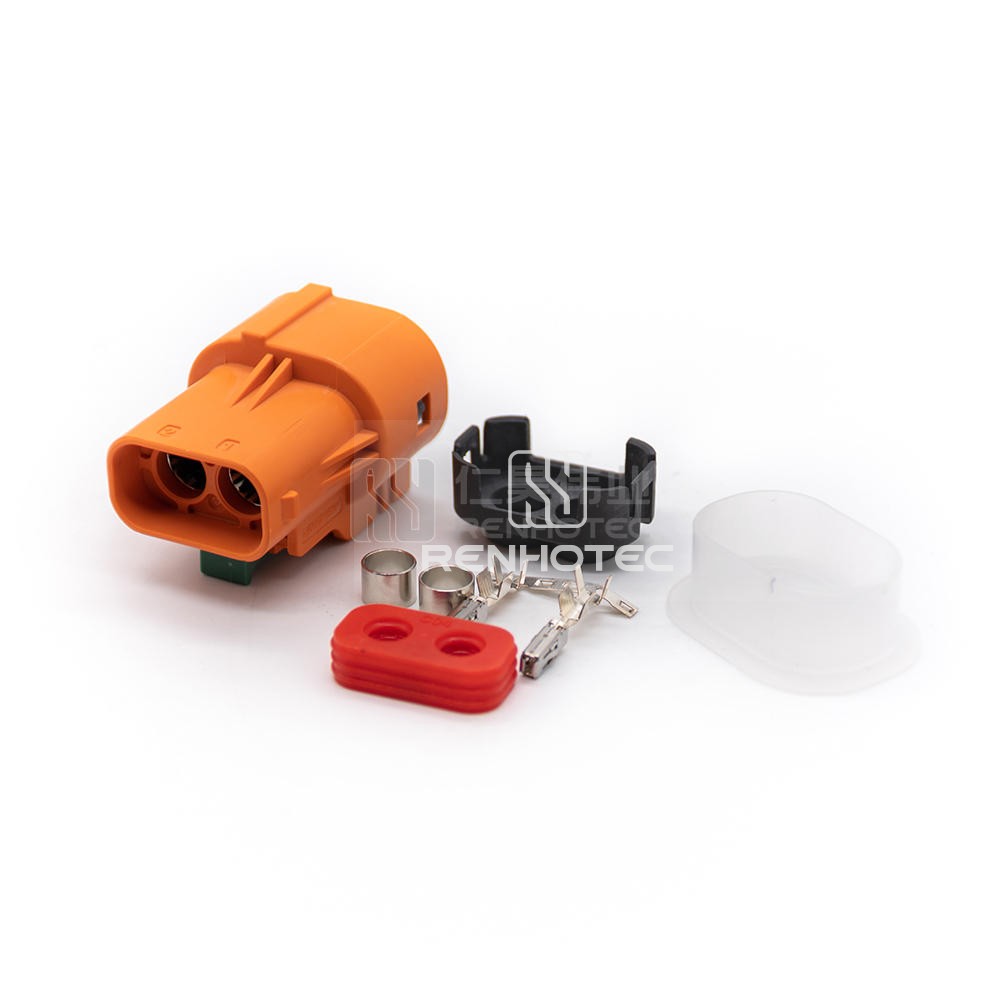

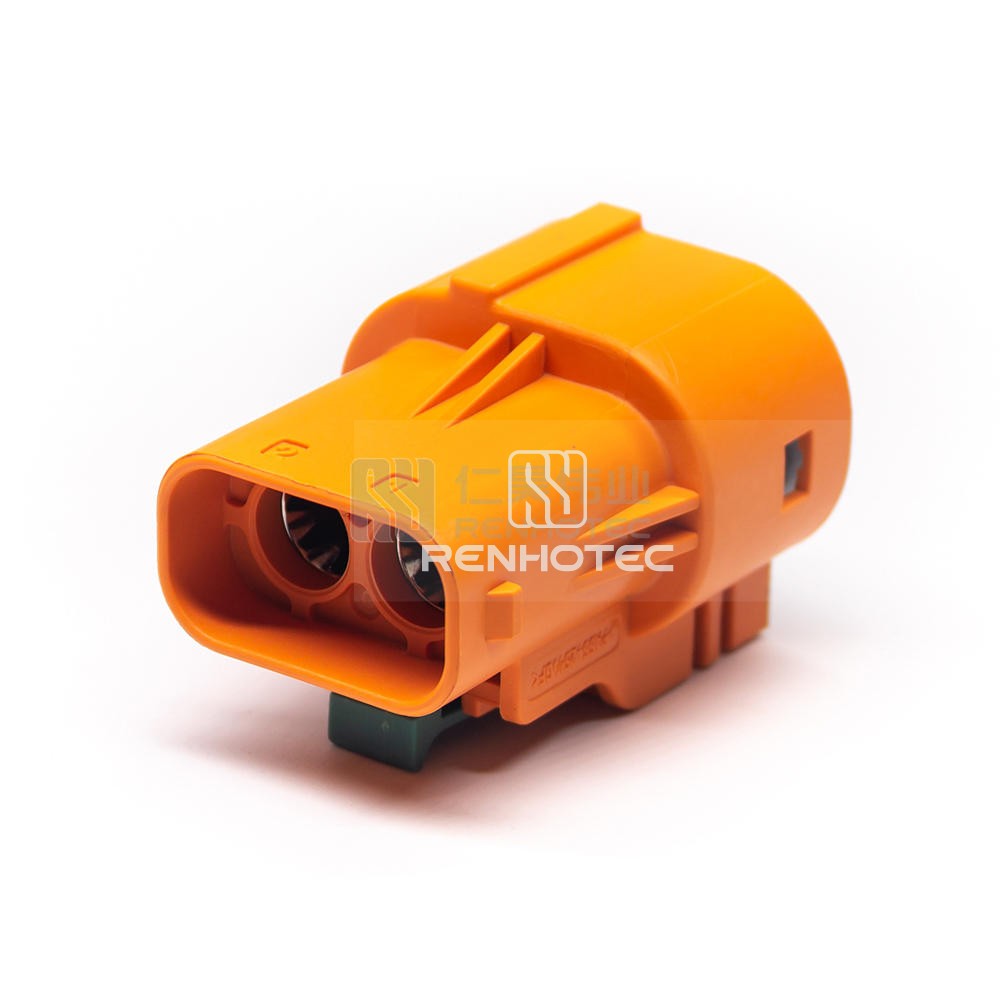

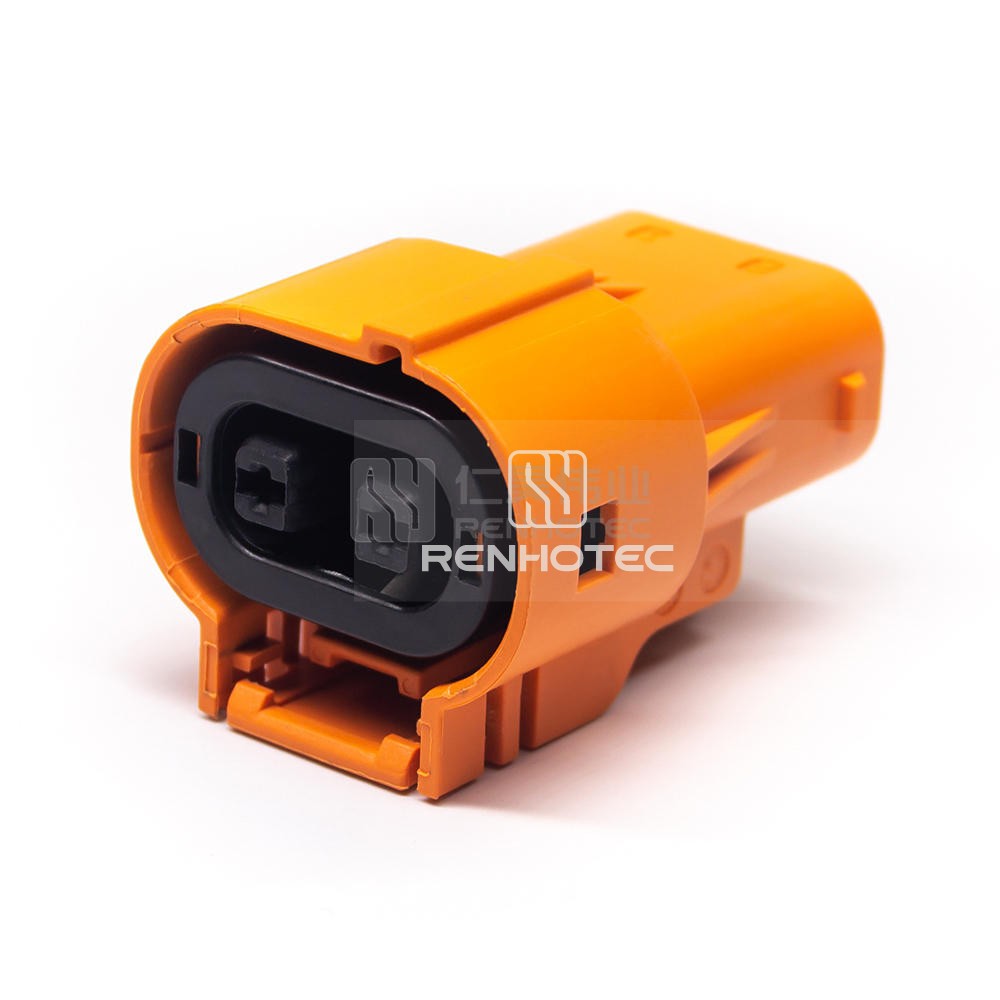

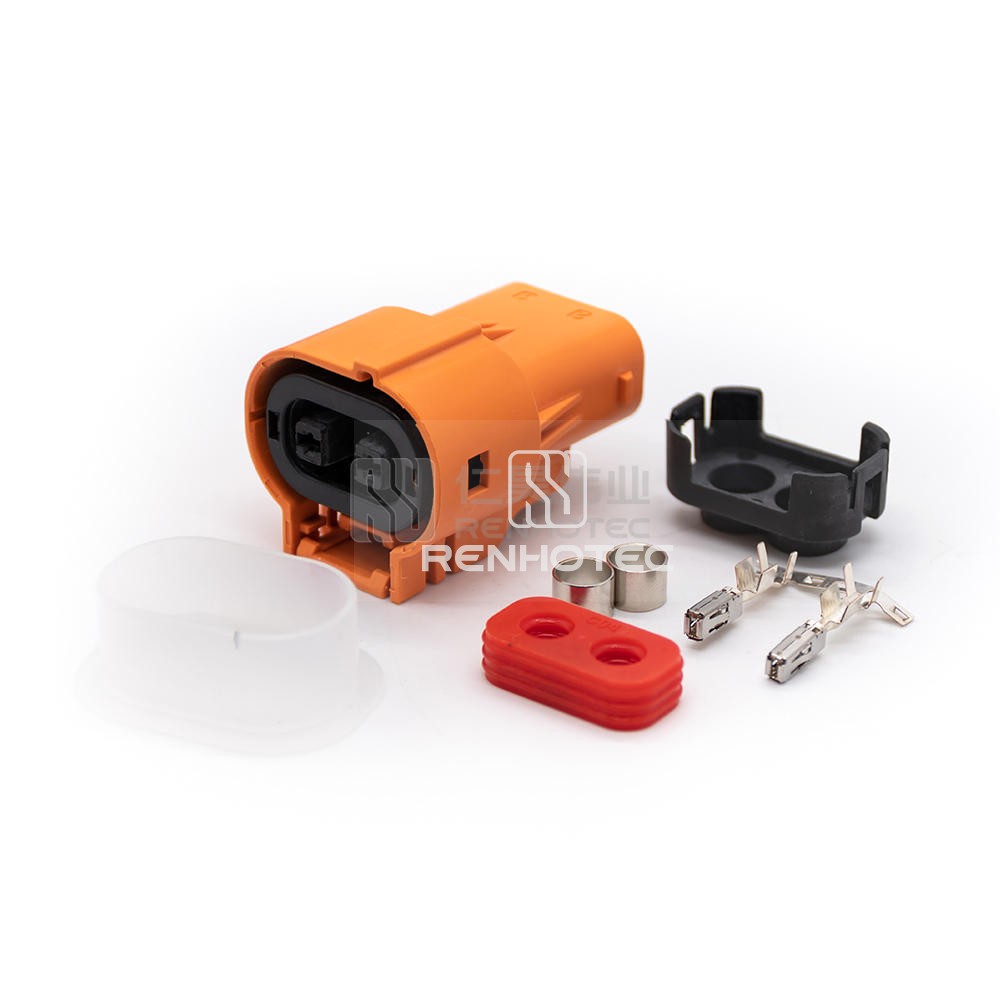

This high-quality 2 POS high voltage interlock connector features a plastic plug with a 16A capacity, compatible with 2.5mm² shielded cables. The Y Key straight design ensures a secure connection for various applications, making it a reliable choice for industrial use.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 2 |
| Contact Size | 2.8mm |
| Contact Termination | Crimp |
| Key | Y |
| Color | Orange |
| Features | Integrated Internal HVIL |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 16A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 2.5mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
