Products > HVIL Series Connector > 2 POS High Power EV Connector Socket 125A Busbar M6 Y Key Box Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad4d2c58.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad4d2c58.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad4d2c58.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad6085f4.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad728335.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2YYN-T07_66068ad84b0c4.jpg)
NI1-1-H060-2YYN-T07

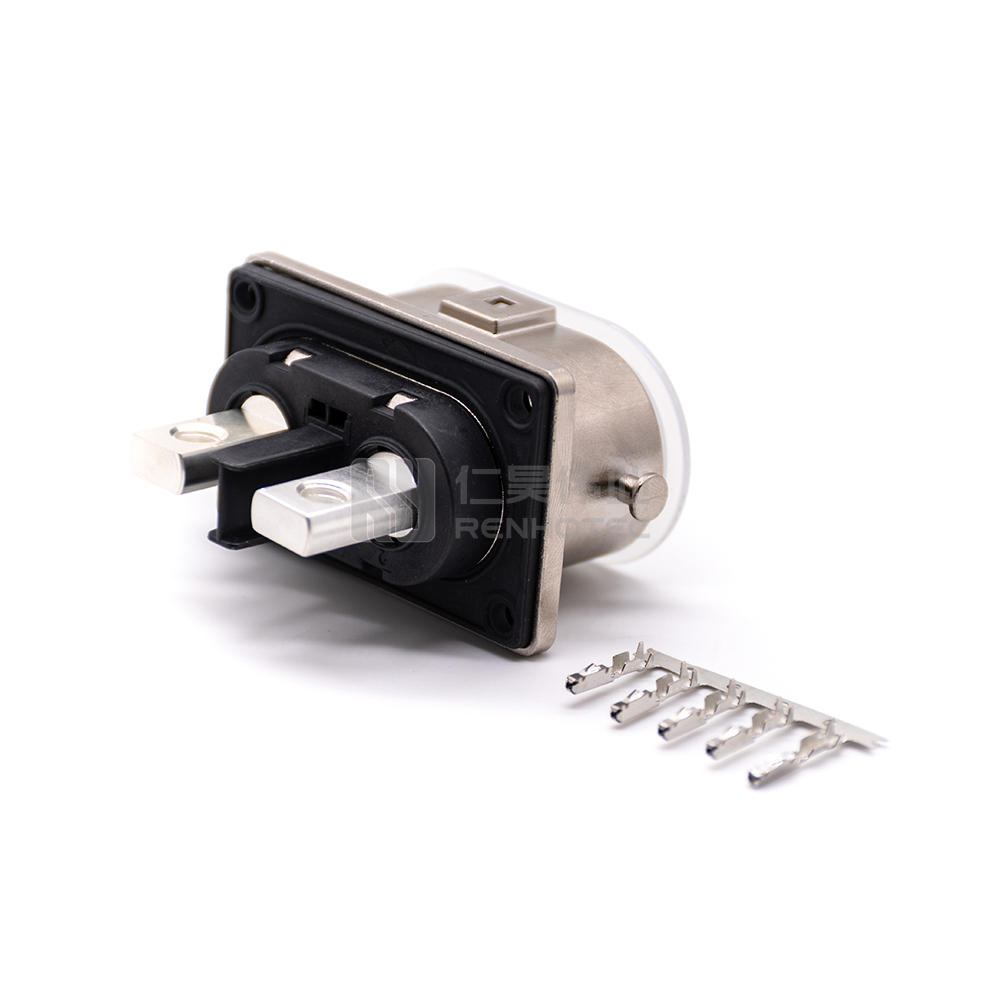

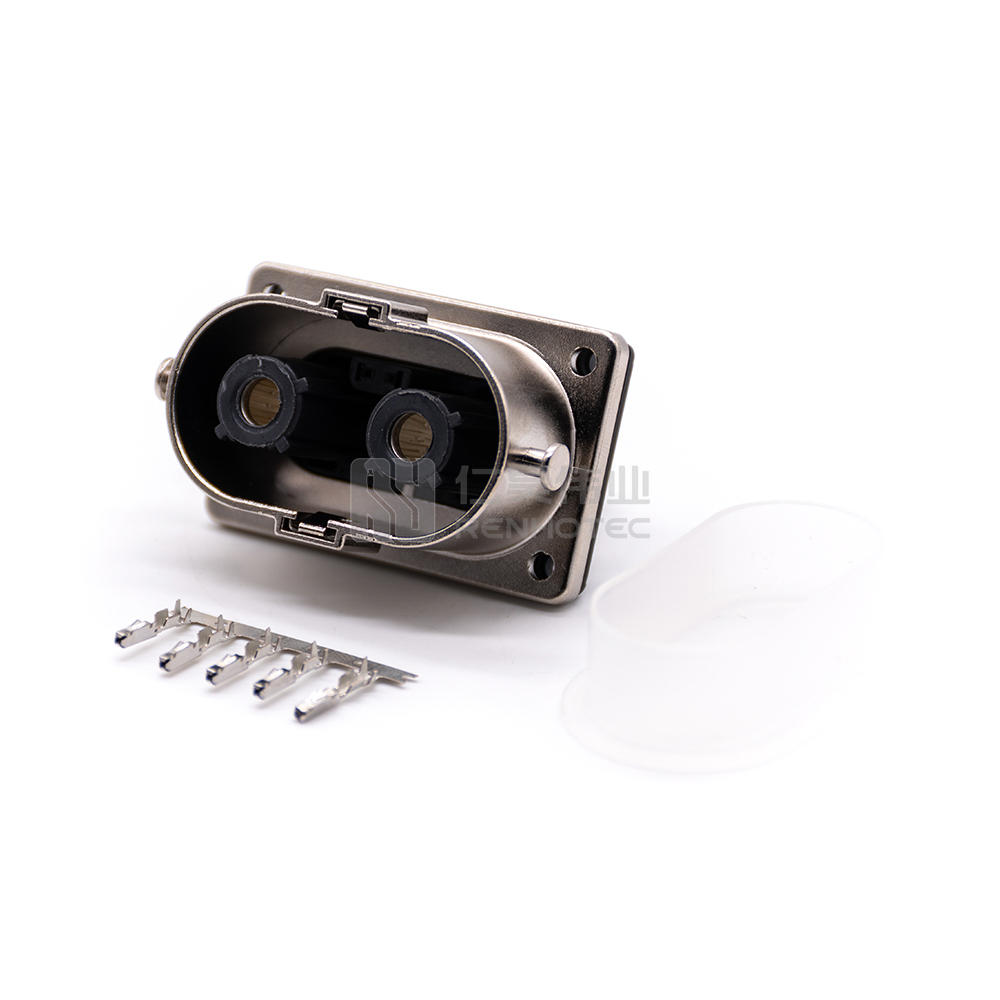

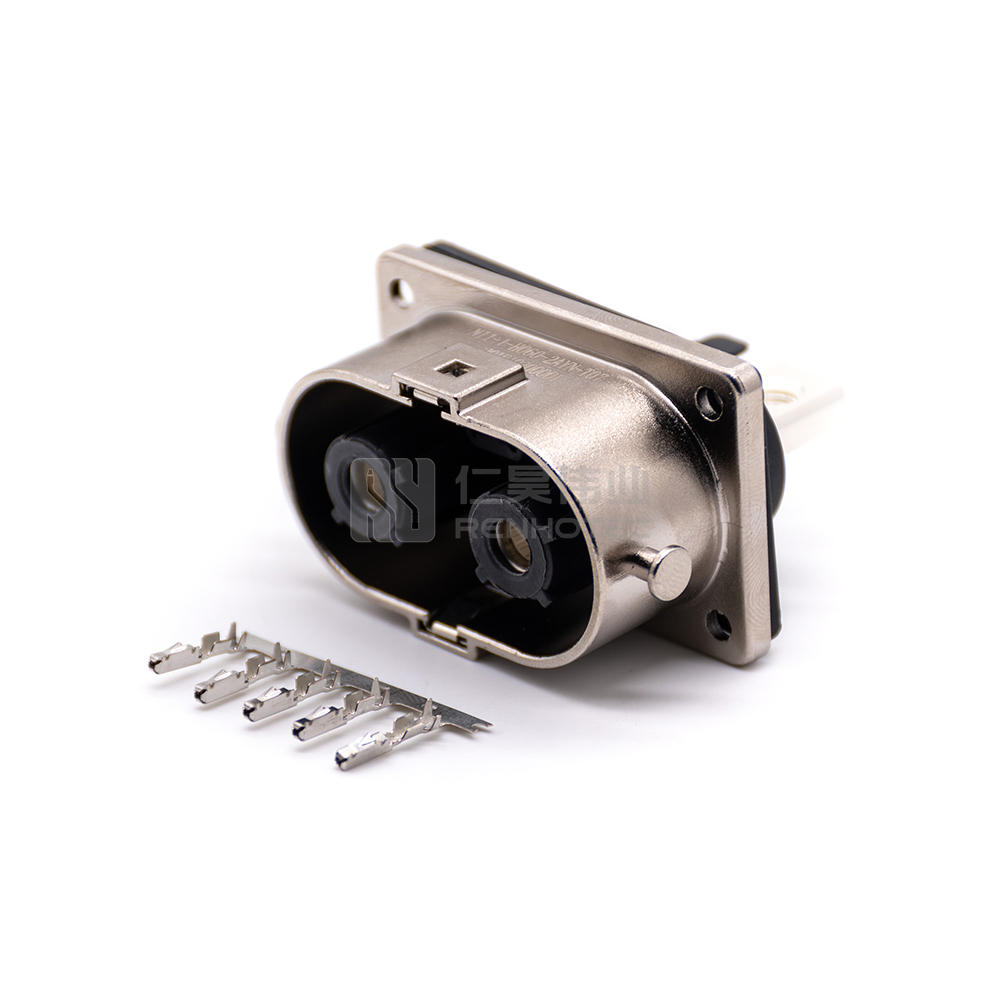

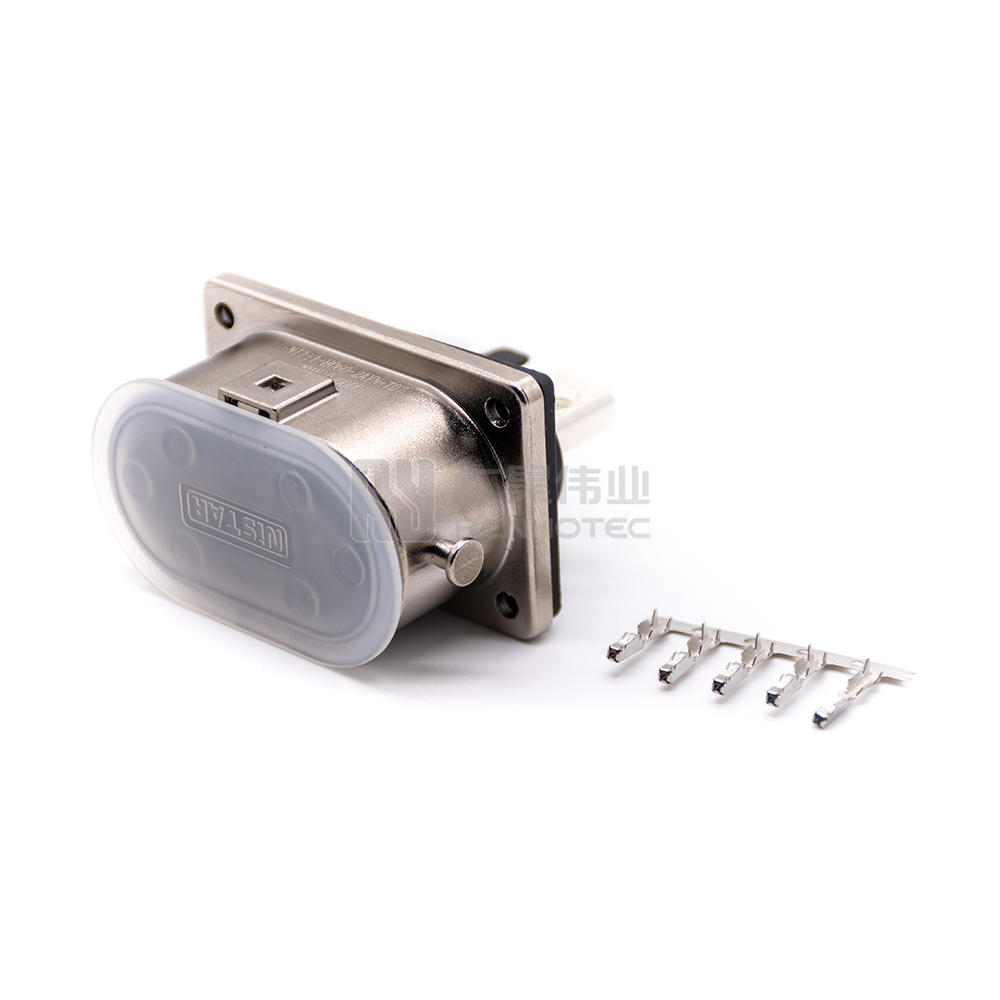

2 POS High Power EV Connector Socket 125A Busbar M6 Y Key Box Mount
Get a Quote
- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 6mm |
Contact Termination | Busbar |
Key | Y |
Color | Silver |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 125A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | M6 Threaded Hole |
Material | |
---|---|
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
