NI2-1-H036-2YYA-C04

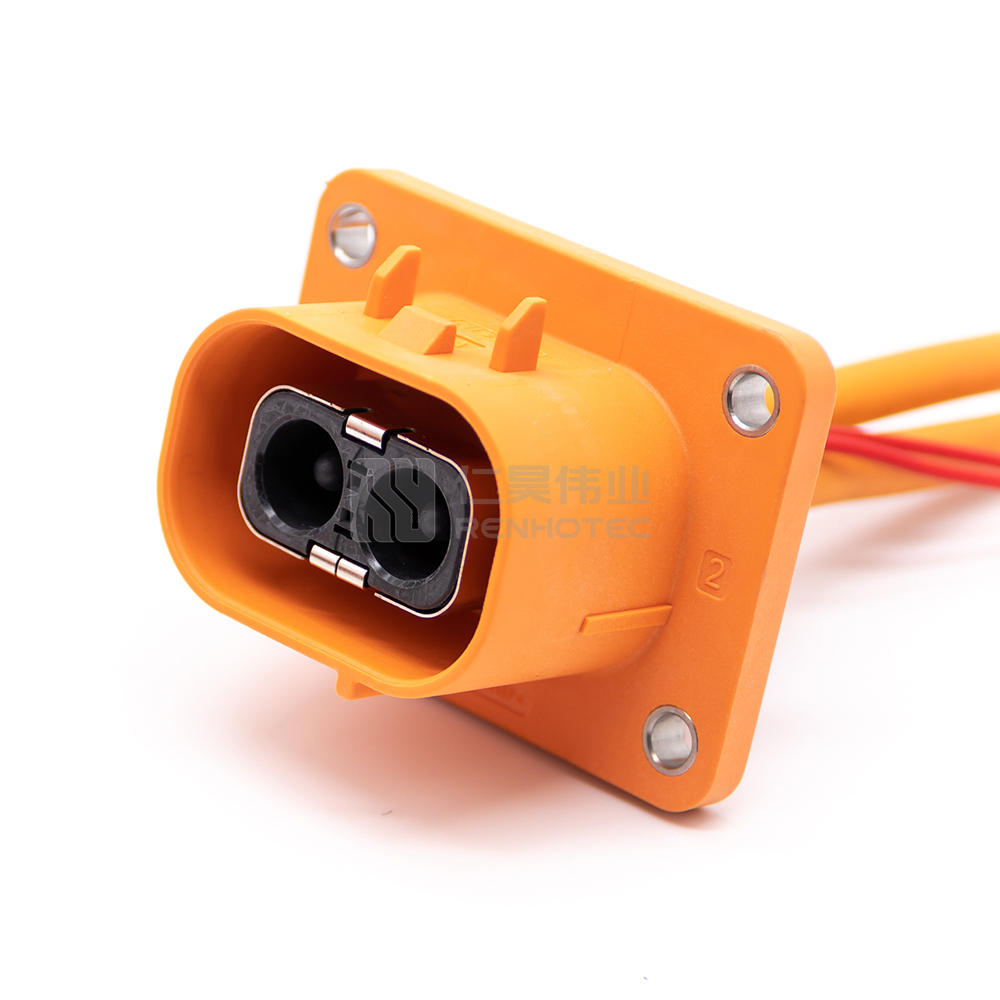

2 POS High Power Electric vehicle connector Socket 23A 4mm2 Shielded Cable Y Key
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-power electric vehicle connector socket is designed with a 23A capacity, 4mm² shielded cable, and Y Key for secure connections. Ideal for electric vehicles, it offers high performance and reliability.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Number of Positions2
Contact Size3.6mm
Contact TerminationCrimp
KeyY
ColorOrange
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current23A
ShieldingShielded
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Range4mm²
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
