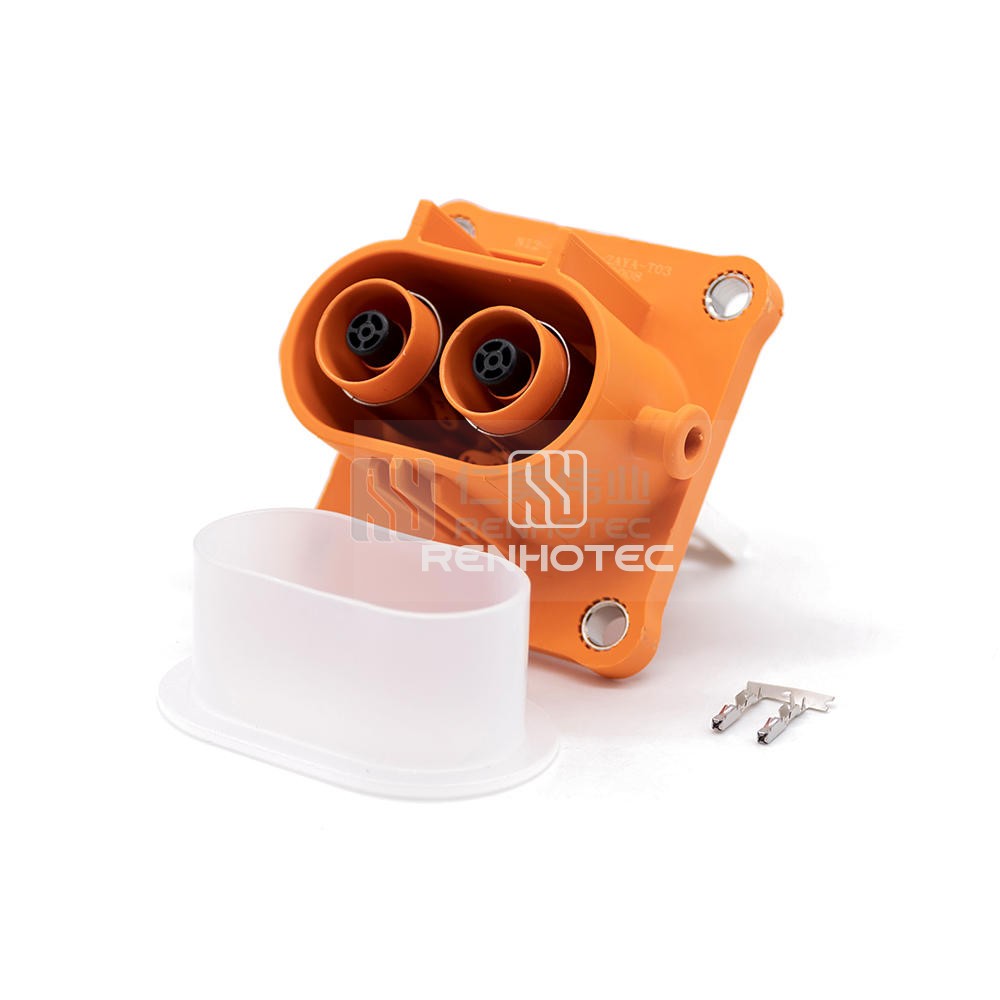

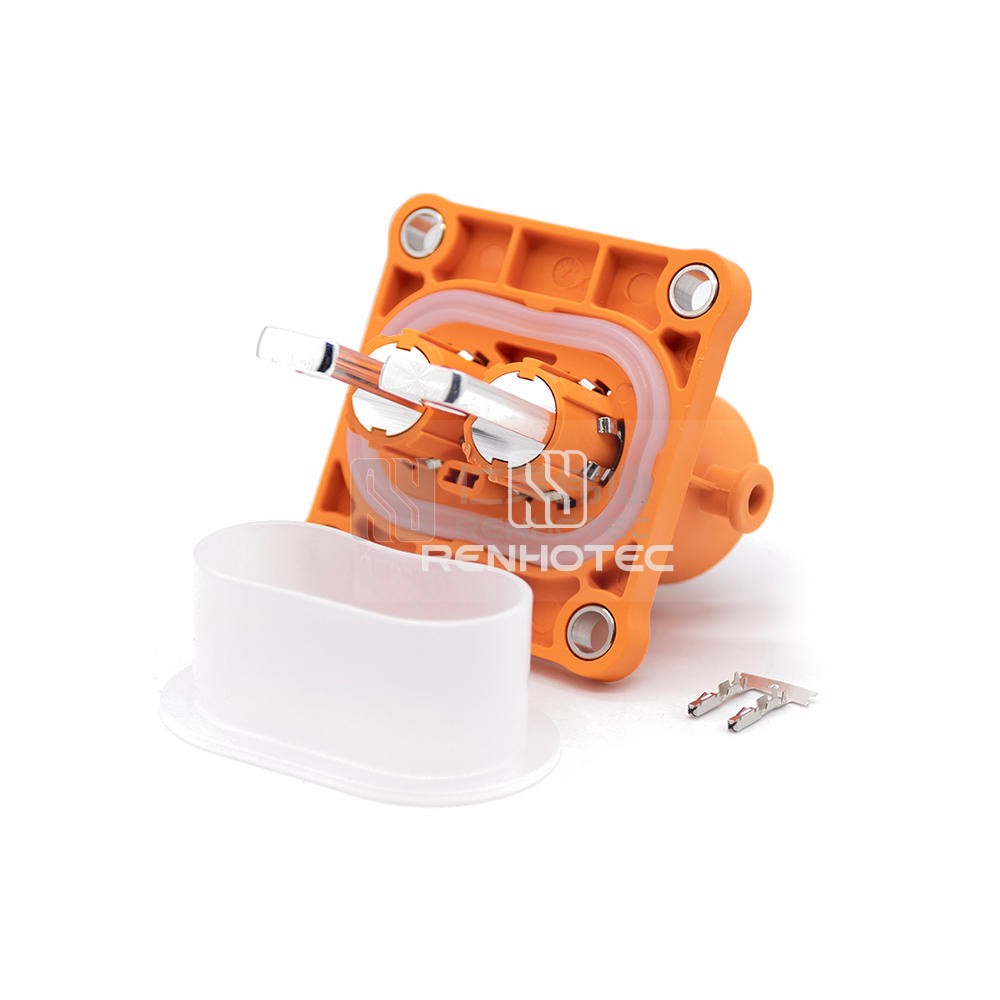

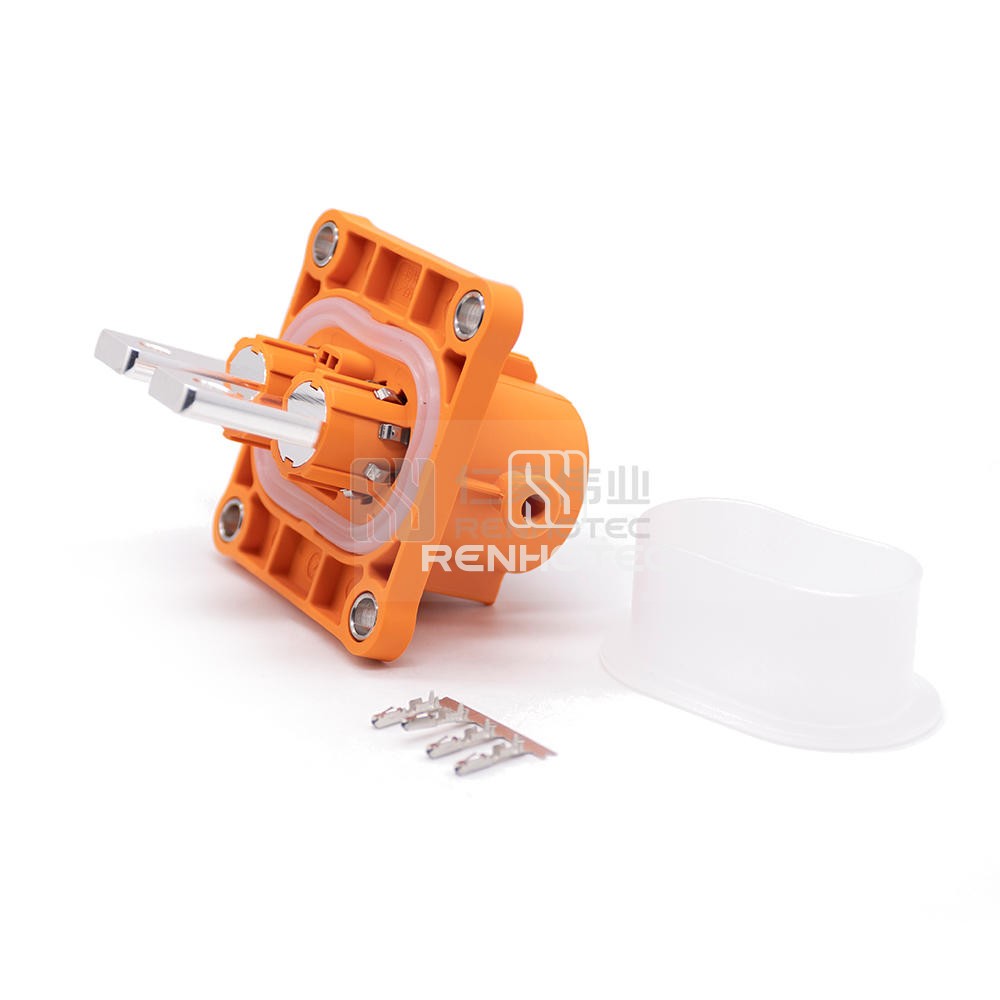

NI2-1-H080-2AYA-T07
2 POS High Power Electric vehicle connector Socket 200A M6 Busbar Lug A Key Box Mount- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-power electric vehicle connector socket features 2 positions, 200A capacity, and M6 busbar lug connections. Designed with a key box mount for easy installation. Ideal for electric vehicle charging stations and industrial applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Busbar |
Key | A |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 200A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | Threaded Hole |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
