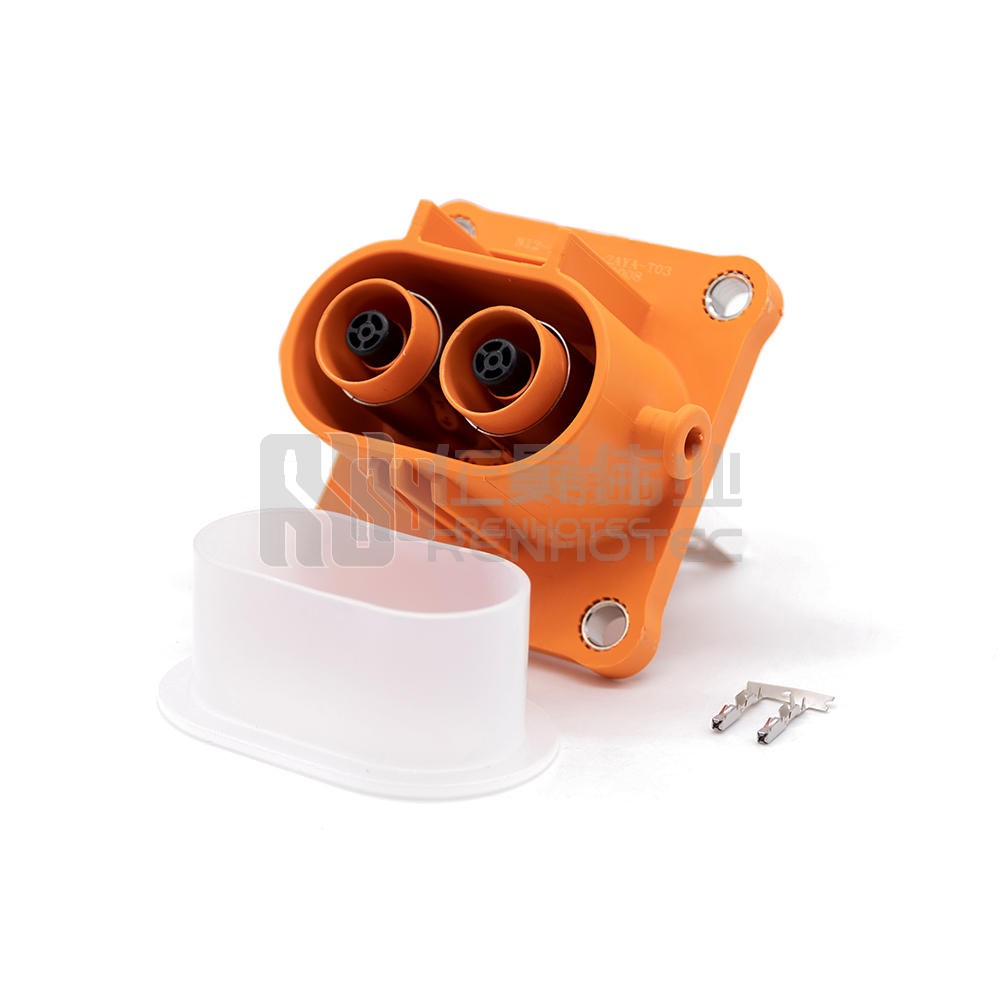

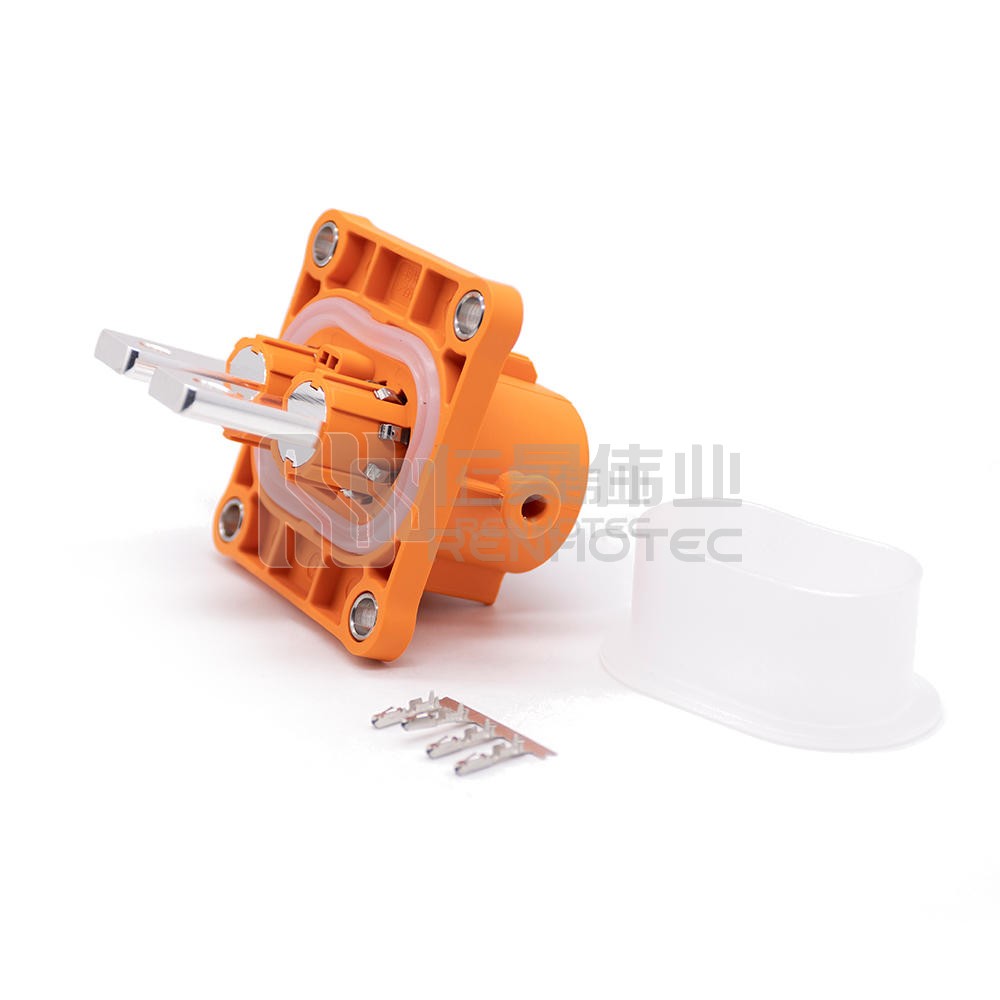

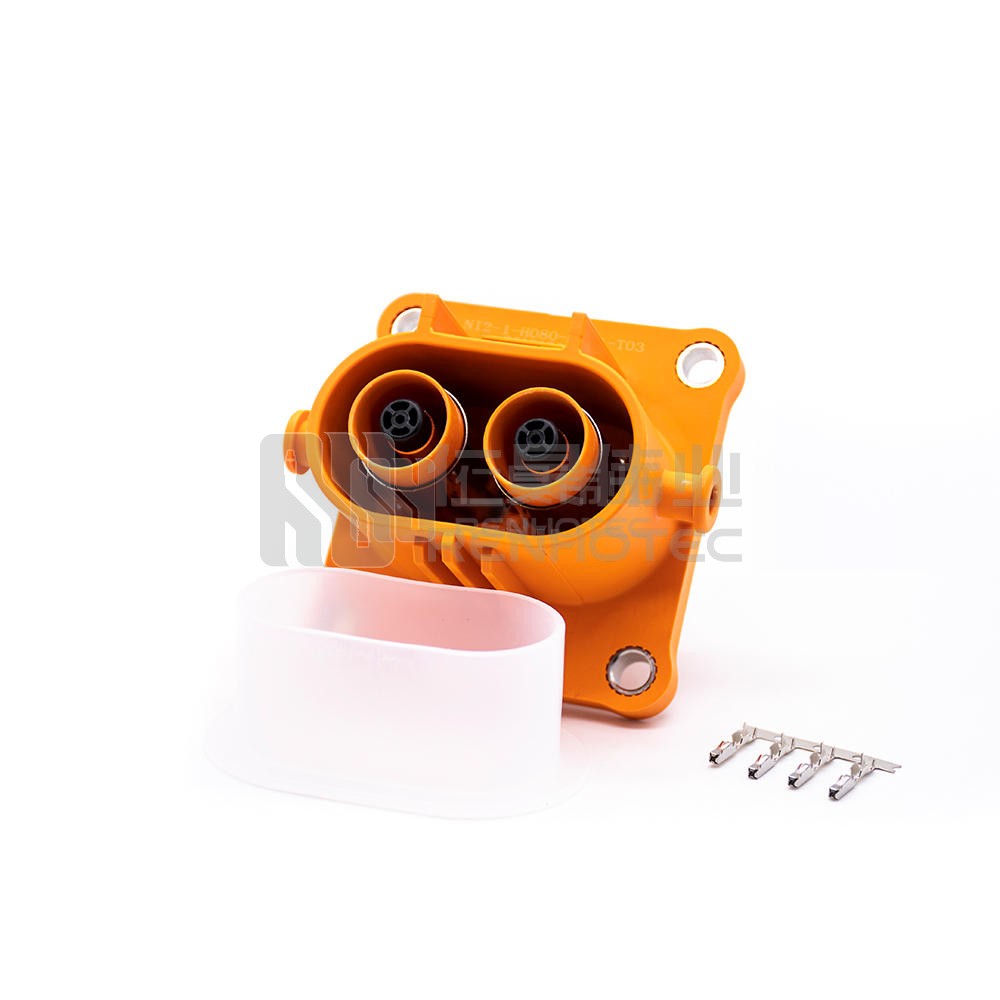

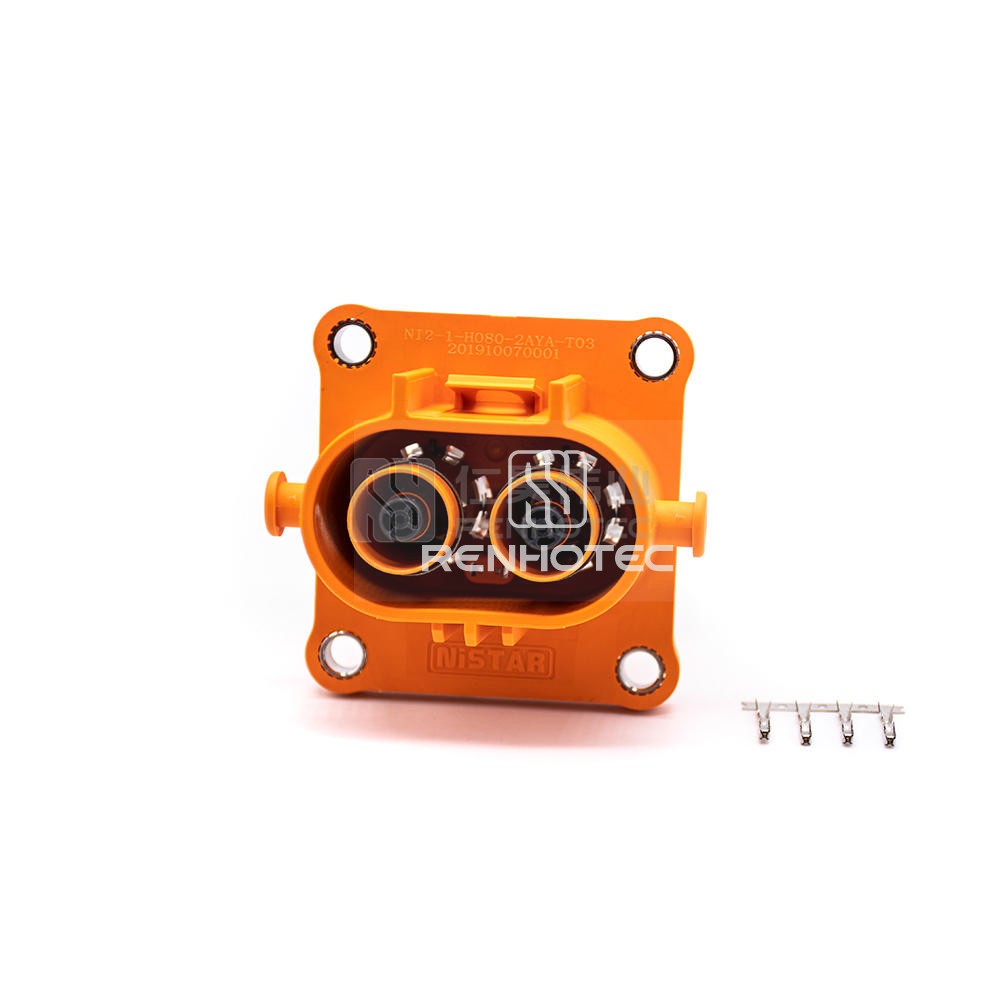

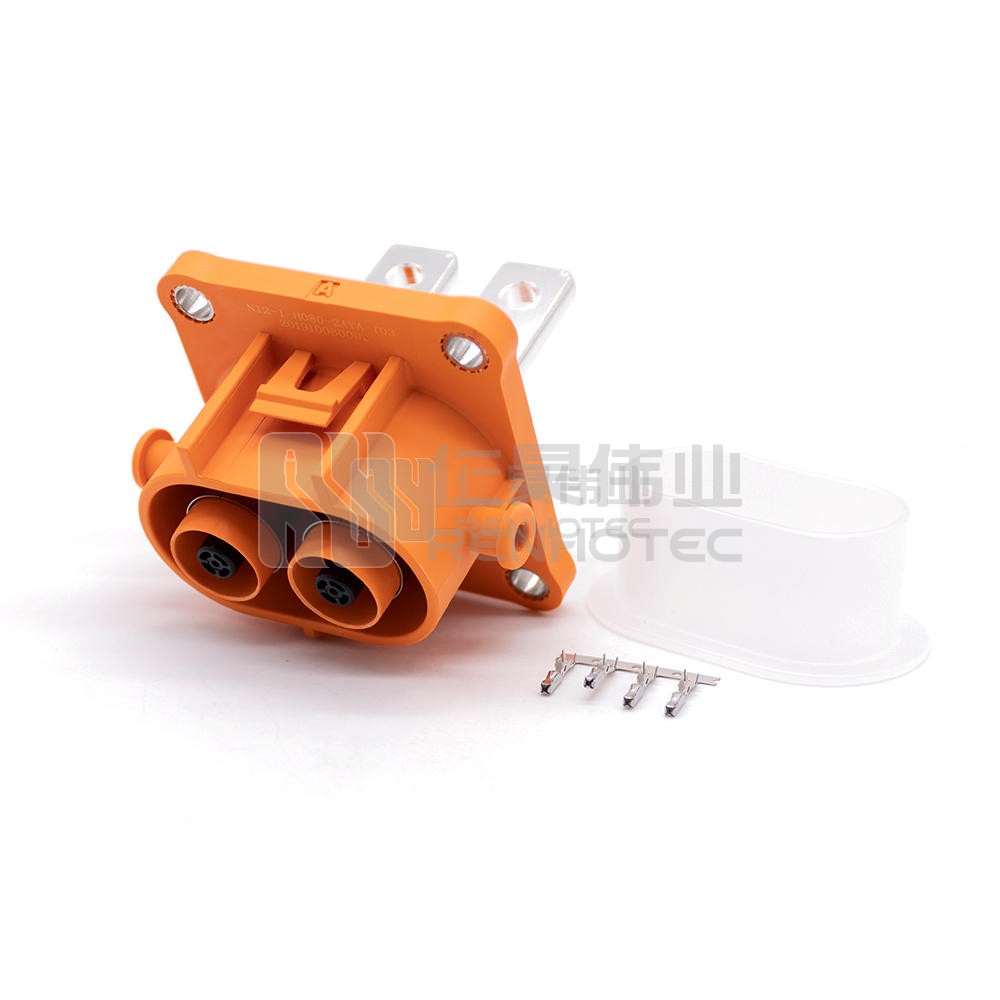

NI2-1-H080-2AYA-T03
2 POS High Power Electric Vehicle connector Socket 200A Busbar Lug A Key Box Mount- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-power electric vehicle connector socket is designed for efficient and reliable connection in electric vehicles. With a 200A capacity and a key box mount, it ensures secure and stable power transmission. Ideal for various applications in electric vehicle charging systems.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Busbar |
Key | A |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 200A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | φ6.5Through Hole |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
