Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 125A Busbar Lug
A Key Box Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068abe07bff.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068abe07bff.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068abe07bff.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068abf295e9.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068ac04a96e.jpg)
![product image](https://staging.renhotec.com/wp-content/uploads/2024/03/NI1-1-H060-2AYN-T07_66068ac17fd64.jpg)
NI1-1-H060-2AYN-T07

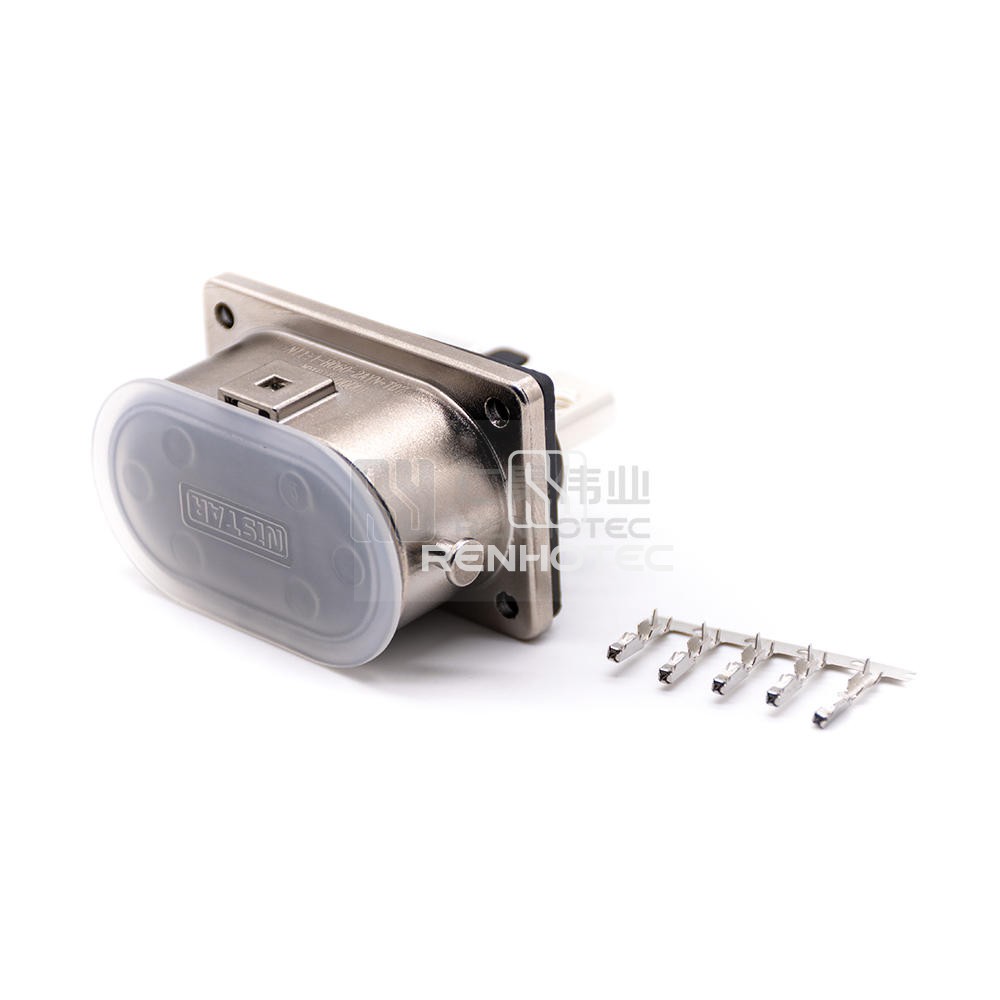

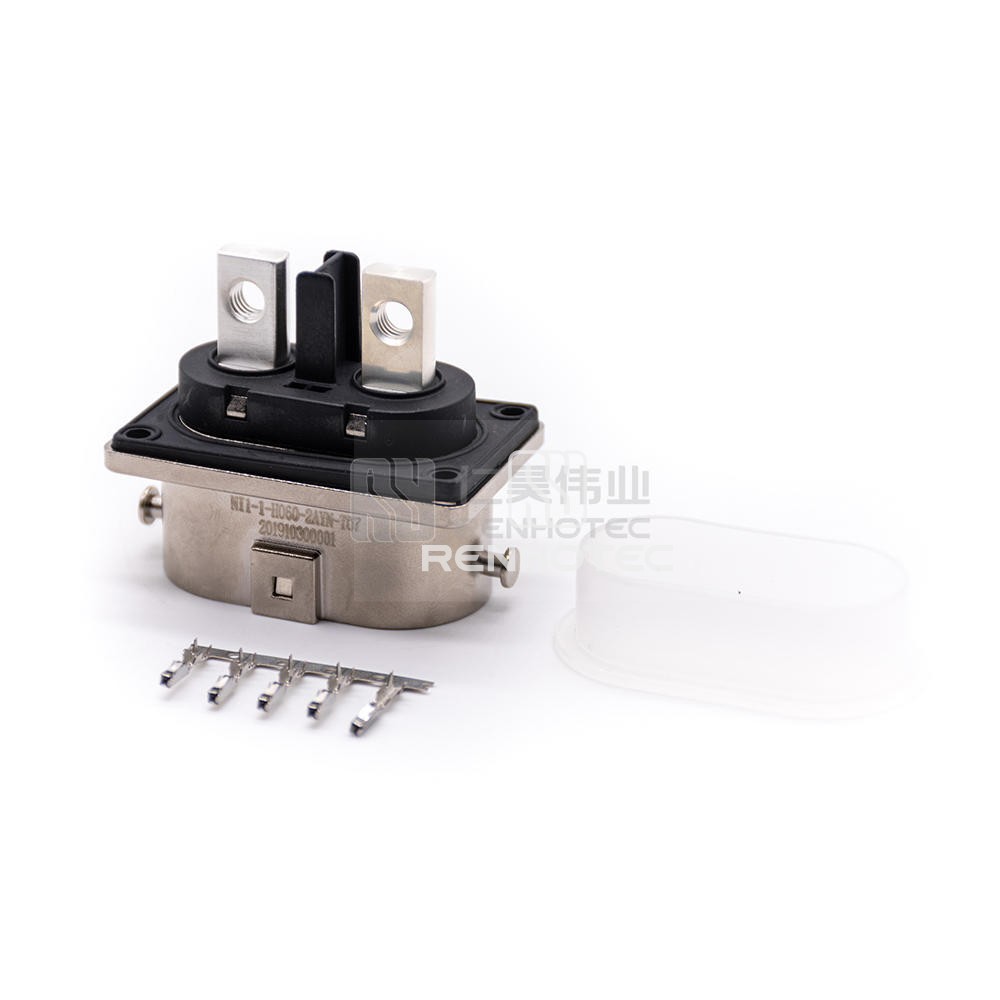

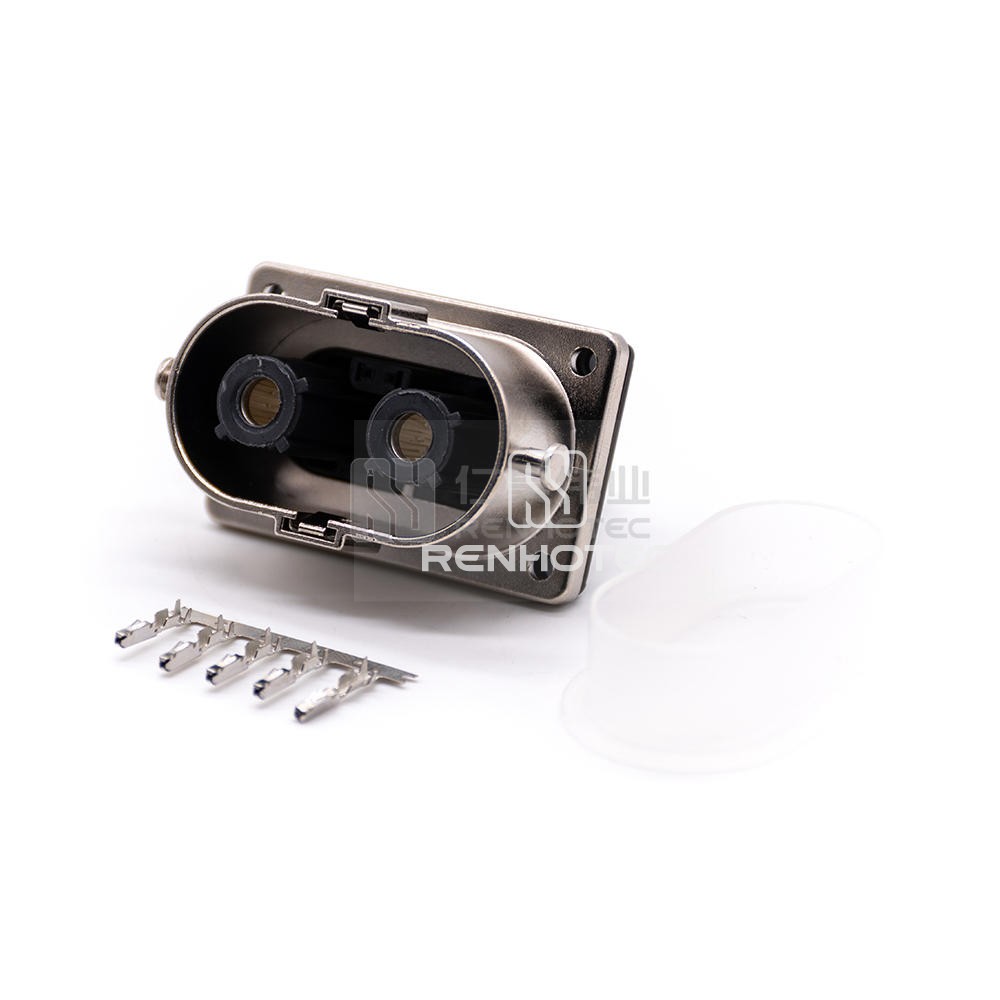

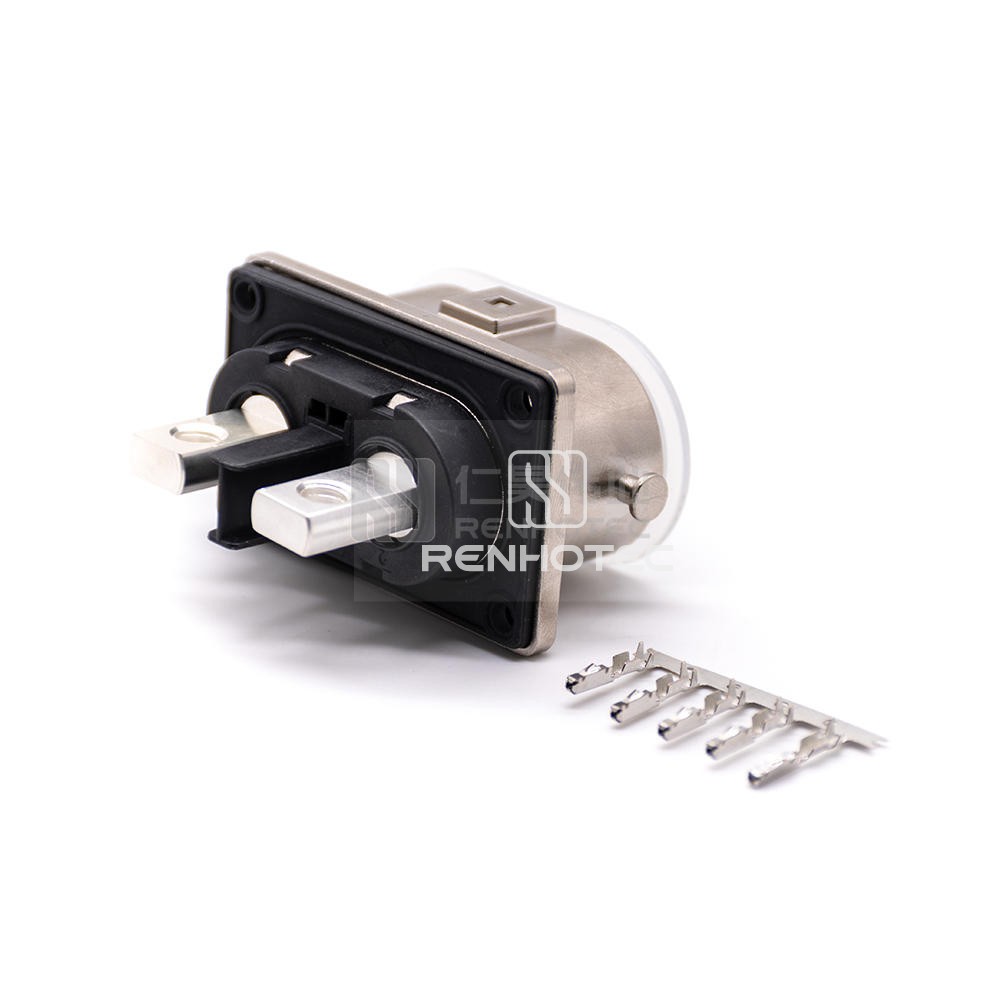

2 POS High Power Electric vehicle connector Socket 125A Busbar Lug A Key Box Mount
Get a Quote
- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 6mm |
Contact Termination | Busbar |
Key | A |
Color | Silver |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 125A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | M6 Threaded Hole |
Material | |
---|---|
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
