Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 125A Busbar φ6.5mmThrough Hole Y Key Box Mount
NI2-1-H060-2YYA-T03-1

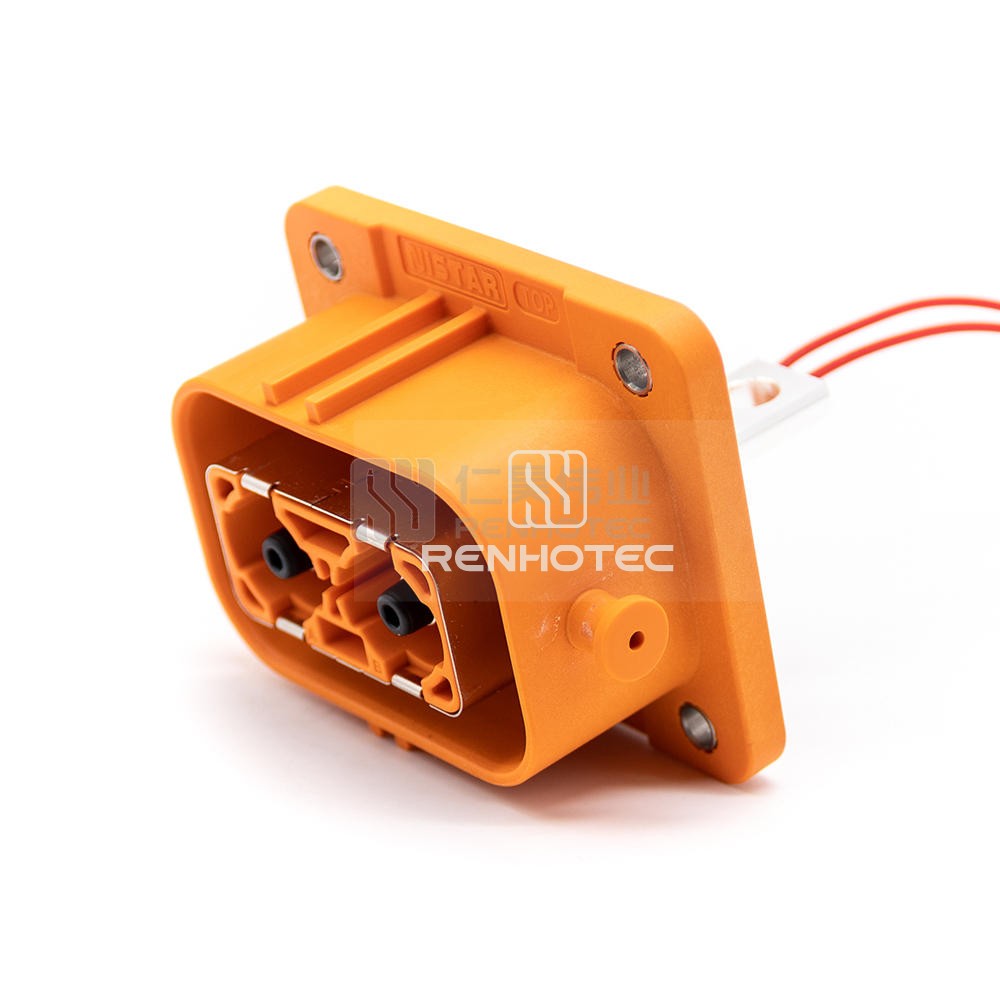

2 POS High Power Electric vehicle connector Socket 125A Busbar φ6.5mmThrough Hole Y Key Box Mount- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Power up your electric vehicle efficiently with this high-quality 2 POS connector socket. Capable of handling 125A, with sturdy busbar and through hole mounting. Y Key design ensures secure connections. Ideal for electric vehicle charging stations and power systems.
GeneralMaterialMechanicalEnvironmentalElectrical
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 6mm |
Contact Termination | Busbar |
Key | Y |
Color | Orange |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | φ6.5Through Hole |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 125A |
Shielding | Shielded |
Certification
High Voltage Interlock Connectors CE | Download |
