NI1-1-S036-2AYN-C05

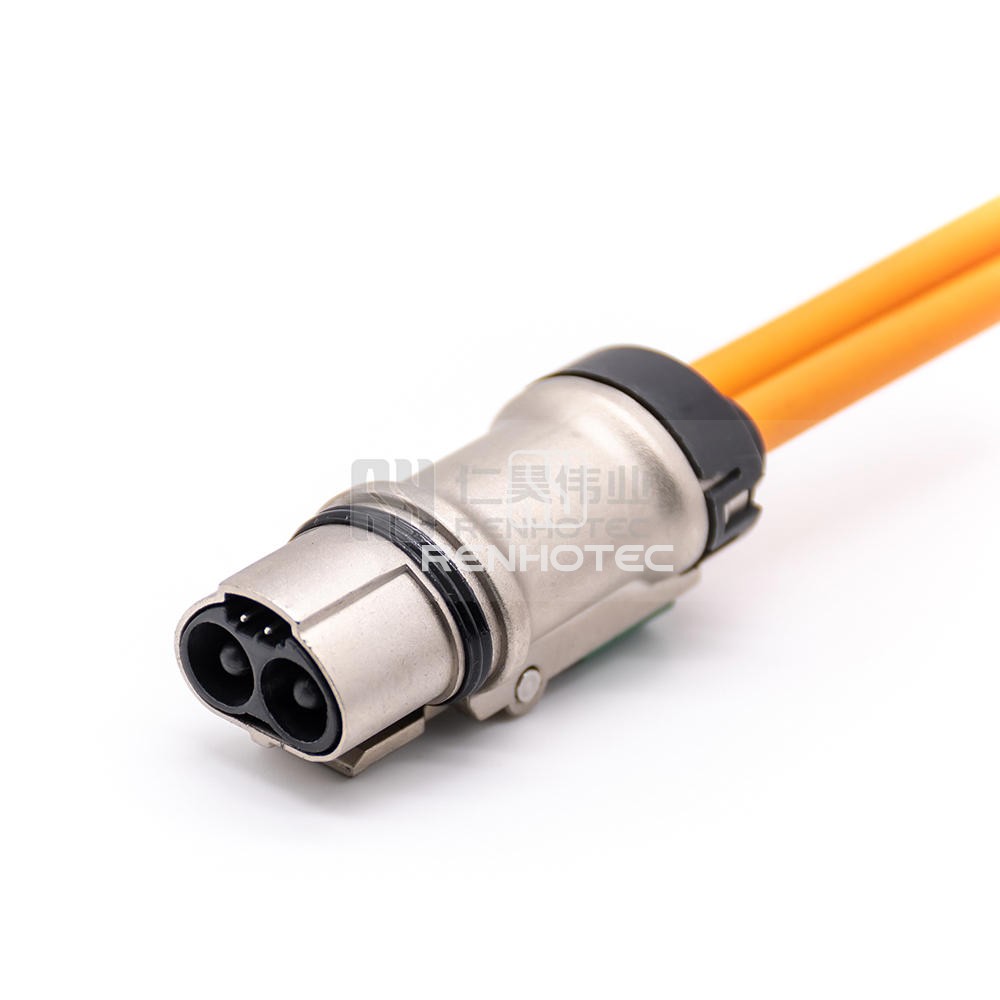

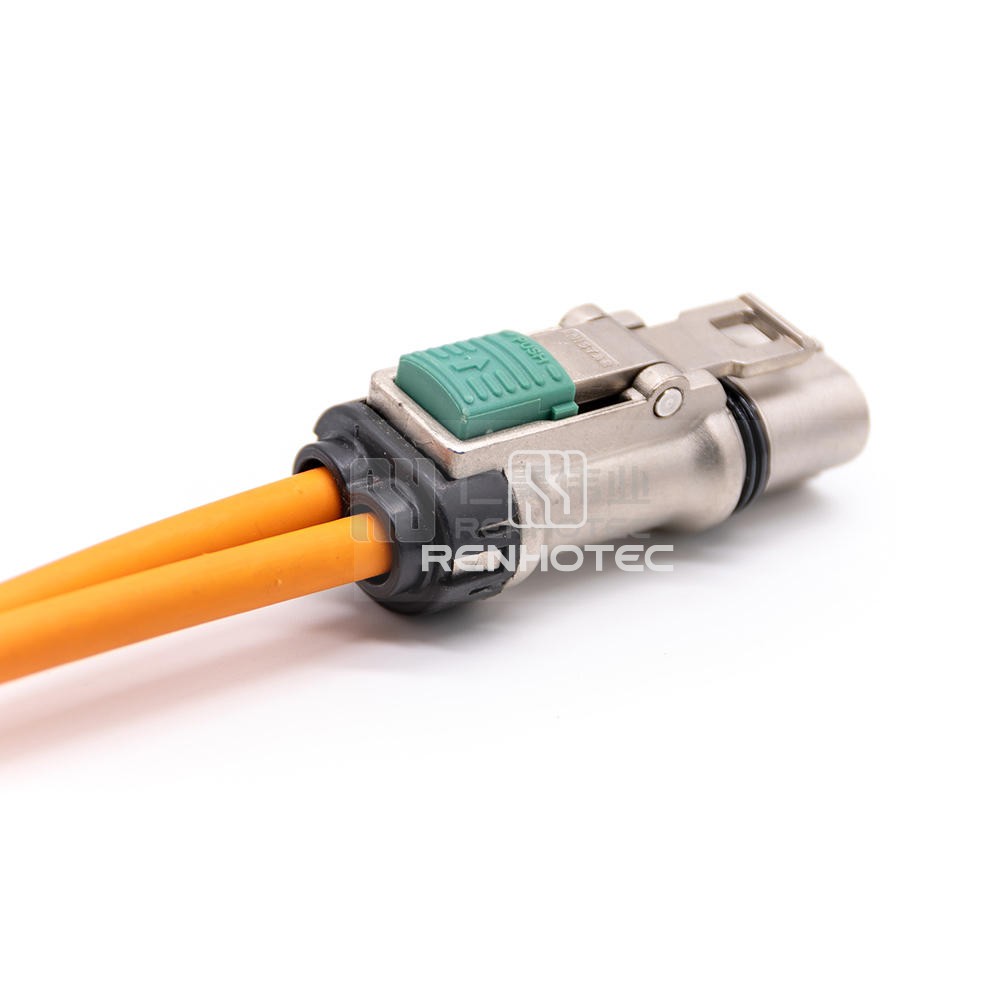

2 POS High Power Electric vehicle Cable Plug 35A 6mm2 Shielded Cable A Key Straight
Get a Quote
- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This electric vehicle cable plug is designed for high power applications like High Voltage Power Distribution, Battery Pack, Motor Controller, Electric Air Conditioning, Electric Heater, and more. It features a 35A capacity and 6mm² shielded cable for reliable performance.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | A |
Color | Silver |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 35A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 6mm² |
Material | |
---|---|
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
