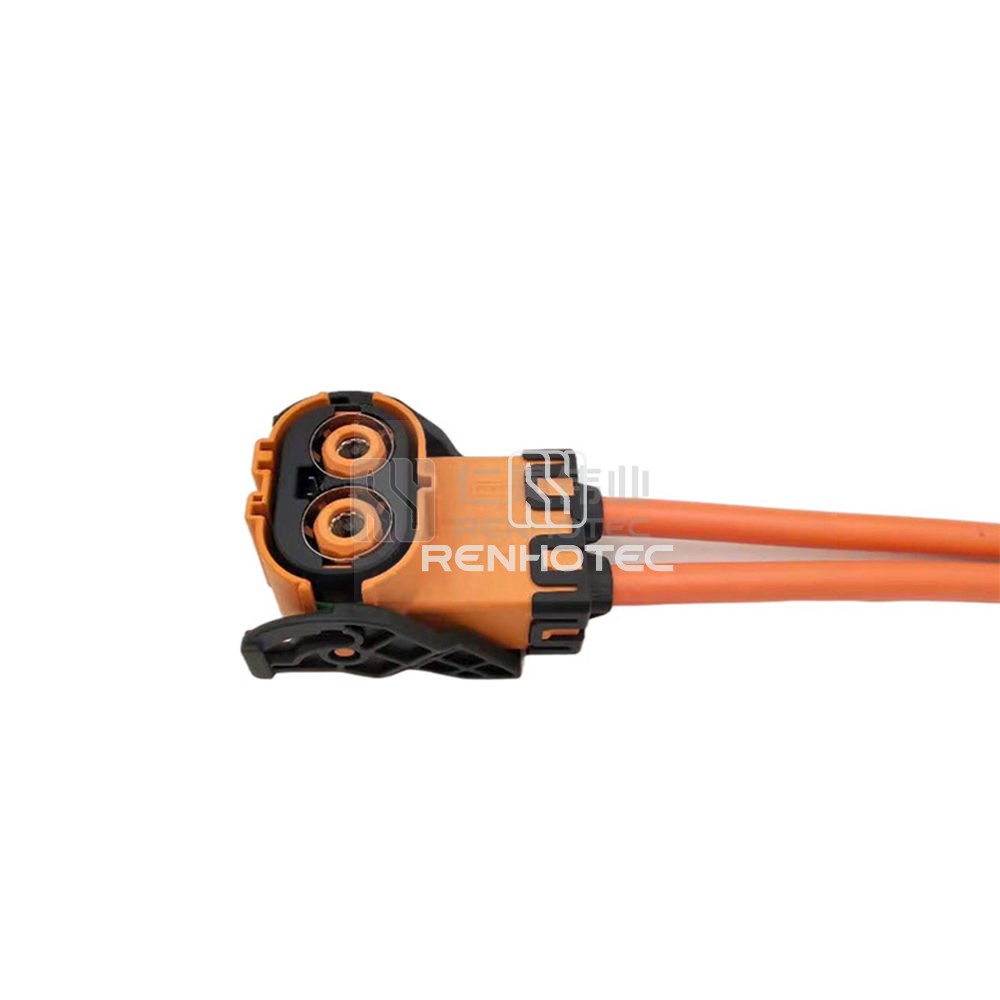

Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Right Angle
ST515400-A-50
2 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Right Angle- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-power electric vehicle cable plug features a key right angle design, suitable for applications like high voltage power distribution, battery packs, motor controllers, electric air conditioning, and electric heaters. This plug provides reliable and efficient power for various electric vehicle systems.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 2 |
| Contact Size | 9mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Features | Waterproof |
| Electrical | |
|---|---|
| Rated Voltage | 1500V |
| Rated Current | 250A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 50mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
